Pb Free 0201 0402 0603 0805 1206 1210 2010 2512 Chip SMD Fixed Resistor



Feature:

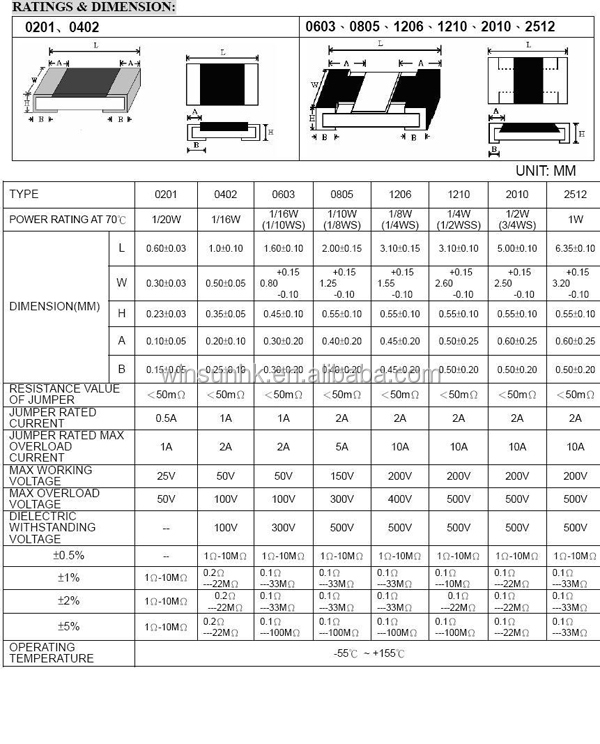

*Size Range: 0201~2512

*Resistance Range:0.001R~10M

*Resistance Tolerance: +/-5%; +/-1%

*It can reduce the area and weight of the PCB for its small size and light.

*Operating ambient temperature: -55°C to +125°C.

*High credibility:the thick metal film resistor body is added with glass protective layer and three layers of electrode composition.

*The appearance dimension is symmetrical and accurate for easy assembly.



*  Minitature and light weight.

*  Suit for reflow and wave flow solder

*  Stable electrical capability,high reliability.

*  Low assembly cost, suit for automatic SMT euipment.

*  Superior mechanical and frequency characteristics.

*  Rohs compliant





APPEARANCE

*  The surface of reistor is covered with Protective Coating which hard to fade, and the surface of coating should avoid uneverness.

*  The terninal part is covered equable, the plating is hard to fade, and should avoid unevenness,flaw, pinhole and discoloration.

*   With a clear mark, the resistor body is crack-free.

 Reference Standard:

GB/T 57296-2003

GB/T 9546-1995
