Yisonhonda сельскохозяйственная машина ручной/ручной работы Электрический бункер

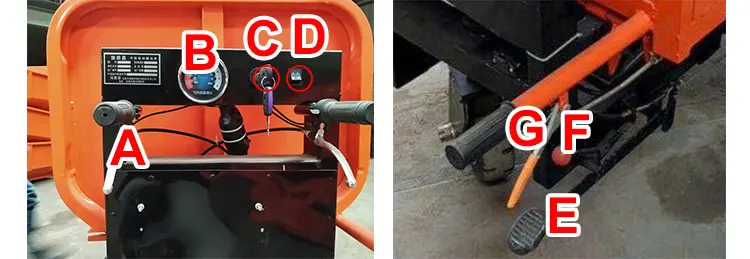

1. Simple operation introduction of large dump truck

A: Driving brake: you can use hand to stop the mini dumper when it is moving.

B: Electricity meter: you can see the electricity using condition clearly and you can charge it exactly.

C: Power switch: On and off, by using the key to turn it to on position to start and off position to stop.

D: Horn: Press this black round button, to make sound to notice person.

E: Forward and backward: press own upper part, go forward direction. press down under part, go backward direction.

F: Accelerator control: it controls the mini dumper's speed. Rotate it in clockwise direction to speed up.

G: Handbrake: When mini dumper is stopped, you can use handbrake to make it not to move anymore.

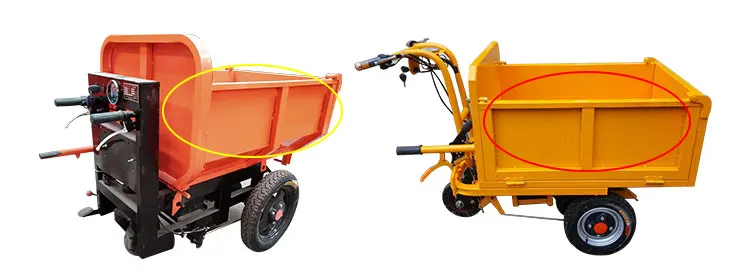

Cargo box shape, 2 types can be chosen, one is oblique shape, the other is straight shape.

Oblique shape cargo box can load mortar, rocks and irregular cargoes.

Straight shape cargo box is suitable to load regular cargoes, can load more. doors can be three side opened.

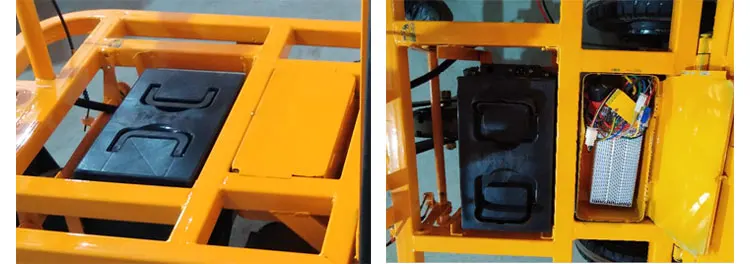

There is two square boxes to put batteries and controller. There is cover for controller to protect it.

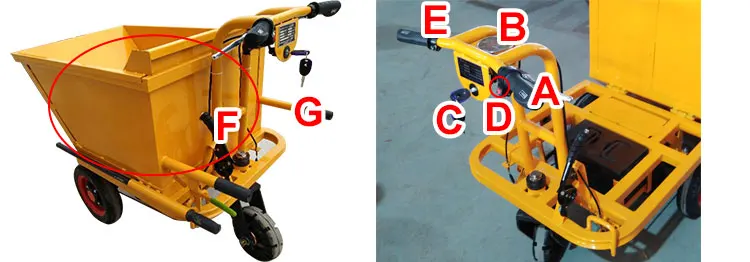

2.Mini dumper simple operation introduction

A: Driving brake: you can use hand to stop the mini dumper when it is moving.

B: Electricity meter: you can see the electricity using condition clearly and you can charge it exactly.

C: Power switch: On and off, by using the key to turn it to on position to start and off position to stop.

D: Forward and backward: press own upper part, go forward direction. press down under part, go backward direction.

E: Accelerator control: it controls the mini dumper's speed. Rotate it in clockwise direction to speed up.

F: Handbrake: When the mini dumper is stopped, you can use handbrake to make it not to move anymore.

G: Lifting lever: Use it to lift the cargo box. Equip with long lifting lever, adopts lever principle to save labor.
