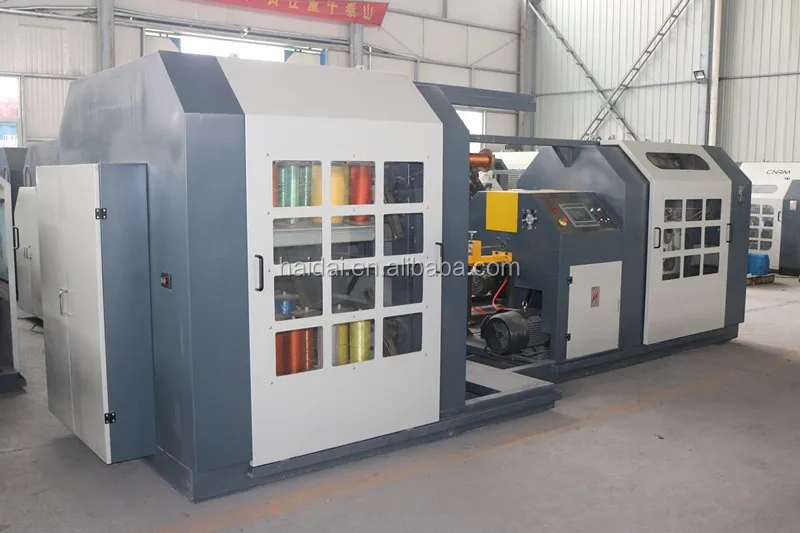

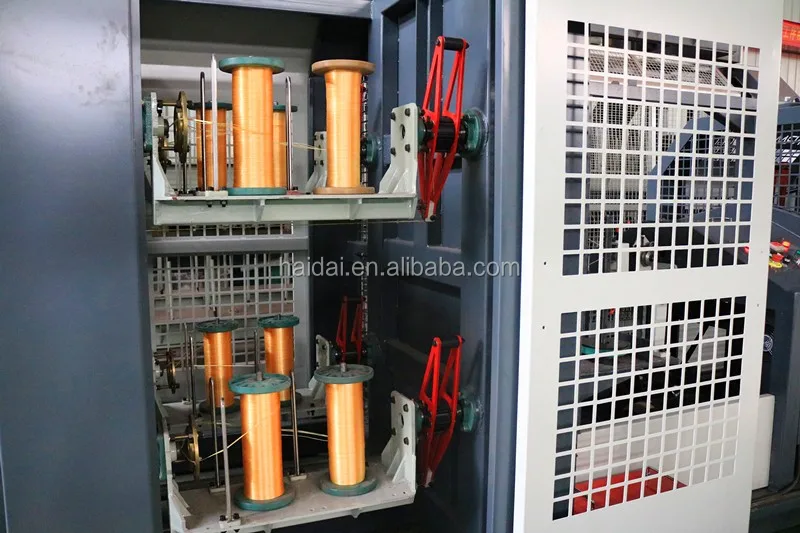

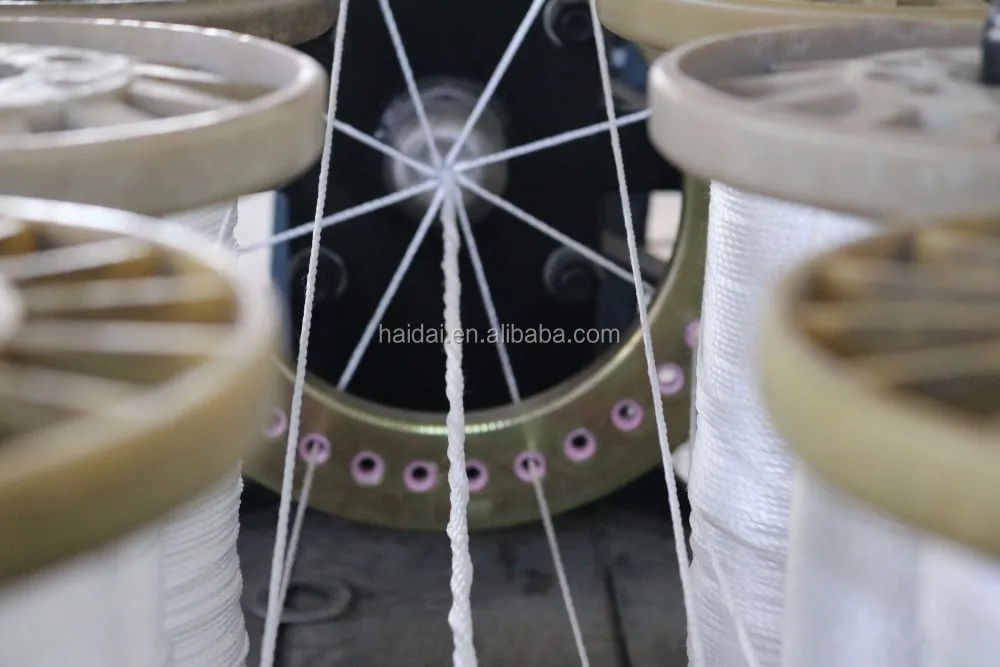

All kinds of specification of twisted pp plastic nylon rope for 3 strand or 4 strand can be made by this rope making machine in chine price.It is suitable for rope production of different material, such as HDPE&PP monofilament, danline, polyester, nylon, cotton and etc. This pp danline fishing rope making machine is equipped with frequency converter, meter counter, overtravel-limit switch and auto-stop device.It is easy to adjust the rope tensility and change the direction of twist and lay length.

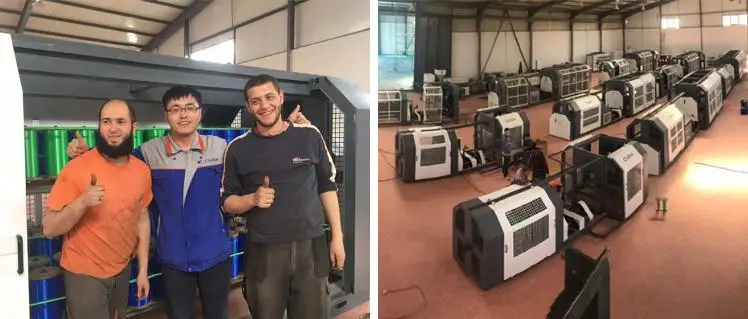

Our machines have been exported to: Mexico, Ecuador, Morocco, Algeria, Kenya, Sudan,Saudi Arabia,Russia,Korea, Vietnam, Romania,Thailand and so on.
Item | HDTM-M22 | HDTM-M33 | HDTM-M44 | HDTM-M55 | HDTM-M66 |
Rope Range | 3-6mm | 3-10mm | 6-14mm | 12-22mm | 18-26mm |
Lay Range | 18-30mm | 15-38mm | 20-50mm | 32-78mm | 40-105 |
Power | 5.5kw | 5.5kw | 7.5kw | 11kw | 18.5kw |
Take-up capacity | Φ130*Φ350*Φ255 | Φ130*Φ500*Φ320 | Φ130*Φ600*Φ400 | Φ130*Φ600*Φ400 | Φ140*Φ700*Φ450 |
Size of pay-off bobbin | 175*300mm(8") | 175*300mm(8") | 175*300mm(8") | 175*300mm(8") | 175*300mm(8") |
Qty of 8" bobbin | 4 or 6 | 8*3 or 8*4 | 24*3 or 24*4 | 32*3 or 32*4 | 46*3 or 46*4 |
Machine weigth | 2000kg | 2500kg | 3500kg | 5000kg | 6000kg |
Hgh output Low noise
Low maintenance Easy to operate
Rigid construction Power transmission by timing belts.
Auto stop after yarn breakage to control wastage Digital length counter meter.
Door sensor A/C drive Direct coiling head winding
We are keeping improve our machine quality and design always. New design will be updated every year.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
