2000kg/hour Stainless steel Freon compressor refrigeration IQF sprial freezer fast freezing machine for Meat processing plant

Product Description



Introduction:

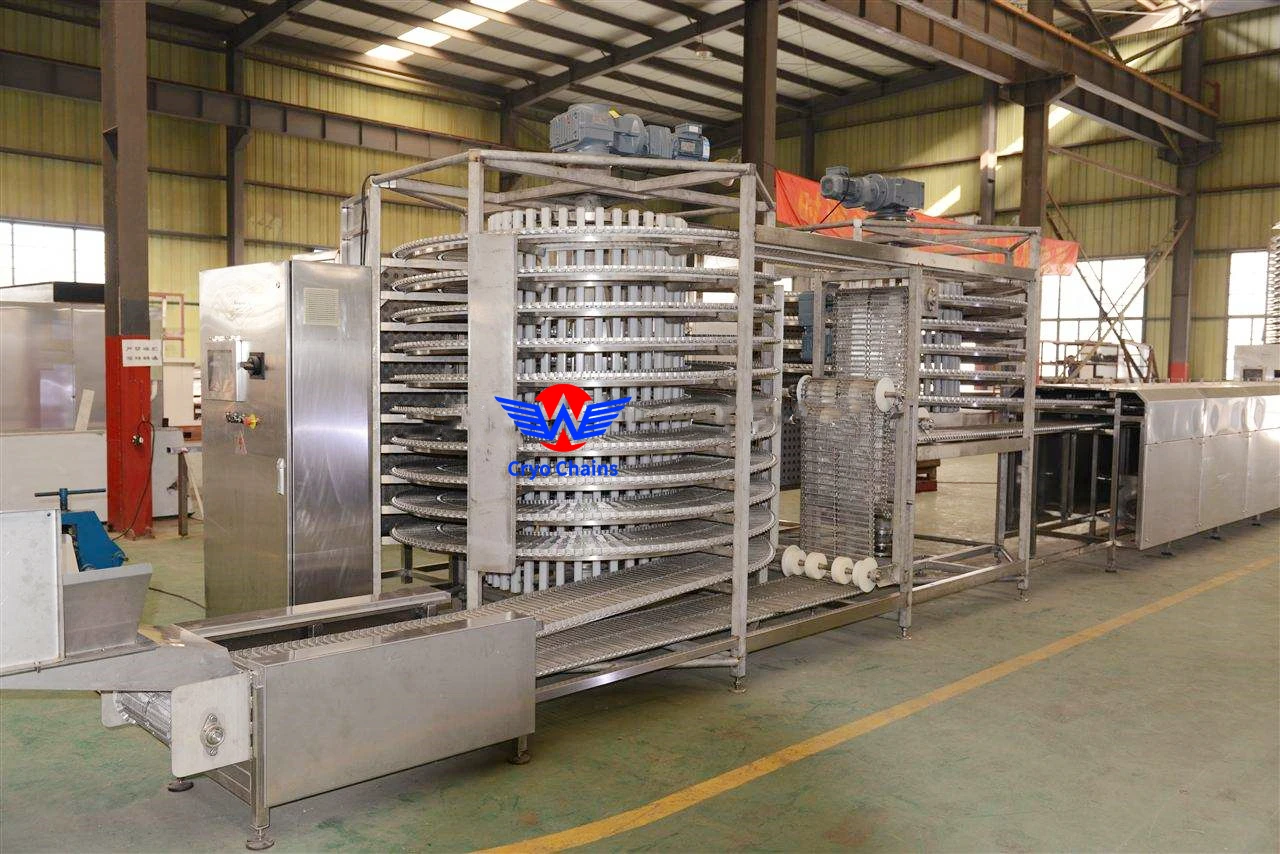

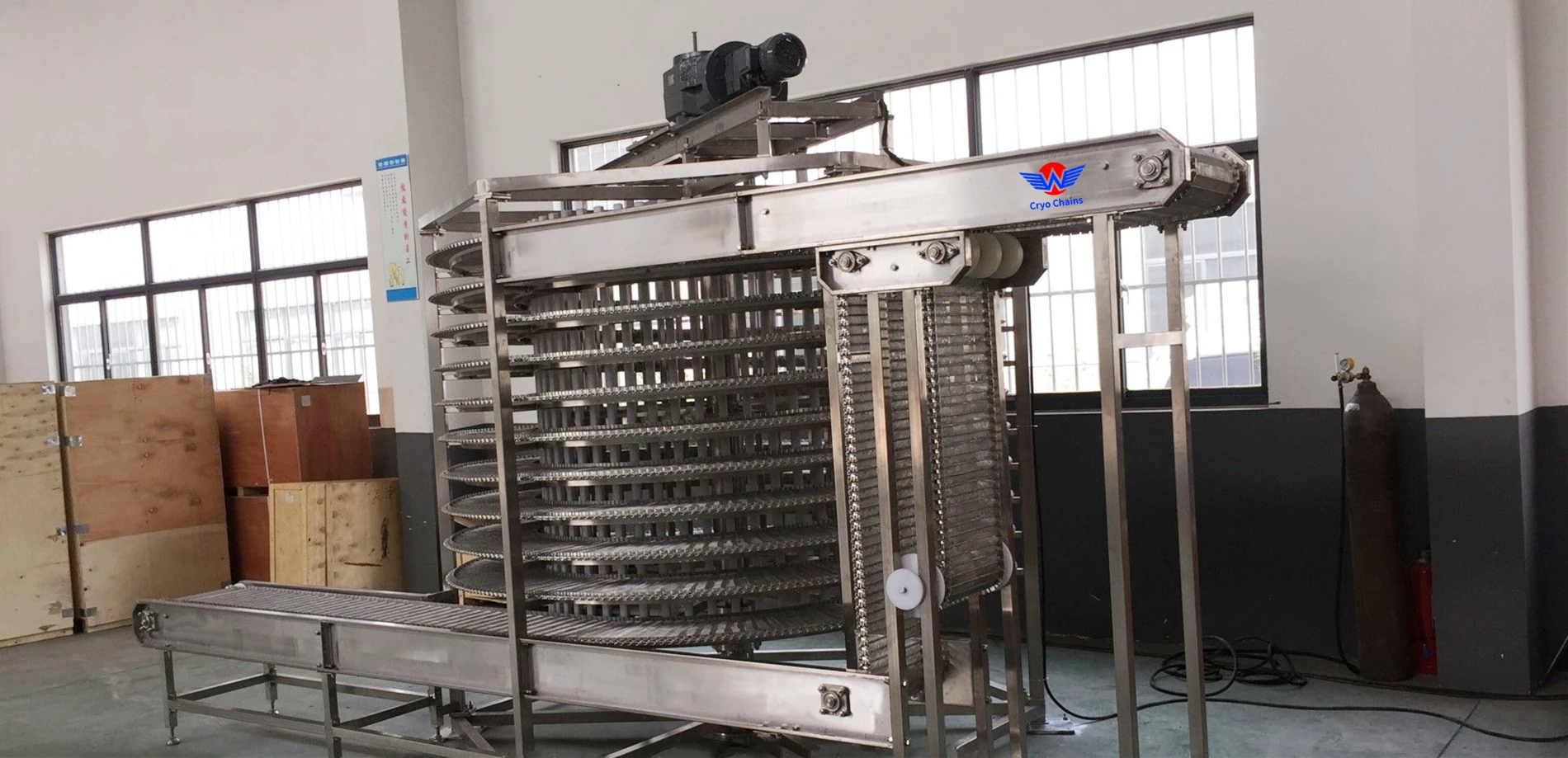

Spiral freezing machine is a compact structure, wide application area, small area, large freezing capacity energy-saving fast freezing equipment, is currently used in domestic and foreign food processing enterprises for frozen meat and other frozen products thickness, large volume, high feeding temperature first choice.

Applicable scope: prepare food, ice cream, pastry, cut meat and poultry, aquatic products, Fried food, small package food, etc.

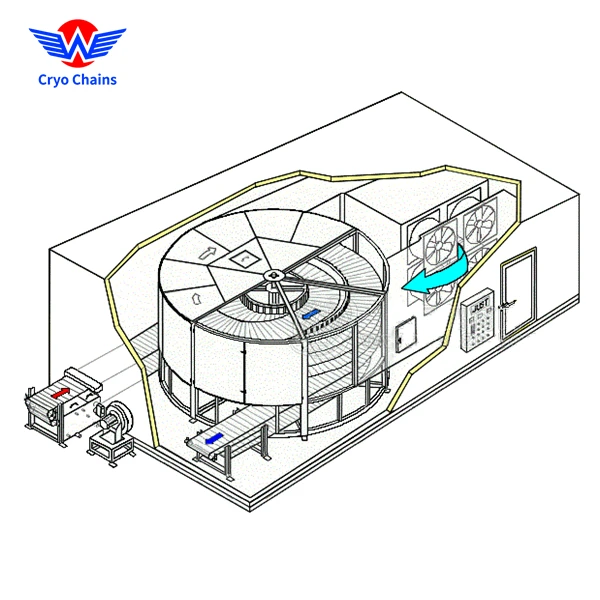

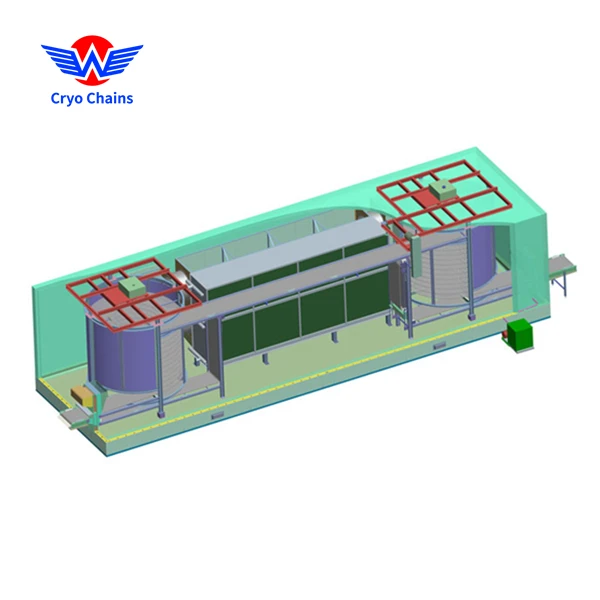

Structure and composition:

The screw quick-freezing machine is mainly composed of transmission part, evaporator, storage plate and electrical device

The driving part is composed of a driving motor, a mesh belt, a turret and an independent frequency converter.

The evaporator is composed of stainless steel and aluminum fins, arranged with variable blade spacing to ensure smooth wind circulation.

The library board is made of stainless steel.

The electrical system is composed of stainless steel electric box and intelligent control device.



Characteristics:

1. Large freezing capacity, due to the use of double drum structure, more play to the characteristics of the screw frozen machine;

2. Compact structure and small floor space;

3. A large number of mechanical machined parts are used to eliminate the transmission cumulative deviation and transmission inconsistency caused by welding deformation and welding stress concentration of welding parts;

4. The transmission network belt has strong elongation and wear resistance, thus improving the service life and stability of the equipment;

5. The equipment is equipped with a self-inspection device for the operation of the mesh belt, which can monitor the operation status of the mesh belt at any time, and eliminate unnecessary losses caused by poor operation of the mesh belt.

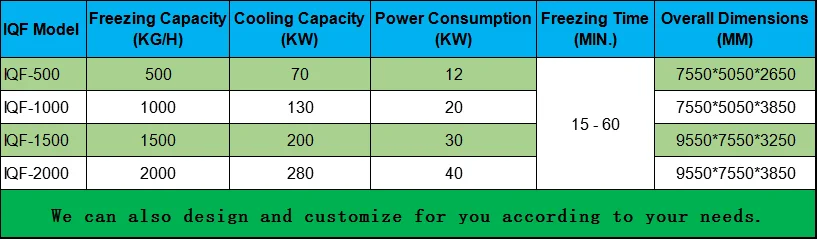

Parameters:



Packaging & Shipping

Wooden packaging or container. Mode of transport: by sea or by train.



Our Services

OEM, ODM. We can provide a good after-sales service.



Company Information

Cryo Chains is a high and new tech enterprises, which is specialized in R&D, manufacturing and selling stainless steel biological liquid nitrogen container, aluminum alloy biological liquid nitrogen container, liquid nitrogen filling tank, various customize cryogenic containers, cryogenic pipeline, Cryogenic instruments & equipments and managing system software for stem cell banks and biological sample banks.

Cryo Chains has always been upholding the corporate concept that “the company should seek supreme quality, advanced technology, sincere service and innovative development”. We have a technical team of professional technical personnel with experience of about many years in R&D and manufacturing of various types of cryogenic liquid storage and transportation equipment. Particularly, we have accumulated rich experience in acquiring and keeping vacuum, multi-layer insulation, biological product cryopreservation, cryogenic intelligent electronic control system, and so forth.

Cryo Chains is also equipped with advanced manufacturing facility, manufacturing technology, detection means, and professional cryogenic product design and scale production capability. Having successful experience of several major cryogenic engineering implementations, we have established technical cooperation with many higher institutes and research institutions. Our business covers stem cell bank, blood bank, hospital, biological engineering, animal husbandry, higher institute, research institution, machinery, petrifaction, semi-conductor, aerospace, superconductor, industrial gas and liquid, metallurgy, new material, air separation, low carbon chemical engineering and so on, and could provide mature program design.

Our products have passed the test of national cryogenic liquid container testing center; meanwhile we get the CE certificate. The company strictly follows ISO 9001 quality control procedures to ensure its product quality and 100% qualified product rate. In the meanwhile, after-sale service system of quick response is established to make sure that users can safely use its products. Now our products have been sold to over 50 countries in the world and earn very good reputation.



FAQ

Q: What are the working principle?

A: First, frozen goods will pack to be frozen food dish on the horizontal conveyor chain quick-freezing machine, frozen goods plate with the conveyor chain into the ascension of quick-frozen indoor track, to step into the ascension movement, frozen goods to dish up to the bridge location, push plate is frozen goods will improve orbit plate to drop in orbit, and then frozen goods plate with falling orbit to the horizontal conveyor chain, conveyor chain plate send SuDongShi frozen.When the above process is realized in the quick-freezing room along with the frozen food plate, the strong cold air generated by the refrigeration system forms a stable horizontal annular low-temperature airflow under the action of the fan and the deflector, conducts heat exchange with the vertically moving frozen food, and the frozen food realizes rapid cooling and freezing to complete the freezing process.All the above process is in the frozen machine "brain" - programmable logic controller (PLC) "under the command" completed, and human-computer interaction is realized by the LCD touch screen.The main interface of the touch screen is equipped with "automatic", "frozen time adjustment", "manual", "alarm", "status", "defrosting" and other operating interfaces.When the system starts up, it enters the interface in the automatic running state. The working instructions are issued by the "start" and "stop" buttons on the touch screen.
