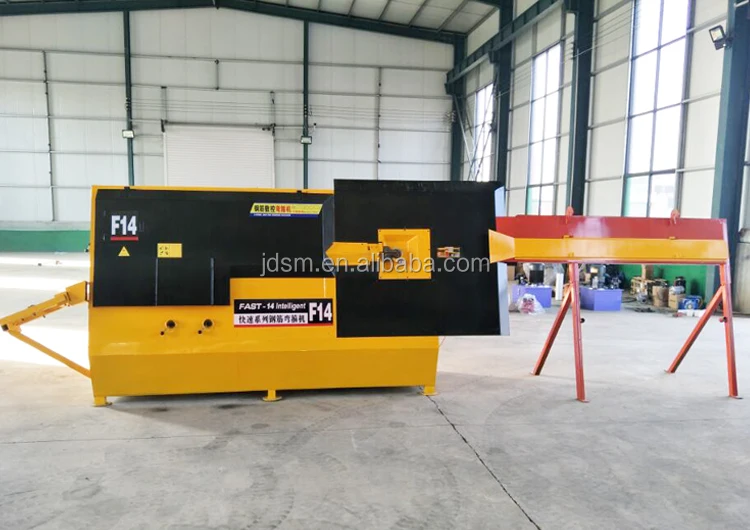

F14 Hoop steel portable bar bending machine / stirrup bender

Product Description

 rebar bending machine b3

The brief introduction of hoop bending machine


 hoop bending machine integrates straightening, bending, shearing, measuring, counting on the whole, compact and reasonable structure, simple operation, high production efficiency, labor saving, the automatic microcomputer control servo motor, high speed, power, technology, has the advantages of low failure.

rebar bending machine b8

The advantage of hoop bending machine :

1, It can handle single round Φ5 ~ 14mm, double Φ5 ~ 12mm round coil rolled and hot-rolled steel and rebar;
2, Using CNC servo control system, to achieve fully automatic, uninterrupted bending molding process;
3, Steel straightening, length, bend hoop, cut off the perfect combination of steel processing to meet the accuracy requirements of a truly multi-purpose machine;
4, The maximum capacity of 1800 stirrups / hour, equivalent to more than one worker's production efficiency, while saving the maximum material;
5, Arbitrarily set the required processing size, a variety of graphics for your free choice.

Feature of hoop bending machine  :

1.With CNC control, it can process square, rectangle, diamond and polygon of various sizes and specifications

2.From the wire rod raw material to the stirrup product forming once, can process cold, hot rolling high strength wire rod reinforcement

3.High productivity, equivalent to twenty to thirty artificial

4.Save the raw materials in the work, almost no loss of material reinforced continuous molding.

5.Small footprint, save the straightening work area and cutting work area, can work in the narrow area

6.The cost of maintenance and power consumption is is very low.

The application of hoop bending machine:

The introduction of European mature technology, automatic straightening, bending hoop, cut off, the real full automation, servo motor driven by foreign imports, top-brand PLC intelligent control, bending two bars at the same time, high production efficiency, finished stirrup technical parameters accurate. Only one or two workers can operate, saving a lot of labor.

The parameters of hoop bending machine :

Machine model JD-RB-F14
Max bending angle180°
Max feeding speed75 m/min
Max bending speed800 °/sec
The length accuracy±1 MM
The angle accuracy±1°
Single rebar diameter5-14 MM
Double rebar diameter5-10 MM
Productivity1600 Piece/Hour
Power37 KW
Total weight2290kg
Machine size3560*1080*2030  mm







Detailed Images

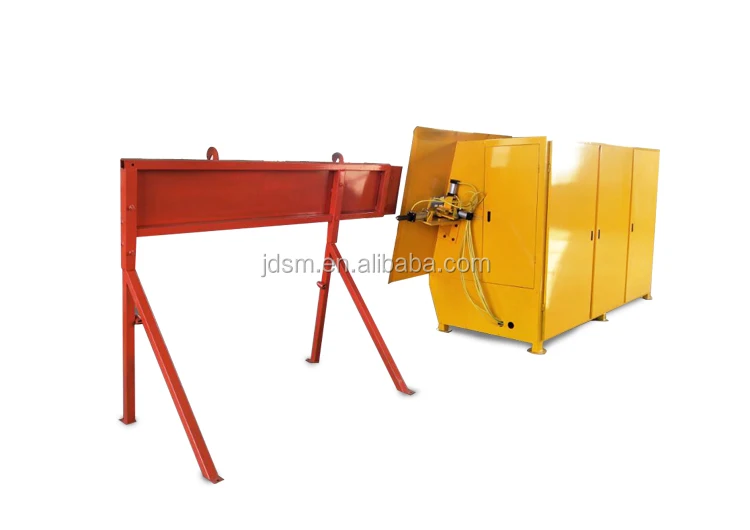

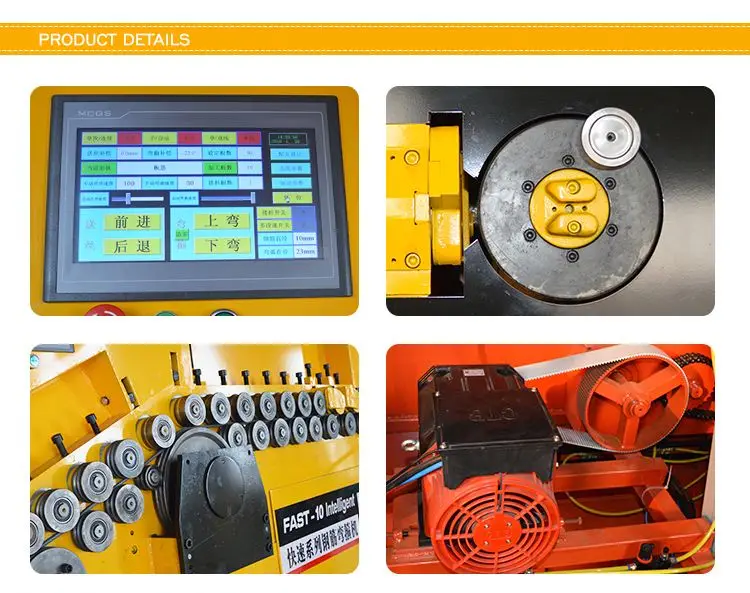

 The detail of hoop bending machine:





65911

65912





Company Information

Xingtai Greatcity(JUDU) machinery manufacturing Co. Ltd is located in the historical industrial zone,Hebei province.Founded in 1999,occupying an area of 30,000 square meters.We have more than 100 sets of equipments,which are operated by 300 woekers.

 F series rebar bending machine  and  R series reber bending machine  are our advandage products.

Our coompany has now passed the ISO9001:2000 international quality management system certification.Our products have been exported to the USA,Germany,Pakistan,Australia and many other countries,and the annual export amount is over USD9,000,000.

CAE51636843E6C460ABF43A872BC8A68

3d_07

Capacity:

Main MarketsTotal Revenue
Africa24%
Mid East13%
South Asia11%
South America9%
Eastern Asia10%
Northeast Asia8%
Europe7%



Export Percentage: 91% - 100%

Export Mode: Have Own Export License

Language Spoken:

English,French,Spanish,Arabic...

No. of Employees in Trade Department: 30- 50 People.



FAQ



1. Q: Are you a manufacturer or trading company?

A: We are an professional manufacturer with many years experience.We can guarantee the competitive price & high quality around the market.

2. Q:Can you do OEM and ODM?

A: Yes, we can provide OEM and ODM service according to the customers’ requirement(including the material, color, design, packing, logo).

3. Q: Could you provide the free samples?

A:. Yes, we can provide the free samples if you are interested in our products.

4. Q:What about the lead time for sample and mass production?

A: we can send the sample to you within 2-3 days.Of course, it may takes more time for massive order.

5. Q: How does your factory control the quality?

A: We have the professional QC group inspect the details in each process.After finishing the goods, our QC will inspect piece by piece.

6. Q: What’s your terms of delivery?

A: We accept EXW, FOB , CFR, CIF etc.







Our Services

Pre-sale Service

1.Supply item design,process design.

2.Help you to chose the fitest machine.

3.Making the machine according to your requirement.



Sale Service

1.Acceptance equipment together with you .

2.Help you to make the method statement and the details of the process.



After Service

1.Guarantee for 5 years.

2.Quality problem,we will sent you the accessories (without accessories charge).

3. whole using life supply maintain and repair video support .



contact us



Dear friend:

Welcome you purchase our standard products or send us your OEM and ODM requests. You will be impressed by our superior quality, quick delivery date and attractive price.

if you like Greatcity brand hoop bending machine, please click for sending inquiry.
