Function

1. Low power consumption  CMOS Double integral A/D conversion integrated circuit, automatic zeroing, automatic polarity display, data retention, low battery and over range indicator.

2. DC basic accuracy: ±0.5%

3. Capacitance measurement: 10pF~100mF

4. Temperature measurement: -40℃  ~1000℃

5. Full overload protection function.

6. Backlight function: applicable to the dark environment.

7.Auto Power Off: turn off the power automatically about 15 minutes after starting, in case of forgetting to switch off the power when the meter is used.

8. Maximum display: 5999.

9. LCD: 63X40mm large screen, high contrast, full symbol

display, words height 25mm, clear and artistic.

10.Power Supply: one 9V battery(NEDA1604,6F22 type or equivalent type).

11.Low battery voltage indication: at LCD left part shows“”symbol.

12. Size:180x88x53mm.

13.Weight: about 359g (including battery, protective cover).

14. Environment condition:

working temperature:0℃~40 ℃                  relative humidity< 85%

Storage temperature:-10 ℃ ~50 ℃             relative humidity< 85%

Guaranteed accuracy temperature:23 ℃ ±5 ℃   relative humidity< 75%

 Technical Specifications

Accuracy: (%Reading ± Words) The guarantee period is one year.

Environmental temperature: 23℃±5℃

Relative humidity: < 75%

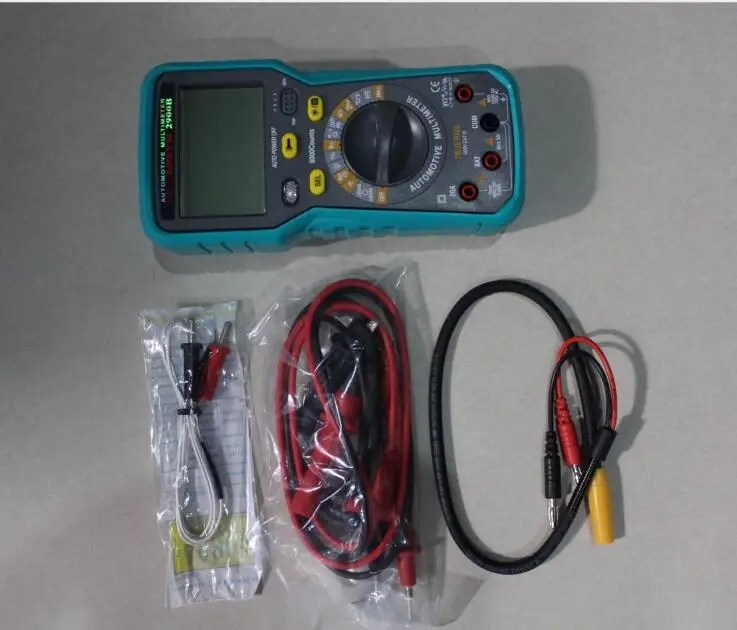

Accessories

1. User's manual 1 pc

2. Guaranty card 1 pc

3. One rubber sheaths (with iron suction)

4. Test lead 1 pair with clip

5. K type simple thermocouple (with plug)

6. KV sensor
