СВЕТОДИОДНЫЙ танцпол для видео

Описание и отзывы

Характеристики

P10mm LED Video dance floor/led screen dance floor tile



1)more sensetive and high brightness
2)Pixels placing:10mm
3)certification:CE &ROHS



Technical Parameters

Item No.: RG-VF10

Name: P10 LED video dance floor



Specifications

Pixel pitch:10mm

pixel density:10000Dots/m2

Pixel configuration:1R1G1B 3in1

Led stand:0805

Module resolution:32*16Dots

Cabinet resolution:H128*V96

Module size:320*160mm

Cabinet size:960*960mm,2.24mx1.22m

Cabinet weight:55kg/sqm

Brightness:>1500cd/m2

View angle:>110

Power consumption:570w/m2

Best viewing distance:10-50m

MTBF:>10000

Protection level:IP65



Description

I. Producer of all kinds of LED Chips and Dimension

LED Manufacture Type and Dimension

Red Domestic made 546/Chip made by Tai Wan Opto tech.Co

green Domestic made 546/chip made by Tai Wan Guangjia Co.

blue Domestic made 546/chip made by Tai Wan Guangjia Co



Protection technical

Defend moisture, dust palliative, antisepsis,anti-electrostatic and defend a thunder, also have over-current, short circuit, overpressure, under-voltage protect function.

Display content

WORD documents, picture documents

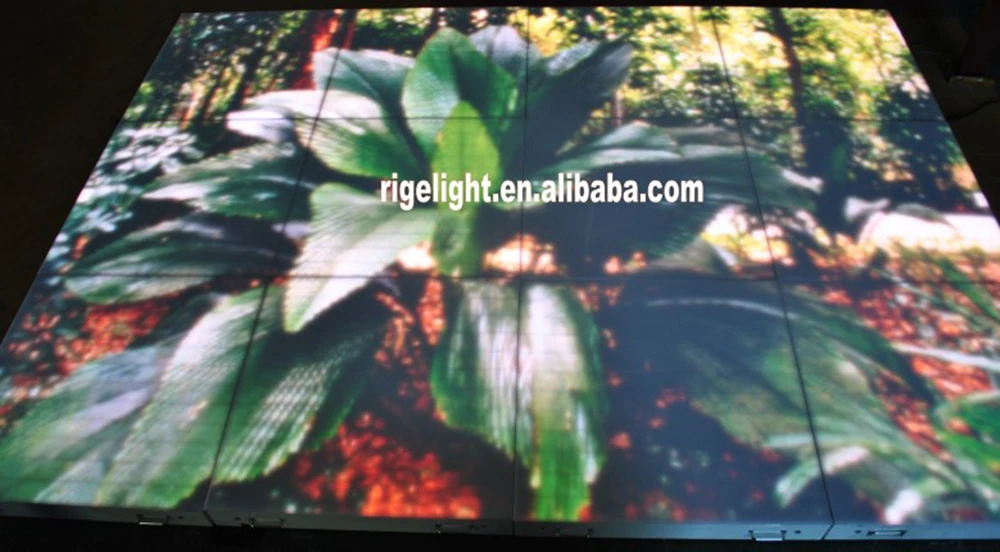

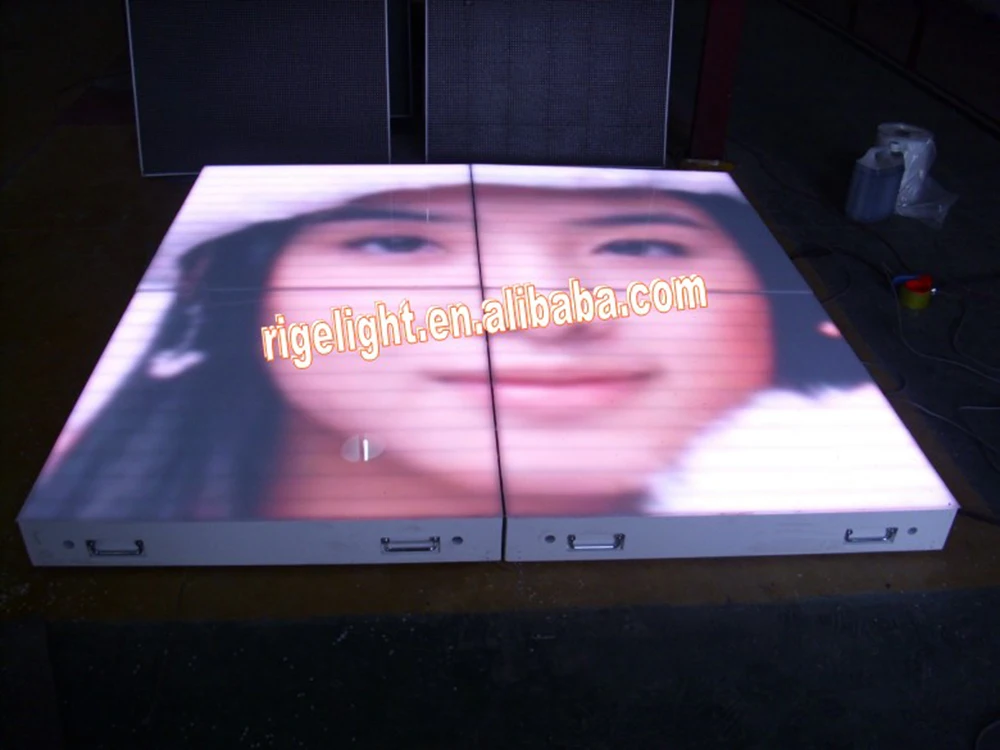

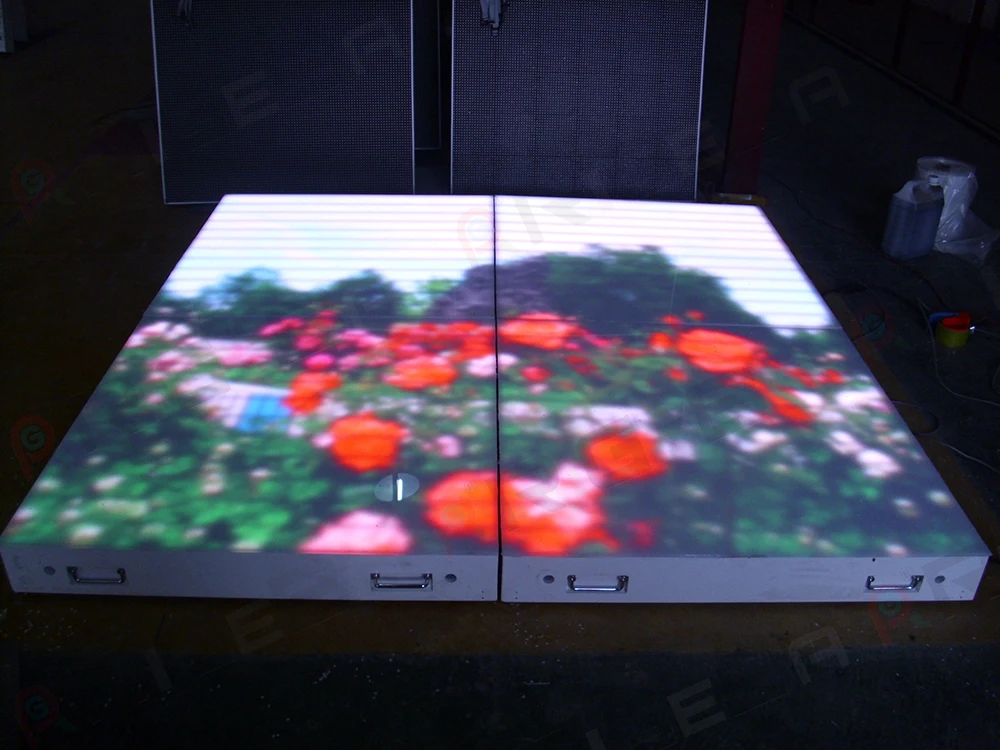

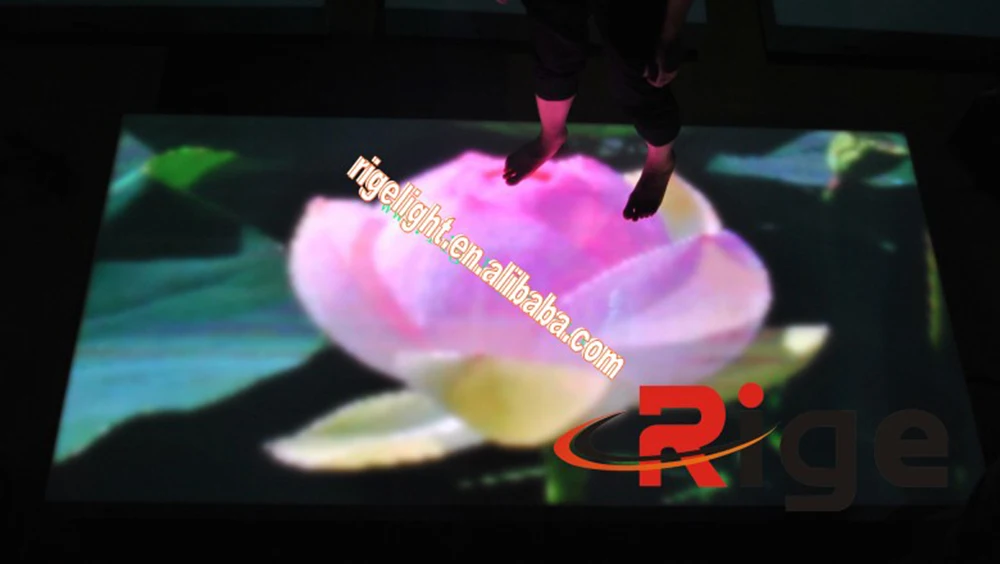

products pictures:
