Высокое качество решение RK3288 основная плата android для ЖК-дисплея
- Категории: Multilayer PCB >>>
- Поставщик: Shenzhen,Jld,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
| CPU | RK3288,Cortex-A17, Frequency 1.8GHZ |
| GPU | Mali-T764 |
| OS | ANDROID 5.1/7.1 |
| Memory | DDR3 2G maximum 4G |
| Built-in memory | NANDFLASH 4G,maximum 16G EMMC support 32G |
| External memory | Support TF CARD --- highest 32G disk,support usb drive as storage |
| Display interface | LVDS(pin); EDP(pin); MIPI(pin); HDMI-compatible
|
| Dual screen display | Support |
| Backlight Voltage | 12V |
| Display voltage | 3.3V,5V,12V option |
| Network | Support 1000MHZ LAN , wireless WIFI 2.4G & 5.8G, and BT3.0/BT4.0 |
| BT | BT4.0 |
| 3G/4G | Support, Motherboard comes with 3G / 4G module interface |
| Touch screen | Support multi-touch capacitive touch screen |
| USB interface | USB2.0 * 8(Including OTG*1) |
| Camera interface | Support MIPI or USB |
| Hardware watchdog | Support watchdog |
| Serial port | 8 pcs(TTL and RS232 option) |
| 485 interface | NO |
| MIC input | Support |
| Power input | DC 12V-28V/3A |
| RTC | Support |
| Timing switch | Support |
| System Upgrade | Support TF card/USB/OTG |
| Decoding | 1080P multi format video decoding (VC-1, MPEG-1/2/4, VP8) |
| Audio output | Left and right channel output, support 8 Ω* 10W L/R speakers |
| Video output | LVDS(1920*1080) MIPI(1920*1200) HDMI-compatible (3840*2160) EDP(4K*2K) |
| The effect adjust for video output | Support display vertical level adjustment & brightness adjustment |
| Infrared remote control | Unsupport |
| Adaptive temperature | -20℃ to 80℃ |
| ESD | 8KV |
| Surge | +/-2.5KV |
| Other ports | POWR_KEY,ADC,RST |
| PCB size | 146mm x 105.5mm |
Application
Advertising Player

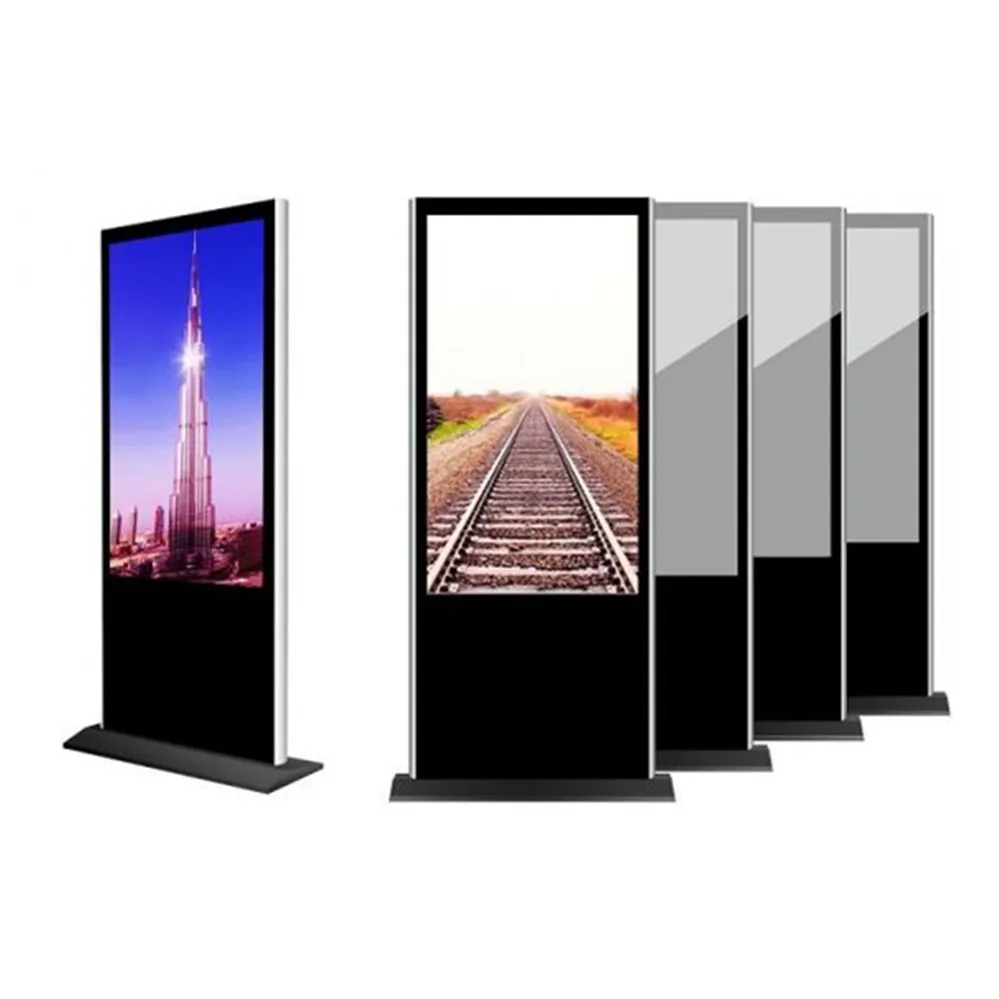

Digital Signage
POS Terminal

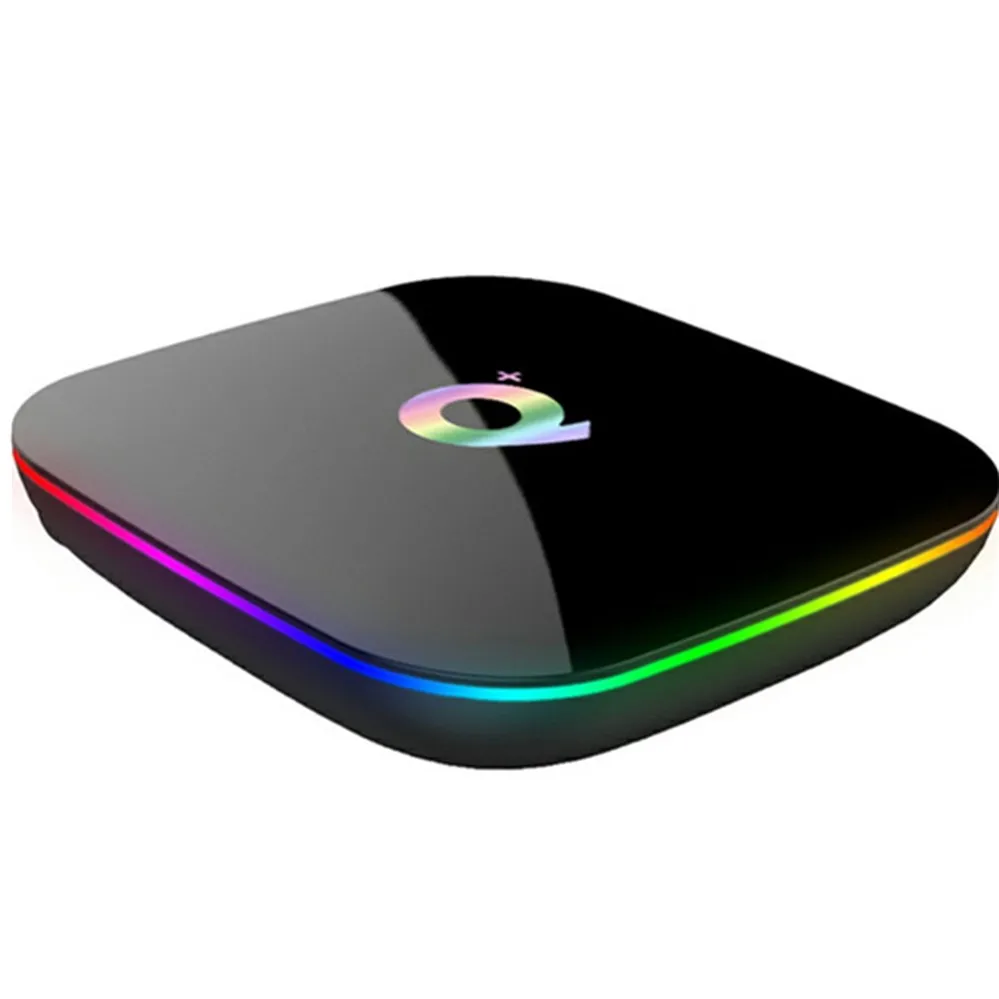

TV Box

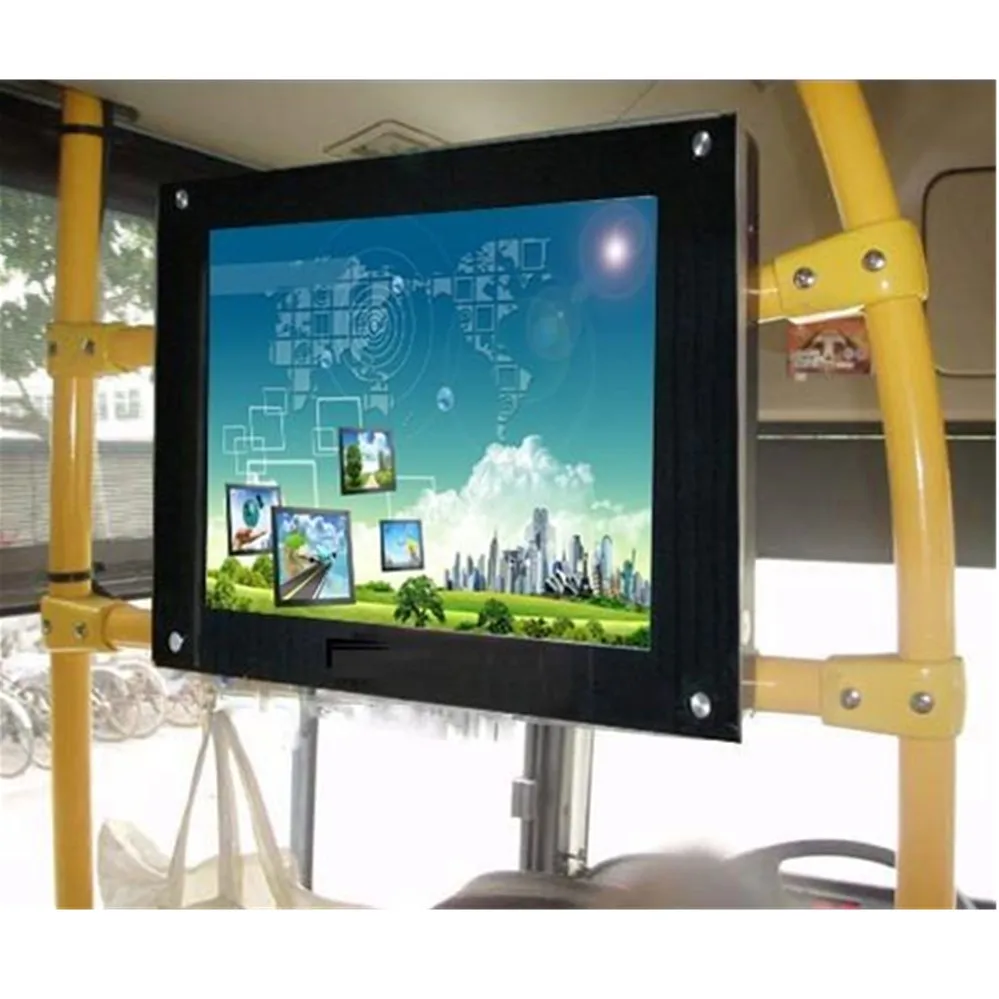

Bus Media Player

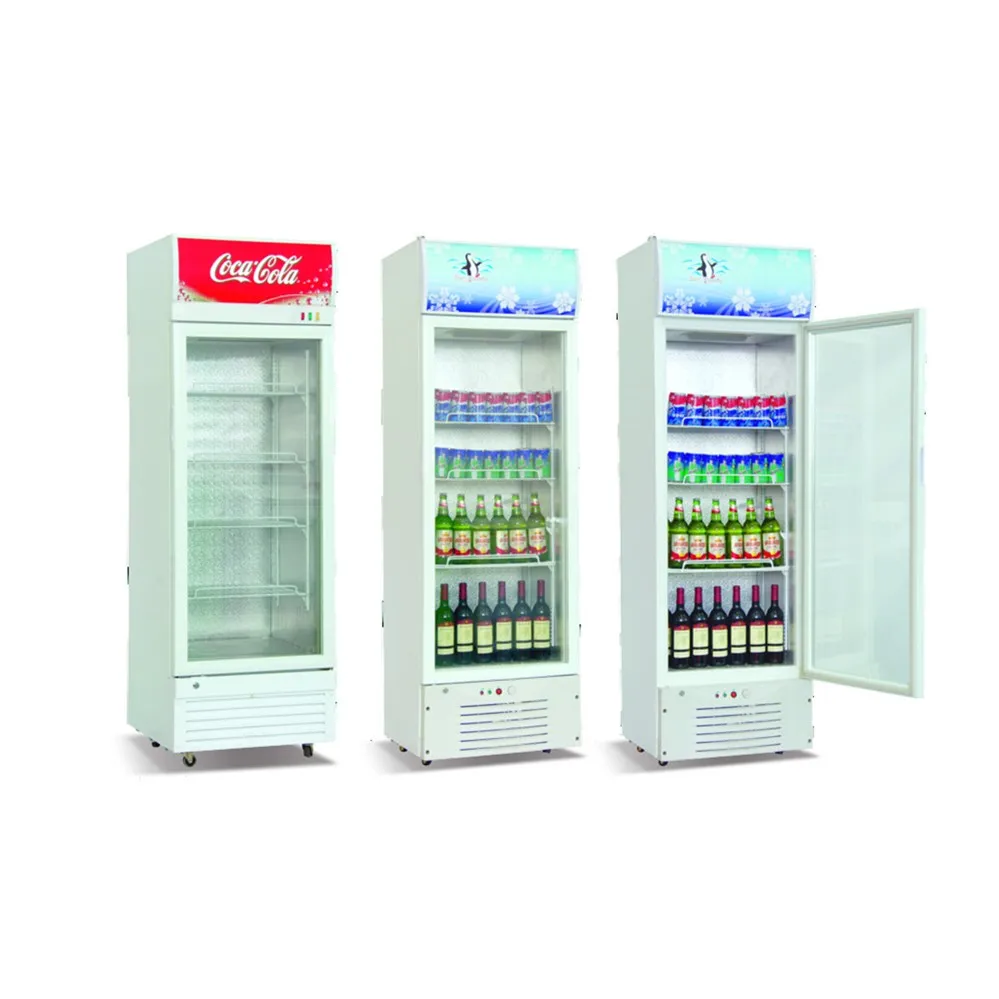

Vending Machine
Intelligent Security Monitor

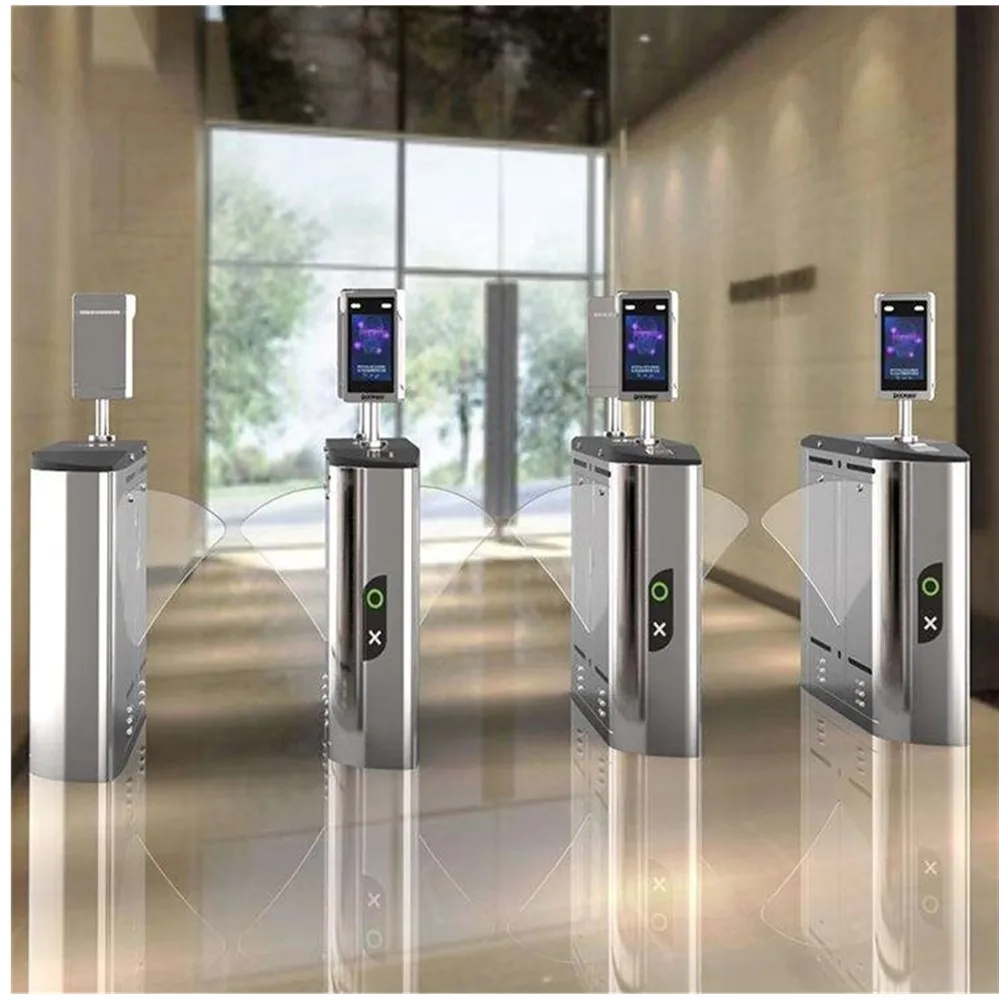

Entrance Guard

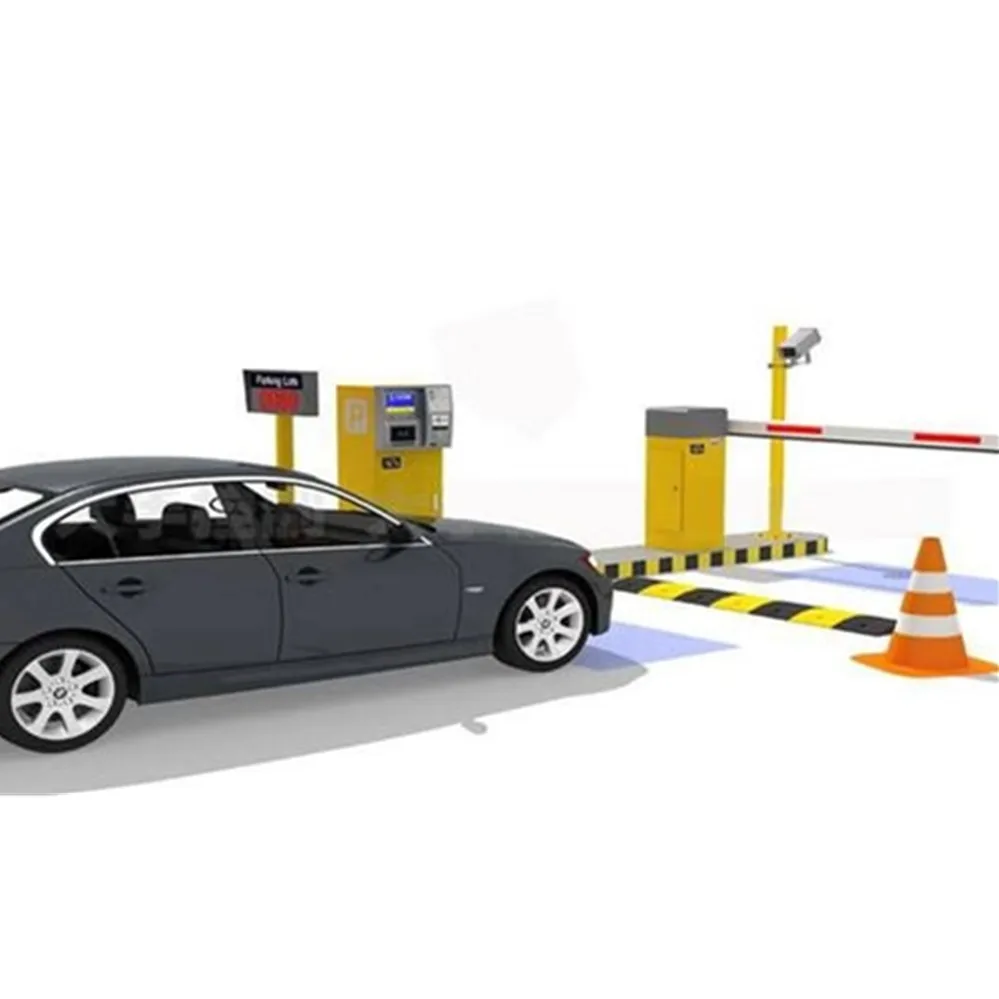

Vehicle Exit Barrier Gate

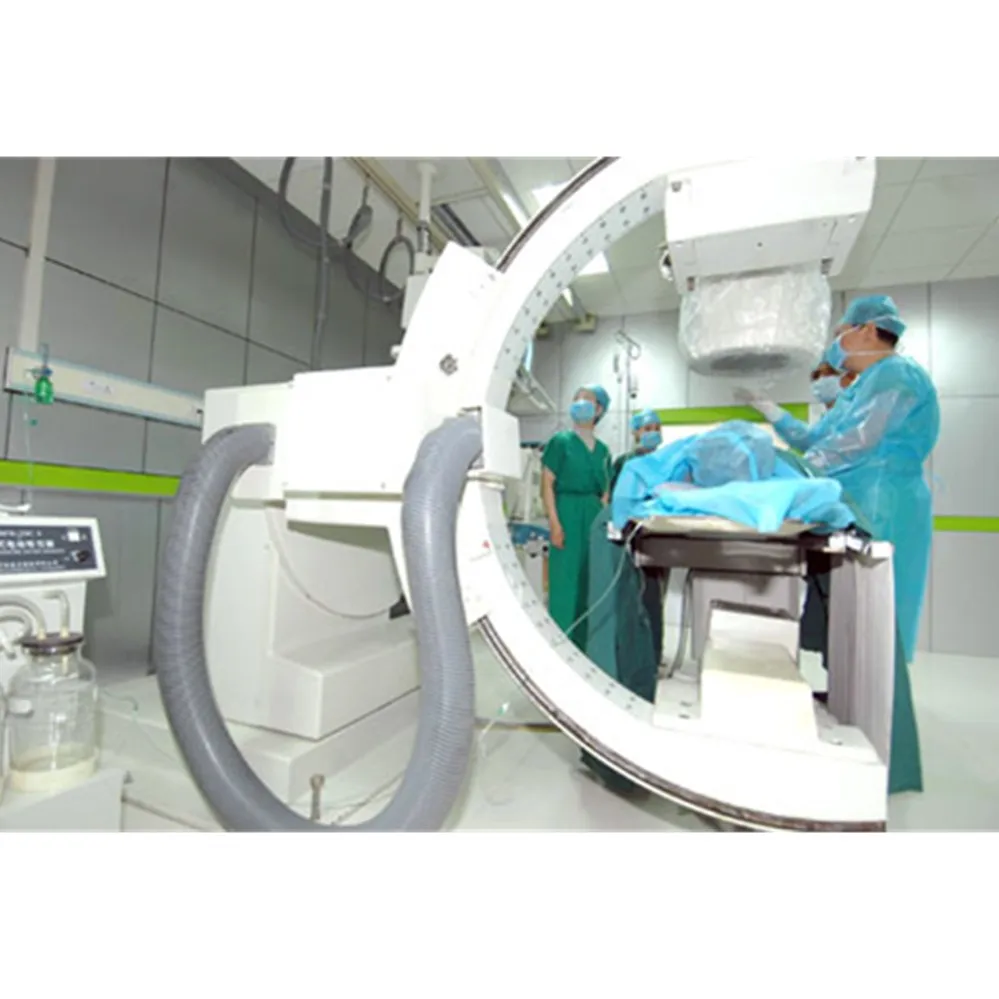

Medical Instrument and Equipment
Face Recognition
Our motherboard has a wide range of application scenarios. The application scenario of the motherboard depends on the function requirements of our customers.
Our company
Shenzhen JLD Technology Co., Ltd is founded in 2009, specialized in defferentiation intelligent terminal design development and located in applying Android operation system that design and develop PCBA based on rochchip and amlogic solving project; sell and operate Internet and smart city finished products based on Qualcomm 4G LTE chipset. Company provides project development, PCBA and the production and sales of finished products to all of global clients.
Since the foundation, our company has established long-time cooperation relationship with clients in Europe, North America, Korea, South-east Asia and so on and clients in many provinces in nationalwide. The content of project design service includes the design development and product sales of generic smart like smart city, mobile web of things, digital signage, POS machine, vending terminal, education terminal, video phone, smart broadcast, smart sports equipment, smart home, smart transportation, medical equipment and so on. Our brand clients includes Benz coach, Mengshi coach, Panasonic, Haier, Media, Jiumu, Hongkong Qishi, Korean Ministry of National Defense, Kangguan and so on. Our products are applied broadly in finance, education, hospital, media, car, industrial control, military, real estate and so on.
Trade terms:
Reliable OEM/ODM
Exw factory Shenzhen, FOB HK.
50% deposite, 50% balance before deliver.
Leadtime: 3-4 weeks.
Courier: DHL, Fedex, UPS, TNT. we also have our own cooperated forwarder agent.
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
After-sales service
Good quality control, 1-3 years warranty.
Immediate technical support.
We are your best digital signage solution provider !
FAQ
1.What is your terms of packing?
A:Generally, we pack our goods in bubble pack and outer cartons. If you have other spare parts such as LCD panel or Touch screen, wooden frame are needed.
2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3. What is your terms of delivery?
A: EXW, FOB, CIF.
4. How about your delivery time?
A: Generally, it will take 20 to 50 days after receiving your advance payment for mass order. The specific delivery time depends on the items and the quantity of your order.
5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Packaging & Shipping
Packaging
Shipping
1. Sample and mini order will be delivered within 2/3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 4 weeks after the receipt of payment.
Please contact our sales to make sure the current inventory.
