2020 New Design 2 in 1 Coin Banknote Operated WiFi Router Wireless WiFi Vending Machine

Product Description



OVERVIEW

 1

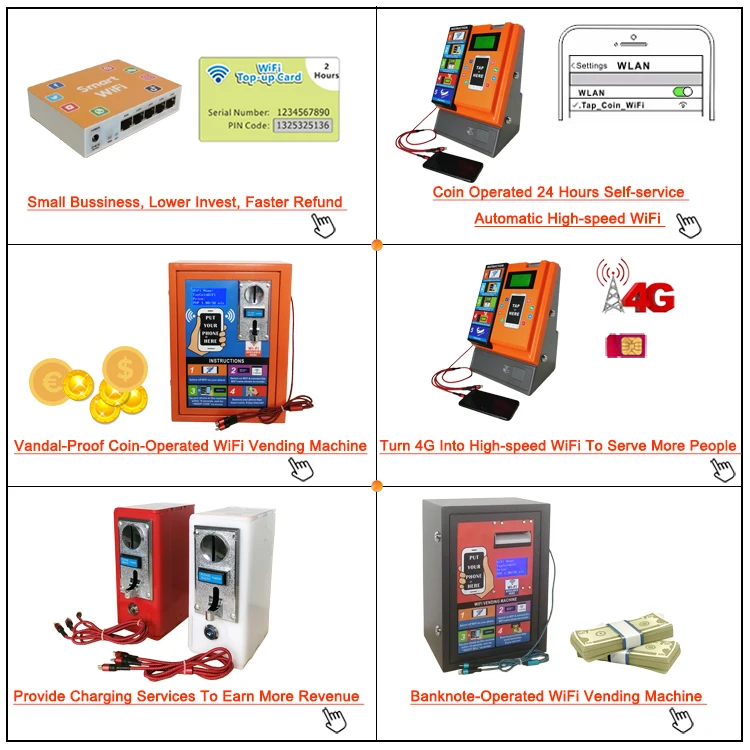

Coin/Banknote-Operated WiFi Vending Machine brings a brand-new vending business into public market. It provides visitors an immediate WiFi Internet hotspot service charged by time or traffic data.

Everyone has a smartphone, but not everywhere have WiFi. WiFi Vending Machine can fill this huge gap between WiFi needs and WiFi Coverage, and offer you a new way to gain revenue easily.

The machine is plug-&-play and easy to install. And the best part is all investment can be returned in 3 months.

Send Inquiry for Special Discounts



 FUNCTIONS

  • No inquiry, no username, and no password are required; just tap the phone, insert

    coins and/or banknotes, and get WiFi.

  • Provide big WiFi signal range (around 100 meters for outdoor / 30 meters for indoor).

  • Support around 50 concurrent users (depending on the bandwidth of Internet access) and optional high-end version can support up to 500 concurrent users.

  • No need for supervision. Self-service working method to save labor cost.

  • Provide user-friendly pop-up instruction page to tell end users how to get WiFi service.

  • Offer cloud-based NMS (Network Management System) to monitor all online machines remotely.

  • Support account roaming between different machines to help end users enjoy your WiFi service in multiple sites.

 2



Send Inquiry to Get More Product Information



FEATURES

 3



Send Inquiry to Get Complete User Instructions



BENEFITS

  • Venue owners can get extra revenue by providing WiFi hotspot service and attract more visitors which is good for his original business;

  • Venue owners can display advertisements for their products on the login page for better promotion, or show ads for other shops to get income;

  • No WiFi squatter or hacker to stole Internet because no username and password is required;

  • Travelers can get quick and cheap Internet access without paying expensive charge for data roaming or new SIM card;

  • Visitors can check/send email, browse websites, and watch videos from any WiFi-enabled smart mobile phone, tablet, laptop, or handheld device.


Related Products

APPLICATIONS

Suited for indoor, outdoor or storefront public environment, such as:

  • Long-stay place: dormitories, apartments, hotels, hospitals;
  • Crowed public place: stations, food centers, restaurants, coffee shops, pubs, lounge bars, Karaoke bars, beauty salons, chain shops, lobby of banks/hotels;
  • Sports area and recreation centers: gyms, bowling, billiards,swimming pools;
  • Tourism place: international airports, beaches, parks, plazas, exhibition and convention sites.

2020 New Design 2 in 1 Coin Banknote Operated WiFi Router Wireless WiFi Vending Machine



OPTIONAL ADD-ONS

 Cellphone Charging Box
4

      - Can get extra income by selling power charging                  service

- Input Voltage: AC100~240V 50/60Hz

- Output Voltage: DC5V

- Output Current: 2A

- Charging Cable: 4 x 1 meter

- Connector Type: IOS + Micro USB + Type C, 3 in 1

- Casing Material: ABS plastic

- Dimensions: 222mm (L) x 146mm (W) x 56 mm (H)

       - Weight: 0.9 kg

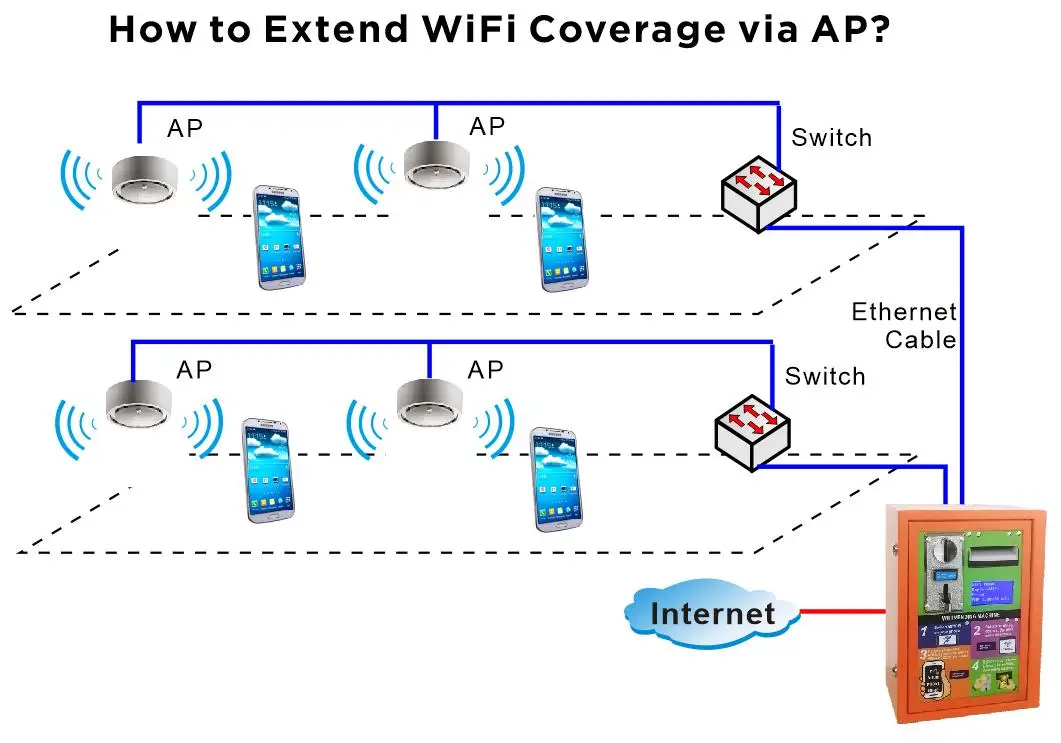

Access Point (WiFi Extender)

2020 New Design 2 in 1 Coin Banknote Operated WiFi Router Wireless WiFi Vending Machine2020 New Design 2 in 1 Coin Banknote Operated WiFi Router Wireless WiFi Vending Machine

Can extend the wifi signal range to attract more          users

- Work in dual-band: 2.4 & 5 GHz

- Support PoE in

- Provided with waterproof casing and cable outlet        (optional)

- Shall connect to machine via Ethernet cable

- Approximate extended range (* it will vary with            actual installation environment): around 100                meters (outdoor) / 30 meters (indoor)

- Dimensions: 190mm (H) x 100 mm (W) x                    44mm (D)

       - Weight: 0.3 kg

6





TECHNICAL SPECIFICATIONS

Environmental Conditions

- Temperature: 5°C to 45°C (operation) / -10°C to 60°C (storage)

- Humidity: 10% ~ 85% non-condensing

Shall work in bright environment

Power Requirement

- External adaptor (input: 100~240 VAC, 50/60 Hz/output:12~24VDC,0.8A)

- Power consumption: 6 watts

Support solar power supply

WiFi Operation Range

Radius up to 100 meters (outdoor) / 30 meters (indoor)

WiFi Frequency Range

BAND 2.412 to 2.484 GHz and 5.150 to 5.875 GHz

Supported 4G Frequency Bands (optional)

LTE FDD:700/800/850/900/1700/1800/1900/2100/2600MHz

Supported Max. 4G Data Speed (optional)

LTE FDD: Cat4 Download: 150Mbps / Upload: 50Mbps @20M BW

Supported Device for Tapping

Any WiFi-enabled mobile phone, tablet, laptop, PSP, PDA, etc.

Networking

- IEEE 802.11 b/g/n and 802.11 a/n/ac Wireless LAN

- Zero end-user configurations

Authentication

Built-in user authentication and accounting

Remote Management via NMS (optional)

- Setting of WiFi name, WiFi service price, data speed limit

- Revenue records of WiFi Internet service

- Offer voucher codes for long-term wifi service

- Supervision on running status of each machine

About Coins

- Coin Acceptance: 6 different types

- Usable Coins: Diameter: 15mm ~ 29mm, Thickness: 1.8mm ~ 3.0mm

About Banknote Acceptor

- Can accept most bills in the world

- With LED at front to indicate status

- Do not support giving changes

Supported Language English/Spanish/French/Portuguese are available (other languages can be customized)
Structural

- Housing Material: steel plate

- WAN Interface: 1x RJ45 port or 4G module (optional)

- Antennas: 1x WiFi (internal, 2.4GHz+5GHz dual-band) or 1x 4G (external, optional)

- Capacity of Coin/Banknote Container: 1.4 liters

- Dimensions: 240mm (W) X 200mm (D) X 330mm (H)

- Packing Dimensions: 400mm (W) X 310mm (D) x 270mm (H)

Net Weight: 5.4 kg, Packing Weight: 6.7 kg



FAQ





FAQ



Q: How does the Coin+Banknote WiFi get Internet?

A: You need to connect the Coin+Banknote WiFi to a DSL/Cable/Fiber Optic modem or a router via an Ethernet cable. For the 4G version, you can also insert a 4G/LTE SIM card inside the machine to make it have backup 4G connection.


Q: Can I add my company name and logo on the Coin+Banknote WiFi?

A: Yes, we can provide OEM service based on batch orders.


Q: Can the Coin+Banknote WiFi support more than 50 concurrent users?

A: Yes, we have high-end version which can support 200, 300 or 500 concurrent users with different price.


Q: Can I set the price for Coin+Banknote WiFi? Is it based on time duration or bytes usage?

A: Yes, you can set the price in the cloud-based NMS (Network Management System). Either time-based or data-based is supported.
