Подсветка RGB на заказ с ЖК-панелью TN сегментный ЖК-дисплей для мотоцикла кодовая таблица от
- Категории: Segment Display >>>
- Поставщик: Shenzhen,Genyu,Optical,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Custom RGB Back-light With TN LCD Panel LCD Segment Display For Motorcycle Code Table LCD Manufacturer
LCD DATASHEET
| Brand Name | Genyu |
| Model Number | GY001923A |
| Module Size | 74.4 * 22.5 mm |
| VA Size | 64.9 * 18.5 mm |
| Screen segment | Custom LCD |
| Control/drive IC | ST7033 |
| Display color/BL LED | RGB LED |
| Viewing Angle | 12 O' clock |
| Display mode | Negative transmissive |
| Drive Method | duty1/4 bias1/3 |
| LCD Operating Voltage | 4.0V |
| LCM Operating Voltage | 3.0V |
| Operating Temperature | -20~+70℃ |
Want more ?
The intended FPC connector pin diagram ?

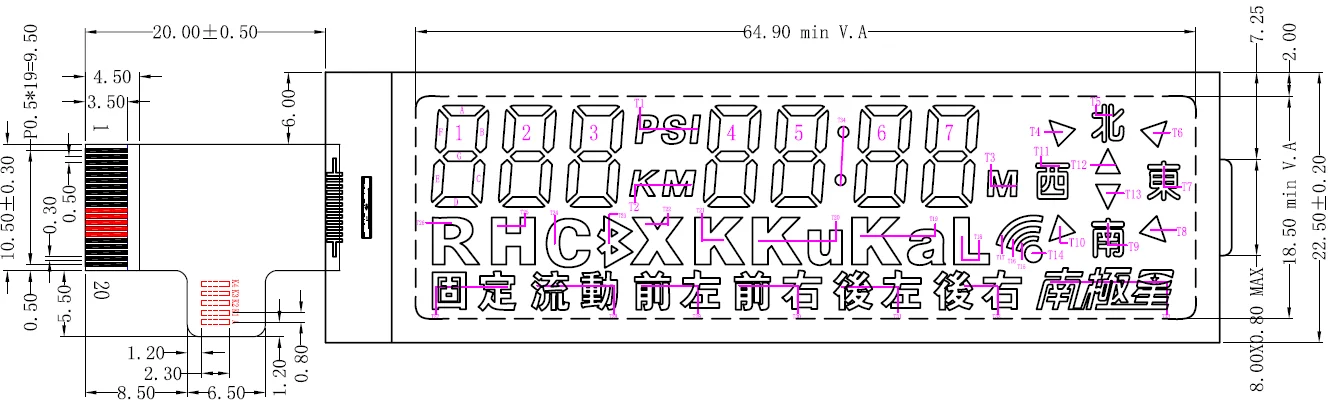

LCD layout design according to your screen image?
Contact us , my friend, just

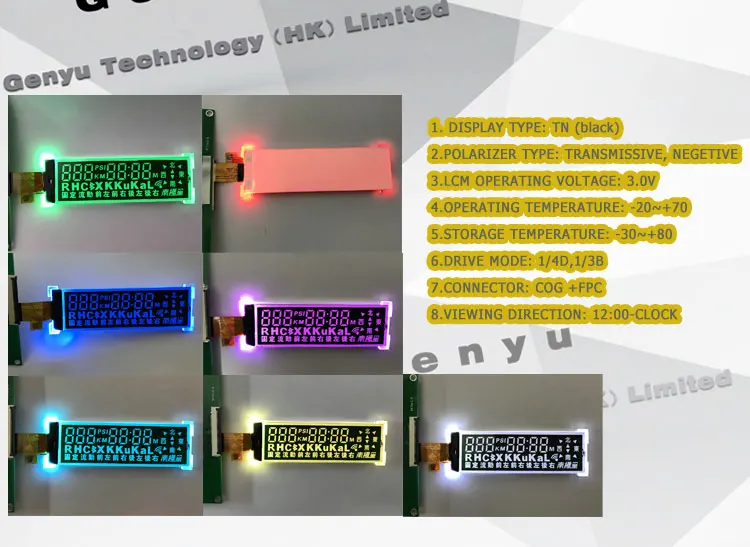

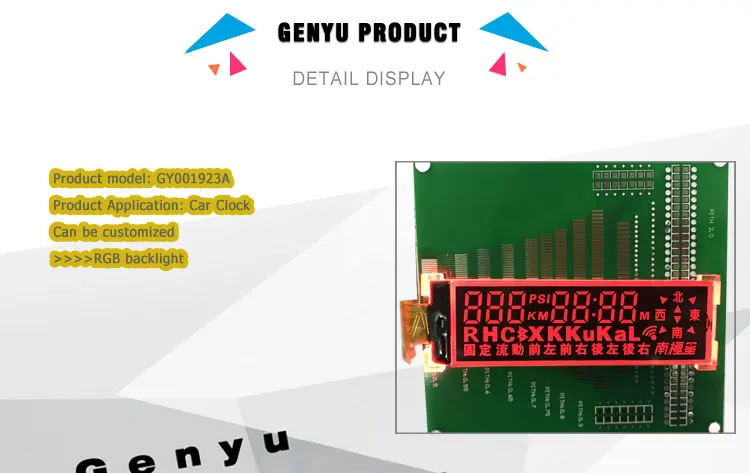

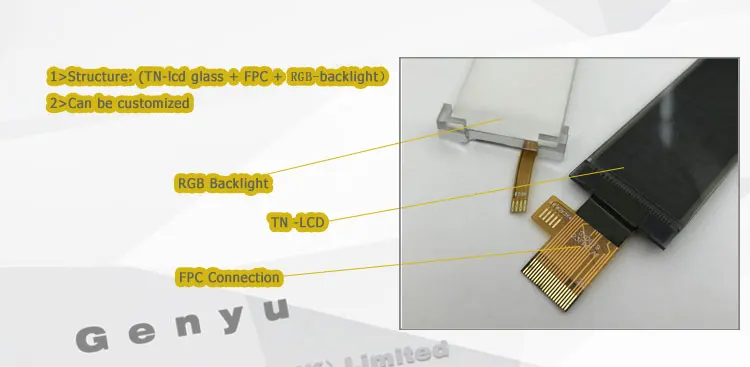

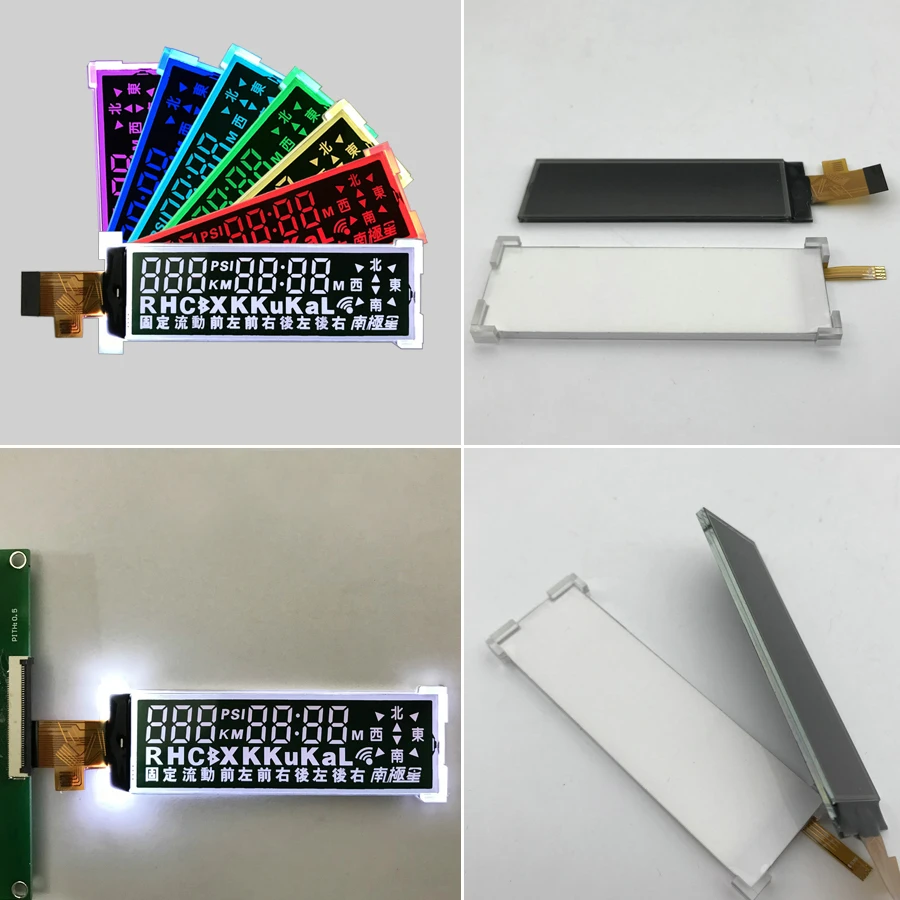

LCD Detailed Images

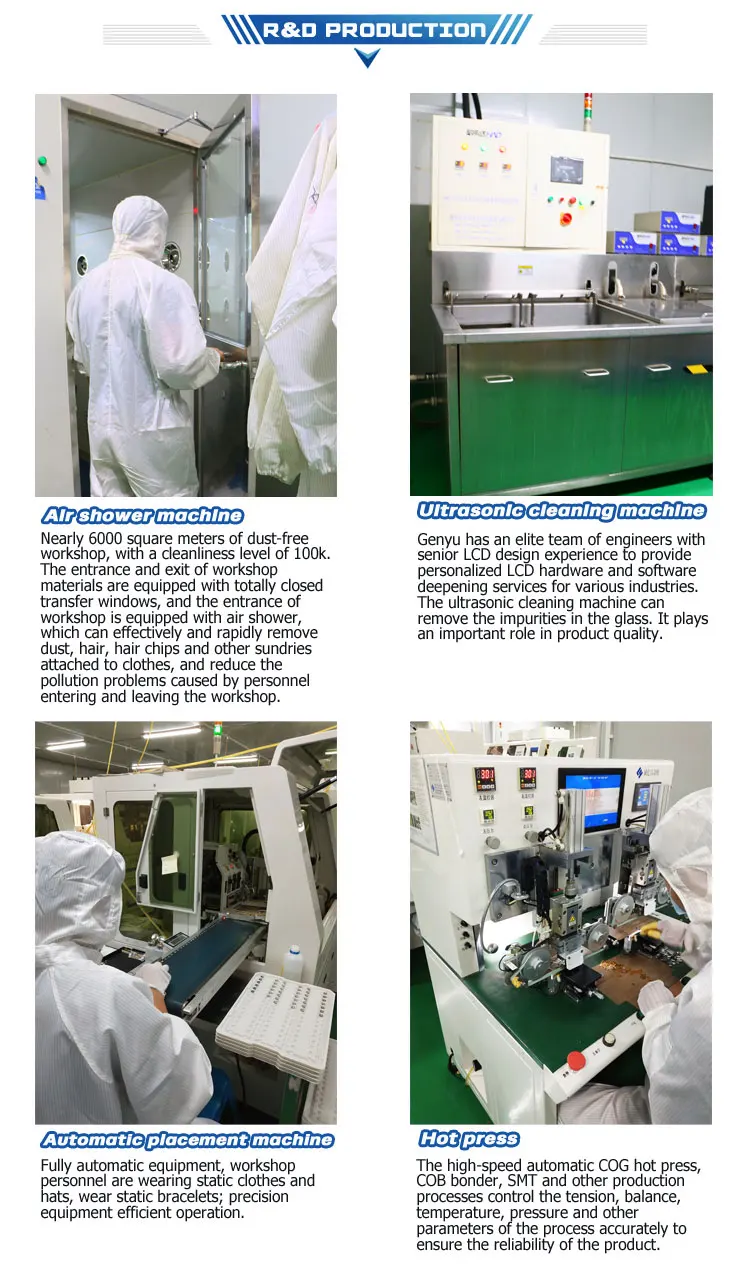

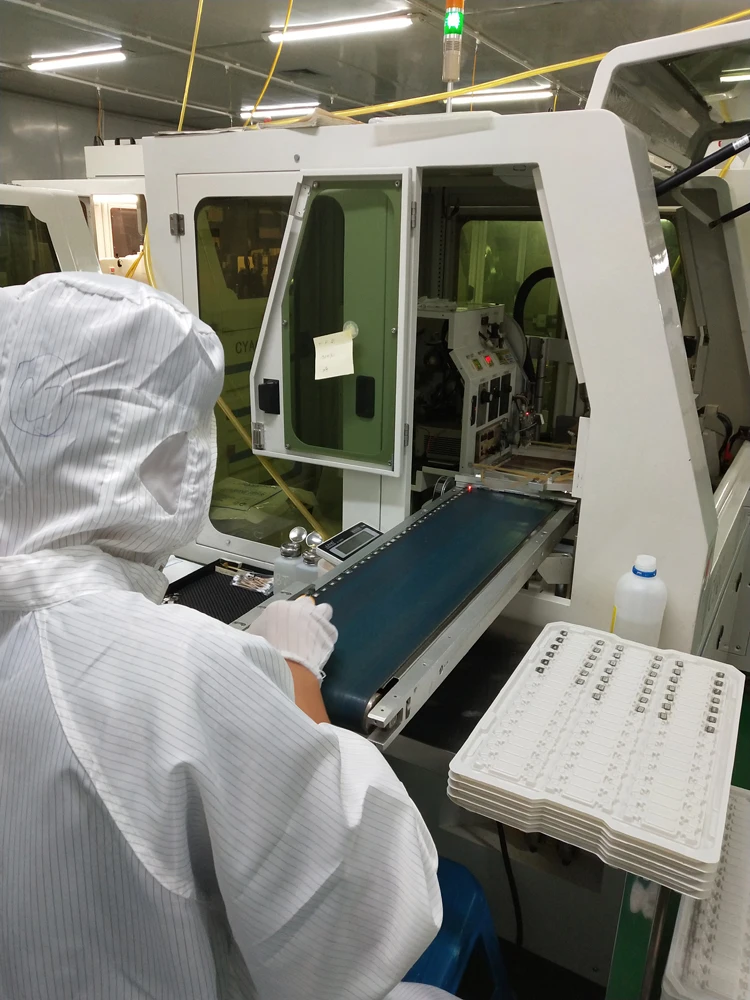

Company Information

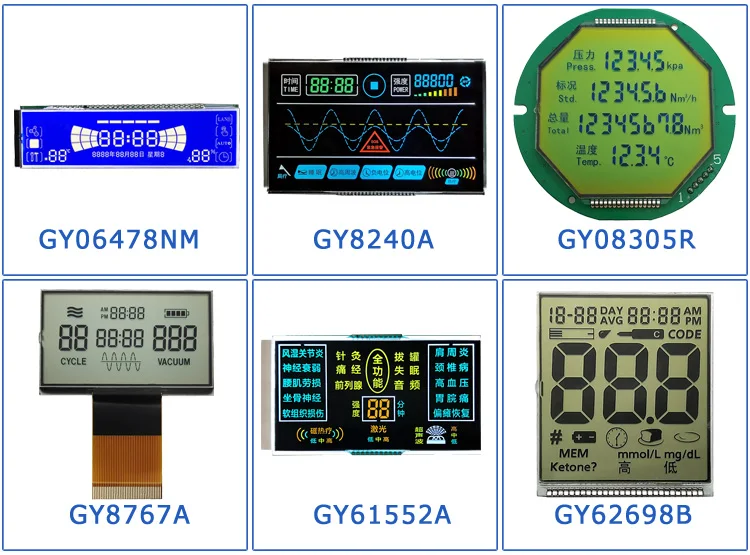

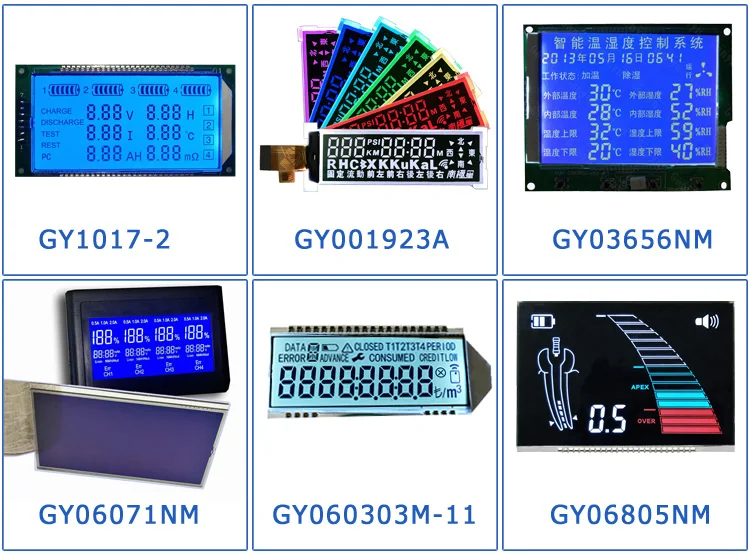

Related products
