Product Description

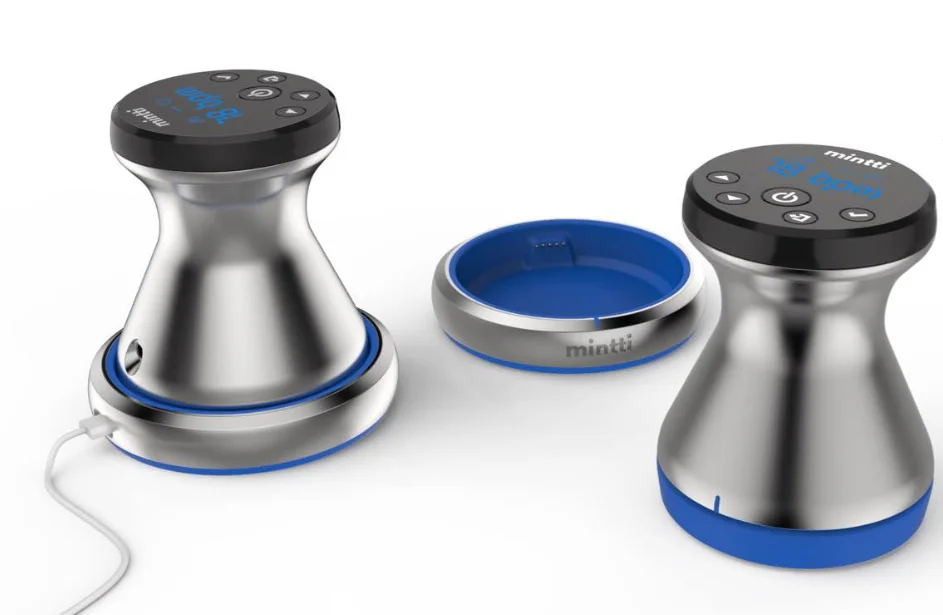

Why Mintti ISteso Digital Stethoscope?
The Smart Digital Stethoscope Mintti ISteso is a specialized auxiliary device intended for medical diagnostic use in respiratory diseases such as pediatric pneumonia, child asthma, elderly bronchitis etc.
Listen to heart, lung and other body sounds with over 300X amplification, stunning clarity and depth of sound. It allows record the auscultation for the diagnosis follow-up,unlike any other electronic stethoscope.
Mintti ISteso Intelligent Stethoscope Specifications | ||
Stethoscope Size | Diameter: 58mm, Height: 78mm | |
Storage Environment | 55℃;RH≤80% | |
Battery | 3.7V Lithium Battery | |
Charger | DC 5V 1A | |
Battery Life | More than 600 times charges | |
Battery Stand-by | 180 hours | |
Working Model | Continuous | |
Signal Sensitivity | 4mV/Pa | |
Noise Reducing | -35dB | |
Liquid Protection Classification | Standard | |
Working Frequency | 20Hz -- 3Kz | |
Volume | Normal: 60dB; Max: 110dB; 4 levels adjustable | |
Playback | Normal Speed and Half-speed playback | |
Bluetooth Version | BLE 4.0 | |
Detailed Images
Adopt Advanced Artificial Intelligence
Unsupervised Learning: Clustering,
Independent Component Analysis Etc.
Weak Signal Detection
Traditional and emerging solutions,
Linear and non-linear methods.
Acoustic Signal Analysis
Modulation, Resonators ,Reverse Smartho2, Active Noise Control etc.
The Smart Stethoscope integrates weak signal detection technology, acoustic signal analysis technology and artificial intelligent technology into one device, all of these improve Smartho2's diagnostic capabilities significantly , hence reduce the rely on doctors for early stage diagnosis of any respiratory diseases.
Cloud Storage
1. Cloud support for users.
2. Complete patients records improve diagnose accuracy.
3. Precision medical treatment
4. Future medical research support
Visual Diagnosis
1. Real-time audio curve display
2. Audio record multiple functions (forward, backward slow down etc.)
3. Smart print supported
Community Service
1. Online diagnosis
2. Medical advice and treatment follow up
3. Local medical community allow convenient treatment and faster emergency response
About Mintti
Design patent certificate for Stethoscope
Our stethoscope adopts piezoelectric sensor. The signal collected by the sensor will be transferred to ADC (analog digital converter) by adjusting the circuit. The processor will control the ADC to complete the collection of signals, then complete the algorithm of reducing noises. Finally optimized signal will be transferred to the cell phone via Bluetooth. At the same time, our processor controls the buttons, display screen and charging parts.
Data Collection: Smartho2 is adopted by the top institute in China which specializes in cardiopulmonary diagnosis of children for clinical trials. On this process 500-1000 patients' data will be collected, which will result in around 10,000 data collection. We will use the data to train our AI model and achieve a good accuracy.
We are establishing a database for various types of illnesses, for identifying the typical cardiopulmonary disorder through disease recognition algorithm, and with the diagnosis software to help doctors make the diagnosis. The latter products can be broadened to end-users, so that ordinary people can also take some pre-diagnosis with a stethoscope.
Mintti Smartho2 Intelligent Stethoscope is working with App.
Mnitti Smarthos Intelligent Stethscope Application display.
Mintti Smartho2 Intelligent Stethoscope Measurement Records.
Why Choose Us?
Packing & Delivery
FAQ
1.What is Mintti Electronic Stethoscope ?
Mintti Electronic Stethoscope is an accessory for connecting your stethoscope to mobile devices, tablets, computers and other recording or audio devices. This allows you to record from your stethoscope and use headphones to listen to the stethoscope while you record and then use your same headphones to listen to playback. So you have your stethoscope, your mobile or laptop device and headphones and they all play nicely together.(Only can support mobile devices at present)
2.Which devices can I use with Mnitti ISteso Series?
Great question! Virtually anything with a 3.5mm audio input jack. You can use it with any iPhone.In the Android world, it should work with any smartphone. We say "should" only because we can't test every Android phone in the world. But more than likely, any Android smartphone you own that can record and play sounds.
3.How does it connect with devices?
It connects into the 3.5mm headset jack. Every device out there has a headset jack these days and any audio App can usually capture input from the jack.
4.What about sound quality of recordings? Which devices work best?
Hmm, that's an interesting question. Because we're using analog signals, the audio recording quality depends on the quality of the device you're using. In our experience, new iPhones have super good audio quality and older ones too. In the Android world, it's more varied. So what we're saying is that you have to experiment a bit with your own equipment since there are too many Android devices in the world to get too specific. If you find that your device is really good, let us know and we'll edit this answer.
5.What about Telemedicine and using it with Apps and software?
So we've covered recording sounds and sending them around the world. Here's the thing about Telemedicine – some people want to do live listening to a stethoscope. The problem is that many of the video conferencing systems out there compress the audio channel. It sounds OK when you're talking. But when you want to shove a fat bass signal from a beating heart into the compression algorithm, it just goes bonkers. What do we mean? It just doesn't sounds very good. Still sounds like a heartbeat, but not one we'd be proud of. Lung sounds are more forgiving, so you might be OK sending lung sounds down a videoconferencing audio line.
Meanwhile, recording and sending sounds for telemedicine is actually pretty advantageous. You wouldn't have the doc sitting there while the nurse takes a blood pressure. So some docs we know are asking their nurses on the remote end to do some standard asucultation recordings, put them into the record, and when they get on the videoconference, they have the recordings and can listen there and then from the record or email attachments or Whatsapp messages, should they decide that heart or lung sounds are relevant. It's actually more efficient than live listening in many ways.
