Аппарат для распыления бетонного раствора
- Категории: Инженерные и строительные машины >>>
- Поставщик: Shanghai,Hengwang,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

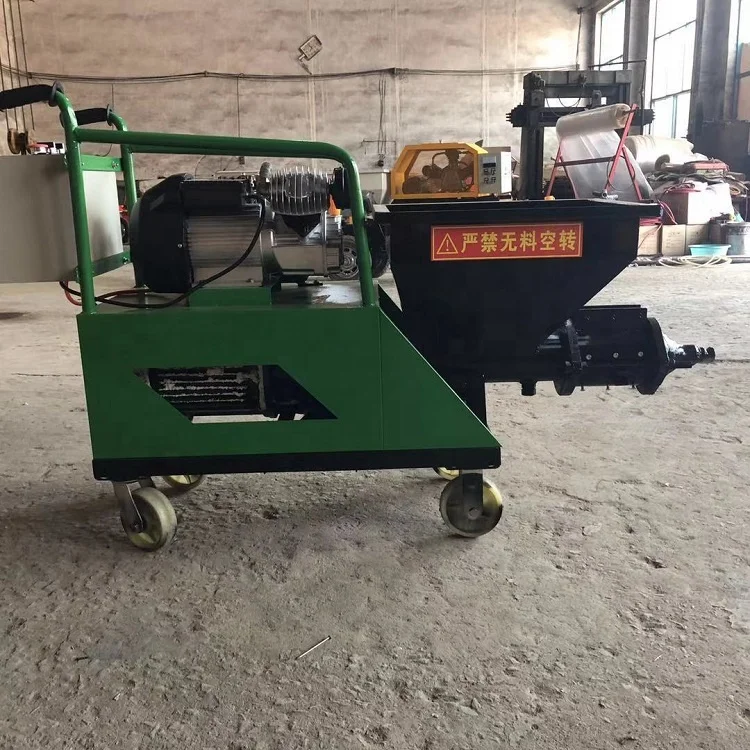

Mortar Plaster Spraying Machine sand mortar spray Cement plaster spraying machine
Product Application
The products are suitable for spraying: building internal and external walls, ceiling, wall pulling and slurry, high-speed embankment slope protection, etc.
Main features:
2. Adjust the flow rate to get the best spray effect.
3. In addition to the switch on the electric control box, it is also equipped with switch spraying.
4. The connection between the spray gun and the feeding tube can be rotated for easy operation.
5. High construction efficiency and good quality.
6. Small size, convenient for on-site transportation, low cost of accessories and easy maintenance.
7. Easy to use, fast, material saving, labor saving, more money saving, only one machine is equipped with three people, 150 square / hour (thickness 2cm).
8. Material ratio (cement) 0.7: 3 mortar.
Product Paramenters
Voltage | 380V/220V | ||||
Spraying speed | 120/h | ||||
Main motor power | 4.0 kw | ||||
Air compressor power | 3.0kw/ 2.2kw | ||||
Passing particles | <4mm | ||||
Machine weight | 160kg | ||||
Conveying height | 20m | ||||
Machine size | 1750 * 450 * 800 | ||||
Conveying distance | Vertical:10m Horizontal distance:20m | ||||
Matching nozzle | 32m | ||||
Lime Sand Ratio | 0.7:1:3 | ||||
Delivery flow | 4-5m³/h | ||||

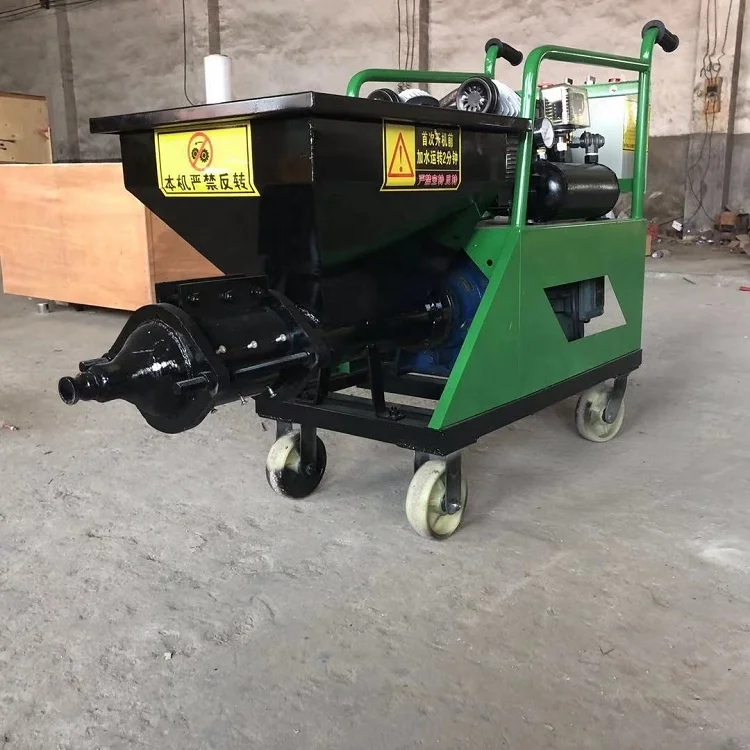

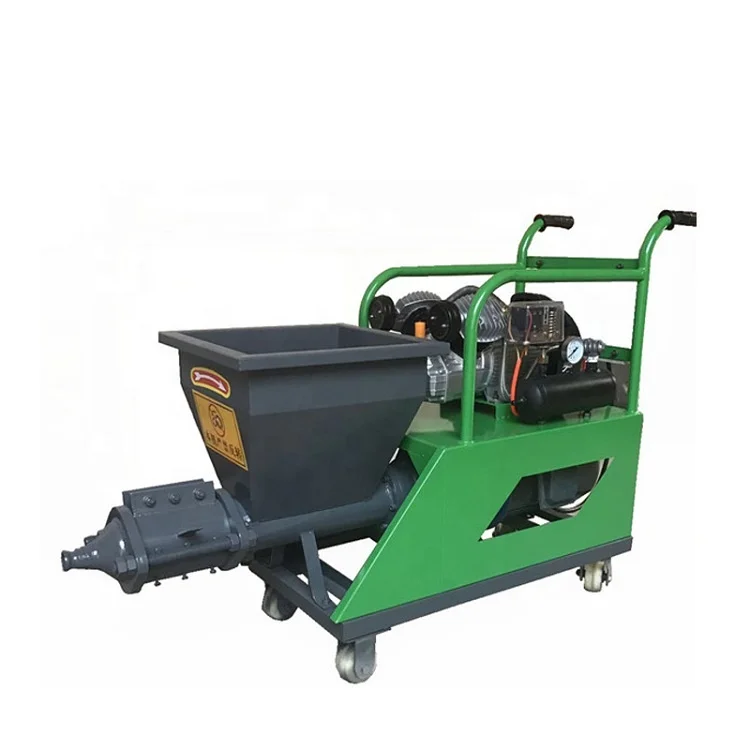

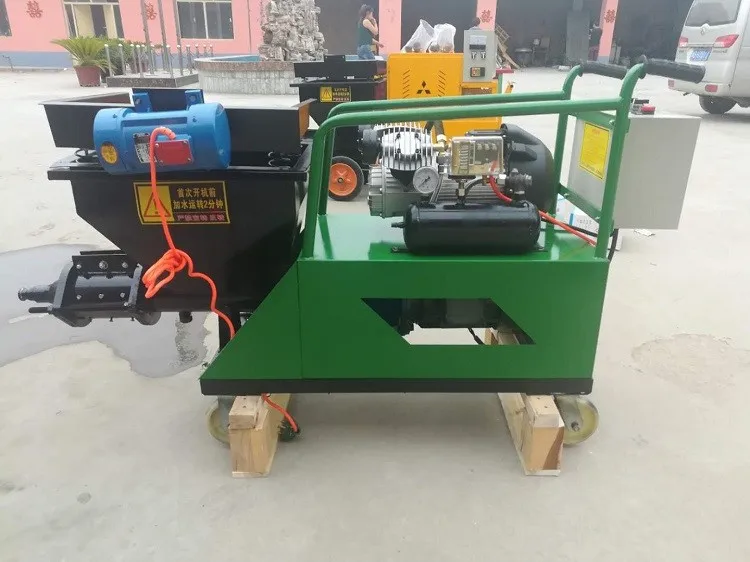

Detailed Images
Related Products
Packing & Delivery
Packaging | ||
Size | 1610*560*1080mm | |
Packing Weight | 239kg | |
Packaging Details | The normal package is wooden box (Size: L*W*H) | |
Our Company
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Why Choose Us
