Applications
Product Introduction

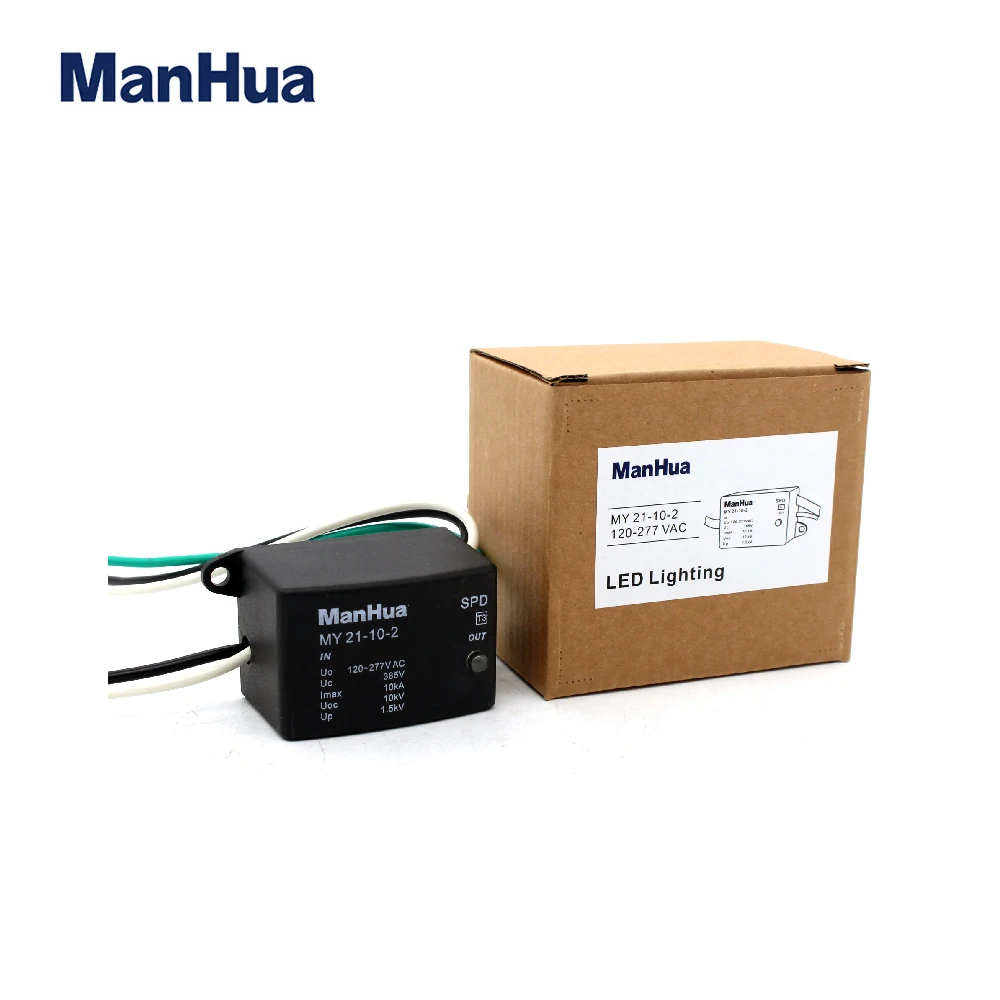

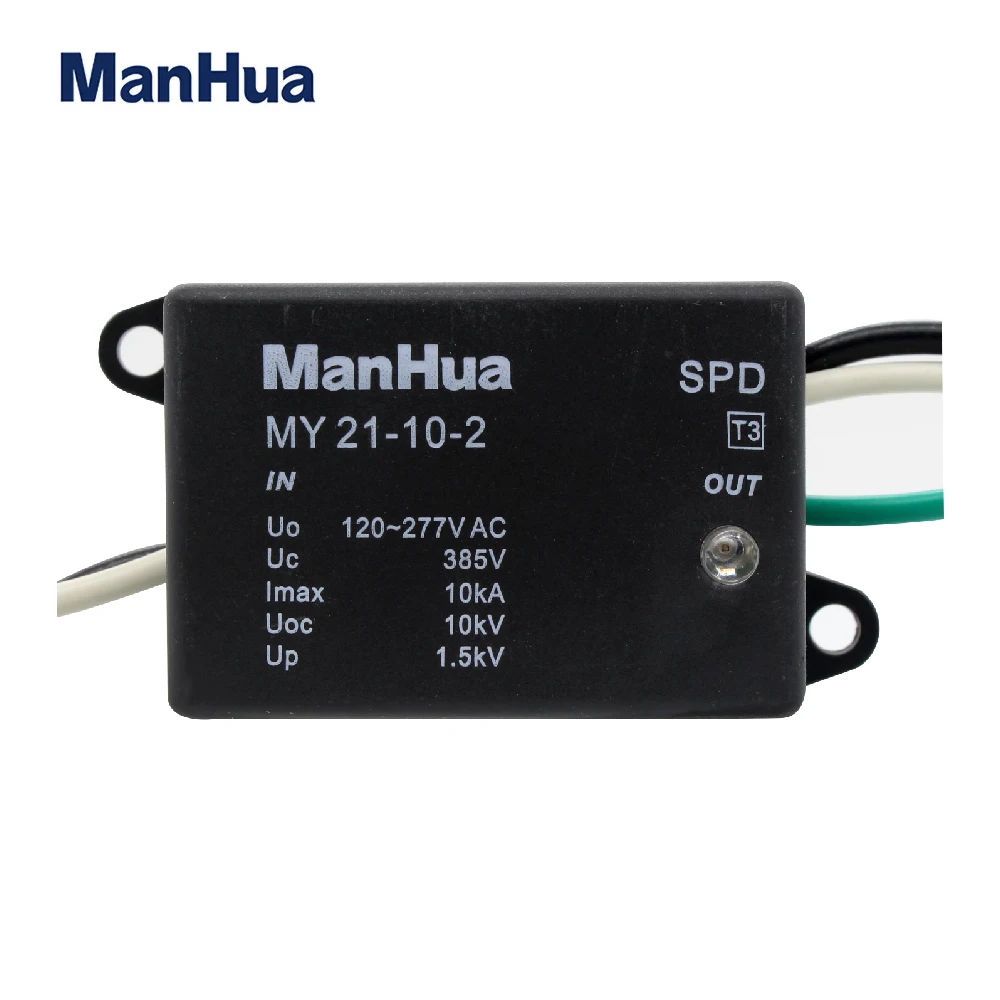

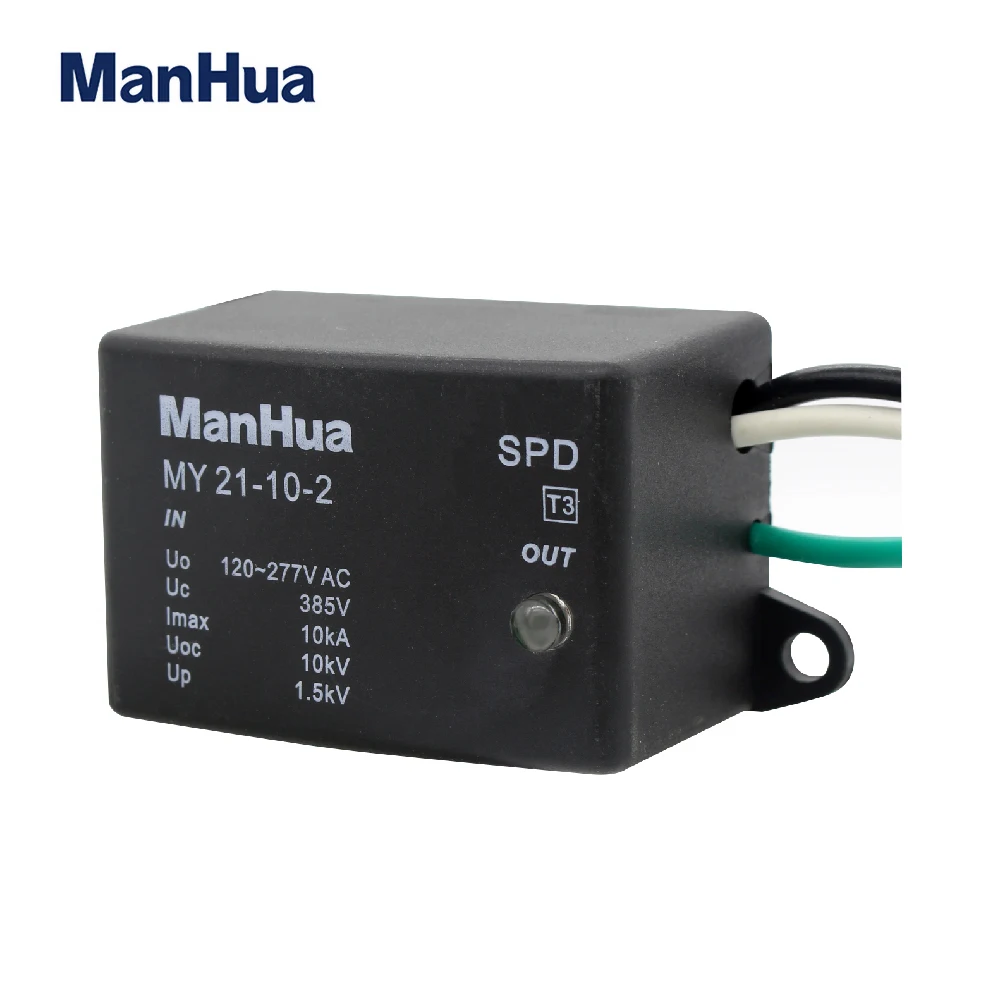

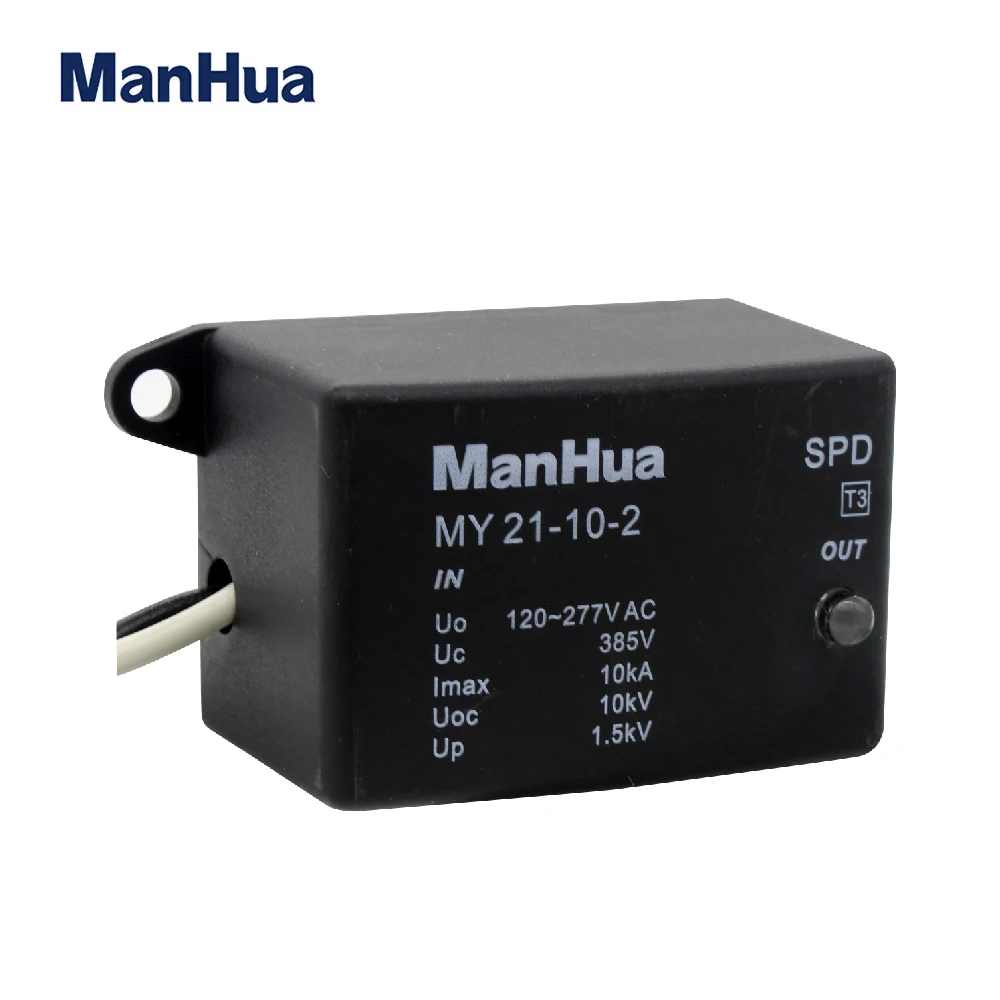

MY21 LED surge protective device has the reliable voltage protection level and safe overloading characteristics, high surge discharging capacity, used in the lighting protection of AC low voltage distribution system. Adopted the high energy TMOV chipset, with fast response speed, safe and reliable protection function. The product complies with the standard of IEC 61643-1.
Technical Parameter
Rated operating voltage [Uo] | 100~240 |
Max. continuous operating voltage [Uc] | 385, 320 V |
Opening circuit voltage [Uoc] | 10 |
Nominal discharging current [In] | 5(L-N, L-PE, N-PE) |
Max discharging current [Imax] | 10(L-N, L-PE, N-PE) |
Voltage protection level [Up] | <1.5 |
Rated overload current [IL] | 5A |
Local display | Light ON : Normal, Light OFF : Malfunction |
Connecting wire | 16AMG,L(Black)/N(White)/PE(Grssn) |
Flameproof grade | UL 94 V-0 |
Frame protection grade | IP 66 |
Response time | 25nS (L-N) ; 100nS (N-PE) |
Ambient temperature | -40℃ ~+70℃ |
Packaging Details: Standard exportation packing
Delivery Details: Within 5-25 days after your order confirmed
We are the experienced manufacturer of industrial electric products for years.Manhua Electric Co.,Ltd.
It was established in 2009 and domestic business started in 1980s.
At present, our main products are timer switches, timer, relay, sockets and surge arrestors.
This year, we have started to do more jobs on the electric products for solar and ofgrid solar powersystem.
Our products have exported to the market of Germany and USA since the year of 2005, and
till now the products have stable growing market in Germany, Spain,USA, South America, CIS
countries and Thailand...
We have built our divisions/agents in Chicago USA, Frankfurt Germany and Dubai.
We bring trust, comfort and benefits for our customer. Over the years, we have always done the
humane management. Our staff has played the full role in the innovation and management.
We have the experienced team of research and development in the electronic products.
1. IEC standard products
2. Friendly MOQ
3. Promptly Reply
4.On-time Delivery
5.International mind sales services
Q1-Could I know which advantages do you have please?
1) 15 export experience in the overseas market.
2) Our products mainly export to the EU and USA markets.
3) We do the quality products according to the IEC standards.
4) We have the technical service and support for the right project.
Q2-What about the lead time please?
1) The standard order is 3 weeks.
2) The sample order could be within one week for the standard product.
Q3-Could I know the payment method please?
1) Standard order could pay by T/T,L/C, Alibaba Trade Assurance.
2) Small order could support the Paypal, Western Union, Money Gram and Alibaba Trade Assurance(credit card acceptable).
Q4-Any suggestion for the delivery way please?
1) Express delivery, door to door service.
2) By air freight, to the airport of destination country.
In some case, DDU and DDP could be done.
3) By sea, FCL , LCL...
4) In the USA, some products could be sent from Chicago to the customer
Q5-Any support or service for after sales please?
1) Standard quality guarantee is 18 months.
2) 24 hours online service for the emergency issue.
3) We have storage center in Chicago USA and agent in Frankfurt Germany help us to solve the non-expected issue and support us for the further mutual co-operation.
