2800rpm speed induction drive motor 1hp 1.5hp 2hp 2.5hp 3hp single phase electric motor

1.Caring has hundreds of intelligent processing equipment.
2.Caring has passed the ISO9001 management system certification.Electric motor obtains the corresponding CCC and CE certificate.
3.Caring Has won more than 30 national technology patents and several provincial honors.cutting pump gains national invention patents.



Single-phase ordinary motor of YL90 2-pole (2800 rpm) series has 750W, 1100W, 1600W, 1800W, 2200W models. Stator, rotor, shaft, bearing, centrifugal switch and other key parts are selected high-quality large-scale products, using 100% pure copper core winding, strictly in accordance with the national standard process manufacturing, power is not substandard, full horsepower, strong power, stable performance, durable!





Parameters of Matching Motor for Commonly Used Equipment

Number	Equipment	Out put (Kw)	Speed (r/min)	Number	Equipment	Out put (Kw)	Speed (r/min)
1	Rice beater	2.2 or 3.0	2800	7	Shaffcutter	Ample power 3.0	2800
2	Bench saw	1.5 or 2.2	2800	8	Sucking grain machine	3.0	1400
3	Dough mixer	2.2 or 3.0	1400	9	Rolling shutter	2.2	1400
4	Car washer	2.2 or 3.0	1400	10	Cutting machine	2.2	2800
5	Pesticide sprayer	2.2 or 3.0	1400	11	Corn grinder	0.75	2800
6	Shredding machine	2.2 or 3.0	2800	12	Air compressor	2.2	2800



















1.Seiko bearings
Antirust and moistureproof abrasion resistance, high-speed operation of the machine is still smoothly and quiet

2.High-quality stator and rotor
High quality cold rolled silicon steel sheet,high hardness ,strong power high efficiency and long service life,shaft with high frequency quenching

3.High quality lacquer surface
Pure high quality paint ,360 degree protection motor ,cast iron barrel, strong and durable.
4.Pure copper core
Pure copper core/machine winding, strong binding, winding using F-grade oxygen-free copper wire, high temperature resistance, long life, not easy to damage, the ordinary enameled wire is not compared with it.



Other Types of Intelligent Motor

Model	Out put		Voltage	Frequency	QT of capacitance	Current	Speed	weight
	Kw	Hp
YL90-750R-4P	0.75	1	220v	50HZ	2	5.1A	1400r/min	17kg
YL90-1100R-4P	1.1	1.5	220v	50HZ	2	7.1A	1400r/min	18kg
YL90-1500R-4P	1.5	2	220v	50HZ	2	9.44A	1400r/min	20kg
YL90-1800R-4P	1.8	2.5	220v	50HZ	2	11.3A	1400r/min	23kg
YL90-750R-2P	0.75	1	220v	50HZ	2	5.1A	2800r/min	16kg
YL90-1100R-2P	1.1	1.5	220v	50HZ	2	7.1A	2800r/min	17kg
YL90-1600R-2P	1.6	2	220v	50HZ	2	9.44A	2800r/min	29kg
YL90-1800R-2P	1.8	2.5	220v	50HZ	2	11.3A	2800r/min	21kg
YL90-2200R-2P	2.2	3	220v	50HZ	2	13.6A	2800r/min	22kg
YL100-2300R-2P	2.3	3	220v	50HZ	2	13.9A	2800r/min	26kg
YL100-2600R-2P	2.6	3.5	220v	50HZ	2	15.8A	2800r/min	27kg
YL100-3000R-2P	3	4	220v	50HZ	2	17.2A	2800r/min	28kg
YL100-3500R-2P	3.5	4.8	220v	50HZ	2	19.8A	2800r/min	31kg
YL100-2200R-4P	2.2	3	220v	50HZ	2	13.6A	1400r/min	31kg
YL100-3000R-4P	3	4	220v	50HZ	2	17.2A	1400r/min	33kg

Tips:

1.Notice:above the every model has corresponding electric motor(with flange plate)

If need to purchase the above model or have any other requirement,please seek advice from custom service; The parameter of technology are updated at anytime.

Warning

Please confim the machine earthing before operation and connecting the electrical leakage protector

Motor with thermal protector,in order to ensure the safty of operation when it stops automatically,it is nacessary to cut off the power supply.













Sichuan Jianeng Mechanical and Electrical Co.,LTD, which is founded in 2011, is a professional manufacturer engaged in the research, development, production, sale and service of small motors and pumps. It is located in Liangfeng village,Sansu township,Dongpo district ,Meishan city,Sichuan province. The company , covering more than 35,000 square meters, has more than 100 employees and many advanced production equipment.
Jianeng’s products includes motor, submersible pump, sewage pump, double - knife cutting pump. All kinds of products are well sold in many cities and provinces around China and have won good praise from all users and dealer for the best quality and service. In addition, Jianeng has passed ISO9001:2015 certification and CCC certification, and obtained more than 10 related patent certificates. What’s more important, in recent years, our company has introduced a series of advanced equipment and has produced more good products to meet the different requirements of different customers. So there's always one kind of product for you. Even though we have our own brand “Caring”, OEM and ODM orders are also welcome.
"High quality, integrity, innovation, and win-win” is our business philosophy, our aim is offer best service and excellent quality products. Jianeng is expecting win-win cooperation with customers from all over the world.





Why choose us



1.Caring has passed the ISO9001 management system certification.
2.Electric motor strictly enforce national standards obtaining the corresponding CCC and CE certification.
3.More than 20 years of industry experience.

4.Fast feedback for customers:24 hours reply for all customers' messages.

5.Competitive prices.

6.Quality guarantee:We have shipped much motors to Italy, Spain, and other European and USA customers with high quality.

7.Fast and Timely delivery:Usually 10-15 days for goods

8.Professional Technical support and After-sale service.

9.Customized service for kind of motor according to your requirement.





For product

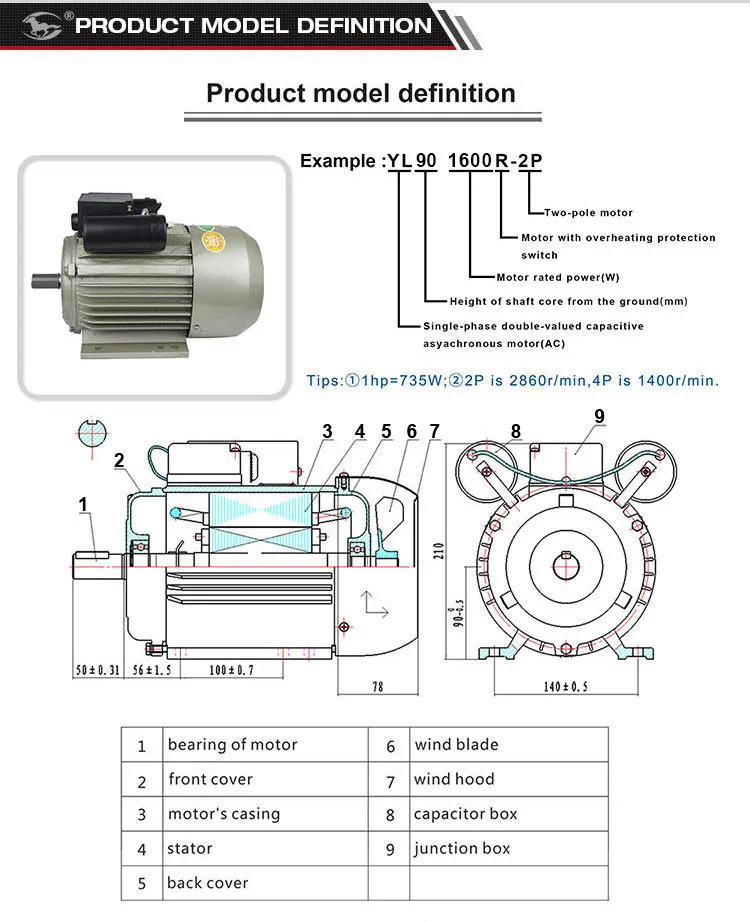

1.What is the frame?
The frame actually refers to the installation size of the machine. The vertical height from the center of the shaft to the horizontal plane of the 90-type motor is 90 mm, and the vertical height from the center to the horizontal plane of the 100-type motor is 100 mm. Among them, the frame width of model 90 (starting from the center of the foot screw) is 140 mm, the hole spacing is 100 mm and 125 mm, the frame width of model 100 is 160 mm, and the hole spacing is 125 mm and 140 mm.
2.How do I determine my frame?
Generally, models on nameplates have frame, If the 90 is displayed on the nameplate,it means this machine is 90 type. If the 100 is displayed on the nameplate,it means this machine is 100 type,
3.Can the motor be reversed?
The motor can be reversed or forward. We need to change the connection mode of the patches in the junction box. It's very simple. We have a video tutorial on changing the direction. If you need ,please contact customer service. But if you need to change the direction of the motor frequently, you need to buy a reverse switch to connect to the front of the motor. It is convenient to use the reverse switch directly to control the motor steering.
4.Is the motor pure copper? Can I disassemble it for inspection?
All of our motor and pump windings are made of pure copper core material. We are a 18-year-old factory. Credit, quality and service have always been our direction. We also insist on doing all this well, and naturally we can do even better! You can disassemble it for inspection , you are welcome to find professionals to verify.
