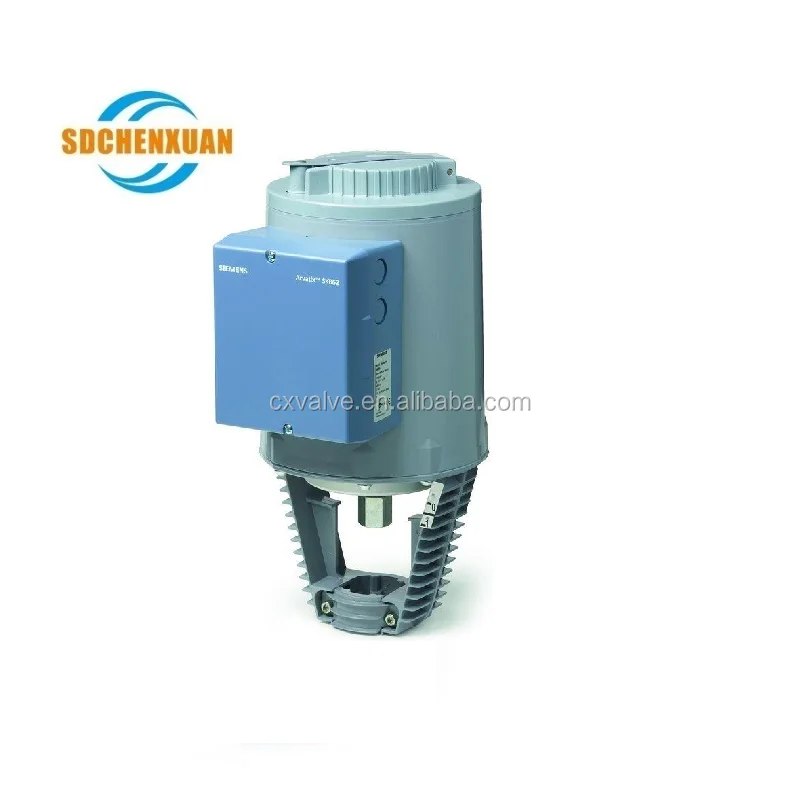

Siemens valve actuator, electric valve actuator SKB62 SKB60 SKB32 SKB82
Banner
Product Description
SKB60/62 Electrohydraulic actuators 2800 N for valves with 20 mm stroke
Stock no. BPZ:SKB60/62..
Overload-proof through travel-dependent, electronic switching off in end position. With die-cast aluminium housing and yoke for
valves with 20 mm stroke. Optional function with one auxiliary switch. With manual control.
Additional info
SKB..U, SKB..UA are UL listed. Control devices MK..5.., MK..6.. or MK..5..G are control devices with safety shut-off function per
DIN EN 14597.
Stock no. BPZ:SKB60/62..
Overload-proof through travel-dependent, electronic switching off in end position. With die-cast aluminium housing and yoke for
valves with 20 mm stroke. Optional function with one auxiliary switch. With manual control.
Additional info
SKB..U, SKB..UA are UL listed. Control devices MK..5.., MK..6.. or MK..5..G are control devices with safety shut-off function per
DIN EN 14597.
Specification
Attribute | Value |
Positioning signal | DC 0...10, 4...20, 0...1000 V |
Positioning force | 2800 N |
Stroke | 20 mm |
Spring return function | SKB62.. |
Position feedback | DC 0...10, DC 4...20 V |
Degree of protection | IP54 |
Medium temperature | -25…220 °C (350 °C) |
Ambient temperature, operation | -15...55 °C |
Mounting position | Upright to horizontal |
Product Variants
SKB60 - Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA
SKB62 - Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA, spring return
SKB62UA - Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA, spring return, UL
SKB62U - Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA, spring return, UL
SKB60 - Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA
SKB62 - Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA, spring return
SKB62UA - Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA, spring return, UL
SKB62U - Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, DC 0...10 V/4...20 mA, spring return, UL
