DMT80480T070_18WT DWIN 7 дюймов резистивный сенсорный экран 800x480 HMI промышленный RS232/RS485
DMT80480T070_18WT DWIN 7 дюймов резистивный сенсорный экран 800x480 HMI промышленный RS232/RS485
DMT80480T070_18WT DWIN 7 дюймов резистивный сенсорный экран 800x480 HMI промышленный RS232/RS485
DMT80480T070_18WT DWIN 7 дюймов резистивный сенсорный экран 800x480 HMI промышленный RS232/RS485
DMT80480T070_18WT DWIN 7 дюймов резистивный сенсорный экран 800x480 HMI промышленный RS232/RS485
DMT80480T070_18WT DWIN 7 дюймов резистивный сенсорный экран 800x480 HMI промышленный RS232/RS485
DMT80480T070_18WT DWIN 7 дюймов резистивный сенсорный экран 800x480 HMI промышленный RS232/RS485

DMT80480T070_18WT DWIN 7 дюймов резистивный сенсорный экран 800x480 HMI промышленный RS232/RS485


Поделиться:

Цена:70,00 $ - 88,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики













Display


Item
Parameter
Description
LCD Type
TFT
Color
65K (65536) colors
16 bit color 5R6G5B
Active Area (A.A.)
154.1mm(W)×85.9mm(H)
Resolution
800*480
90°rotation by configuration file (480×800)
Touchscreen Type
4-wire resistance touchscreen
Touchscreen Inaccuracy
+/- 0.5%
Calibrate on running
Backlight Type
LED
The half brightness life will not less than 30000hrs
Brightness
300nit（DMT10768C080_07WN）
64 levels adjustment(It's not recommend to set brightness to 1%~30% of the maximum,which may lead a flicker)
Touchscreen control brightness and light time.
SD Slot
SD/SDHC
 FAT32 file format;
Download and upgrade pictures, fonts and configuration files.
RTC Accuracy
1 sec/24hours
25℃
Other Hardware
Buzzer
 Software controls tweet;
Automatically sound prompts when effective touch button is clicked.
Notice: Displaying a high contrast still screen for more than 30 minutes may result in an image blurring.Please add
the screensaver to avoid.


Interface


Item
Conditions
Description
Typ
Max
Unit
Power Voltage
-
DC 6.0V-42.0V,with Reverse Polarity Protection
5.0
5.5
V
Power Consumption
VCC = 5V, Backlight on
4.8W (12V 400mA)
600
-
mA


Baudrate
Min
1200bps
180
-
mA
Recommended power supply: 5V 1A DC
Typ
115200bps
Max
250kbps(RS232)/1Mbps(RS485)
Interface Model
N81
Interface Protocol
RS485 & RS232

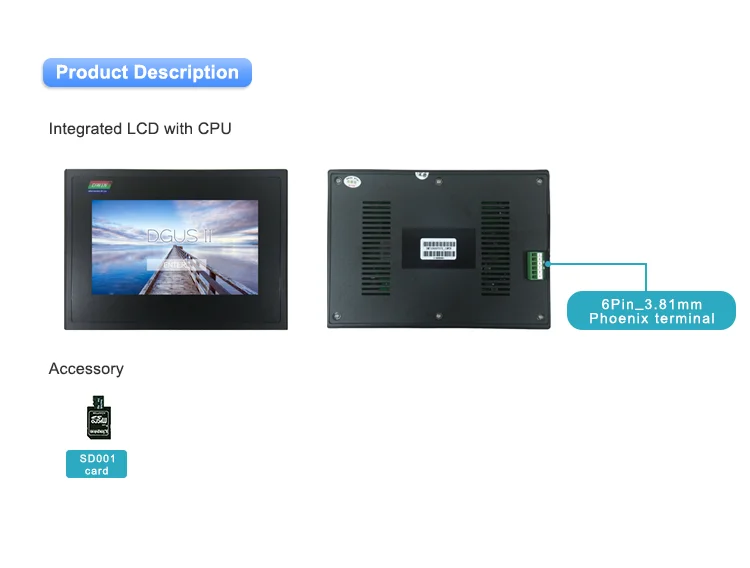

Socket
6Pin_3.81mm


Working Environment & Reliability Test


Item
Conditions
Min
Typ
Max
Unit
Working Temperature
60%RH at 12V voltage
-20.0
25.0
70.0
oC
Storage Temperature
-
-30.0
25.0
85.0
oC
Working Humidity
25oC
10%
60%
90%
RH
ESD Protection Grade
IEC Class 4 (Touch and air)
-
None
-
-
Other Certification
CE RoHS


Software Features


Item
Description
Min
Typ
Max
Unit
Software Platform
DWIN DGUS system software
-
-
64
Mbytes
Register Space
256 Bytes
Variable Storage Space
56K Bytes
-
-
122
Pcs
Fonts & Icons Storage Space
32M Bytes
-
-
619
Pcs
Pictures Storage Space
224MB, 278 full-screen pictures
-
128
-

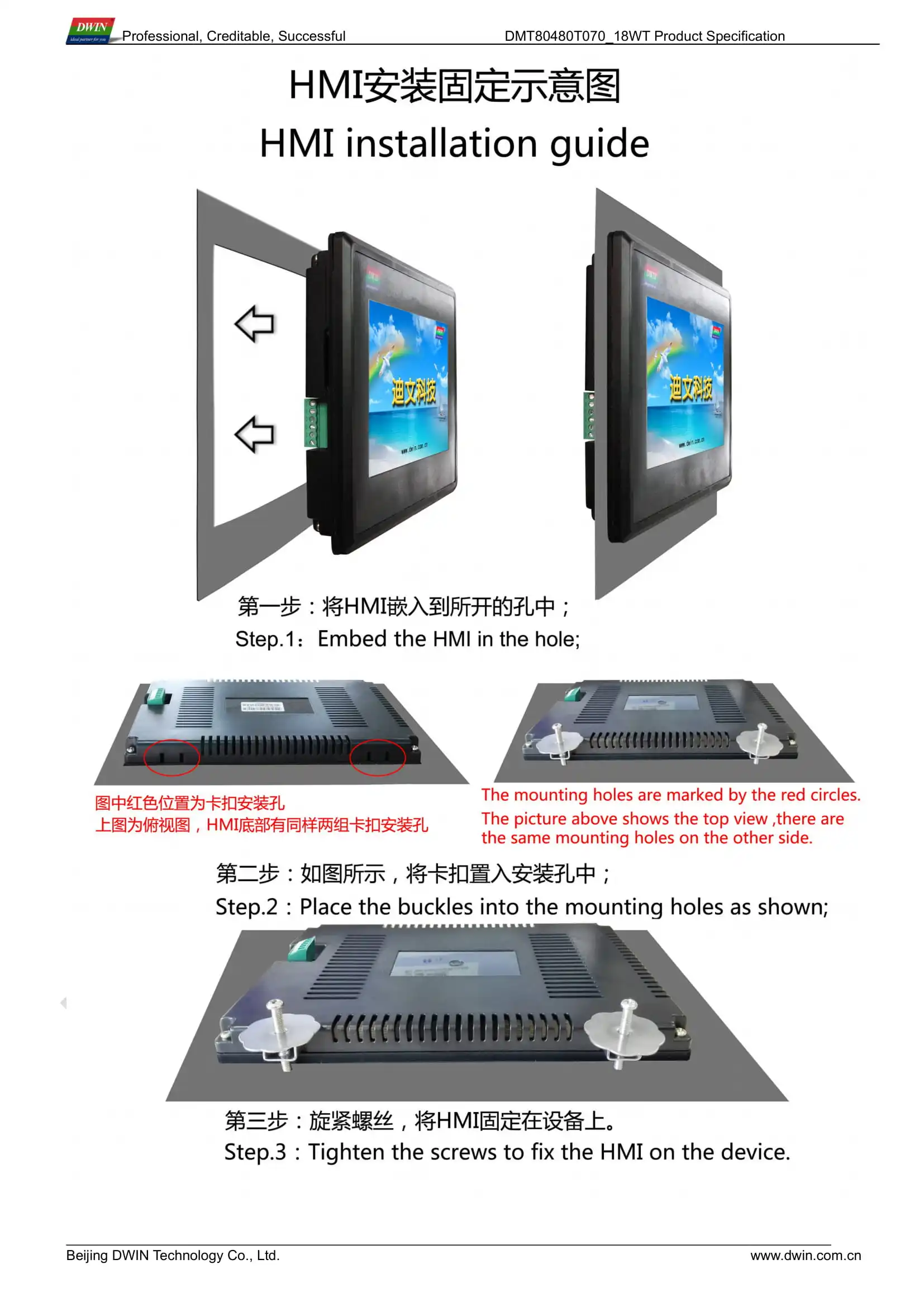

Installation Features


Item
Description
Case Material
ABS + PC Engineering Plastic
Case Color
Black

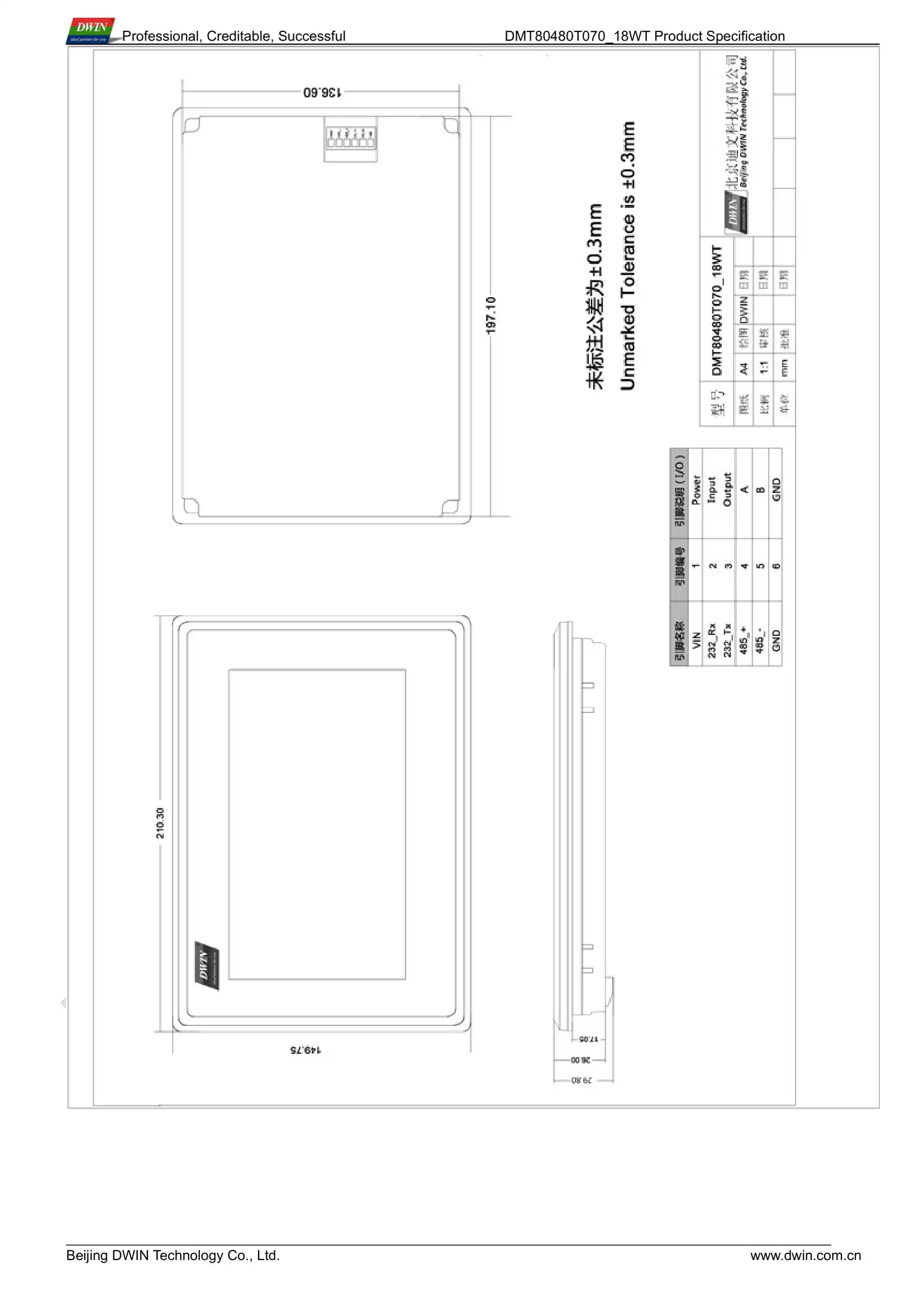

Dimension
210.30(mm)×149.75(mm)×26.00(mm)
Hole Size
198.10(mm)×137.60(mm)
Installation Depth
20.85(mm) (incl. 6pin_3.81mm Phoenix Connector)
Weight
490g
Accessories
Waterproof rubber gasket, buckles


Remark: There is no extra-notice if the product design changes that do not affect performance parameters and use.










Beijing DWIN Technology is a world-leading high-tech industrial automation enterprise which is dedicated to the research, development, manufacture and sales of UART LCM. The head office of DWIN is located in the core area of China's "Silicon Valley" Zhong Guan Cun. The company has set up offices in many provinces of China (Beijing, Suzhou, ChangSha, GuangZhou and ShenZhen etc.), established the effective sales channels and branches in Northern Europe, America, India, Turkey, Brazil and Korea. The manufacturing center of the company is seated at DWIN Hunan Technology Park covering 28000 m2. The manufacturing centers are equipped with high cleanliness assembly lines, quality improvement centers, laboratories and aging test workshops. A 4500-square-metre Application Support Center has been built in Guangzhou for providing technical support. Established in 2003, DWIN advocates its operation philosophy of "Professional, Creditable, and Successful". The company believes that only by creating value for the clients, could DWIN realize its idea of "Double win", and therefore could meet its need to grow and expand. Relying on the competitive advantage of its product in function, quality, service and price, DWIN plays a major role in the market of Industrial UART LCM, especially in the market of the construction machinery, healthcare instrument, and electronic equipment for export, which are products focused on high reliability. As a result, DWIN has already won the trust and support from clients like SANY Group, GE and SIEMENS. Creating value for the clients is DWIN's belief; Technology innovation is DWIN's focus; "Double Win" and mutual development are DWIN's spirit!


















FAQ


Question 1:
How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer: No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:
What industries are DWIN LCD used in?
Answer: Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:
Does DWIN product need a MOQ when purchase? I only need some samples in the first.
Answer: No MOQ for standard product, and we have free sample for application, please scan below QR, or leave messages to us on Alibaba.com

Question 4: Will DWIN have online technical support?
Answer: Yes of cause, below 6 ways you can get technical support.
- Hotline: 4000189008
- QQ: 4000189008
- DWIN wechat official ( scan the above QR)
- DWIN Forum: hppt://forum.dwin.com.cn/
- Leave messages to us on Alibaba.com

Question 5: What kind of Express are supported? Trade terms is ?
Answer: DHL, TNT, UPS, Fedex. Trade terms is EXW.

Question 6: How long is the operating life of the product?
Answer: Industrial grade screen: 30,000 - 50,000 hours
Consumer and Commercial screen: 10,000 hours
(Operating life means brightness goes down to 50% of initial brightness)
