Автомобильный подшипник NTN 4T-HM89249/10 конический роликовый
- Категории: Taper Roller Bearing >>>
- Поставщик: Shanghai,Shengyue,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
NTN Auto Wheel Bearing 4T-HM89249/10 Taper Roller Bearing HM89249/HM89210
BEARING DETAILS
NTN Auto Wheel Bearing 4T-HM89249/10 Taper Roller Bearing HM89249/HM89210 design :
4T means NTN 4-top tapered roller bearings, case hardened material,
ET means NTN endurance tapered roller bearings, case hardened material.
X means different bore, outer diameter, width or radius from basic part number
U means ISO series, internationally interchangeable through hardened steel
Tapered roller bearings HM89249/10
Bearing number : HM89249/10
Size (mm) : 36.512x79.375x29.37
Brand : NTN
Bore Diameter (mm) : 36,512
Outer Diameter (mm) : 79,375
Width (mm) : 29,37
Bearing dimensions and specification in catalogue:
d - 36,512 mm
D - 79,375 mm
T - 29,37 mm
B - 28,829 mm
C - 22,664 mm
a - 5,8 mm
Weight - 1,02 Kg
The following listed are part of our stock:
32907XU | ET-32203 | 4T-33108 |
32908XU | ET-32204 | 4T-33109 |
32909XU | ET-32205 | 4T-33110 |
32910XU | ET-32206 | 4T-33111 |
32911XU | ET-32207 | 4T-33112 |
32912XU | 4T-32208 | 4T-33113 |
32913XU | 4T-32209 | 4T-33114 |
32914XU | 4T-32210 | 4T-33115 |
32915XU | 4T-32211 | 4T-33116 |
32916XU | 32212U | 4T-33117 |
32917XU | 32213U | 4T-33118 |
32918XU | 32214U | 4T-33119 |
32919XU | 32215U | 4T-33120 |
32920XU | 32216U | 4T-33122 |
32921XU | 32217U | 4T-33124 |
32922XU | 32218U | 4T-33126 |
32924XU | 32219U | 4T-33205 |
32926XU | 32220U | 4T-332/28 |
32928XU | 32222U | 4T-33206 |
32930XU | 32224U | 4T-332/32 |
32932XU | 32226U | 4T-33207 |
32934XU | 32228U | 4T-33208 |
32936XU | 32230U | 4T-33209 |
32938XU | 32232U | 4T-33210 |
32940XU | 32234U | 4T-33211 |

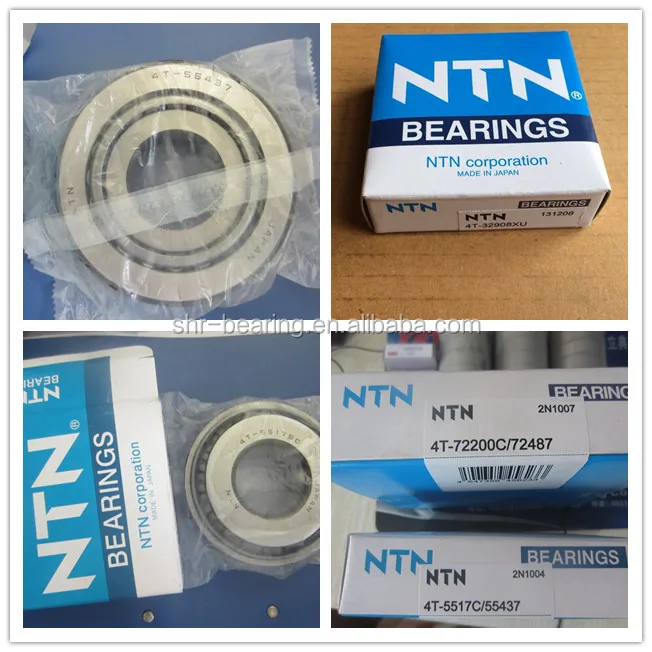

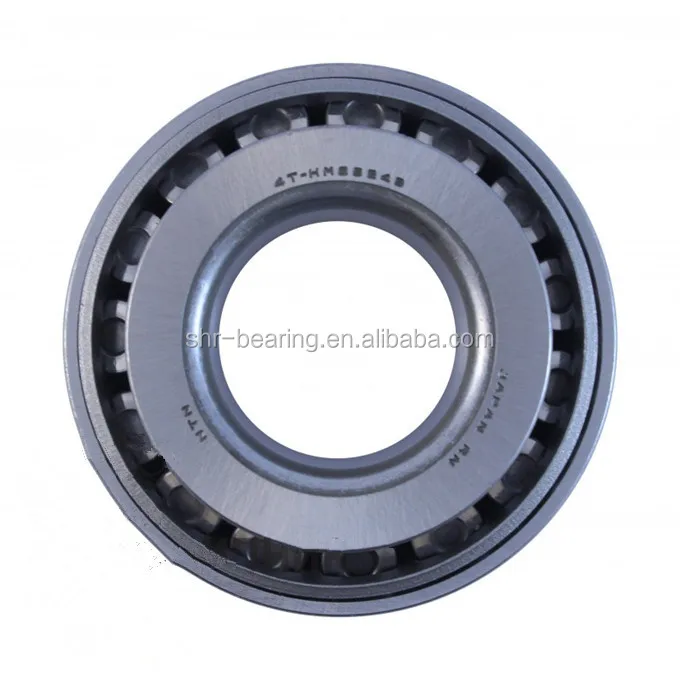

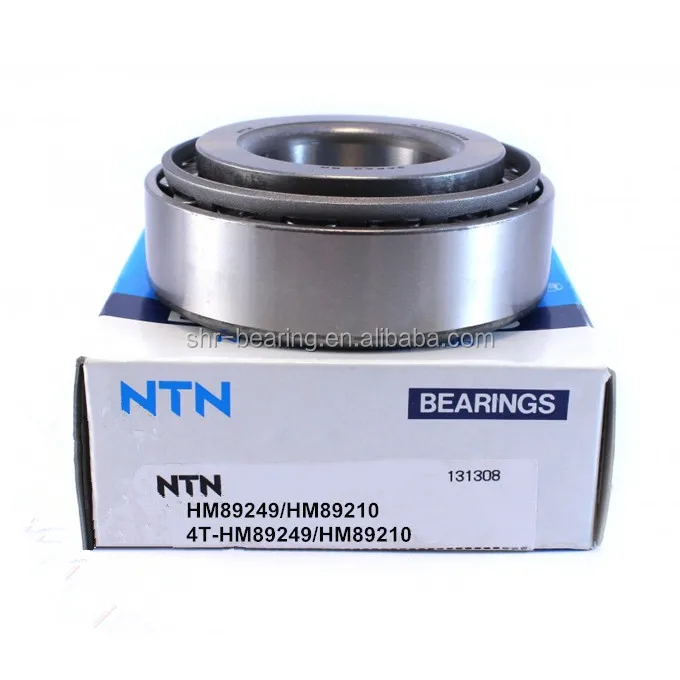

BEARING PICTURES
NTN Auto Wheel Bearing 4T-HM89249/10 Taper Roller Bearing HM89249/HM89210 pictures series :
BEARING PACKING
NTN Tapered Roller Bearing king pin shaft bearing packing items :
1.For small ones:anti-rust oil+vacuum plastic bag+paper box+wooden box
2.For big ones:anti-rust oil+waterproof belt+professional belt+wooden box
BEARING APPLICATION
king pin shaft bearing Application :
•Agriculture, Construction and Mining Equipment
•Various Axle Systems
•Conveyance Vehicles
•Gear Box, Engine Motors, Reducers
4T-32208 bearing Tapered Roller Bearing NTN
BEARING KNOWLEDGE
Bearing damage analyse :
NTN Bearing cooling medium of choice :
NTN bearing parts of the chemical composition, shape, size, and design requirements of the mechanical function of the different, a different method of quenching can be used, each NTN Bearing steel fixed C curve, the cooling medium to determine the microstructure after quenching and mechanical function, so the necessary key consideration and detailed analysis of, in fact, many NTN bearing parts of the heat-treated defect generated have a direct relationship with the choice of cooling NTN Bearing medium, also related to the detailed manipulation process.
FEATURE PRODUCTS
COMPANY INTRODUCTION
Company General Introduction :
| Company name | Shanghai Shengyue Bearing Co.,Ltd |
| Business type | Manufacturer & Trading |
| Established year | 2012 |
| Business product | All kinds of bearings |
| OWN Brand | SYBR |
| Export range | 81%-90% |
| OEM service | Offer |
| Our advantages | 1. More than ten years bearing products exporting experiences. 2. OEM order and non-standard bearing order can be accepted. 3. Many sizes of bearing are available. Large quantity bearing can be provided. 4. A certain number of free sample can be provide to support our customer's after-sale services and warranty. |
Trading Information :
| Price terms | EXW FOB CNF CFR, CIF |
| Payment terms | L/C ,T/T ,Western Union, Paypal |
| Express way | DHL FEDEX TNT UPS |
| Shipping port | shanghai ,qingdao ,nongbo, guangzhou |
| Packing | 1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets |
Our Factory :
Our Cooperated Customers & our Team :
Shipping express we cooperated :
