Product Description
500m depth pneumatic rock drill machine /rock use down-hole drilling machine
/deep hole water well drilling rig
1.Diesel engine use Yuchai turbo supercharged engine.
2.Walking device:walking motor with reducer ,long service life.
3.Hydraulic oil pump : parallel type gear box ,Oil pump monomer separation ,enough power supply.
4.Power head unit:gear box cast in one piece,two motor offer power,have big torque
5. chassis:Professional excavator chassis,big weight bearing capacity ,wide chain plate have small injur to road surface.
6.lifting force :Composite arm have small volume ,long stroke.two oil cylinder lifting have big lifting force.

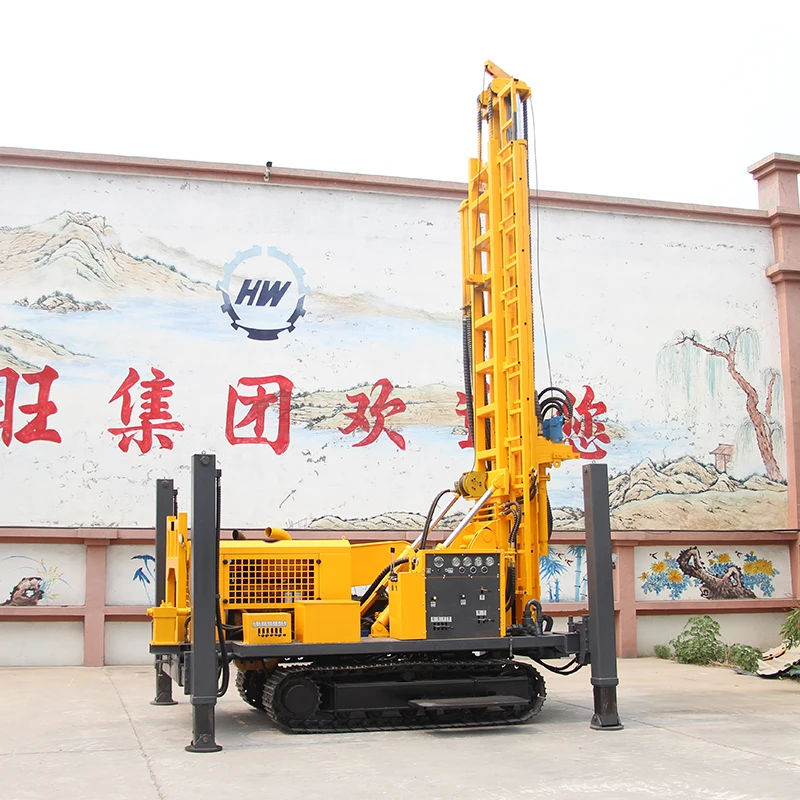

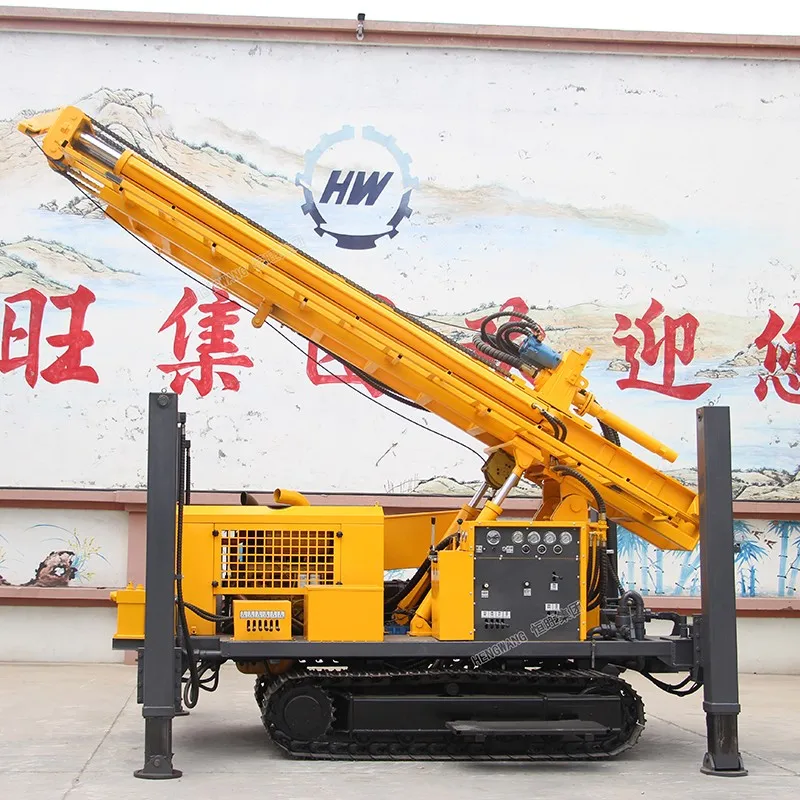

Detailed Images
500m depth pneumatic rock drill machine /rock use down-hole drilling machine /deep hole water well drilling rig Specially used for drill rock .
Total Weight | 1300kg | ||||
Drilling diameter | 140-500mm | ||||
Dimension(L * W * H) | 6100*2100*2900mm | ||||
Drilling depth | 500m | ||||
Once promotion distance | 6600(mm) | ||||
Walking speed | 2.5 km/h | ||||
Gradeability | 30° | ||||
ground clearance | 250mm | ||||
working pressure | 1.7-3.5 Mpa | ||||
air consumption | 17-35 m3/h | ||||
main machine power | 140 kw | ||||
rotating speed | 55-115 r/min | ||||
rotating torque | 8660-11150 N.m | ||||
drill pipe | Dia.76mm Dia.89 Dia.102 | ||||
drill pipe length | 1 m 2m 3m | ||||
Lifting force | 35 T | ||||
Packing & Delivery
Certifications
Customer Photos
Exhibition
FAQ
1.Are you factory ?
Yes,we are professional factory for drilling rig and pile driver .
2.What is the maximum drill depth ?
Maximum drill depth is 500 meters .
3.What is the Maximum drill diameter ?
For soil ,maximum drill diameter is 500mm , for rock maximum drill depth is 325mm
4.what kind drill rod use ?
We have dia.76mm,89mm,102mm,114mm,etc. but detail drill rod need choose according your drill diameter and drill depth
5.Does it pneumatic drilling rig ?
yes, it is pneumatic drill rig must used together with air compressor,impactor,drill bits ,drill rod .
6.Can it drill soil ?
Yes, but soil depth must smaller than 30 meters .If soil deep than 30 meters ,we can connect the mud pump in the drilling rig .
7.What engine does it used ?
Yuchai engine
8.Can you send engineer to our jobsite ?
Yes , we can send our engineer to your jobsite .
9.what is the payment term ?
30% deposit in advance,balance shall be paid before delivery .
10.What is delivery time?
Usually within 7 working days .
