Double 2 Door TCP/IP Network Access Control PCB Board Wiegand Gate Panel Access Control Board with SDK Free Software

.jpg

Product Description

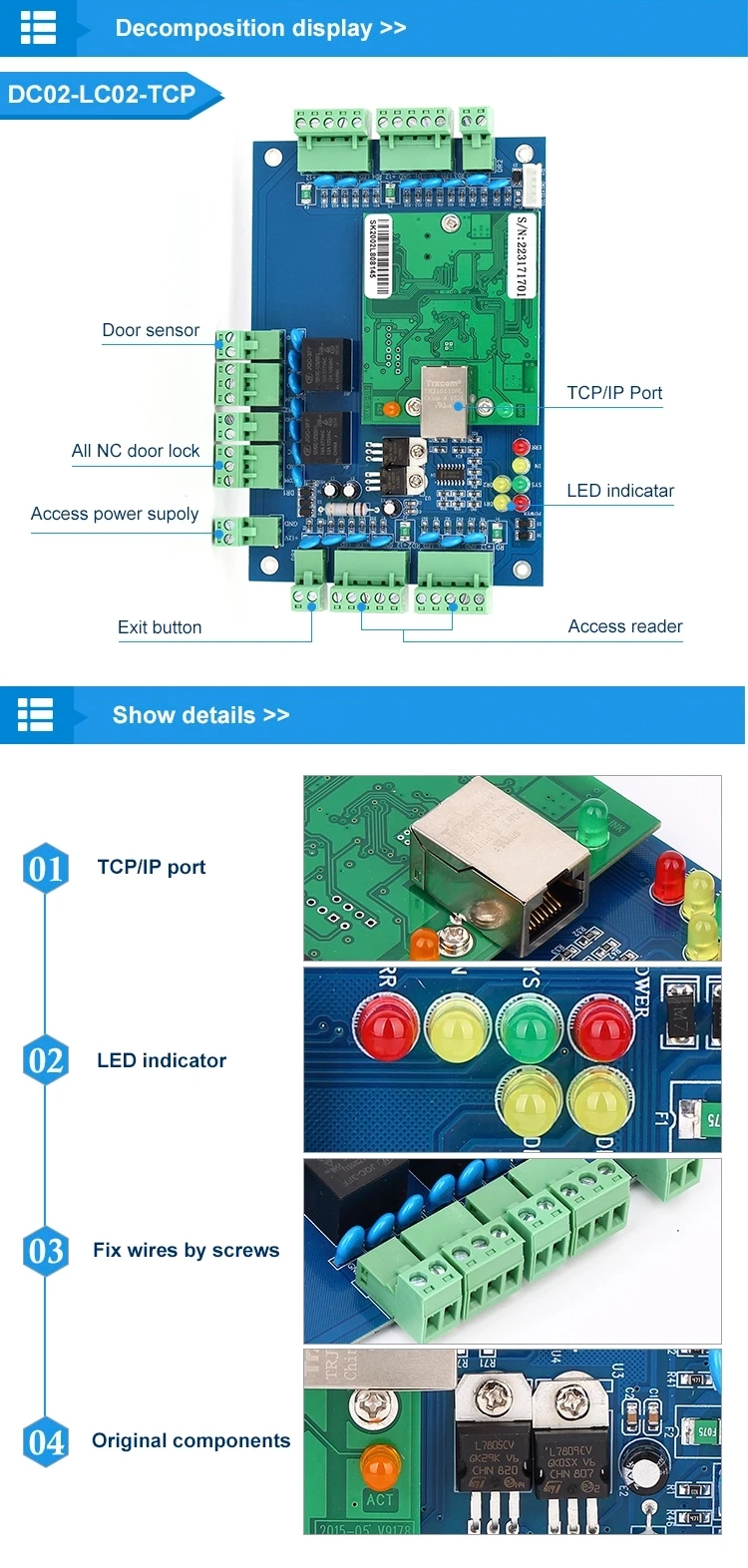

LC02-TCP network access control panel is a device combined the most advanced chip technology and mechanics of communication. It can control 2 doors with 4 readers, bidirectional network control system. For each door, user can connect the controller with one reader for entry and one button for exit; or connect one reader for entry and one reader for exit to realize safer door access control request. Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.
Features:

• Support offline work, TCP/IP communication; allow direct connection with computer via network cable.
• Support LAN, remote control by PC software.
• Compared to standard standalone access controller, this device separates the reader and the controller to individual parts so to realize higher safety request of your customer.
• This device is compatible with all RF reader which is with any type of Wiegand standard communication format available in the market.
• Wrong connection of reader or data cable will not destroy the device or unlock the door illegally.
• Effect inhibition of static electricity and surge from input and feedback interference from electronic locks.
• All-in-one-card management system: normal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system.



Technical Specification:

 Product Parameter Description
 PCB Size L177mm * W116
 Case Size L273mm * W228mm * H65mm
 Power Supply 12VDC 4-7A
 Circuit board power consumption Less than 100mA
 Reader Input Format Wiegand 26
 Means of communication TCP/IP 10M/100M self adaptive, Webserver
 Function Description Can control two doors, enter via card swiping and exit via card   swipping or button
 Quantity of reader 4pcs
 Can control the gate output relay 2pcs
 Open delay time 1-600 seconds adjustable
 Maximum number of connections No limite
 Operating temperature -40 to 70 degrees Celsius
 Run Humidity 10-90% RH, non-condensing
 Weight 2.1kg
 Signal output communication   format and baud rate Support LAN,Intranet, fix Ipinternet WAN
 User registration card qantity 20,000 cards Permissions, WEBServer Supported
 Record the number of offline   storage 100,000 records
 Power failure protection measures High speed flash memory design, and never lose data
 Max distance between reader to   the controller 100 meters, suggest within 80 meters
 Max distance for the bus line Depends on network cover area
 Max distance between controller   to the PC No limite

11111

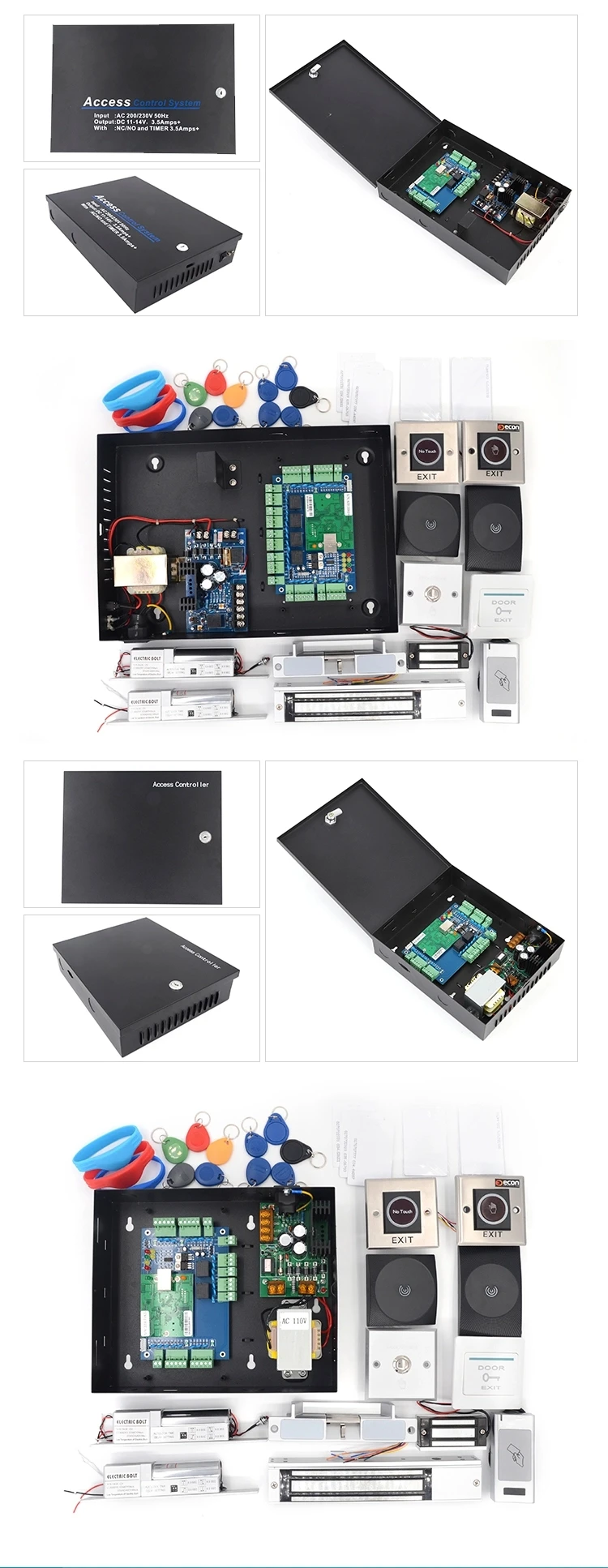

Product Display


Related Products


Company Information

-1_01.jpg-1_02.jpgCustomer Visit.jpg

Certifications


FAQ




1.What is your minimum order quantity?



Actually, we don't have strict rules on MOQ and welcome you to get samples for testing.



2.What is your payment term?



Bank T/T, Paypal, L/C, Western Union and MoneyGram.



3.What about the shipping way?



Generally, the package is delivered by Express DHL/Fedex/TNT/UPS. For big order, we recommend to ship by air or sea to save cost, but it might take longer time. Of course we could ship goods to your forwarder in China according to different customers requirements.



4.How long does it take?



Usually we need 2-8 days differently for preparing and another 3-7 days for delivery. If special products, may need more time.



5.What about the warranty?



We provide 1-2 years warranty from the date of delivery but lifetime technical support.
