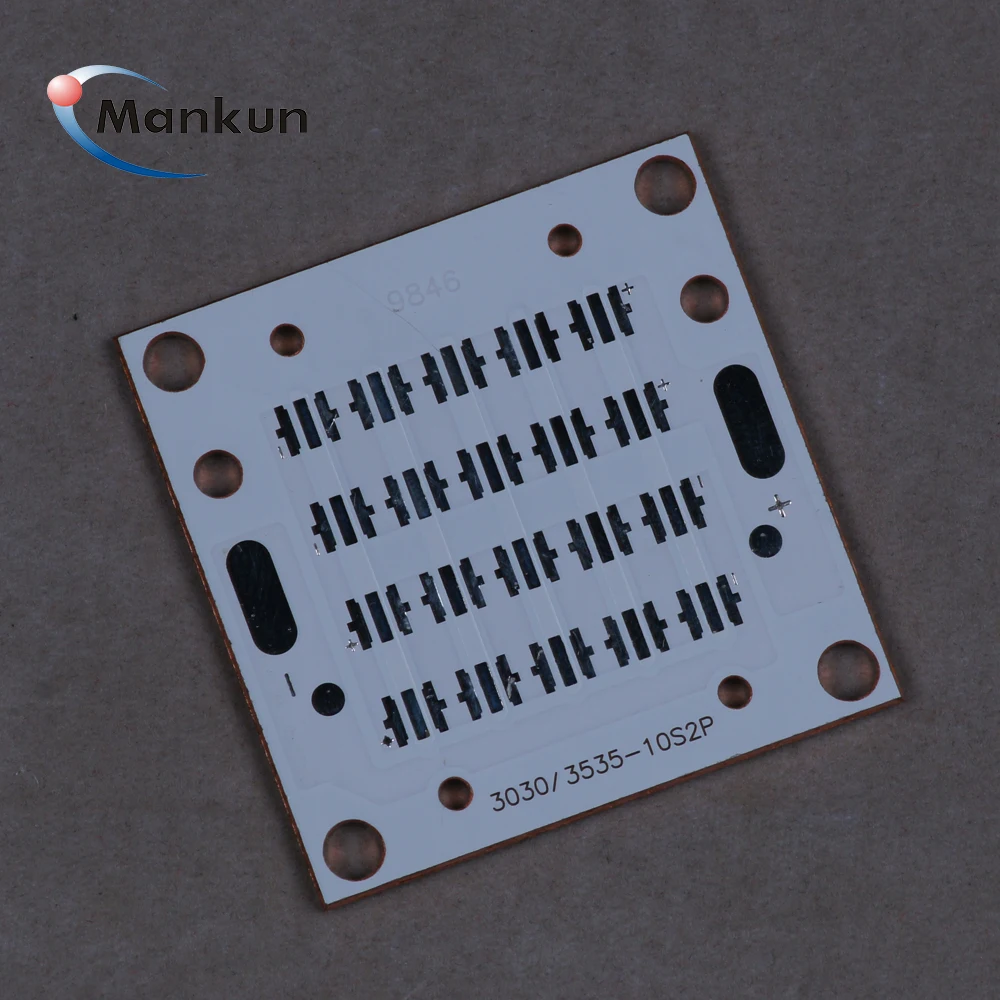

10 мм печатная плата с алюминиевым основанием pcb 3535 xp led 94v0
- Категории: PCB & PCBA >>>
- Поставщик: Mankun,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Setting Information | ||
Material | Aluminum | |
Thickness | 1.0mm | |
solder mask | white | |
LED | cree xp | |
SIZE | 10*10mm | |
Certificate | ROSH. ISO9001. UL | |
Treatment | Lead free | |
Copper | 1 oz | |
Related Product
Copper PCB Products
workshop
Shipping&Packing
Shipping method
Payment
terms
1. By DHL, UPS, FedEx, TNT using clients account.
2. our DHL, UPS, FedEx, TNT forwarder.
Pcb production time =Sample:3-4days mass production:7-8 working days
Pcb assembly time= sample:1-2days mass production:3-4days
Remark :mass production exact delievry time depends on the quantity.
Packing
\t\t\t\t\t\t\t\t\tProduction capablity \t\t\t\t\t\t\t
Technical parameters and process capability of metal substarte(MCPCB) | ||||||
ITEM | SPECIFICATION | |||||
Surface | LF HASL,immersion gold,immersion siliver,OSP | |||||
Layer | Single side,double sided Multilayer and special structure | |||||
Maximum PCB size | 240mmx1490mm OR 490x1190mm | |||||
PCB thickness | 0.4-3.0mm | |||||
Copper Foil thickness | H 1/2/3/4(oz) | |||||
Insulation layer thickness | 50/75/100/125/150/175/200(um) | |||||
Metal Base thickness | AIuminum(1100/3003/5052/6061),Copper AIuminum | |||||
Metal Base thickness | 0.5/0.8/1.0/1.2/1.6/2.0/3.2/5.0(mm) | |||||
Shaping | Die punching/CNC Route/V-Cut | |||||
Test | 100% open&short test | |||||
Shaping tolerance | Die Punching<+- 0.05mm,CNC Route<+-0.15mm,V-CUT Thick residue>+-0.15mm | |||||
Hole tolerance | +-0.5mm | |||||
Min.Hole DIameter | Single side 0.5/Double sided PTH0.3MM | |||||
Solder mask | green/white/black/red/yellow | |||||
Min.letter height | 0.8mm | |||||
Min.line space | 0.15 | |||||
Min.letter width | 0.15 | |||||
Sile screen color | blue/white/black/red/yellow | |||||
Sopecial hole | Spot facing/cup hole/buried via hole/buried tank | |||||
File format | Gerber,Protel,PowerPCB,AutoCAD etc | |||||
