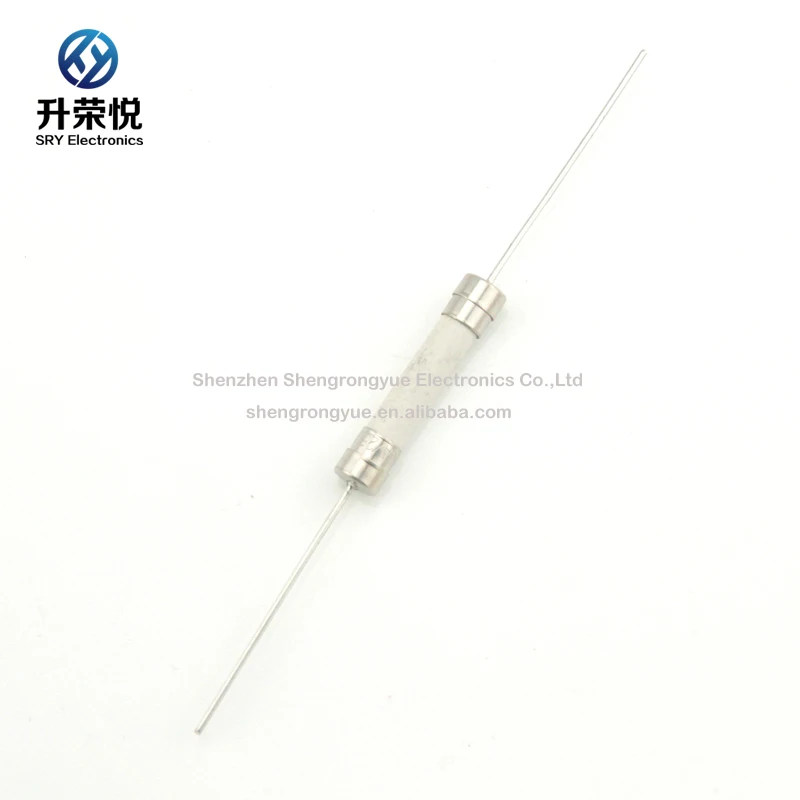

Littelfuse 0324030.MXP Ceramic Fuse 30A 250V 6.3x32mm Fast Acting with axial
- Категории: Fuses & Fuseholders >>>
- Поставщик: Shenzhen,SRY,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Description
The 3AB Fast-Acting Fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal
for applications where high current loads are expected.
Features:
- In accordance with UL Standard 248-14
- Available in cartridge and axial lead format and with various forming dimensions
- RoHS compliant and Lead-free
Images
Demension
Space
Littelfuse,Axial Lead & Cartridge Fuses,3AB > Fast-Acting > 314/324 Series, designed in America
Electrical properties
Model | Amp Code | Amp Rating | Voltage Rating(V) | Interrupting Rating | Nominal Cold Resistance (Ohms) | Nominal Melting I2t (A2Sec.) | Agency Approvals | |||||
UL | CSA | KC | UR | PSE | CE | |||||||
0324.375 | .375 | 0.375 | 250 | 35A@250VAC 10kA@125VAC 10kA@125VDC | 0.820 | 0.050 | X | X | X | |||
0324.500 | .500 | 0.5 | 250 | 0.500 | 0.115 | X | X | X | ||||
0324.750 | .750 | 0.75 | 250 | 0.250 | 0.466 | X | X | X | ||||
0324001. | 001. | 1 | 250 | 100A@250VAC 10kA@125VAC 10kA@125VDC | 0.189 | 0.690 | X | X | X | X | ||
0324002. | 002. | 2 | 250 | 0.0700 | 11.0 | X | X | X | X | |||
0324003. | 003. | 3 | 250 | 0.0432 | 14.6 | X | X | X | X | X | ||
0324004. | 004. | 4 | 250 | 750A@250VAC 10kA@125VAC 10kA@125VDC | 0.0470 | 10.4 | X | X | X | X | X | |
0324005. | 005. | 5 | 250 | 0.0300 | 26.0 | X | X | X | X | X | ||
0324006. | 006 | 6 | 250 | 0.0240 | 45.0 | X | X | X | X | X | ||
0324007. | 007. | 7 | 250 | 0.0187 | 71.0 | X | X | X | X | X | ||
0324008. | 008. | 8 | 250 | 0.0153 | 105 | X | X | X | X | X | ||
0324010. | 010. | 10 | 250 | 0.0105 | 206 | X | X | X | X | X | ||
0324012. | 012. | 12 | 250 | 0.00760 | 570 | X | X | X | X | X | ||
0324015. | 015. | 15 | 250 | 0.00505 | 292 | X | X | X | X | X | ||
0324015.* | 015.* | 15 | 280 | 0.00505 | 292 | X | X | |||||
0324020. | 020. | 20 | 250 | 1000A@250VAC 200A@300VAC 10kA@125VAC 10kA@125VDC | 0.00355 | 631 | X | X | X | X | X | |
0324020.* | 020.* | 20 | 280 | 0.00355 | 631 | X | X | |||||
0324025. | 025. | 25 | 250 | 100A@250VAC 1000A@75VDC 400A@125VAC 400A@125VDC | 0.00235 | 1450 | X | X | X | |||
0324025.** | 025.** | 25 | 280 | 0.00235 | 1450 | X | X | |||||
0324030. | 030. | 30 | 250 | 0.00182 | 2490 | X | X | X | ||||
0324040. | 040. | 40 | 250 | 1000A@250VAC 400A@150VDC | 0.0014 | 22925 | X | X | ||||
