About baby monitor

No.	Item	Specification
1	WIRELESS CAMERA
2	Image Sensor	1/4-inch CMOS H62
3	Camera resolution	1280*720
4	Field of viewing angle	70°(Horizontal test)
5	Night Vision	>5(IR OFF)/<0(IR ON)
6	IR Range	5m
7	Video Resolution	1280 x 720P/25fps
8	Video Code Rate	32kbps-8Mbps
9	Audio Compression	PCM
10	Audio Transmission	Two-way voice intercom(Half Duplex)
11	Sound Sensitivity	-47dBm
12	Alarm Mode	Voice detection
13	Wireless Transmission Way	2.4GHz FHSS
14	Transmission Range	500ft in residential area
15	Interface	DC Socket Set Button
16	Power Supply	5V 1.5A
17	working current	400(max)
	Monitor
1	Display screen size	5inch
2	Display screen description	High-definition screen, good image  quality
3	Resolution	720*1280
4	Video input	Support one channel
5	Audio input	Built-in microphone
6	Interface	1 DC power interface 1 power switch1 menu button1 left and right arrow keys1 confirmation button1 shortcut key1 Intercom key 1 split screen button
7	Power Supply	5V 1.5A
8	working current	500(max)
9	Built-in lithium battery	2000mAh
10	Size	156x83x24(mm)
11	Weight	256G
	General
1	Operation Temperature	TBD
2	Storage Temperature	-20º ~+60º
3	Operation Humidity	15%~85%

General Introductions

Image more larger and more clearer

Adopt 5”1280x720P/25fps super large HD screen , the picture quality is more delicate, and it is larger than the traditional baby monitor image, giving the baby more care. The camera reaches 1280x720P/25fps HD image, which is at least 10 times better than the traditional 240P baby monitor. The image is more realistic and the baby is perceived to change slightly.

The Image with wider vision

By controlling the up, down, left and right buttons of the screen, it is easy to realize the camera's horizontal rotation from 0 to 355 degrees, and the vertical rotation from 0 to 70 degrees by receiver.The baby's growth range is larger and can be easily observed.

Image and sound transmission distance is further

Inhabited areas with a certain interference area image and sound transmission distance of up to 500 ft (150 m), completely interference-free open area image and sound transmission distance of up to 700 ~ 900 ft (210m ~ 270m), indoor image and sound transmission distance can reach through 3-4 obstacles between the walls at 100ft (30m), and the wooden room can be further away. Support two-way voice real-time transmission.

.24 hour infrared invisible night vision imaging
Using 940nm infrared light, it cannot be seen within 30 ft (1m) infrared light, effectively protect your baby's eyes, eliminate infrared light source, baby sleeps peacefully, parents can also see high-definition black and white images at night vision environment, night vision distance up to 16ft (5m).

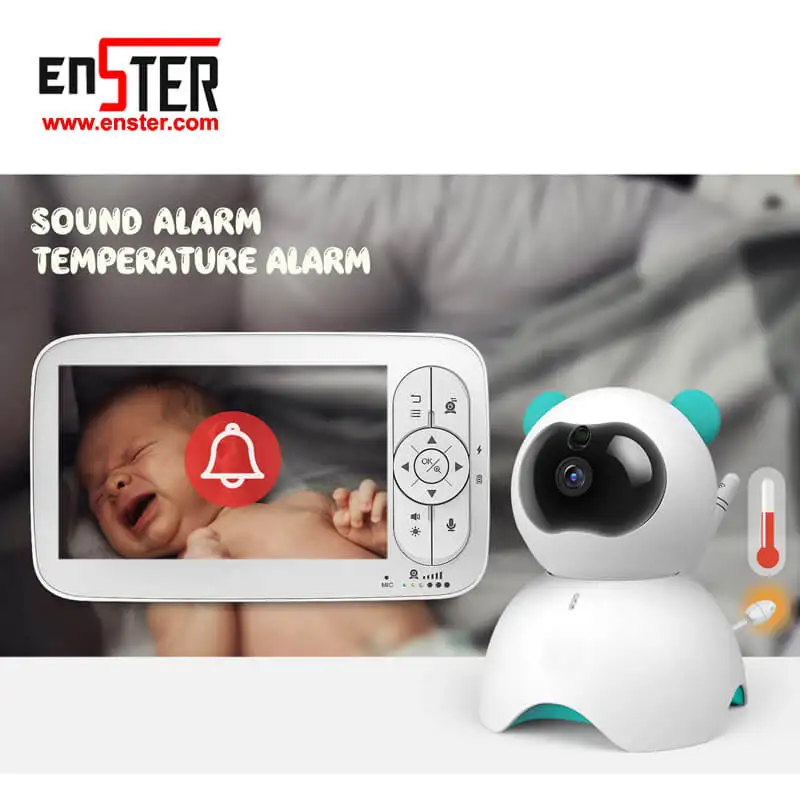

. Variety alarm reminder, no worry about baby safe

Camera with sound motion, the baby emits a sound alarm, a crying alarm, a video signal interruption alarm, a low battery alarm, can light the sleep receiver, and the indicator light flashes and emits a beep sound, the sound alarm sensitivity can be set, the receiver The sound size can be set.

.The receiver comes with rechargeable battery, more convenient to use

Receiver with Li-ion Polymer battery, in line with UN38.3 certificate, receiver supports power-saving mode, with automatic sleep function, sleep time four gear: 5 minutes, 30 minutes, 60 minutes, off, do not turn off the screen, the battery can be used for about 4 hours. When the LCD is asleep, if there is sound at the camera end, the receiver can be detected and illuminated.The camera comes with 5 lullabies,

and the baby sleeps peacefully.

The receiver can remotely set the camera to play the lullaby, up to 5 stored lullabies.

.The camera comes with a temperature sensor that automatically senses the temperature of the baby's room and alarms the receiver has a temperature display function that displays the temperature data transmitted by the camera wirelessly. It can switch between Celsius and Fahrenheit, and does not alarm at 590F to 840F (15C to  29C). If the temperature alarm button is turned on, the receiver will sound an alarm below or above the above range.

.One receiver can be configured up to 4 PCS cameras

By adding and deleting cameras through the code mode, one receiver can be configure 4 PCS camera

and use loop-out playback. Restoring the factory settings requires re-adding the camera.

Baby Monitor System General Specifications

1. Audio and video wireless transmission.
2. Half-duplex two-way voice intercom.
4. With pan/tilt rotation function.
5. The camera is powered off, the indicator light flashes and a beep sounds.
6. The camera has a sound detection function that can illuminate the sleeping receiver while the indicator light flashes and emits a beep sound.
7. Support IR CUT, support night vision, night vision distance of 5 meters.
8. The lens angle of view is greater than 60 degrees (horizontal test)
9. Receiver with ZOOM function, can double the video image
10. Alarm function; camera power failure alarm (indicator buzzer).
11. When the LCD is sleeping, if there is sound at the camera, it can detect and light up the LCD.
