Product Description
Product Description

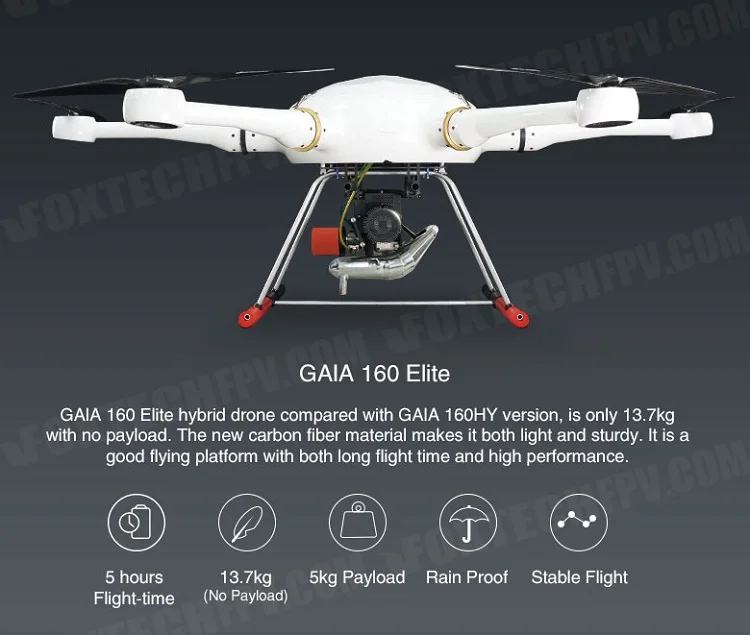

GAIA 160 Elyte Hybrid Drone (ARF Combo)
| Product Name | Gaia 160 Elyte 2400W | Generator output | 2.4 kw(continuous) |
| Wheelbase | 1600mm | Generator weight | 4.2 kg |
| No payload weight | 13.7 kg | Fuel tank | 7L |
| Max take-off Weight | 22.5kg | Fuel consumption | 2.5L/H(Max) |
| Max Flight time | 4.8 hours (7L fuel) | Back up battery | 2x 6S 5000mah |
| Voltage | 48V | Working Temperaure | -10℃ ~ +55℃ |
GAIA 160 Elyte Hybrid Drone Features and Advantage
| 1. Gaia 160 Elyte has good power redundancy. Hexa-copter can still fly or land in case one propeller or motor is gone. |
| 2. Gaia 160 Elyte's main body is made of full carbon fiber featuring light weight and high strength. Gaia 160 Elyte adapts to extreme weather conditions, e.g 17m/s wind, -40℃ low temperature, +40℃ high temperature, heavy rain, fog etc. |

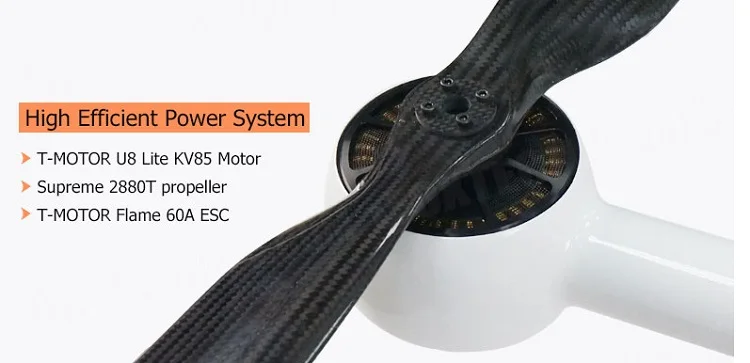

| 3. Gaia 160 Elyte uses cutting edge technologies on the power system, its motors, ESCs and propellers are all optimized and tested for long duration and long range flight. |
| 4. Gaia 160 Elyte's generator module is isolated from other electric equipments giving advantages for maintenance, working stability and safety. |
| 5.Gaia 160 Elyte uses flight controllers with triple redundancy. 3X IMU, 3X GPS and 3X Mag sensor. Both A3 PRO and Pixhawk 2.1 are all proved reliable and widely used on professional drones. |
| 6.All Plugs used on Gaia 160 Elyte are anti-spark type, all wires are optimized for long duration flight. |
| 7. Gaia 160 Elyte is rain-proof, it’s possible to fly in mid moderate rain. |
Your Purchase Includes:
RTF:
Pixhawk Combo:
1x GAIA 160 Elyte Pro Frame

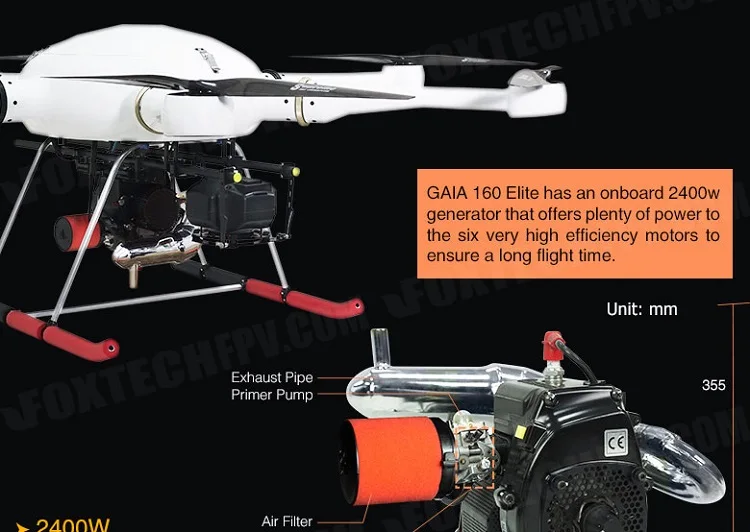

1x 2400W Generator

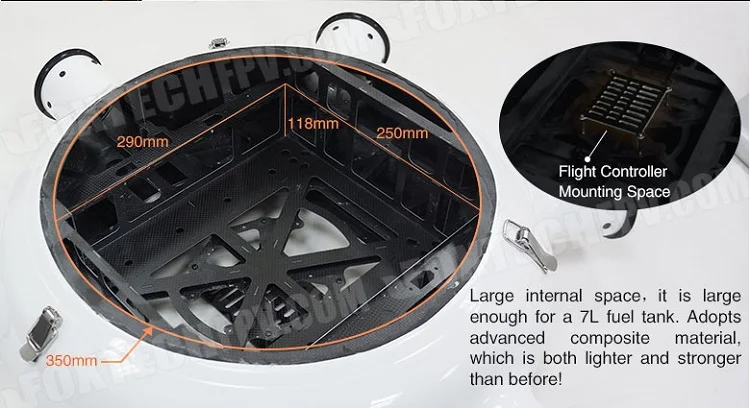

1x 7L Fuel Tank
1x Generator Control Unit
6x T-MOTOR U8 Lite KV85
3x Foxtech Propeller 2985
6x T-MOTOR Flame 60A ESC
1x Pixhawk 2.1 Standard Set with Here 2 GNSS
1x Foxtech DA16S+ 16-Channel Radio Controller
2x Foxtech 6S 5000Mah Battery
1x Plug/Cable/Wires/Shrink Tubing etc
1x Tools(fuel mixer, generator starter with 3s lipo etc.)
1x Assembly and Fly Test Package
1x NOVA-2400 Generator Maintenance Kit
1x PWM to RSSI Signal Converter
1x Liquid Level Display
1x Hand pump
1x Foxtech Propeller 2985
