Портативная легкая бесщеточная электрическая инвалидная коляска

Описание и отзывы

Характеристики

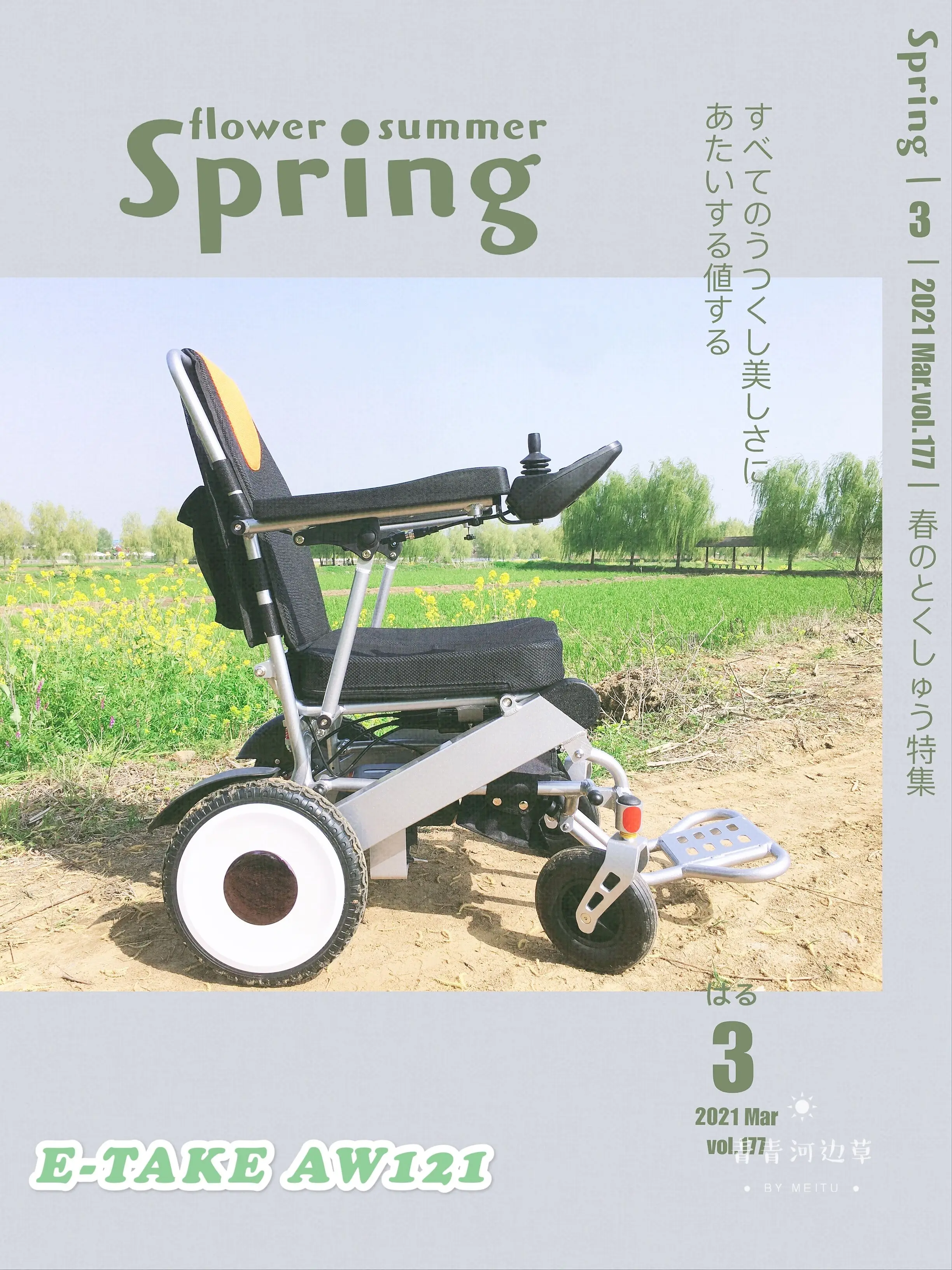

250W portable light brushless electric wheelchair

Model	AW121	Specificaiton
Material		Aluminum alloy 7003

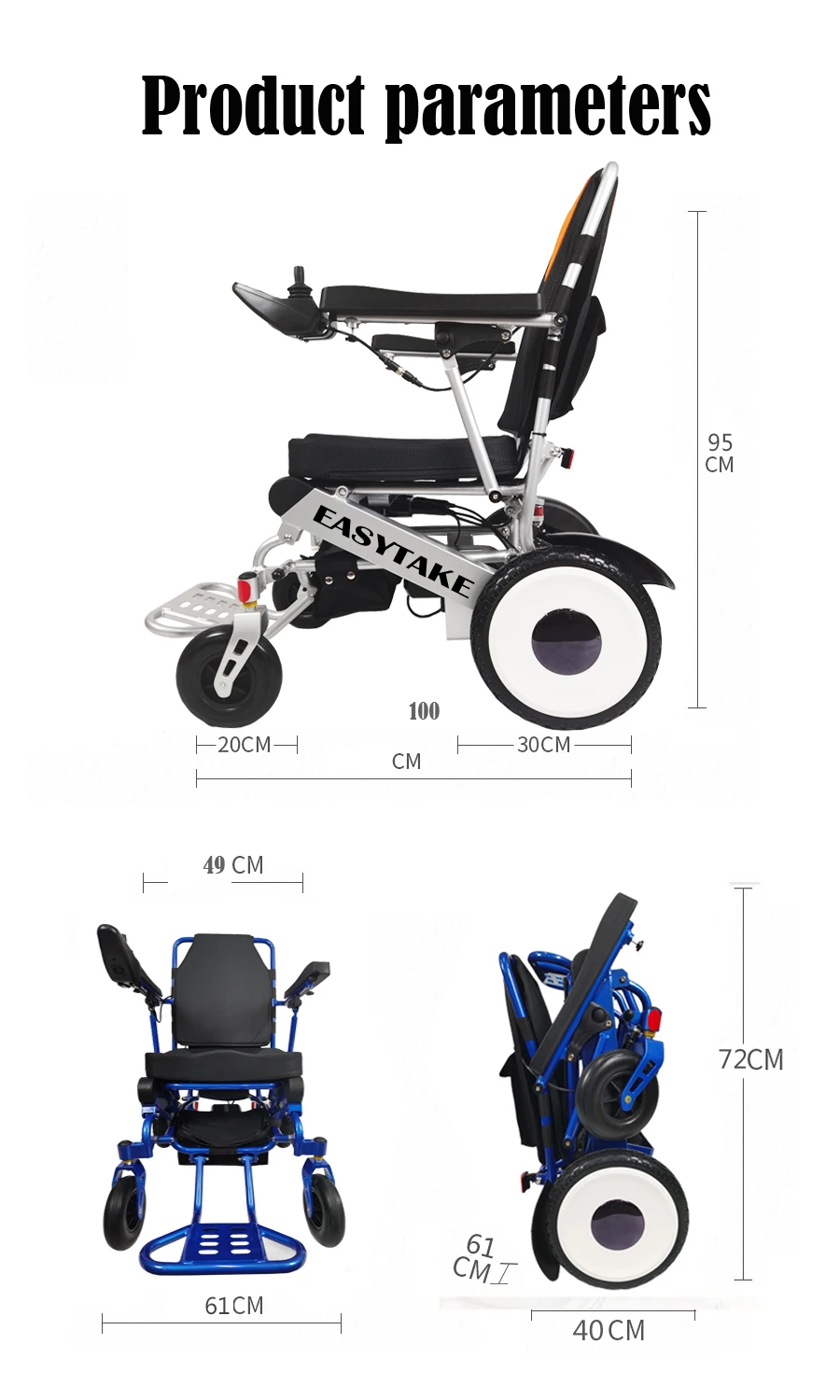

Unfolded dimension		1000*610*975mm (39.4in.*24in.*38.4in.)

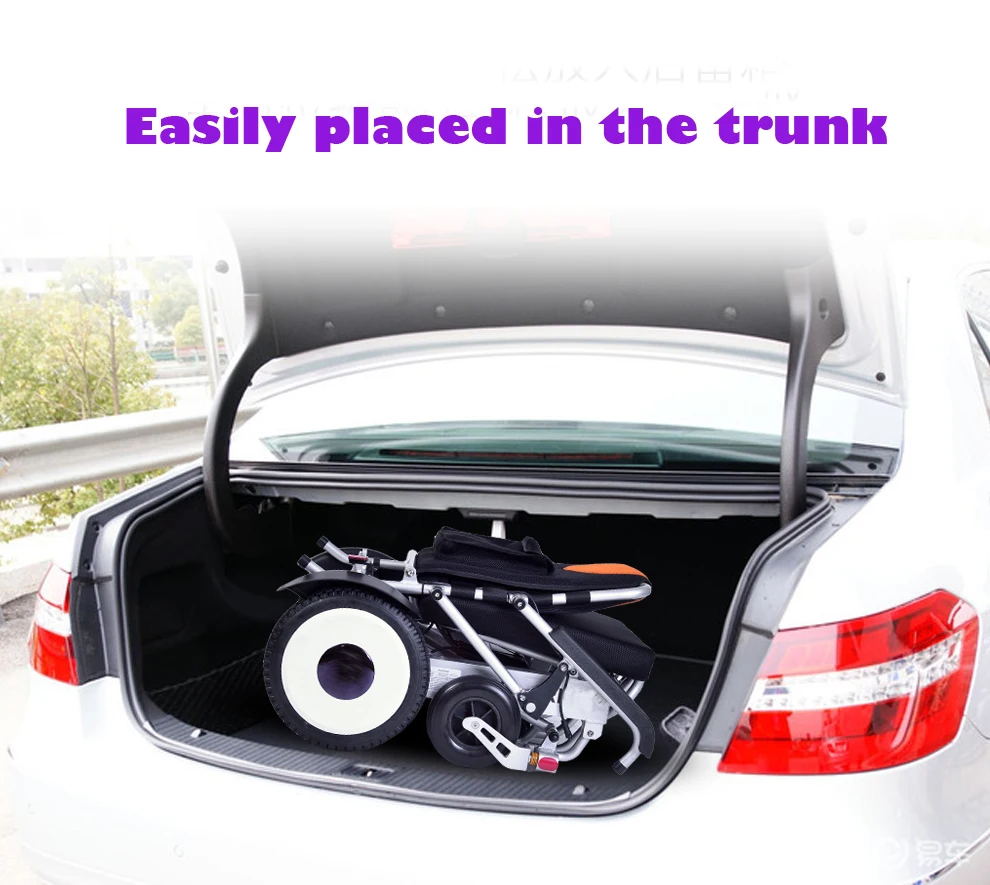

Folded dimension		360*610*840mm (14.17in.*24in.*33in.)
Optional accessory		Leg extension(extra fee)
Loading Capacity		160kg/352lbs
Endurance		28km

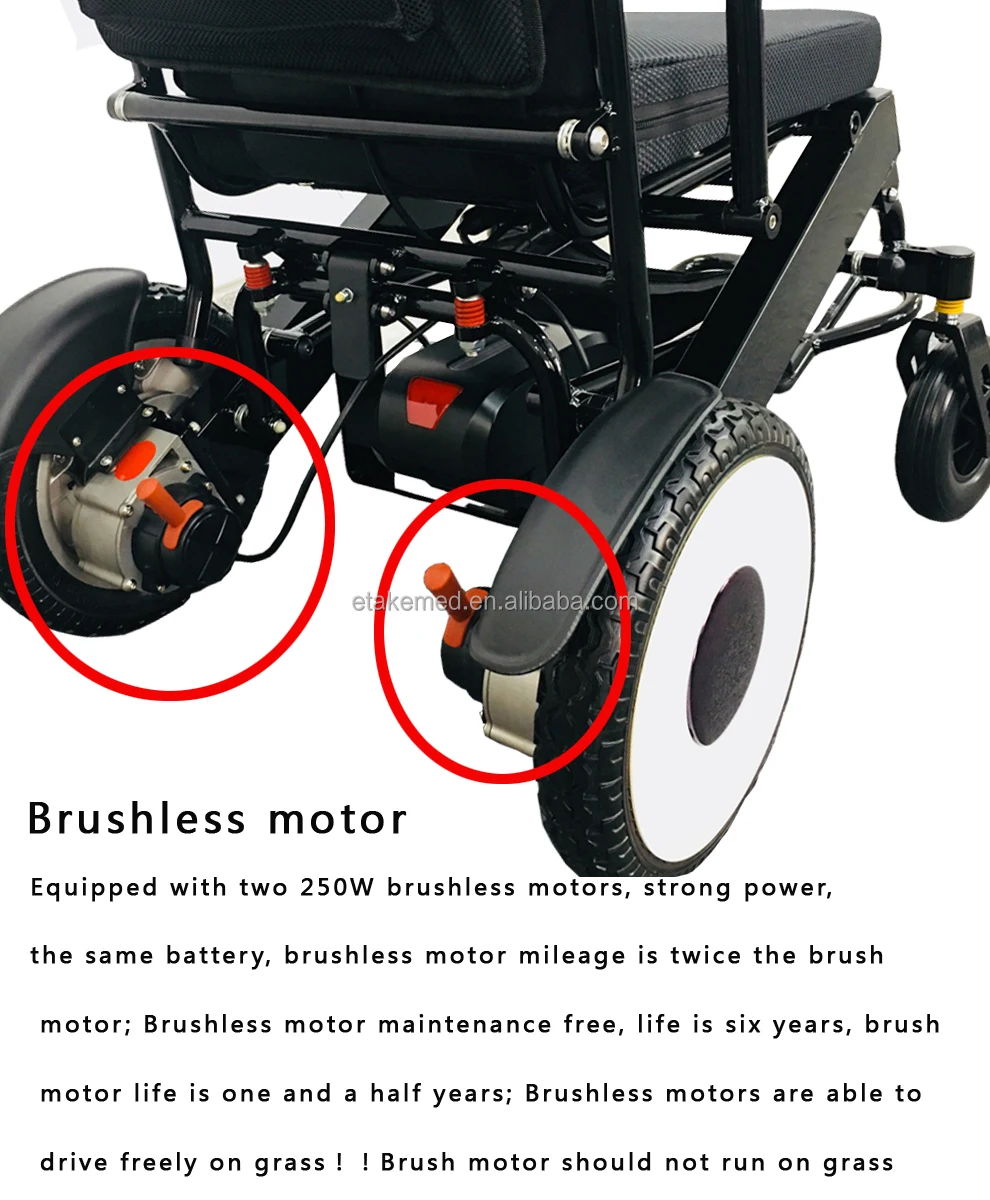

Motor		DC250W×2PCS brushless motor(500W)
Battery		24V 12AH/pc (lithium battery*2PCS)
Max speed		6km/hr (3.7mph)
Front tires		8" PU solid tires
Rear tires		12" PU solid tires
Climbing slope		Max 12°
Charging time		6 to 8 hr
Width of armrests		49CM/18.5''
Seat width		470mm
Seat depth		450mm
Seat height		520mm
Pedal high from the ground		150mm/3.2''

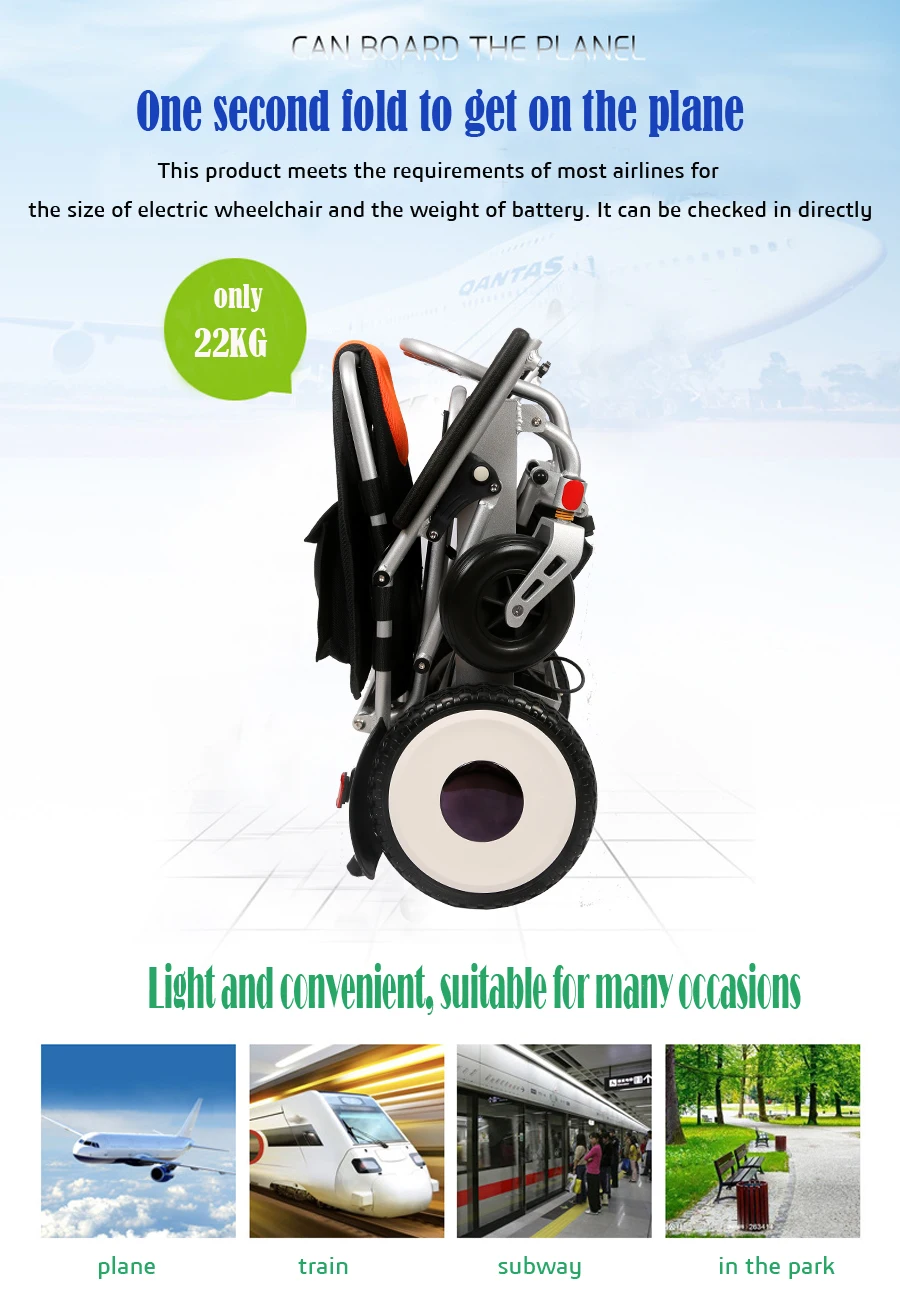

N.W. (Without battery)		22kg/50lbs
N.W.		25kg/57lbs
Drive mode		rear drive

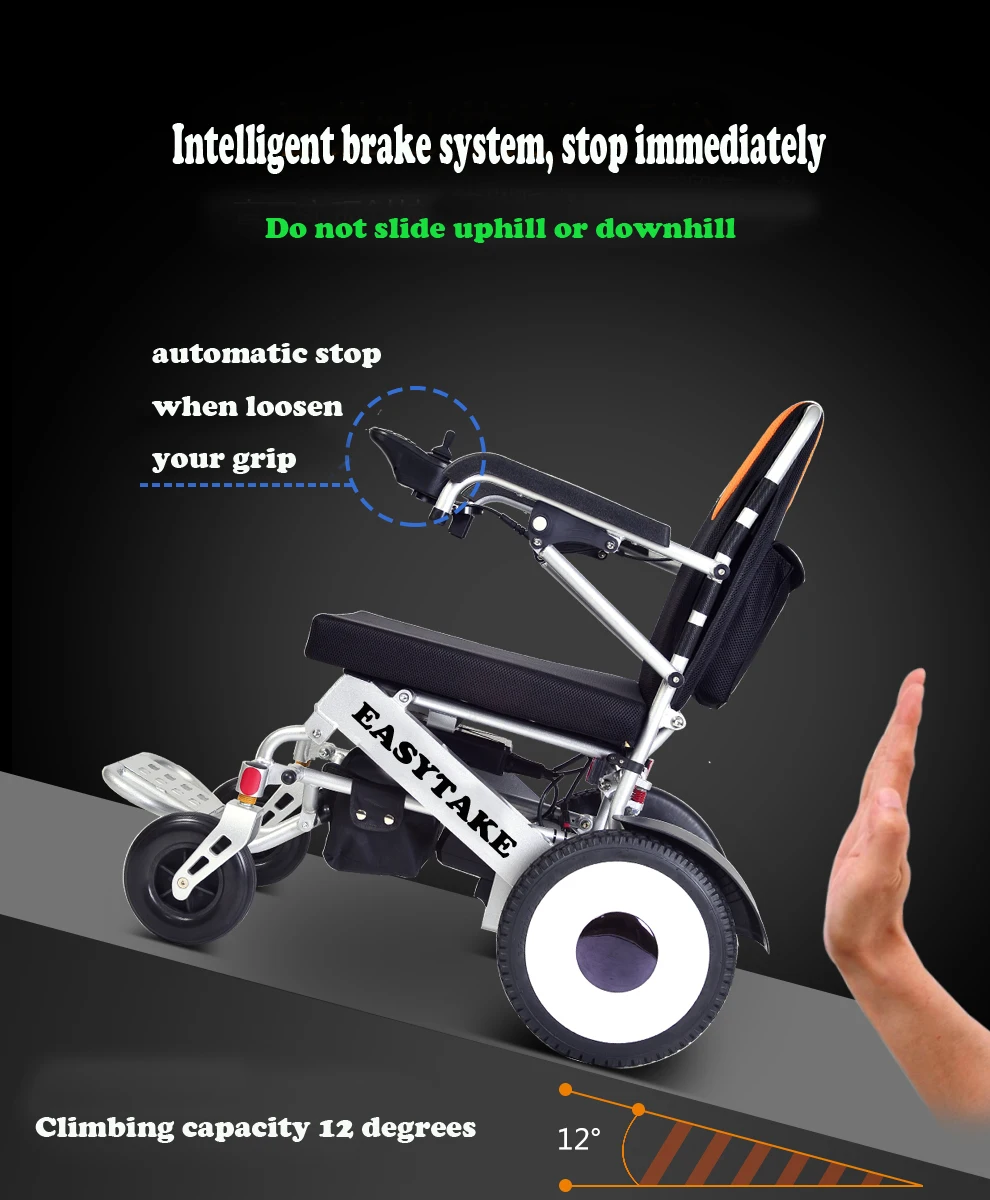

Braking system		electromagnetic brake
Battery lifetime		1000+ electric cycles (input and output)
Warranty		half year for battery; 1 year for joystick, controller and motors; 3 years for frame





FAQ:

Q1: How is the warranty?

    The frame is 3 years. battery. motor, joystick and controller, other parts all is one year.



 Q2: Where is the weakest part in wheelchair?

    The weakest part is wheel, but the quality could be guaranteed.



 Q3:  Is the wheelchair for indoor or outdoor use?

       It was designed for both indoor and outdoor use.



  Q4: How to assemble the wheelchair when i received the wheelchair?

    We have after sales team online 24 hours.



 Q5: Can i have some more parts like wheels?

    Yes, it is not free, however, we can sell it with lower cost.



 Q6: Will you accept OEM orders?

Yes. We’d like to produce our customers’ OEM/ODM orders.



Q7: Can I get one sample?

  Of course, but you need to pay for sample charge which will be returned after any other order signed. Welcome to visit our factory.
