the cooling tower adopt the technology of the combination of coil and stuffing to avoid the dry spot and dirt formed on the coils. so the performance of the heat exchanger is dramatically effective. 2. Convenient Maintenance the cooling tower is designed with access door and reparing ladder. It is easy for technicains to inspect the working condition of the cooling tower.Technicians can enter into the cooling tower during operation time 3.. Convenient Transportation and Installation The cooling tower is designed to be standard upper body part and bottom body part,. It is easy for the transportation and installation of the cooling tower
Cooling Tower Capacity
10-5000 tons
Brand for Motor
Siemens/WEG/ABB
Material for Coils
SS304,SS316L, Galvanised Steel
Material for Casing
SS304,SS316L, Galvanised Steel
Warranty
24 Months
Application
Chiller, Compressor, Furnance, ect.

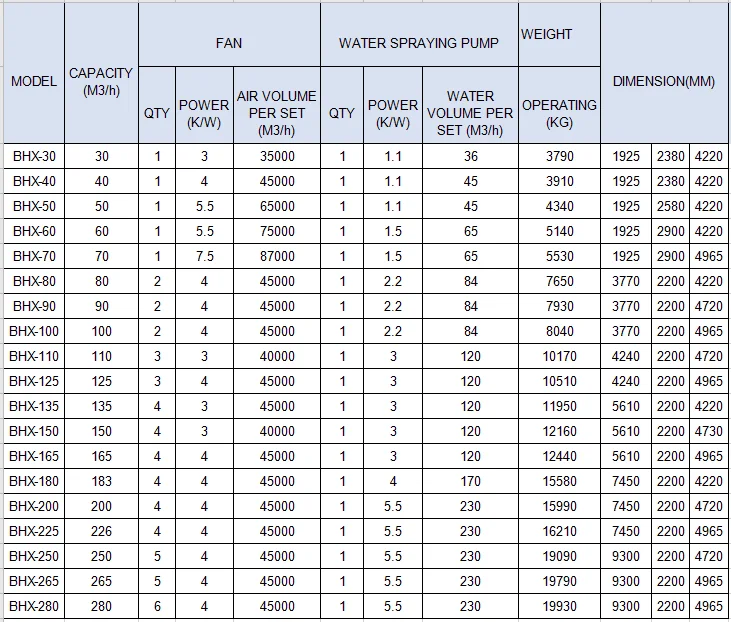

Product Paramenters
Packing&Shipping
Recommend Products

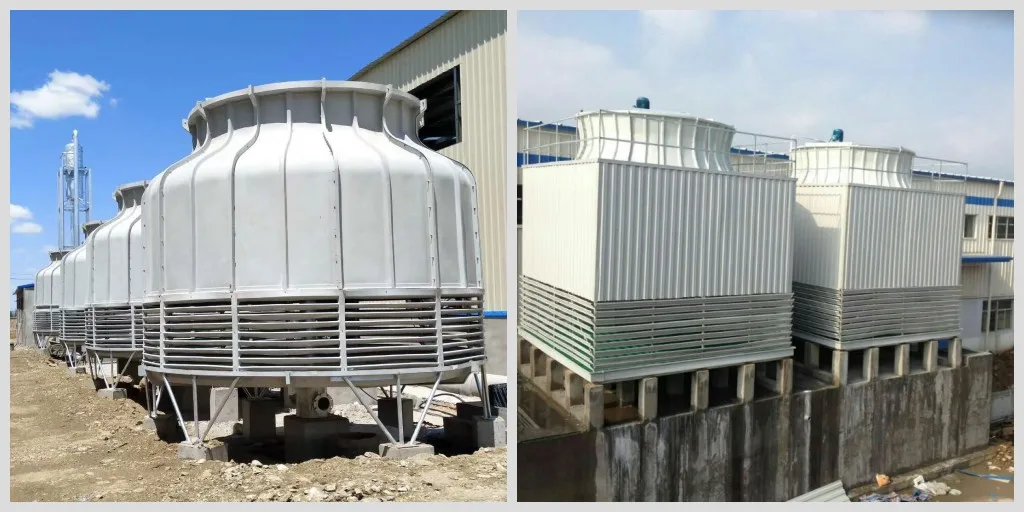

Open Type Cooling Tower
Shape: round and square
Type: counter flow and cross flow
After Sales Service
Professional Technical Engineer Team Service
* Techncial Proposal, CAD Drawings, And Documents Supported
* Customerization is available. The company has more than 200 technical staff, more than 60 engineers, has obtained more than 100 patent technology. Heng An is dedicated to provide exceptionally customized products to our clients.
After-Sales Service
* Training how to install and operate the machine.
* Engineers available to service machinery overseas.
* We can offer you the best payment term 4. 24 months warranty period
Company Introduction
1.One of the biggest cooling tower & evaporative condenser manufacturers in China
2. Annual productivity 2100 sets
3. Supply OEM/Customised production
4. Our products such as cooling tower, evaporative condenser, pvc fill have been exported to many countries such like America, Mexico, Malaysia, Chile, India, Dubai etc
5. Professionals:
We have 52 professionals working on product R&D area, 21 of them have senior professional titles and 12 professionals have doctor degrees.
FAQ
5) Q1:Your company is manufacturer or trading company? A: Manufacturer since 1975 Q2.4 : How can I choose a suitable model? 1) Application: Where the cooling towers will be used for? e.g. for HAVC system, Air Compressors, Melting Furnaces 2) Water Flow Rate: How many Tons of water required per hour
3) Inlet Water Temp.Temperature of hot waterto be cooled
4) Outlet Water Temp: Temperature of cooled water, usually it shall be at least 3~4 °C higher than the wet-bulb temp. 5) Wet-bulb Temp.: Highest wet bulb temp. of the location/area or city to install the tower is essential to know to evaluate the size of the cooling tower
