Boring and milling machine TX68 boring machine supplier
Products Description

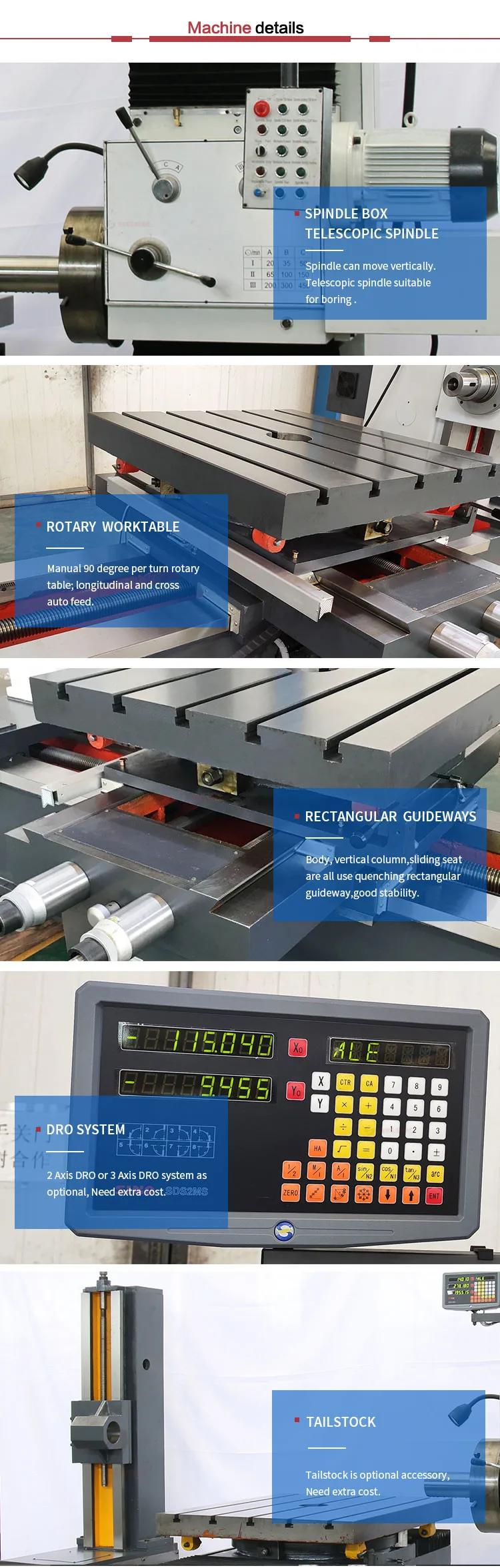

Details Images
Product Paramenters
Product main features：
1.The appearance of beautiful and generous overall layout coordination
2.Fuselage, vertical column, sliding seat are all rectangular guide, good stability
3.Guide rail to take automatic quenching, high wear resistance
4.Gigital synchronous display, intuitive and accurate, can improve the efficiency of low cost
Product application:
1. This machine is suitable for machining the parts of single piece or small batch production in the machine shop.
2. Drilling, boring and hinge hole can be carried out on the machine tool.
1.The appearance of beautiful and generous overall layout coordination
2.Fuselage, vertical column, sliding seat are all rectangular guide, good stability
3.Guide rail to take automatic quenching, high wear resistance
4.Gigital synchronous display, intuitive and accurate, can improve the efficiency of low cost
Product application:
1. This machine is suitable for machining the parts of single piece or small batch production in the machine shop.
2. Drilling, boring and hinge hole can be carried out on the machine tool.
Specifications | Units | TX68 |
Spindle bore | mm | 85 |
Spindle taper | Morse 5# | |
Spindle speed | r/min | (9steps)25-530 |
Worktable rapid feed speed (Longitudinal) | Mm/min | 5-160 |
worktable rapid feed speed (Horizontal) | Mm/min | 5-160 |
Worktable rapid move speed | Mm/min | 2000 |
Spindle lift speed | Mm/min | 216 |
Working table size (L*W) | mm | 930x840 |
Longitudinal travel of worktable | mm | 1400 (Without Tailstock) |
Horizontal travel of worktable | mm | 750 |
Spindle box travel | mm | 650 |
Axial travel of spindle | mm | 300 |
Overall dimensions | mm | 2700×1600× 2100 |
Max. load of worktable | T | 2.5 |
Machine power | kw | 4 |
N.W | kg | 5000 |
Company Profile
Certifications
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
