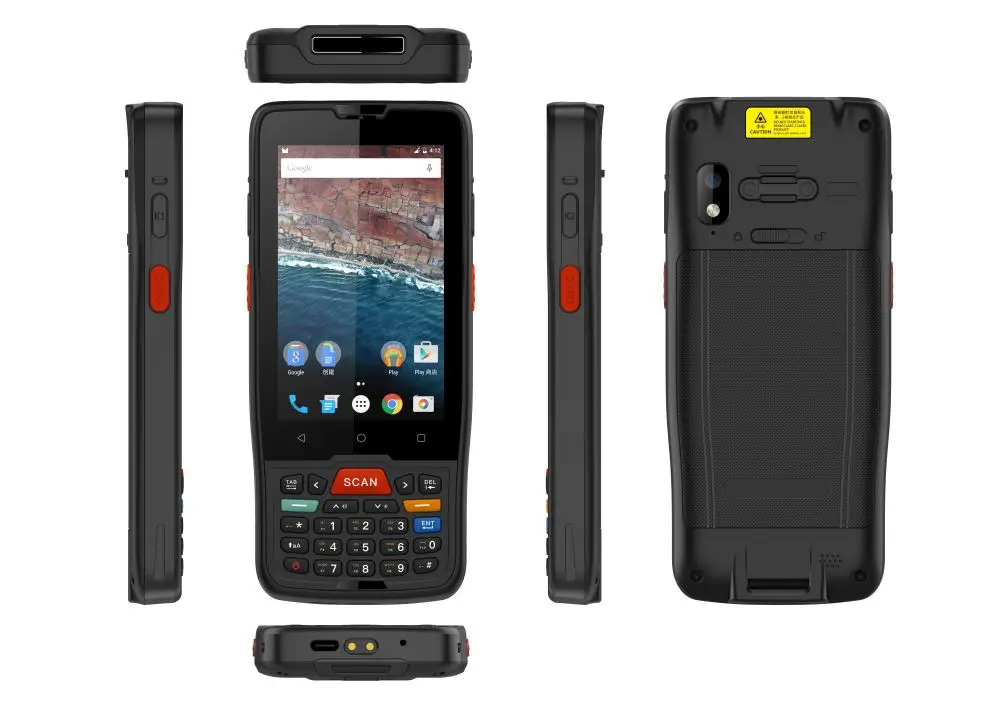

M71 Specification | |
OS | Android 9 |
CPU | 2GHz, Quad/Octa Core, 12nm |
MEMORY | 2+16/3+32 |
Extend Slot | MicroSD, support SDHC, up to 64GB; |
One micro SIM connector | |
PC Communication | USB 2.0 OTG : Type-C;Support TYPE-C Headset |
Sensers | Light, Proximity, 3D G sensor, Hall |
LED | Charging, Scan and System stauts |
Charging Time | <3.5 hours(Room Temperature) |
<4 hours(35 ℃) | |
Operation Duration | 14 hours |
Data Collection | |
Scan Engine | E3200-LE/E3250-LE |
2D | Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; |
Micro QR Code; QR Code; EAN/JAN Composites; GS1 DataBar Composites; | |
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; | |
GS1 DataBar Stacked Omnidirectional; MacroPDF; | |
MicroPDF417; PDF417; UPC A/E Composites | |
1D | Auto discriminates all standard 1D codes including GS1 |
DataBar™ linear codes. | |
Post | Australian Post; British Post; China Post; IMB; Japanese |
Post; KIX Post; Korea Post; Planet Code; Postnet; Royal | |
Mail Code (RM4SCC) | |
NFC(Optional) | 13.56MHz NFC |
Wireless Connectivity | |
WLAN | 802.11 ac/a/b/g/n |
WWAN | TDD-LTE (B38/B39/B40/B41) |
FDD-LTE (B1/B3/B7) | |
UMTS/HSDPA/HSPA/HSPA+ (900/2100 MHz) | |
GSM/EDGE/GPRS (900/1800MHz) | |
VoLTE | LTE CAT6 |
CA | Downlink 300Mbps, B1/B3/B7/B40/B41 |
WPAN | BT 4.2/BLE |
GPS | GPS/A-GPS, GLONASS, Beidou ,Galileo |
Physical Specifications | |
LCD | 4 inch, 800*480, visible under sunshine |
Touch | GFF Captive Touch, Dragontrail Glass |
Camera | Auto focus 8Mega, with flash LED |
Keypad | 24 Numeric Keypad |
Left/Right Scan Key, Left/Right K1,K2 user-defined Key | |
Back, HOME, Switch | |
Reciver | Support |
Speaker | Min 90db at 10cm-1KHz Voice |
Mic | Noise Reduction Mic |
Charging IO | USB type-C, |
Charging Pad | |
Battery | Removable 3800mAh-4000mAh |
Dimension | 160×71×17mm |
Weight | 269g |
Environmental Specifications | |
Operation Temperature | -20°C ~ +50°C |
Storage Temperature | -30°C ~ +70°C |
Humidity | 10% ~ 90% |
Drop | 1.5m, concrete, 12 drops |
Tumble | 600hits, 0.5m, Steel |
IP | IP65 |
ESD | ±8kV Contact, ±15kV Air |
Keypad lifecycle | 300K |
Accessories | |
Charging Cradle | Support 1 device and 1 battery |
Handstrap | Black, Nylon |
Battery | Removable 3800mAh-4000mAh |
Gift Box | |
Device, Battery, QSG, Adapter, USB cable. |
Shenzhen Barcode System Co., Ltd., established in Shenzhen, China in 1999, specializes in providing barcode solutions, including barcode scanners, barcode printers, portable data terminals, PDA, ribbons and stickers. We have been in the strategic cooperative relationship with world famous code laser-scanning equipment company, Honeywell, Zebra, TSC, Datalogic and so on.
What is more, the company is the professional manufacturer of SCANHERO barcode scanners, which can be OEM.
From the beginning, our focus has been to supply top quality products with very competitive prices and friendly service for a wide variety of bar-coding equipment.
With the rapid growing, Barcode System Co., Ltd has set up branches and offices in major cities in China and overseas, such as Shenzhen, Guangzhou, Shanghai, Bejing, Chengdu and Hong Kong, Australia. The wide range product line, strict quality assurance and experienced team as well as excellent after sales services make we are the best choice when it comes to meet your barcode equipment needs.
