TEVO-VHD103U видео конференц-связи высокой четкости пульт дистанционного управления беспроводной

Product No.

TEVO-VHD103U

Image Sensor

1/3 inch Exmor CMOS

Effective pixel

2.38 mega pixel(16:9)

Horizontal Resolution

1080P 30/25, 720P 60/50/30/25

Signal standard

NTSC/PAL

Zoom

10x optical zoom

Focal length

F=5.0mm(wide)-50.0(tele)

Horizontal Angle

Near-end 51.3°~Far-end 4.64°

Gain control/Focus

Auto/manual

SNR ratio

≥50dB

Wide dynamic

D-WDR

Shutter speed

1/1 sec to 1/10000s (22 steps)

Character generator

Built-in OSD Menu

Preset position

IR remote control supports 9 presets

PELCO Protocol supports 256 presets

Pan/Tilt movement range

Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S)

Control terminal

RS-232, RS485

Control Protocol

VISCA, PELCO-D, PELCO-P(RS-232, RS485)

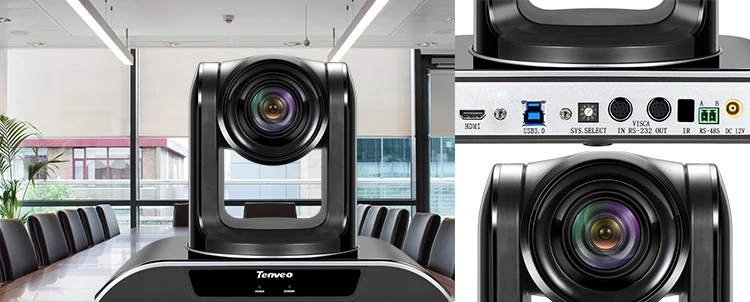

Video output

USB3.0, HDMI(convertible to DVI)

Noise Reduction

2D/3D

Work temperature

-10°C-~50°C

Baud rate

2400/4800/9600/19200bps

Decoder

Built-in

Address set

1~256

Installation

Support desktop, Tripod, Wall mount and Ceiling mount
