Высокая надежность 0603 SMD резистор 5000 шт./рулон для светодиодной

Описание и отзывы

Характеристики

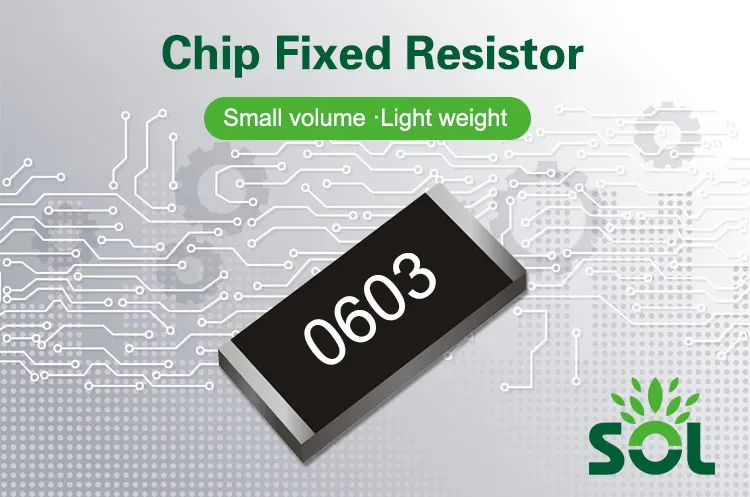

 0603 SMD Resistor

0603 Resistor Reference Data:

Item	General Specification
Size code	0603
Resistance Range	0.001-976KΩ               Optional  1M-100MΩ                   Optional
Resistance Tolerance	±0.1%—±10%     Optional
Power	31mW  1/32W—5W       Optional
Max. dissipation @ Tamb=70°C	1/10 W
Max. Operation Voltage (DC or RMS)	75V
Max. Overload Voltage (DC or RMS)	150V
Operation temperature	-55 ~ +125℃

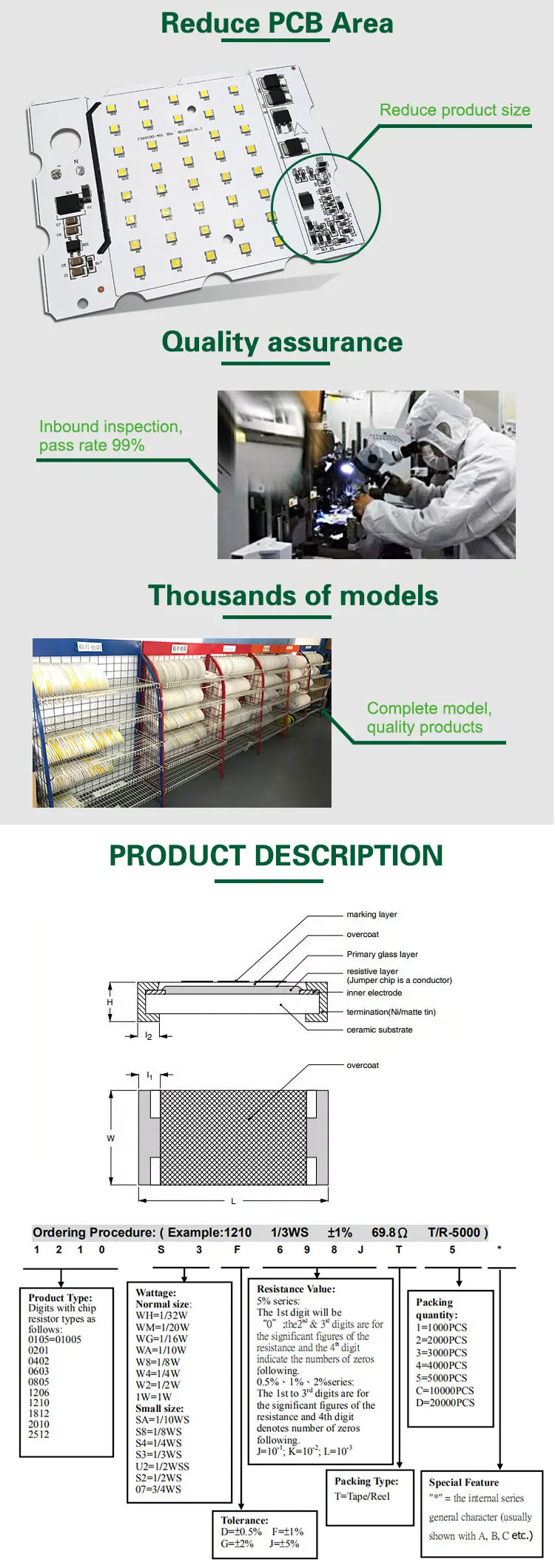

Size:

Dimension		L	W	H	L1	L2
TYPE	Size Code
RTT01	0201	0.06± 0.03	0.30± 0.03	0.23± 0.03	0.15± 0.05	0.15±0.05
RTT02	0402	1.00± 0.10	0.50± 0.05	0.30± 0.05	0.20± 0.10	0.25± 0.10
RTT03	0603	1.60± 0.10	0.80± 0.10	0.45± 0.10	0.30± 0.15	0.30± 0.15
RTT05	0805	2.0± 0.10	1.25± 0.10	0.50± 0.10	0.06± 0.20	0.35± 0.15
RTT06	1206	3.05± 0.10	1.55± 0.10	0.55+ 0.10        -0.05	0.06± 0.20	0.35± 0.15
RTT12	1210	3.05± 0.10	2.55± 0.10	0.55±0.10	0.06± 0.20	0.50± 0.20
RTT20	2010	5.00 ±0.20	2.50± 0.20	0.55±0.10	0.06± 0.20	0.60± 0.20
RTT25	2512	6.30± 0.20	3.20± 0.20	0.55±0.10	0.06± 0.20	0.60± 0.20

Q1.Can I get your samples first?

A1: Yes. Samples order is welcome, however we will charge samples cost, which will be return in your mass order.

Q2: Do you have the ability to do independent research and development?

A2: yes,we have research and development capabilities.We also collect regularly each customer feedback, to improve products and make new product launches.

Q3: What is the lead time for production?

A3: 3-5 days for samples, 12-15 days for mass order.

Tips:
1, because the product model is a lot, can not be displayed one by one, please consult the customer service model you need, check the inventory situation.
  2, due to continued market turmoil, product prices are large, what models are needed, please contact customer service for specific prices.
