Product Description
Model | Industrial Chiller HC serise |
Introduction | Industrial chillers is mainly applied to the plastic industry, Industrial chillers can accurately control the temperature of the plastic mold to shorten the molding cycle, accelerate product stereotypes; Suitable for cooling a variety of hydraulic press to maintain a stable working oil temperature; Also applies to the electroplating industry / food industry / electronics industry and dyeing and finishing industry and other industries. The series of chillers are divided into air-cooled and water-cooled two types, can provide accurate and stable temperature of 5 ~ 30 ℃ ice water (the temperature does not exceed ± 1 ℃), cooling capacity 6,800 to 120,000 kcal / hr. |
Special Features | Using European and the United States imports of high-quality design compressor and brand-name pumps, fans, Power saving and durable Unique new design of the heat exchanger, heat transfer efficiency Equipped with stainless steel open tank, cleaning repair convenient and quick Equipped with microcomputer temperature controller, precise temperature control ± 1 ℃ Standard with automatically water function, reverse phase protection, current overload protection, high and low pressure protection and a number of electronic time delay and other security protection and function, when a failure occurs immediately issued an alarm. In double head models machine the compressor according to the cumulative time to run as a host rotation, effective balance the two compressors running time, improve machine life. |
R407C environmentally friendly refrigerant, multi-tube water row, high-lift pump, external water tanks and other requirements can be optional HLINK networking function can be optional | |
Note | The standard voltage is 3￠,380V, 50Hz. Refer to the shot weight and cooling capacity to select the machine. Have any special needs, please contact us. We reserve right to change specifications without prior notice. |
Type | Unit | HC-03ACI | HC-05ACI | HC-08ACI | HC-10ACI | ||||
Cooling capacity | kW | 8 | 14 | 22 | 30 | ||||
Kcal/h | 6800 | 12040 | 19000 | 25200 | |||||
Compressor | type | All-close scroll | |||||||
power | kW | 2.5 | 4.4 | 7 | 9 | ||||
Refrigerant | type | R22(R407C) | |||||||
Evaporator | type | Water tank immersion | |||||||
Air cooled condenser | type | Finned condenser | |||||||
fan power | kW | 0.25 | 0.6 | 0.25x2 | 0.45x2 | ||||
Pump | power | kW | 0.75 | 0.75 | 1.5 | 1.5 | |||
flow | L/min | 83 | 83 | 208 | 208 | ||||
Water tank capacity | Liter | 100 | 100 | 160 | 200 | ||||
Frozen water inlet and outlet pipe | Inch | 1 | 1 | 1.5 | 1.5 | ||||
Weight | kg | 190 | 220 | 310 | 390 | ||||

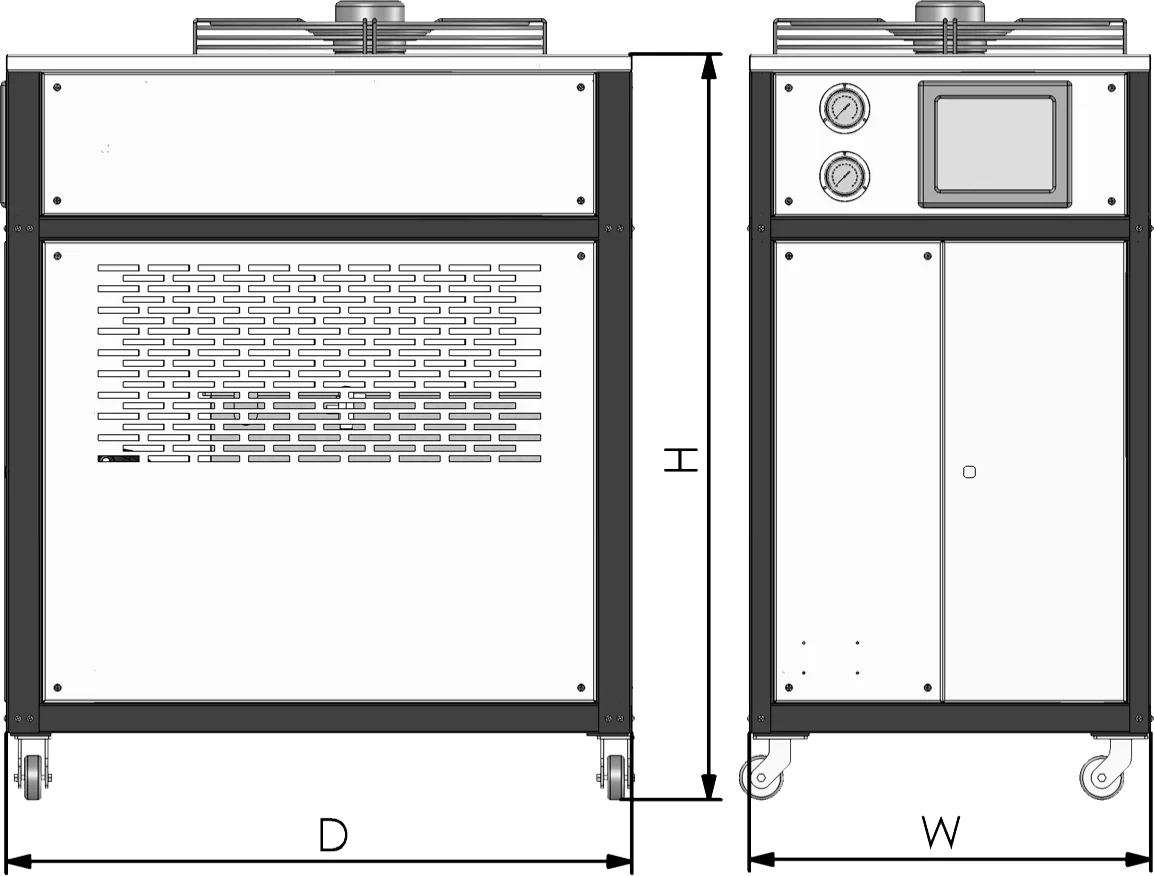

Dimensions | |||||||||
H | mm | 1250 | 1250 | 1450 | 1500 | ||||
W | mm | 680 | 680 | 700 | 800 | ||||
D | mm | 1060 | 1060 | 1360 | 1470 | ||||
Type | Unit | HC-12SACI | HC-15SACI | HC-20SACI-D | HC-25SACI-D | ||||
Cooling capacity | kW | 37 | 42 | 52 | 62 | ||||
Kcal/h | 32000 | 37000 | 45000 | 54000 | |||||
Compressor | type | All-close scroll | |||||||
power | kW | 10.5 | 13.4 | 9x2 | 10.5x2 | ||||
Refrigerant | type | R22(R407C) | |||||||
Evaporator | type | Water tank immersion | Shell evaporator | ||||||
Air cooled condenser | type | Finned condenser | |||||||
fan power | kW | 0.45x2 | 0.6x2 | 0.45x4 | 0.6x4 | ||||
Pump | power | kW | 1.5 | 3 | 3 | 3 | |||
flow | L/min | 208 | 330 | 330 | 330 | ||||
Water tank capacity | Liter | 160 | 160 | 250 | 250 | ||||
Frozen water inlet and outlet pipe | Inch | 1.5 | 2 | 2 | 2 | ||||
Weight | kg | 420 | 520 | 800 | 810 | ||||
Dimensions | |||||||||
H | mm | 1500 | 1700 | 1800 | 1800 | ||||
W | mm | 900 | 960 | 1600 | 1600 | ||||
D | mm | 1470 | 1580 | 1480 | 1480 | ||||
Type | Unit | HC-30SACI-D | HC-40SACI-D | HC-50SACI-D | |||
Cooling capacity | kW | 86 | 104 | 125 | |||
Kcal/h | 74000 | 90000 | 108000 | ||||
Compressor | type | All-close scroll | |||||
power | kW | 13.4x2 | 17.8x2 | 20x2 | |||
Refrigerant | type | R22(R407C) | |||||
Evaporator | type | Shell evaporator | |||||
Air cooled condenser | type | Finned condenser | |||||
fan power | kW | 0.6x4 | 0.6x6 | 0.7x6 | |||
Pump | power | kW | 4 | 5.5 | 5.5 | ||
flow | L/min | 500 | 660 | 660 | |||
Water tank capacity | Liter | 320 | 450 | 450 | |||
Frozen water inlet and outlet pipe | Inch | 2.5 | 2.5 | 3 | |||
Weight | kg | 860 | 1000 | 1120 | |||
Dimensions | |||||||
H | mm | 1900 | 1940 | 1940 | |||
W | mm | 1900 | 1950 | 1950 | |||
D | mm | 2400 | 2540 | 2840 | |||
