Промышленный Коммутатор PoE Switch 8 портов коммутатор Gigabit IP40 4 порта SFP BT90W быстро кольцо восстановления L2 + управляемый питания через
- Категории: Network Switches >>>
- Поставщик: Shenzhen,Huaxing,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

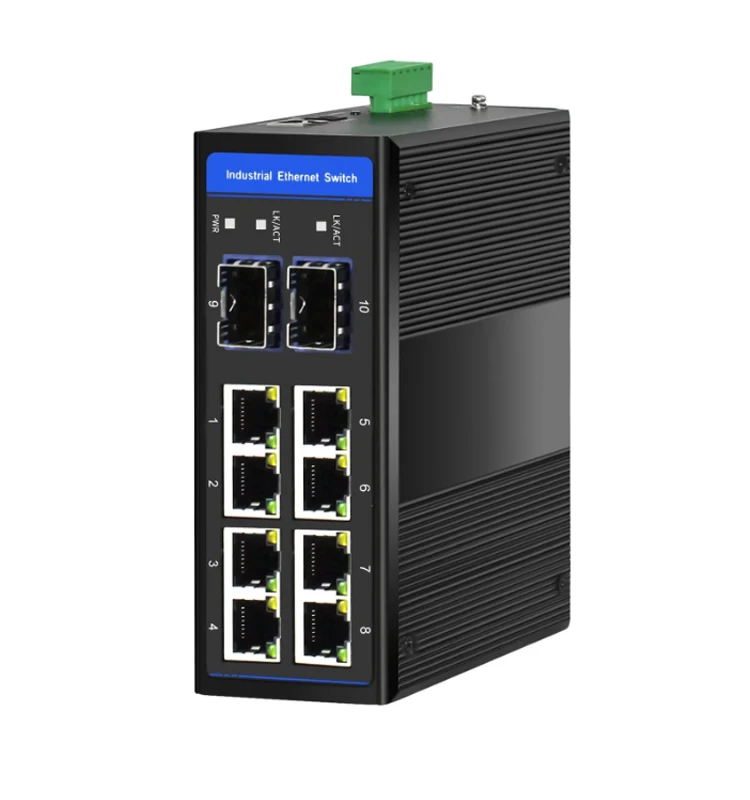

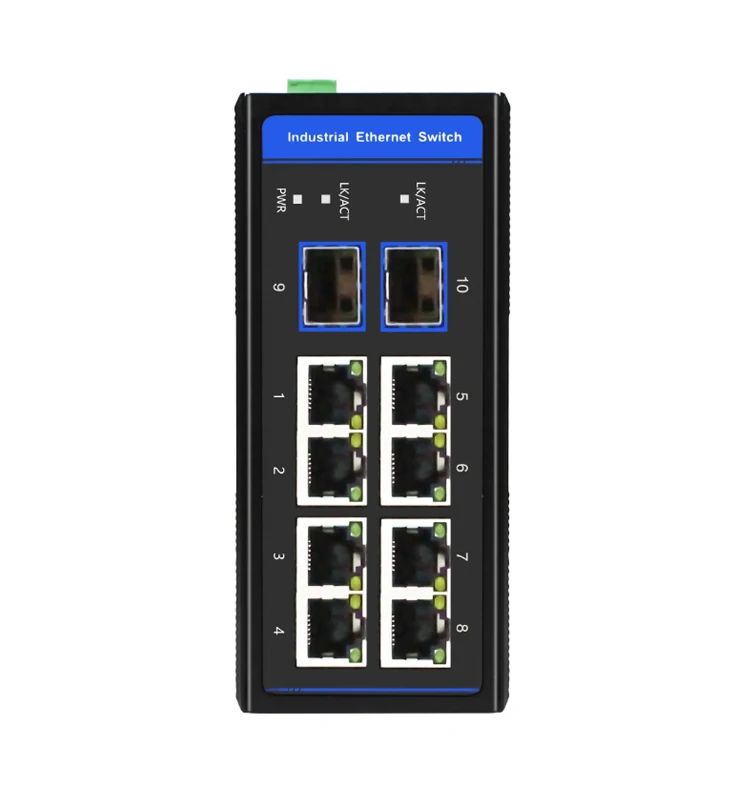

Unmanaged 8 Port 100m Industrial Switch with 2 SFP
Features
8x10/100/1 OOOBase-TX RJ45 ports, 2x100/1 OOOBase-FX Fast SFP ports
SupportAuto-MDIX, and full/half duplex self-negotiation mode
Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
Support 10K bytes giant frame, compatible with various extension protocol
8K MAC address table
Support IEEE802.3az energy efficient Ethernet technology
Support IPv6 Protocol
a Electric 8KV surge protection, easy to use in outdoor environment
Complete status indicator, working state at a glance
Power input polarity protection design, no worry about wrong operation
Metal case, no fan design
Installation method: DIN trail /Wall mounting
Specification
RJ45 Port and Speed | 8x10/100/1 OOOBase-TX |
Fiber Port and Speed | 2x100/1 OOOBase-FX SFP |
Parameters | |
Ethernet Standards | IEEE802.3 IEEE802.3U IEEE802.3X IEEE802.3az IEEE802.1X |
Packet Buffer | 4M |
Maximum Packet Length | Upto 10K Bytes |
MAC Address Table | 8K |
Transmission Mode | Store and Forward (full/half duplex mode) |
Exchange Property | Delay time: < 7ps Backplane bandwidth: 1.6Gbps; Packet forwarding rate: 1.1904Mpps |
PoE (Optional) | |
PoE Standard | 8x IEEE 802.3af/IEEE 802.3at PoE |
Power Budget | Max. PoE output power budget 30W |
LED Indicator | |
Power | Connect-always |
RJ45 | Link/Act:(x)nnect-always; data exchange-twinkle |
Fiber | Link/Act: connect-always; data exchange-twinkle |
Power Information | |
Power Access Mode | Phoenix terminal, DC seat |
Redundant Power Input | DC 9-56V |
Overload Protection | Yes |
Power Reverse | Support |
Power Consumption | Full-load<5W |
Physical Property | |
Protection Grade | IP40 aluminum case |
Cooling Mode | Natural cooling, no fan design |
Dimensions | 120mm x 90mm x40mm (Lx Wx H) |
Installation Mode | DIN trail/wall-mountable |
Weight | 600g |
Working Environment | |
Operating Temperature | -40°C~75°C |
Operating Humidity | 5%~90% non-cx)ndensing |
Storage Temperature | -40°C~85°C |
Warranty | |
MTBF | 500,000 hours |
Defects Liability Period | 5 year warranty, lifetime technical support |
| |
