Specification

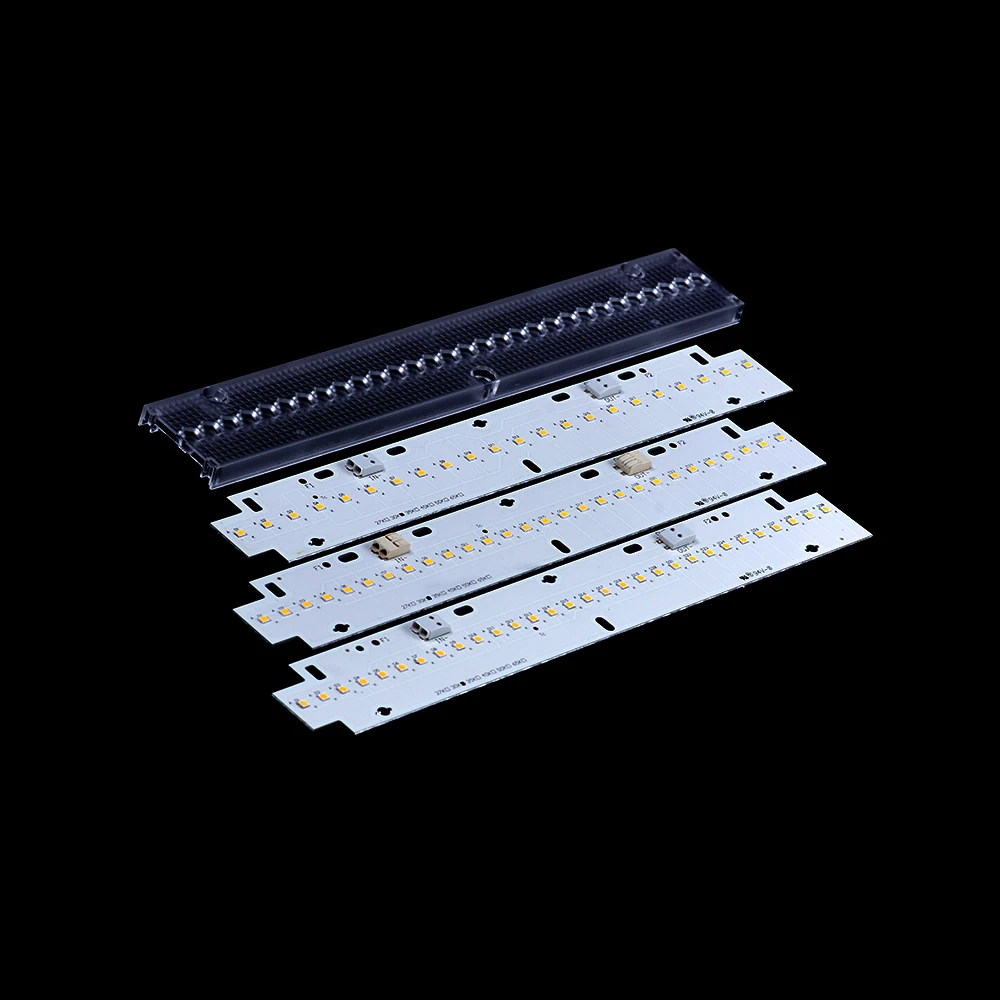

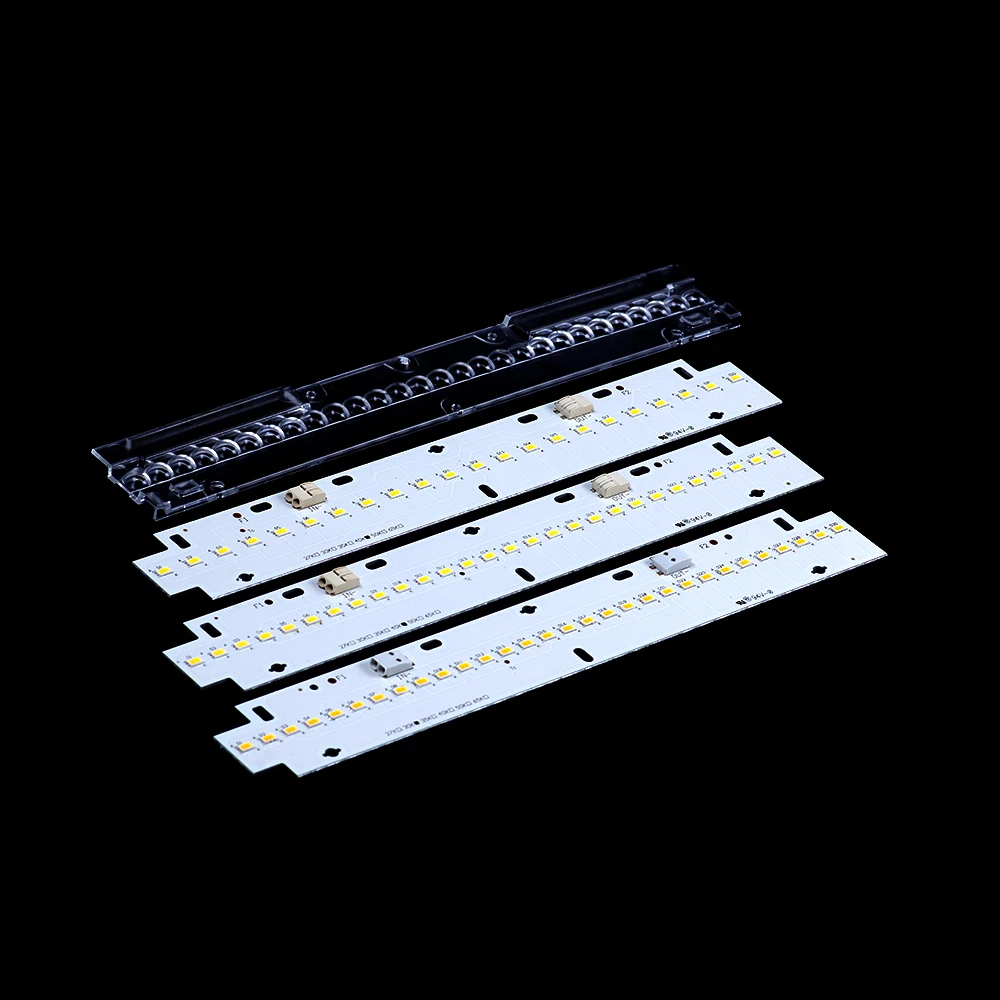

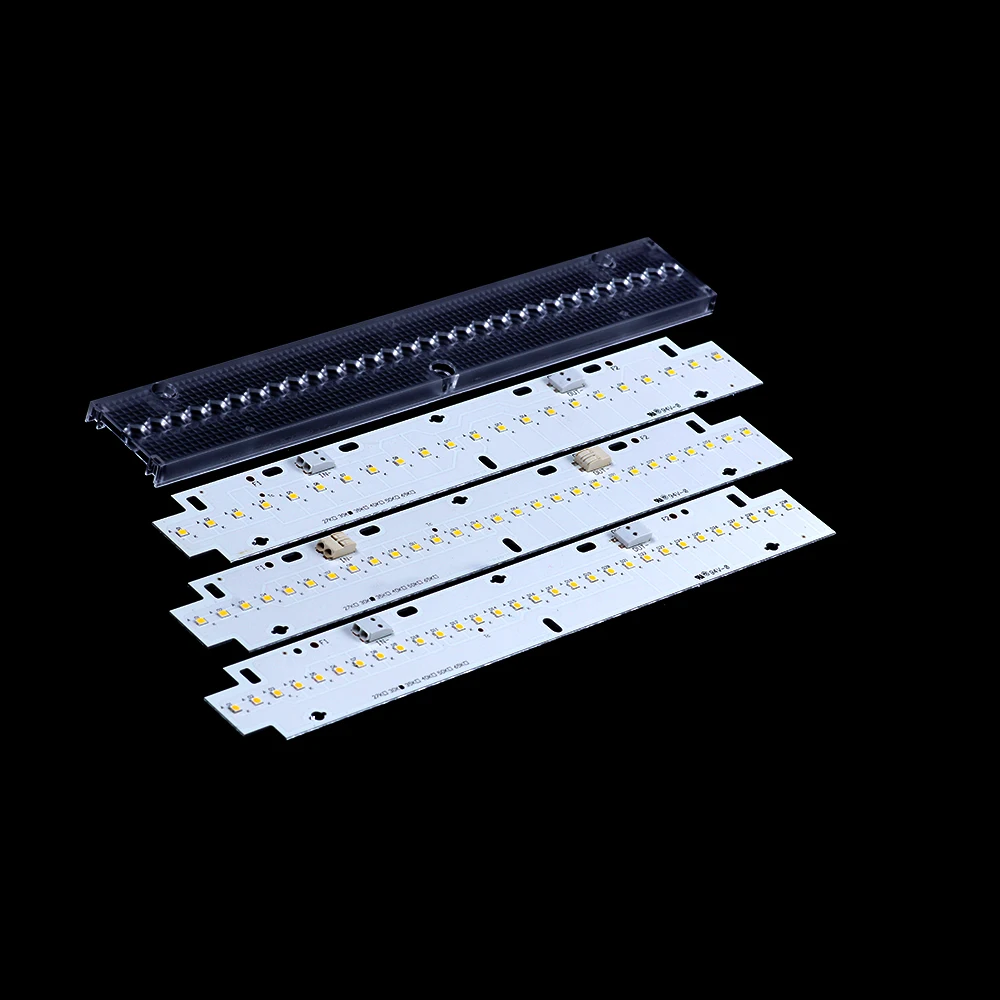

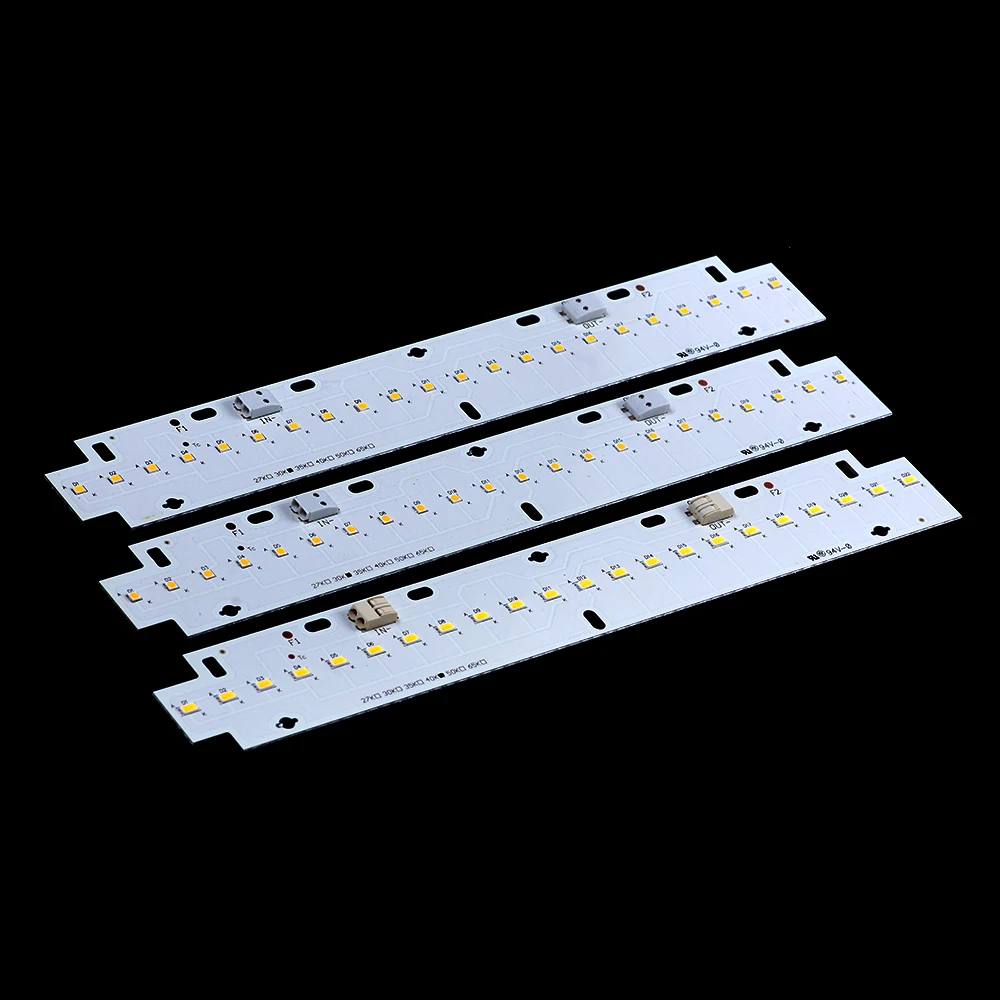

• Slim design with 40 x 280/560 mm (ZHAGA compliant),Ideal for linear and panel luminaires
• Choice of color temperatures 4000K
•luminous flux of 2200/4400lm @ 200mA
• High efficacy of the module 166 lm/W
• High color rendering (CRI >80)
• Excellent color consistency of 5 SDCM
• Beam characteristic 120°
• Ambient temperature ta -25 ... +55 °C
• Wide temperature (Tc) -40 °C to +85 °C
• Small luminous flux tolerances
• Small luminous flux tolerances
• Push terminals for quick and simple wiring of LED module to LED module
• Long life-time: 50,000 hours
• 5-year guarantee
Type | LED CHIP | LED QTY | CCT | CRI | Voltage | Power | PCB's Size |
DK280-15844 | 2835 | 30PCS | 3000K/4000K | >80 | DC30V | 15W | 280*40*1.6mm |
DK280-15845 | 2835 | 22PCS | 3000K/4000K | >80 | DC33V | 10W | 280*40*1.6mm |
DK280-15846 | 2835 | 28PCS | 3000K/4000K | >80 | DC42V | 13W | 280*40*1.6mm |
DK280-15847 | 3030 | 30PCS | 3000K/4000K | >80 | DC60V | 30W | 280*40*1.6mm |
DK280-16466 | 3030 | 30PCS | 3000K/4000K | >80 | DC30V | 30W | 280*40*1.6mm |
DK280-15848 | 3030 | 22PCS | 3000K/4000K | >80 | DC66V | 20W | 280*40*1.6mm |
DK280-15849 | 3030 | 28PCS | 3000K/4000K | >80 | DC84V | 25W | 280*40*1.6mm |
DK280-15850 | 5630 | 30PCS | 3000K/4000K | >80 | DC30V | 15W | 280*40*1.6mm |
DK280-15851 | 5630 | 22PCS | 3000K/4000K | >80 | DC33V | 10W | 280*40*1.6mm |
DK280-15852 | 5630 | 28PCS | 3000K/4000K | >80 | DC42V | 13W | 280*40*1.6mm |
DK280-15853 | 2835 | 44PCS | 3000K/4000K | >80 | DC66V | 20W | 560*40*1.6mm |
DK280-15854 | 3030 | 44PCS | 3000K/4000K | >80 | DC132V | 40W | 560*40*1.6mm |
DK280-15855 | 5630 | 44PCS | 3000K/4000K | >80 | DC66V | 20W | 560*40*1.6mm |
Product details
About Mankun
MANKUN is the leading Chinese manufacturer of electronic components for lighting applications. We believe that being a customer's partner means going beyond being simply a reliable supplier; it means being a trusted point of reference and contributing to a better future. Since 2005, our Standards and Approvals Department has conducted tests on all our products, ensuring compliance with the strictest international safety, performance, and EMC standards. This dedication to quality is reflected in our numerous certifications including UL, SGS, CQC, ROHS, and CE.

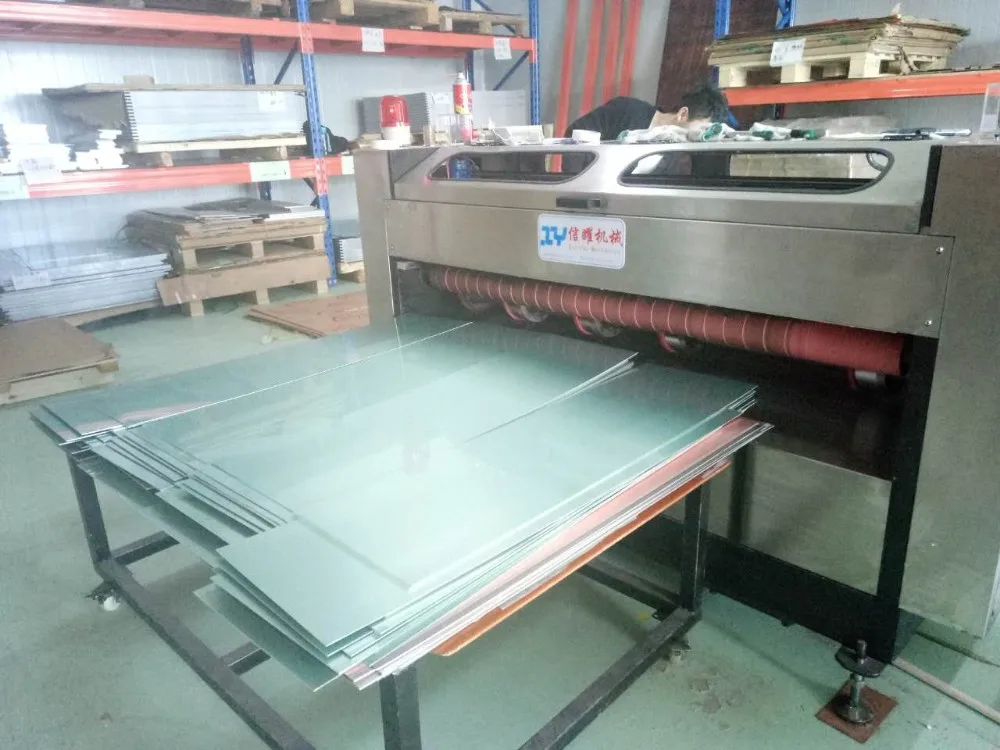

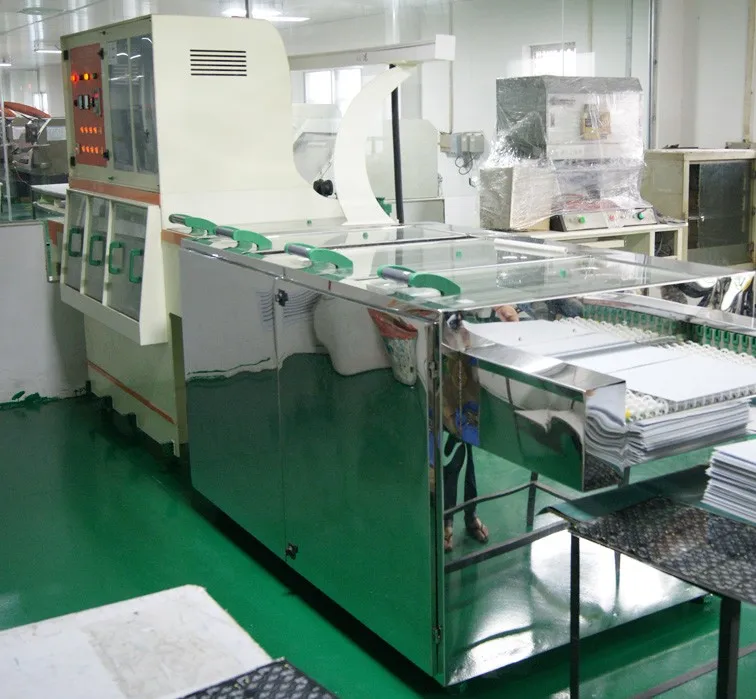

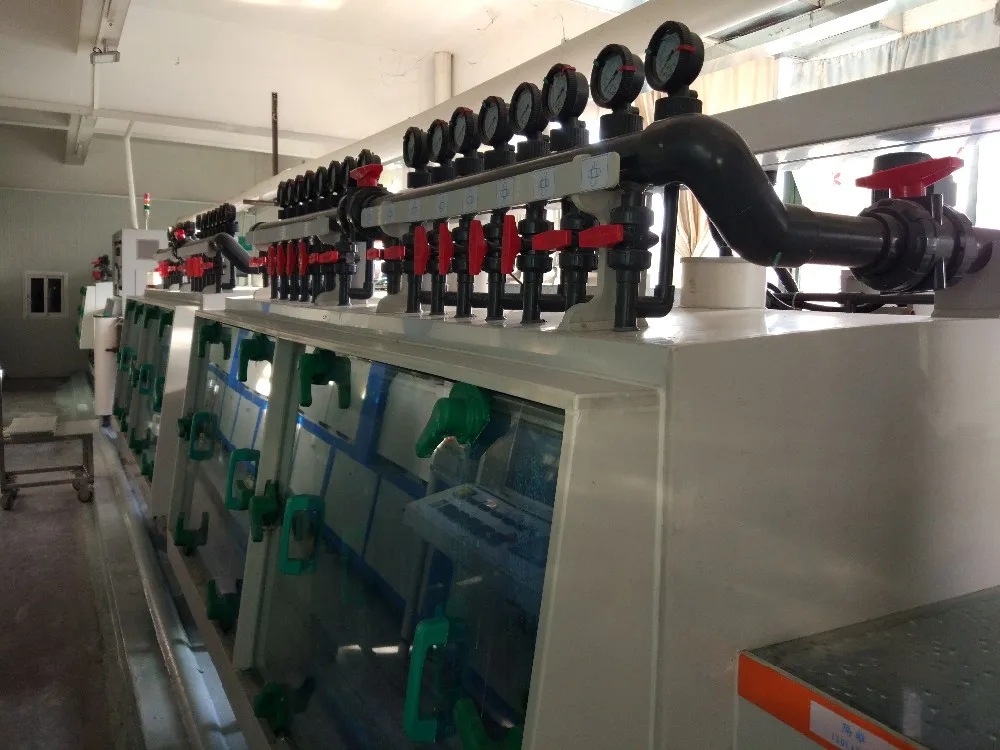

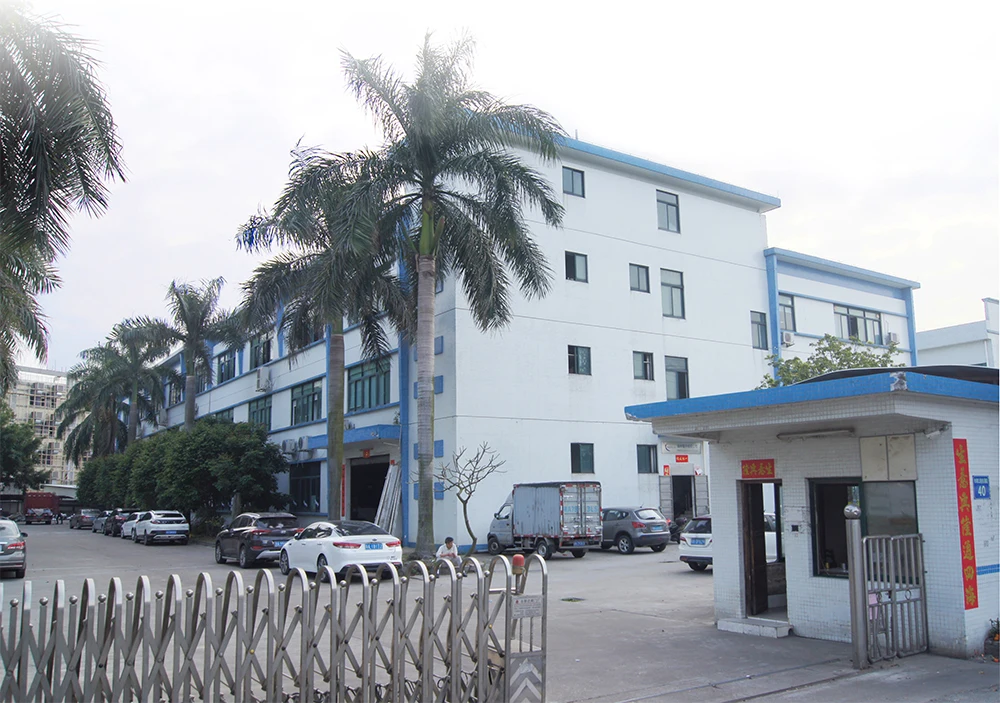

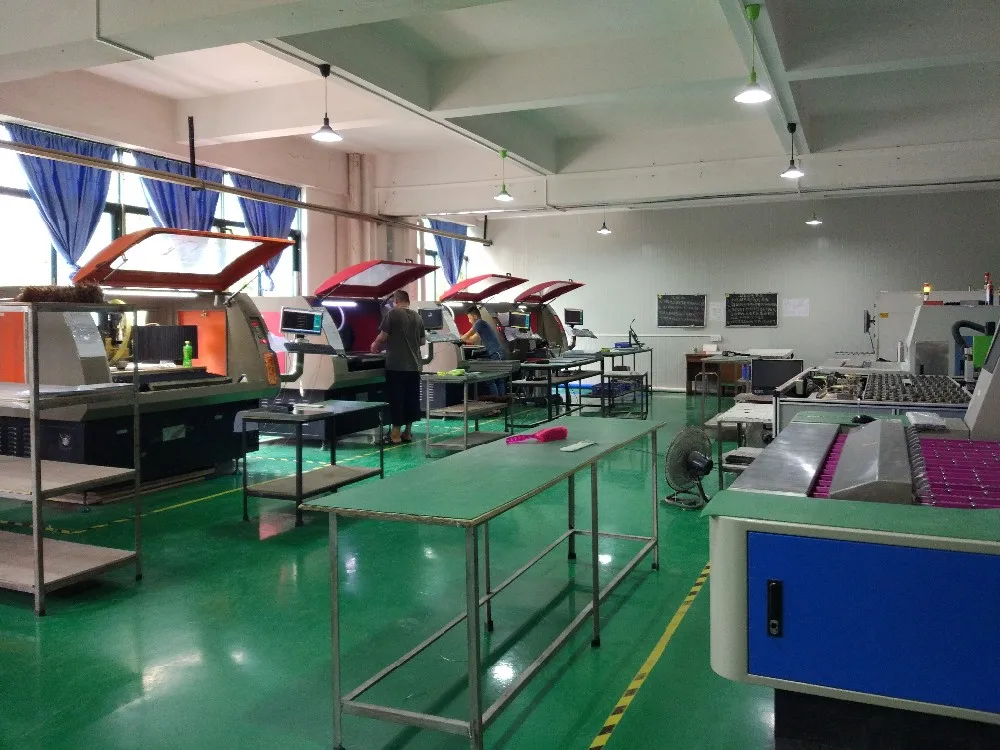

Our production factory is located in Guangzhou, China. Here, we have access to a wide range of energy, manufacturing, aerospace, and pharmaceutical industry bases, making it an ideal testing ground for our technology. Conveniently located close to Shenzhen, Hong Kong, Taiwan, and more global Fortune 500 company headquarters than any other city in China, this advantageous position enables us to deliver our technology to customers around the world.
Stackups Tailored to Your Needs
To meet the expectations of today's demand for speed, size, and performance, choosing the right PCB stackup is essential. At MANKUN, we make sure that you get it right every time. Whether you need a standard PCB Layer Stackup or a custom option, we have the expertise needed to help you achieve your most ambitious design goals.
Our goal is to provide you with the tools and resources you need to design and manufacture high-performance, high-quality electronic products that meet your customers' expectations.
Standard PCB Layer Stackups
Our Standard PCB Layer Stackups provide default configurations that support assemblies ranging from 2 to 10 layers. In addition, our Custom PCB Layer Stackups service allows you to specify substrate materials and select from a wide range of PCB specifications, including manufacturing type, layer count, solder mask color, and more.
Custom PCB Layer Stackups
We also offer robust PCBA Specifications and Design Rule Checks (DRCs) to help you design and manufacture advanced electronic products at scale. With MacroFab's wide range of PCB specifications and DRC rule sets, you can create products that meet your specific engineering vision.
Robust PCBA Specifications and Design Rule Checks (DRCs)

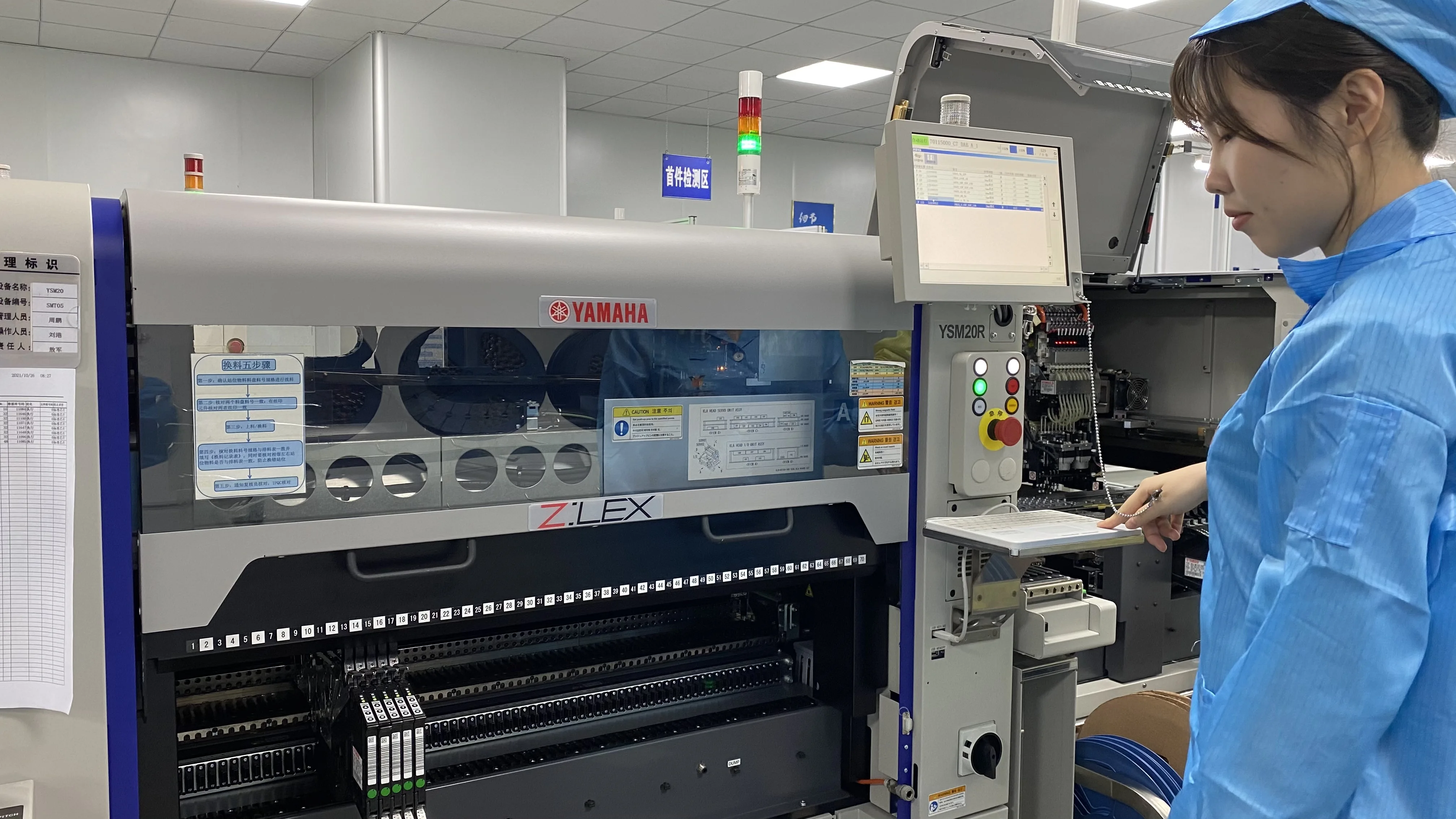

At MANKUN, we also provide end-to-end assembly capabilities to help you maintain a cohesive and optimized production process. By keeping all of your manufacturing activity within the MANKUN ecosystem, we help ensure that your products meet our high standards for quality and performance.
Can I Have Details of this Product?
Yes, Common Data are in the Following Table.
Yes, Common Data are in the Following Table.
Lead time:
Pcb production time =Sample:3-4days mass production:7-8 working days
Pcb assembly time= sample:1-2days mass production:3-4days
Remark :mass production exact delievry time depends on the quantity.
Technical parameters and process capability of metal substarte(MCPCB) | ||||||
ITEM | SPECIFICATION | |||||
Surface | LF HASL,immersion gold,immersion siliver,OSP | |||||
Layer | Single side,double sided Multilayer and special structure | |||||
Maximum PCB size | 240mmx1490mm OR 490x1190mm | |||||
PCB thickness | 0.4-3.0mm | |||||
Copper Foil thickness | H 1/2/3/4(oz) | |||||
Insulation layer thickness | 50/75/100/125/150/175/200(um) | |||||
Metal Base thickness | AIuminum(1100/3003/5052/6061),Copper AIuminum | |||||
Metal Base thickness | 0.5/0.8/1.0/1.2/1.6/2.0/3.2/5.0(mm) | |||||
Shaping | Die punching/CNC Route/V-Cut | |||||
Test | 100% open&short test | |||||
Shaping tolerance | Die Punching<+- 0.05mm,CNC Route<+-0.15mm,V-CUT Thick residue>+-0.15mm | |||||
Hole tolerance | +-0.5mm | |||||
Min.Hole DIameter | Single side 0.5/Double sided PTH0.3MM | |||||
Solder mask | green/white/black/red/yellow | |||||
Min.letter height | 0.8mm | |||||
Min.line space | 0.15mm | |||||
Min.letter width | 0.15mm | |||||
Sile screen color | blue/white/black/red/yellow | |||||
Sopecial hole | Spot facing/cup hole/buried via hole/buried tank | |||||
File format | Gerber,Protel,PowerPCB,AutoCAD etc | |||||
FAQ
Q: 1. CAN I HAVE A SAMPLE ?
A: YES, WE CAN SEND YOU OUR SAMPLE TO CHECK OUR QUALITY.
Q: 2. WHAT IS THE LEAD TIME?
A:SAMPLE NEEDS 1- 3 working DAYS, MASS PRODUCTION NEEDS 7-10 DAYS, ALSO ACCORDING TO THE ORDER VOLUME.
Q: 3. DO YOU HAVE ANY MOQ LIMIT?
A: OUR MOQ IS 1PCS.
Q: 4. CAN YOU OFFER BEST PRICE TO US?
A: YES, WE ARE A MANUFACTORY , SO WE CAN OFFER LOW PRICE THAN THE TRADING COMPANY.
Q: 5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE ARRIVE?
A: WE USUALLY SHIP BY DHL, UPS, FEDEX OR TNT. IT USUALLY TAKES 3-5 DAYS TO ARRIVE.
Q: 6. WHAT FILE WE SHOULD OFFER?
A: MAKING PCB SHOULD OFFER GERBER FILE (PROTEL ,POWER PCB,PADS FILE), PCBA SHOULD OFFER GERBER FILE AND BOM LIST.
Q: 7. WE WANT TO VISIT YOUR COMPANY?
A: NO PROBLEM, WE ARE A PRODUCTION AND PROCESSING ENTERPRISES, LOOK FORWARD TO YOUR ARRIVAL AND WE WILL LEAD YOU TO VISIT OUR
FACTORY AND PROCESSING FACTORY.
A: YES, WE CAN SEND YOU OUR SAMPLE TO CHECK OUR QUALITY.
Q: 2. WHAT IS THE LEAD TIME?
A:SAMPLE NEEDS 1- 3 working DAYS, MASS PRODUCTION NEEDS 7-10 DAYS, ALSO ACCORDING TO THE ORDER VOLUME.
Q: 3. DO YOU HAVE ANY MOQ LIMIT?
A: OUR MOQ IS 1PCS.
Q: 4. CAN YOU OFFER BEST PRICE TO US?
A: YES, WE ARE A MANUFACTORY , SO WE CAN OFFER LOW PRICE THAN THE TRADING COMPANY.
Q: 5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE ARRIVE?
A: WE USUALLY SHIP BY DHL, UPS, FEDEX OR TNT. IT USUALLY TAKES 3-5 DAYS TO ARRIVE.
Q: 6. WHAT FILE WE SHOULD OFFER?
A: MAKING PCB SHOULD OFFER GERBER FILE (PROTEL ,POWER PCB,PADS FILE), PCBA SHOULD OFFER GERBER FILE AND BOM LIST.
Q: 7. WE WANT TO VISIT YOUR COMPANY?
A: NO PROBLEM, WE ARE A PRODUCTION AND PROCESSING ENTERPRISES, LOOK FORWARD TO YOUR ARRIVAL AND WE WILL LEAD YOU TO VISIT OUR
FACTORY AND PROCESSING FACTORY.
