Самый дешевый Многофункциональный SMD чип Монтажная машина для захвата и размещения из
- Категории: Electronics Production Machinery >>>
- Поставщик: Shenzhen,Oubel,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Introduction
Features
2. precise positioning: positioning block is the most convenient way to position the substrate, the origin of counterpoint,
accurate positioning (accuracy less than 0.05mm). Mount angle range of 0-360 degrees, the accuracy of 0.1 degrees. Each suction nozzle is independent of angle, and six element recognition cameras, in addition to LED lamp can mount the traditional., bulb lamp, lamp, lamp, ceiling lamp, guardrail tube, LED drive power, copper lamp series and so on can be freely mounted.
accurate positioning (accuracy less than 0.05mm). Mount angle range of 0-360 degrees, the accuracy of 0.1 degrees. Each suction nozzle is independent of angle, and six element recognition cameras, in addition to LED lamp can mount the traditional., bulb lamp, lamp, lamp, ceiling lamp, guardrail tube, LED drive power, copper lamp series and so on can be freely mounted.
3. high precision: X, Y, W axis are equipped with precision ball screw and guide rail, Z axis 6 sets of imported motor drive,enhance the smooth coordination ofequipment movement, reduce abnormal noise, greatly improve the accuracy and speed of the patch.
4.SMT specifications: platform 600X400mm, applicable to the current market of 99% LED products;PCB board can be affixed to various shapes, without clamps.
5.the visual system, visual programming software online programming, which is of high precision digital camera camera, there is no need to manually input elements and positioning coordinates; using visual camera automatic identification, to ensure the accuracy of mount.
6. the software interface is simple and elegant, functional and practical, visual software online programming, display all coordinates in the imposition software, and fine-tuning of the coordinates of the point, in order to achieve high precision mount,without manual input element coordinates, fast and convenient, simple and clear, combined with the actual needs of many LED manufacturers R & D design.
7. YAMAHA Feeder: machine configuration 30pcs 8MM YAMAHA Feida (also optional with Fuji electric Feida), long service life, high stability, fast speed. can increase to 50 feeder slot.
Product name | Full automatic multi-function pick and place machine |
Maximum PCB area | 600×400mm |
Maximum moving range | X axis600mm, Y axis 400mm |
Mounting head | 8 Heads |
Z axis Maximum moving range | 12mm |
Max placement speed | 40000CPH |
Typical placement speed | 15000--26000CPH |
Movement precision | ±0.05mm |
Minimum component | 0402-14MM |
Positioning method | MARK point camera + 8 sets Sony visual camera position+1 set industrial camera |
Transmission method | Automatic |
Can mount components | 0402 upper resistor and capacitor parts and LED chips 3528, 5050, meanwhile meet requirement of SOP, SOT chip placement, power driver, control board etc placement and compatible with all kinds of high power chip mount. |
Types of production | LED tube light, soft LED strip light, power supply driver, fence light, display module, switch, display screen etc multi LED application products |
Programming method | Automatic Visual camera Positioning programming |
Number of feeders | can instal 26pcs of standard 8mm feeder |
Operating system | WINDOWS 7 |
Compressed air | 0.55MPA |
Power supply | 220V, 50Hz, 2.0KW |
Weight | 1200Kg |
Dimension | 1350MM(L)*130MM(W)*1450MM(H) |

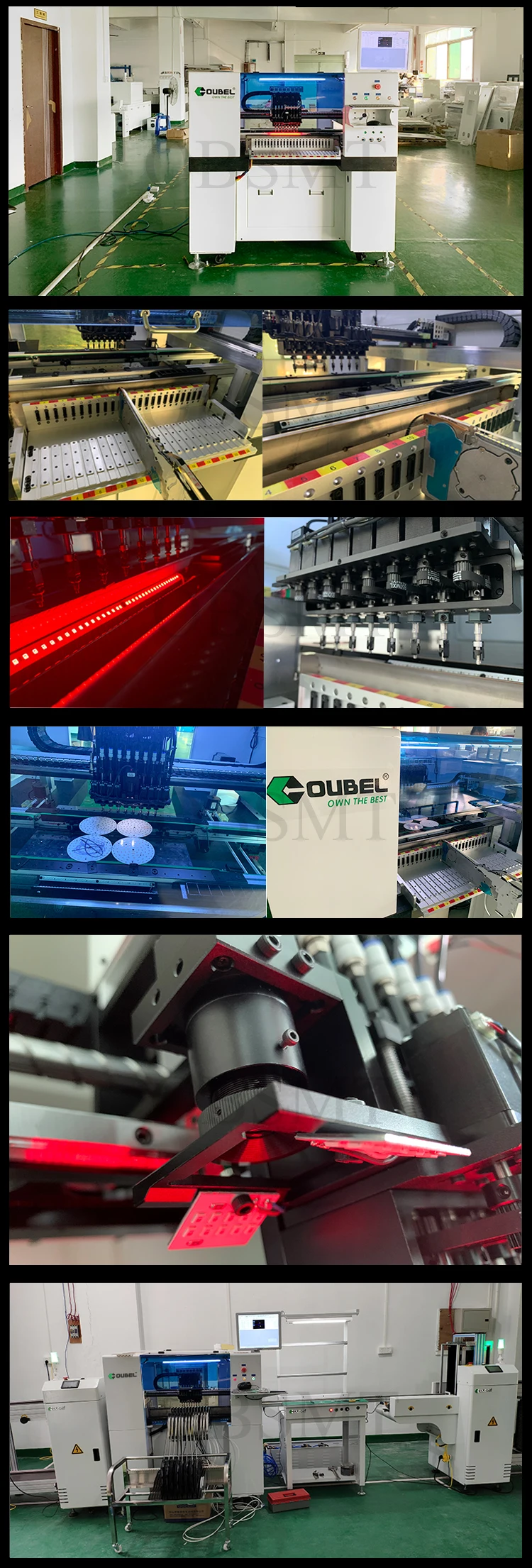

Product Show
Related Product
Company Profile
Oubel
Every day, people all over the globe develop new ideas – ideas that can improve our lives and our world.
Helping to turn these ideas into real products is what we do and what drives us. To accomplish this, we are constantly advancing the limits of feasibility and efficiency by developing innovative solutions for the complete electronics production chain and the SMT placement process .
Helping to turn these ideas into real products is what we do and what drives us. To accomplish this, we are constantly advancing the limits of feasibility and efficiency by developing innovative solutions for the complete electronics production chain and the SMT placement process .
Oubel
OUBEL is dedicated to making quality products that help our clients operate more efficiently and effectively. Oubel is guided by the principles of fairness to our suppliers, associates, clients and employees, and helping them achieve to the best of their potential.
Corporate Objectives
To maintain customer satisfaction through timely delivery of reliable products and servicesTo maintain an efficient and quality driven work environment with an emphasis on constant Research and Development to provide technologically superior products
To attract and retain quality personnel through an equitable reward system, constant training and upgrading of skills as well as career enhancement opportunities
Core Competencies
Over the years, we have developed core competencies that warrant us to be the global leader in the industry: Customization , Short lead time , Flexibility , Customer Satisfaction , Premium Quality Products , Value For Money , International Distribution Network , Extensive Service Support
Clients feedback
Packing details
Our Advantages
1.Your inquiry about our products and price will be replied within 24 hours;
2. Well-trained and experienced staffs to answer all your enquires in fluent English;

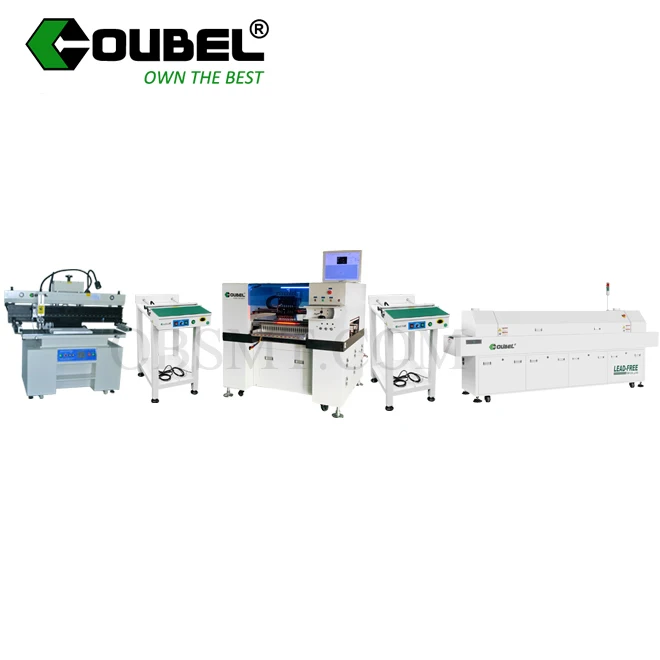

3.Whole SMT&DIP line solutions provide.
4.Best products and price to offer;
5.Shortest time to delivery the products ;
6.Strict QC before shipping the products;
7.OEM & ODM services offered;
8.With 1 year warranty !
9.Good packing!
FAQ
1.Are you a trade company or a manufacture?
We are a manufacturer,OEM & ODM service are available.
2.What is your delivery date?
The delivery date is about 3-5 days after receipt of payment.
3.What is your payment terms?
Accept payment by T/T,Paypal,Alibaba.
4.Can you provide a whole line solution?
We are a manufacturer,OEM & ODM service are available.
2.What is your delivery date?
The delivery date is about 3-5 days after receipt of payment.
3.What is your payment terms?
Accept payment by T/T,Paypal,Alibaba.
4.Can you provide a whole line solution?
Yes, we can.We can supply SMT line,Coating line,DIP line and LED production line.
