Цена:130,00 $ - 150,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


High Quality Ups 12v /Uninterrupted Power Supply Ups 220v/Standby UPS 300W



Product Description

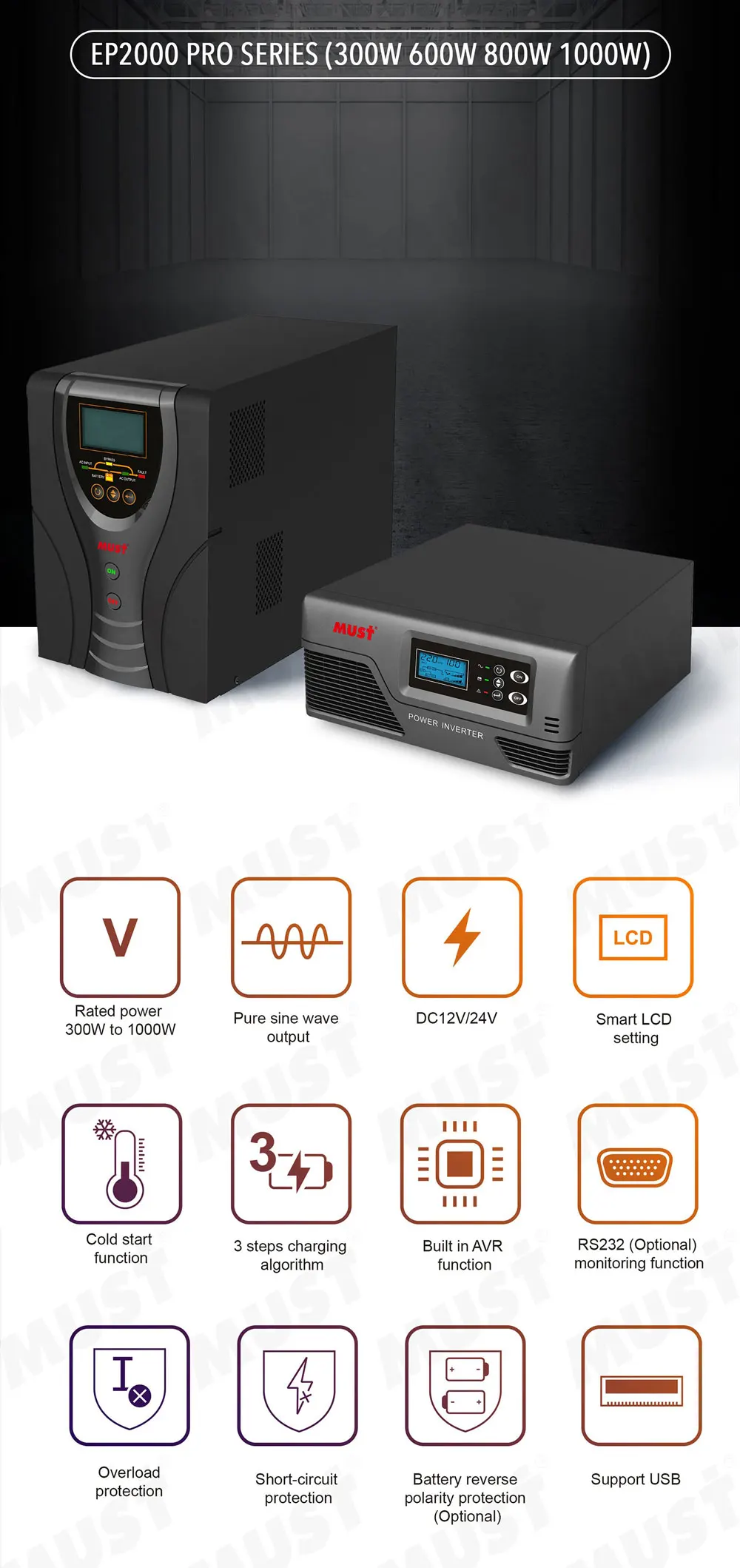

EP2000 PRO series inverter is a cost effective, intelligent with UPS function. The comprehensive LCD offers user-configurable and easy-accessible button adjustment such as battery charge current, battery charge voltage, frequency, buzzer etc. It's perfect for the user who need a simple and economical inverter,with user-friendly installnation and setting.Tower and rack design available for different choices.



  • Rated power 300W to 1000W

  • Pure sine wave output

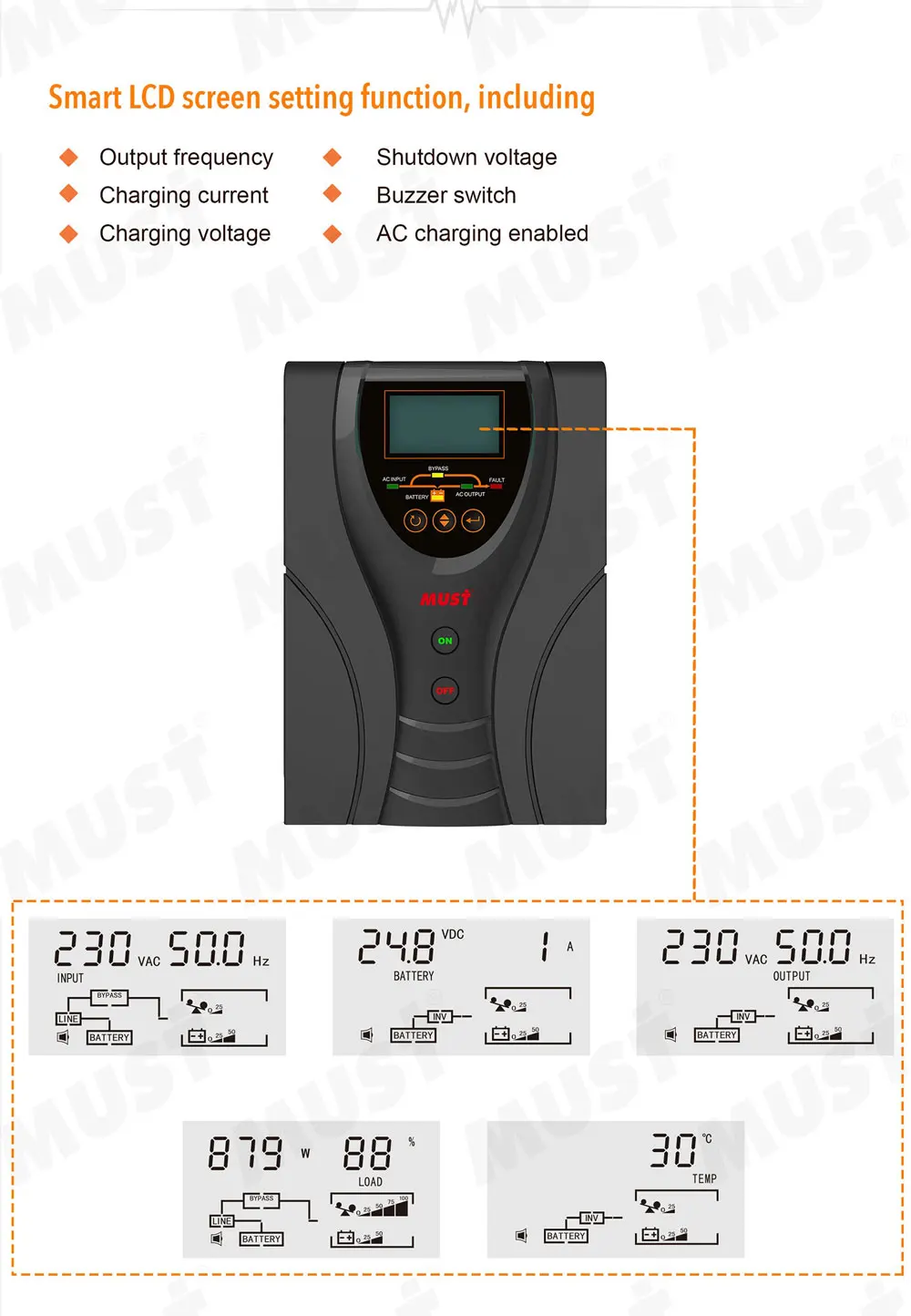

  • Smart LCD setting ( frequency , charge voltage,charge current, etc).

  • 3 steps charging algorithm

  • Built in AVR function

  • Overload and short-circuit protection

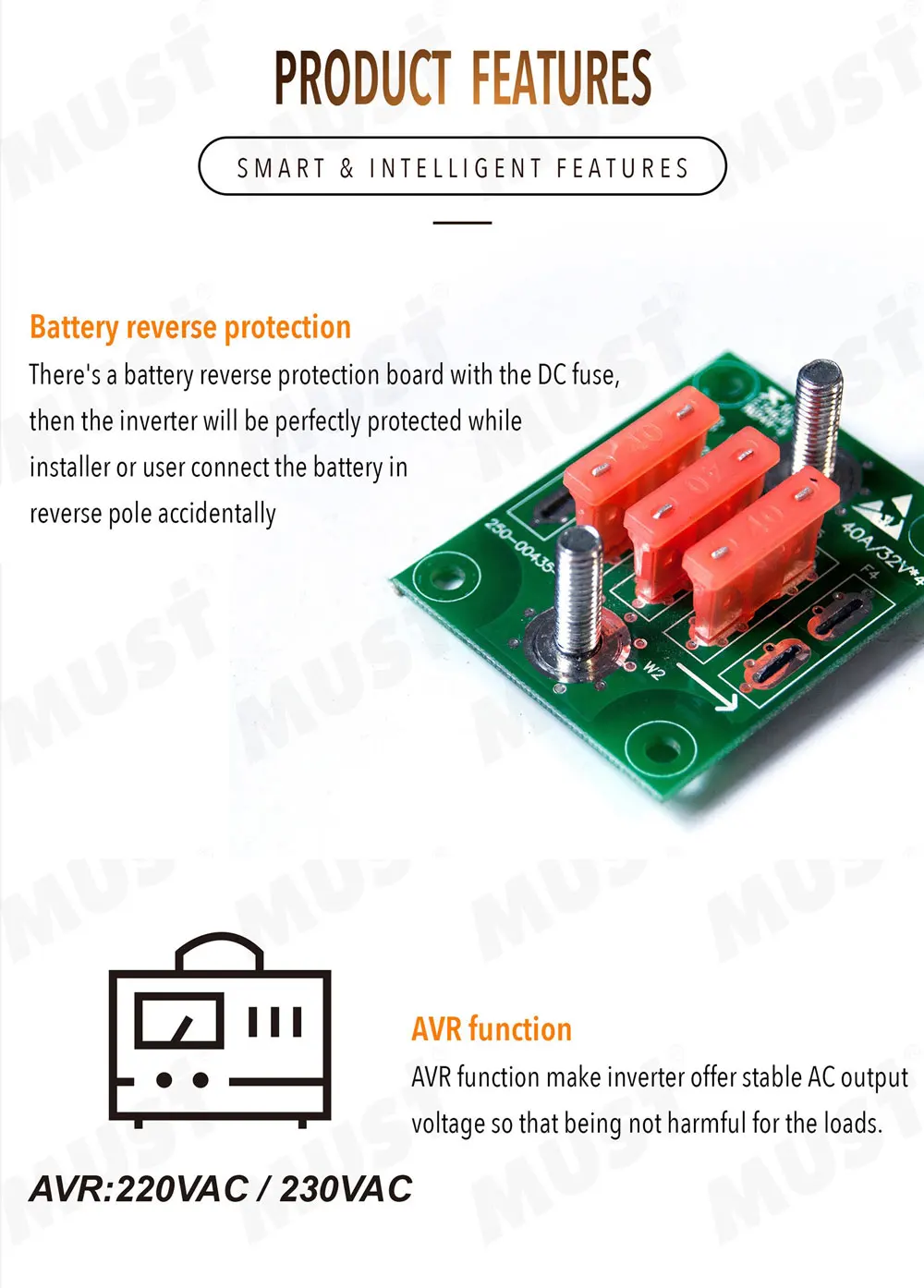

  • Battery reverse polarity protection (Optional)

  • Deep discharge protection

  • Cold start function

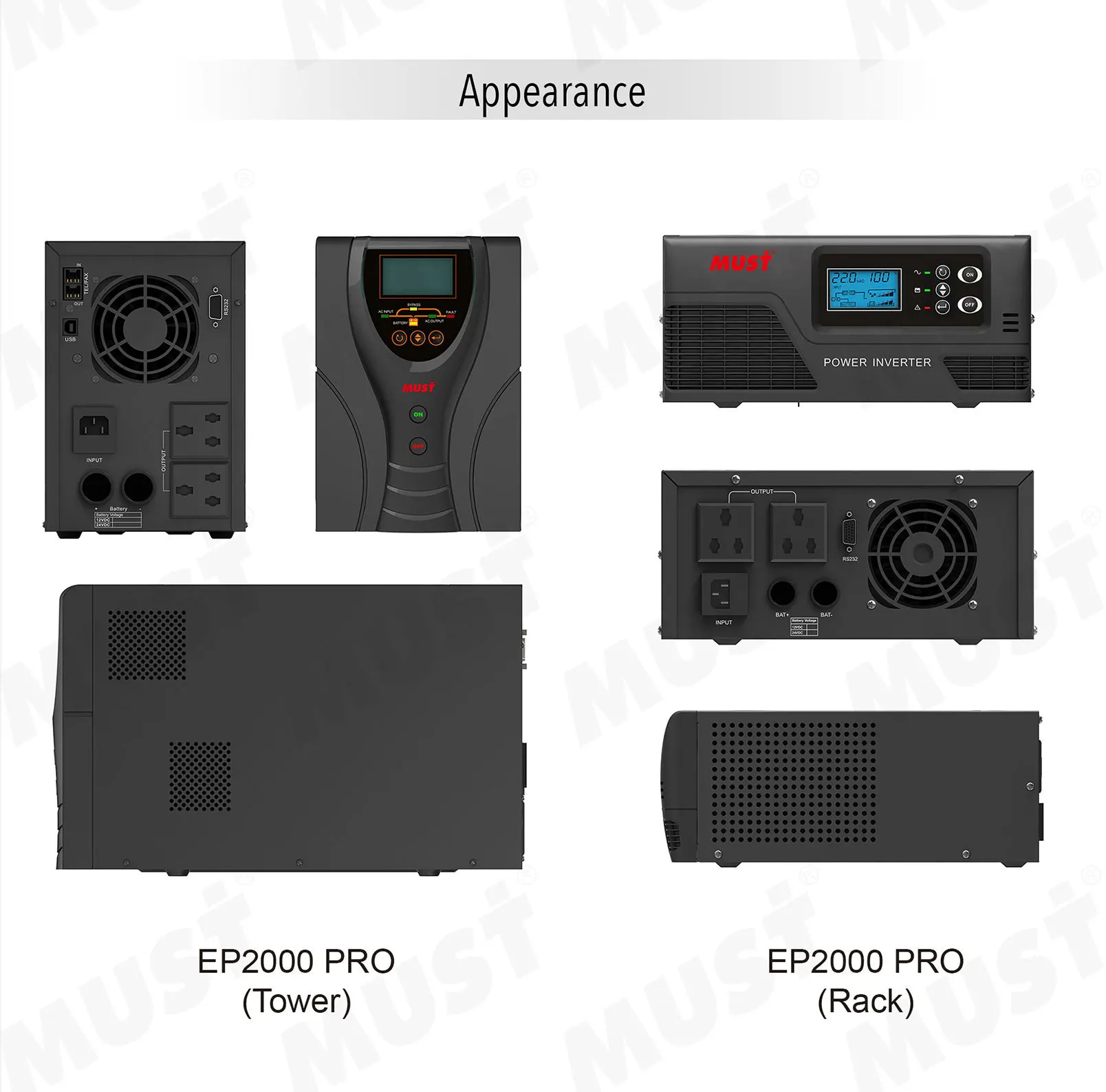

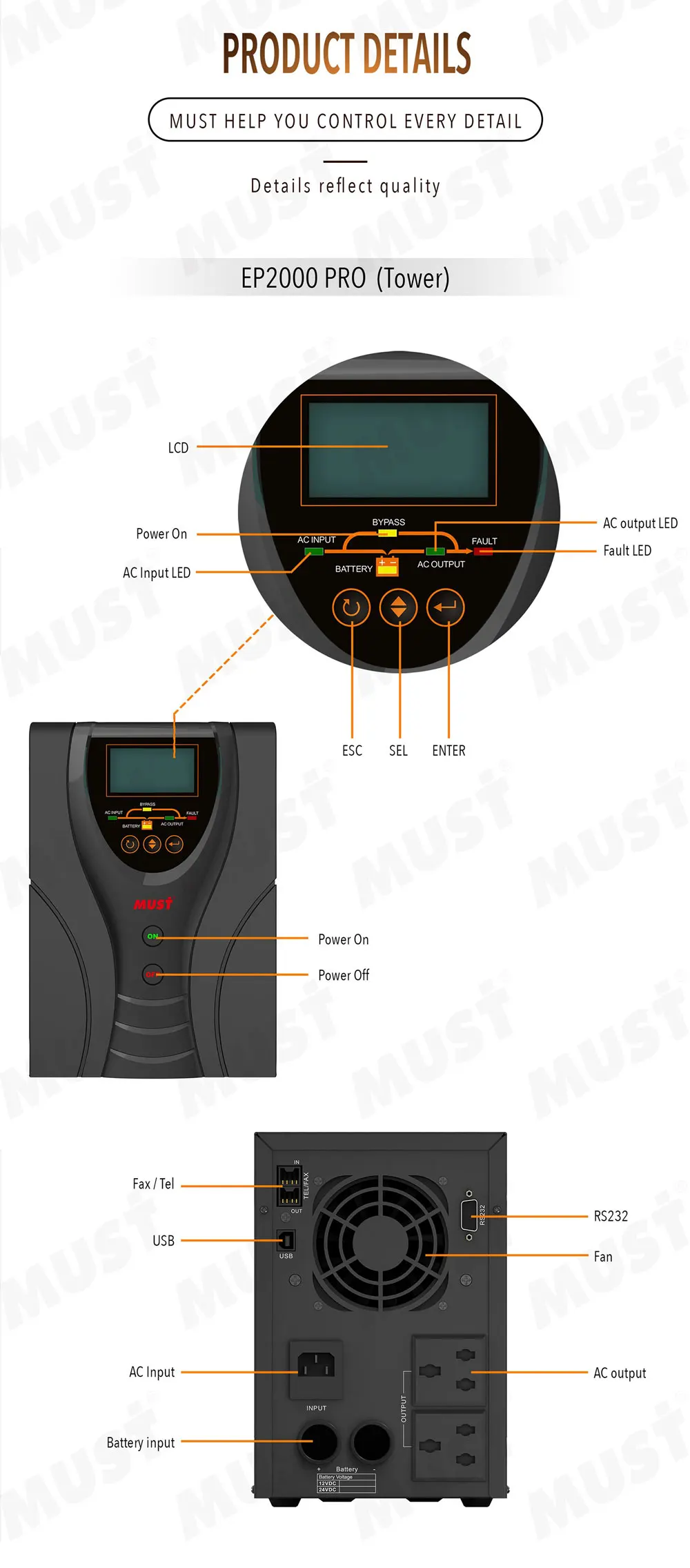

Pictures







Detailed parameters











































































































































































































































































































MODELEP20-0312 PROEP20-0612 PROEP20-0812 PROEP20-1012 PROEP20-0324 PROEP20-0624 PROEP20-0824 PROEP20-1024 PRO
Default Battery System Voltage12VDC24VDC
INVERTER OUTPUT
Rated Power300W600W800W1000W300W600W800W1000W
Surge Rating (20ms)900W1800W2400W3000W900W18000W2400W3000W
WaveformPure sine wave
Rated Output VoltageInverter: 230VAC (±2% RMS), AVR: 195VAC-245VAC
Output Frequency50Hz/60Hz +/-0.2Hz
Invertert Frequency (Peak)>75%>81%
Bypass Efficiency>95%
Output Transfer TimeTypical:6ms 10ms(max)
AC INPUT
Voltage220/230/240VAC
Selectable Voltage Range140~280VAC±2%
Low Battery Alarm140VAC±2%
Low Voltage Recover150VAC±2%
High Battery Alarm280VAC±2%
High Voltage Recover270VAC±2%
Low Frequency Alarm45±2Hz
Low Frequency Recover46±2Hz
High Frequency Alarm65±2Hz
High Frequncy Recover64±2Hz
Nominal Input Range50Hz/60Hz ±2Hz
AC Auto RestartYES
BATTERY
Rated voltage12VDC24VDC
Chaarge voltage12V(13.5VDC-14.5VDC)24V(27-29VDC)
Turn off  voltage10.5vVDC21VDC
Maximum Charge Current300W600W800W1000W300W600W800W1000W
10A20A25A30A5A10A15A15A
BYPASS & PROTECTION
Input WaveformPure sine wave
Input Frequency50Hz or 60Hz
Overload Protection110%~125%R Load foult affter 30S ; 125%~150%R Load foult affter 3S ; >150%R Load fault after 500ms
Over Temperature Protection≥90℃
Bypass Output Protection10A 250VAC
Output Circuit ProtectionYES
Battery Reverse ProtectionOptional
Battery Low Voltage ProtectionYES
Battery High Voltage ProtectionYES
Bypass Breaker Rating10A
Maximum Bypass Current10A

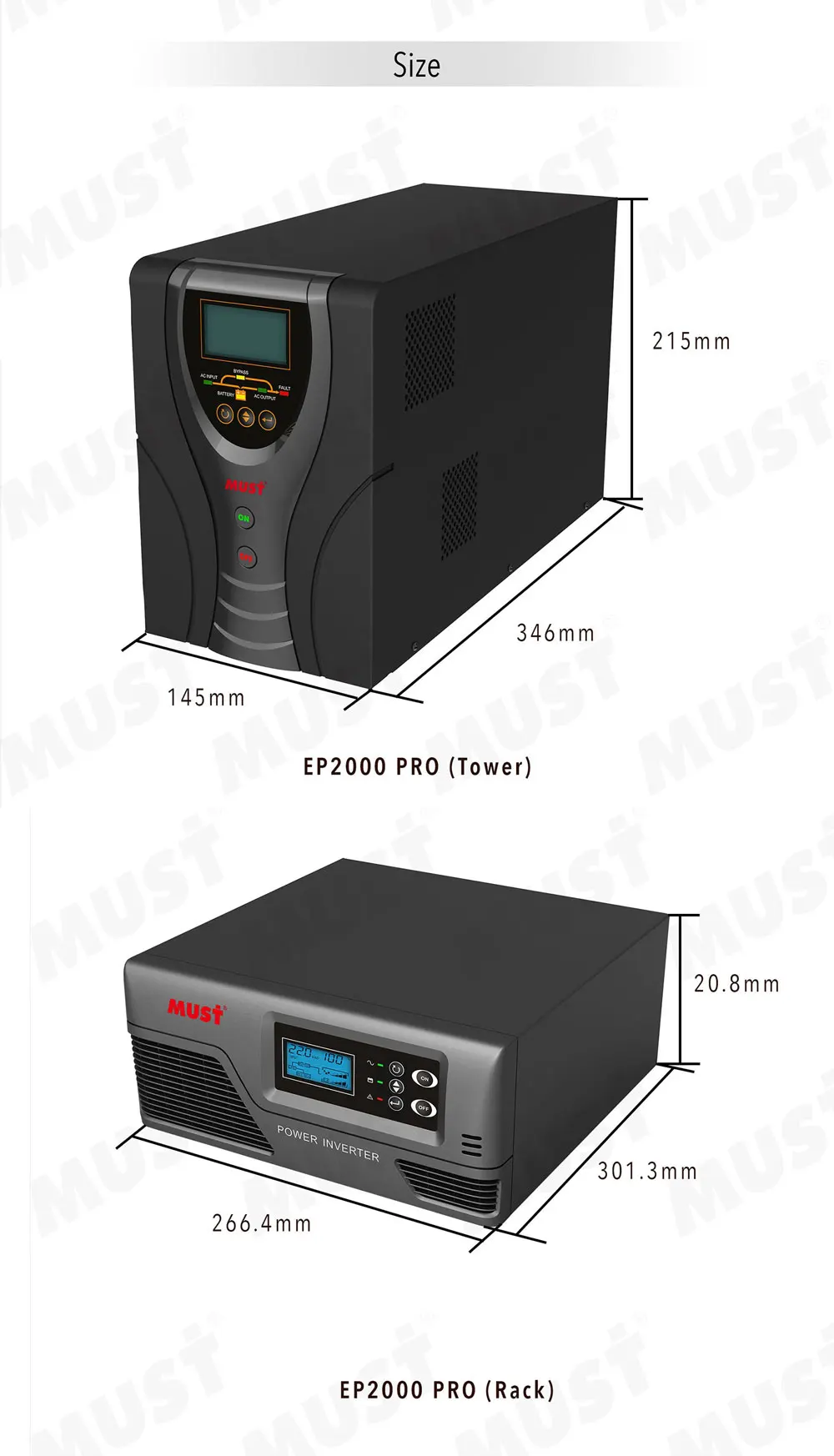

MECHANICAL SPECIFICATION
Dimensions295*265*120mm
(N.W)kg300W600W800W1000W300W600W800W1000W
7.510.712.513.57.510.712.513.5
Shipping Dimensions(W*H*D)420*280*225mm
(G.W)kg300W600W800W1000W300W600W800W1000W
811.51314811.51314
OTHER
Operating Temperature0℃ ~40℃ 0~90% relative humidity (non-condensing)
Storage Temperature-15℃ to 55℃
Altitude≤1000M
Audible Noise≤60dB
DisplayLED+LCD
Cooling ModeFan cooling
Fan Starting>45℃ starting, <30℃ Closing

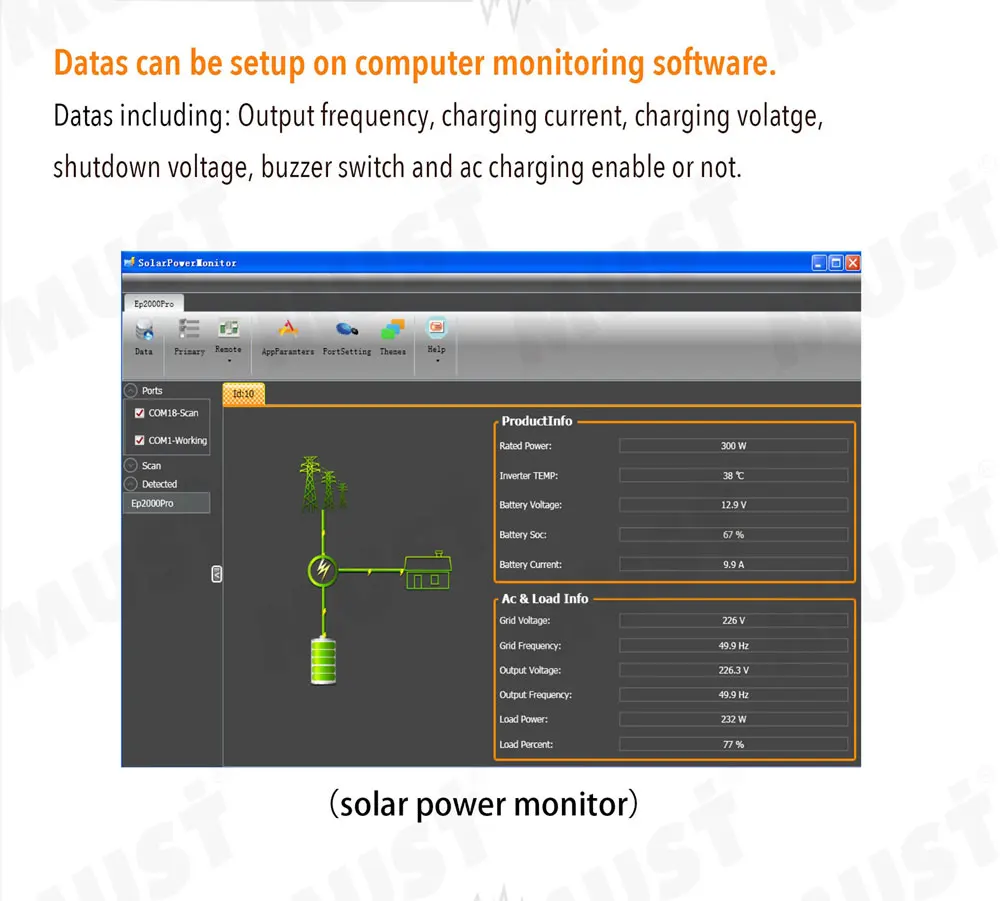

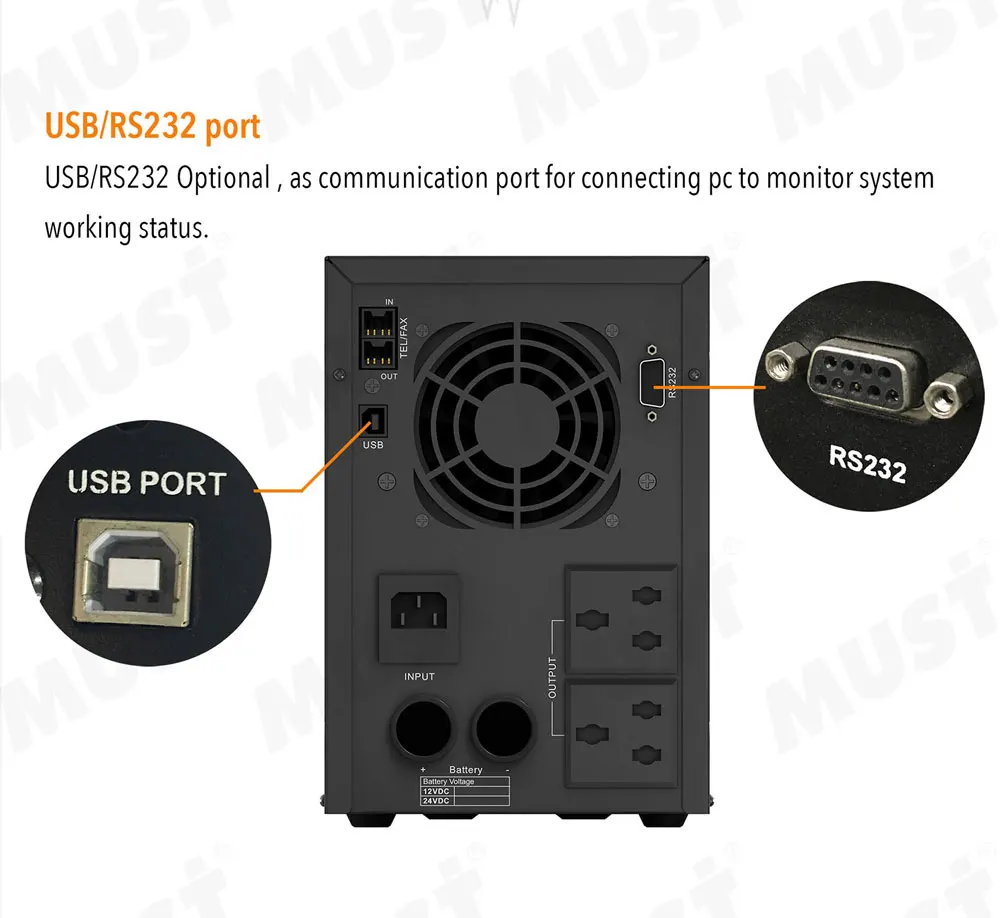

CommunicationRS232 / USB




Company Information


company information.jpg





Our Services


Our services.jpgOur services2.jpg





Certifications







Packaging & Shipping










FAQ



Q1: How to choose a right inverter?



A1:Tell us your demand, then our sales will recommend a suitable inverter to you.





Q2: What's the different between inverter and solar inverter?


A2:  Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.





Q3: How about the delivery time?


A3:  7 days for sample; 25 days for bulk order.





Q4: What is the warranty of inverter?


A4: One year warranty on Must products.





Q5: How to solve the technical problem?


A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
