Промышленный Электрический винтовой воздушный компрессор с прямым приводом 75 кВт 100

Описание и отзывы

Характеристики

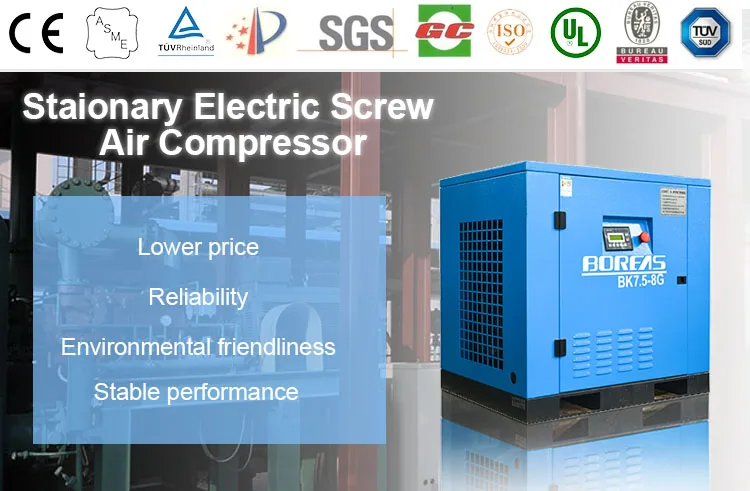

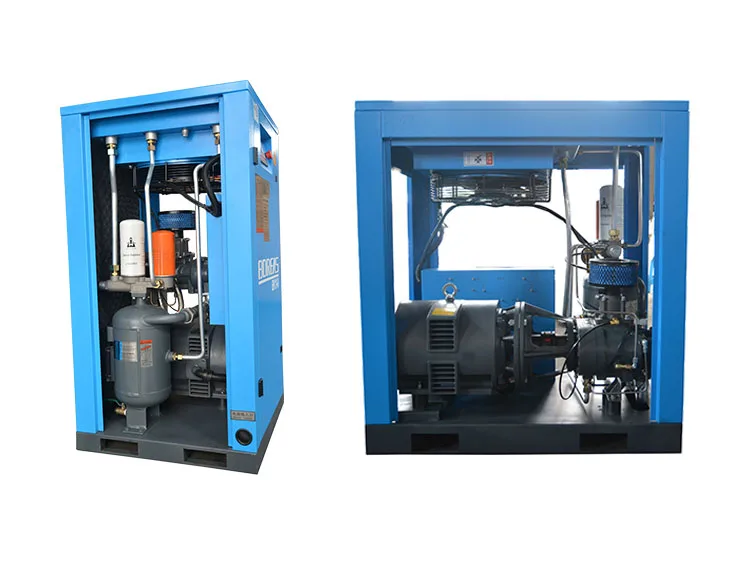

Kaishan stationary electric 75kw screw air copressorDetailsThe BOREAS series screw air compressor is developed by Kaishan for the low-priced market to meet the needs of users in the field of low-power, low-cost screw air compressors. It equipped with Y-line screw airend which designed by Dr. Tang Yan,to ensure its superior performance. In addition, engineers and technicians have carefully designed other components and systems to lower cost while maintaining good performance.

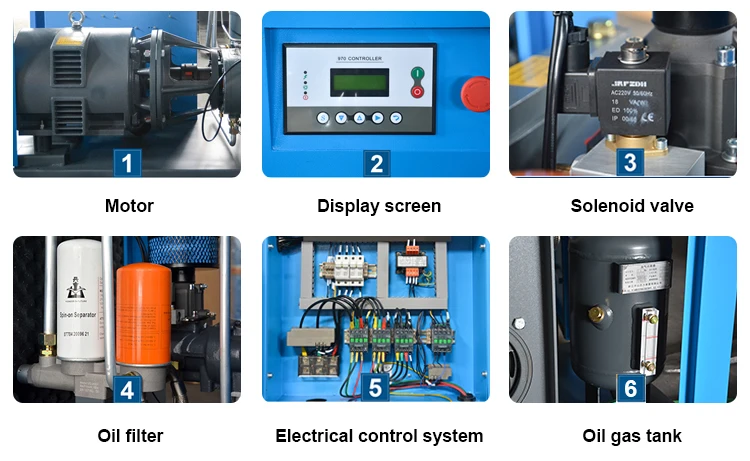

DetailsAdvantages

• Motor

1.IEC high efficiency drive motor

2.IP54 and high temperature F class rating

• Controller

1.Easy to use and maintenance free

2.Constant readout of pressure and temperature

3.Provides 24 hours automatic start-stop operation

• Inlet valve

The unique design differential pressure valve provide rapid response under any condition and maintains the set differential pressure between the inlet pressure and outlet pressure.100% modulating inlet valve to match system air demand.

• Filtration system

Ultra efficient Kerry inlet air filters provide clean air that traps dirt particals to less than 3 microns.

• Electrical control protection

1.Phase protectiom

2.Phase sequence protection relay

3.High discharge temperature shutdown

4.Auto-dual control

5.Overload start protection





Specifications

Model	Working pressure		Air deilivery		Motor power	Dimension(mm)	Weight(kg)	Output pipe diameter
	psi	bar	cfm	m3/min	kw/hp
BK7.5	116	8	43	1.2	7.5/10	1300×720×1650	200	G3/4
BK11	116	8	60	1.7	11/15	1000×670×1090	280	G1
	145	10	53	1.5
	188	13	42	1.2
BK15	116	8	85	2.4	15/20	1000×670×1090	290	G1
	145	10	78	2.2
	188	13	60	1.7
BK18	116	8	107	3	18/24	1200×800×1120	350	G1
	145	10	96	2.7
	188	13	82	2.3
BK22	116	8	128	3.6	22/30	1200×800×1120	390	G1
	145	10	114	3.2
	188	13	96	2.7
BK30	116	8	178	5	30/40	1320×850×1335	470	G11/2
	145	10	157	4.4
	188	13	128	3.6
BK37	116	8	214	6	37/50	1320×850×1330	560	G11/2
	145	10	196	5.5
	188	13	164	4.6
BK45	116	8	253	7.1	45/60	1240×1030×1595	700	G11/2
	145	10	232	6.5
	188	13	200	5.6
BK55	116	8	339	9.5	55/75	1540×1200×1470	895	G11/2
	145	10	303	8.5
	188	13	264	7.4
BK75	116	8	464	13	75/100	1800×1190×1710	1210	G2
BK90	116	8	571	16	90/120	1800×1190×1710	1240	G2
BK110	116	8	714	20	110/146	2100×1230×1730	1680	DN65
BK132	116	8	785	22	132/176	2100×1230×1730	1740	DN65



Product Applications

Industrial Equipment Pipelines Oil & Gas Coating Plastics Rubber Blow Molding Shipyard Metallurgy Printing Service Power Plants Oil Refinery

Painting Steel Industry Mechanical Color Sorter Machine Sandblasting Tobacco Factory Shoe Factory Metal Factory Sugar Factory Pneumatic Tools Construction

Packing Railway Head Project Curry Juice Factory Silicon Sealant Production Plant Beverage factory Automotive Industry Tire Repair Factory Furniture Factory Stamping Chili Sauce Factory Small Workshop

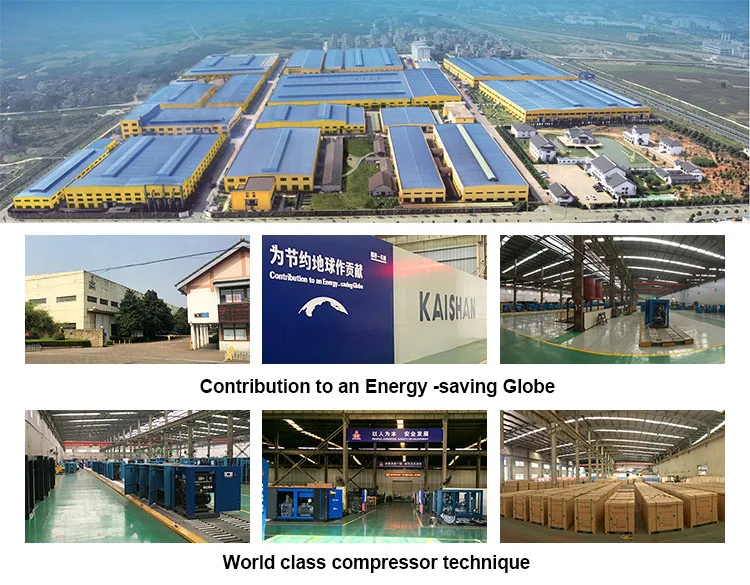

Packing & ShippingCertificateAbout UsService
