2 цилиндрический штепсельный зарядная сварочный кабель

2 цилиндрический штепсельный зарядная сварочный кабель

Категории: Circular Connectors >>>
Поставщик: Flydragon,(Xiamen),Technology,Co.,Ltd.

Цена:5,65 $ - 6,42 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Product Description

Patent products LP-12 Series with multi-core(2-8 core) design to fit with different industrial needs within below key features:

*Humanization male plug female socket assemble design ------ push pull achieved blind operation.

*Gold-plating;high strength corrosion resistance and electrical conductivity.

*Shell made of material PBT,stable electrical performance, which is much better than the material of Nylon material no matter from water absorption, aging, flame retardant rating

Pin Number	2 pin
Rated Current	5A
Operating Voltage	250V
Insertion Force	0.6N Max
Durability	1700 times
Terminal Method	Soldering
Salt Spray	PH 6.5-7.2, NaCl, 5%, 48H
Male Female Assemble Way	Push Pull
Cable OD	3-6mm

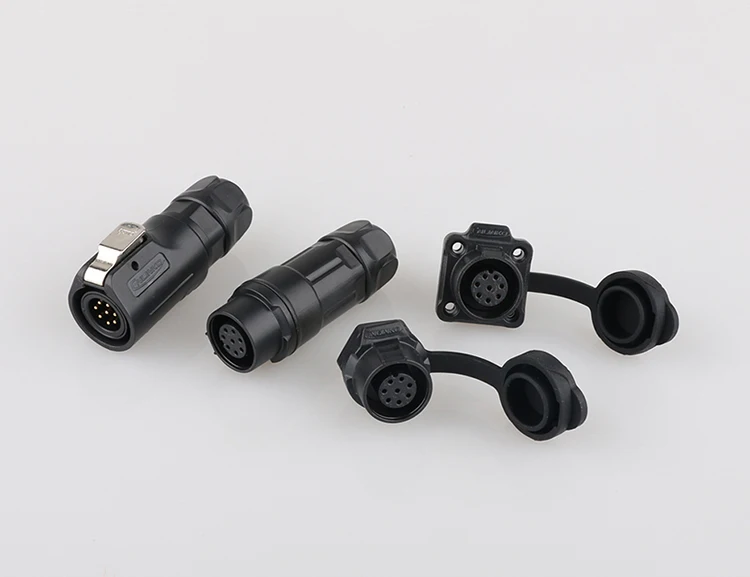

Different product types for selection

The first on the left from the image is the male plug

The second on the left is the female docking plug

The first on the right is female flange panel socket

The second on the right is the single hole screw fixed female socket

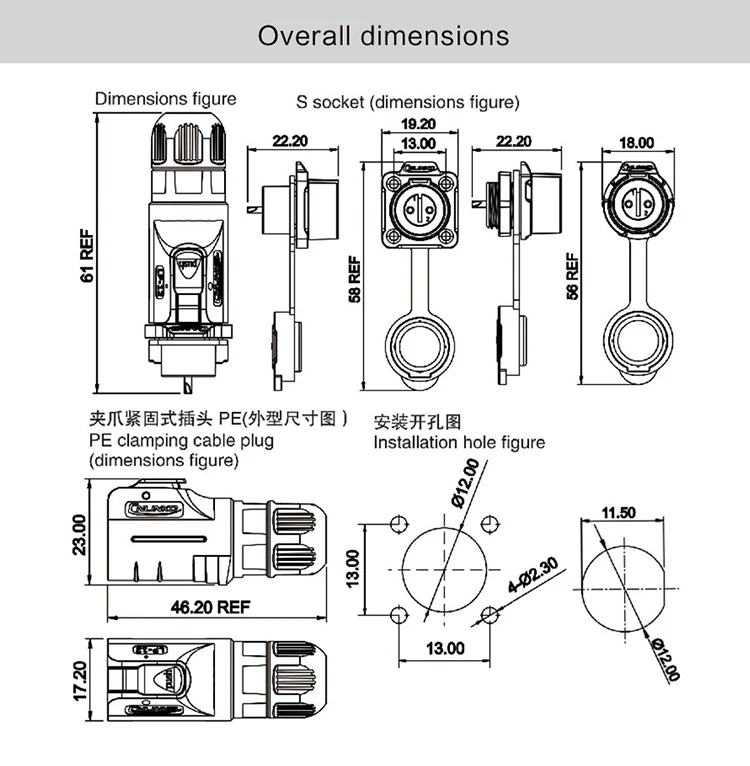

Dimenstion of the Connectors

You are welcome to contact me directly if you can not zoom in via Wechat: micai19801029, Whatsapp: +86 159 8086 8243

Detailed Images

Raw Material of the pin

Raw Material of the Plastic

Sabic Imported from the USA

Flange Female Socket

Male Plug

Set

Connectors on Device

We are allowed to upload the image from our customers, do not download please.

Customers' feedback

Size Information

Certifications

Packing&Shipping

Professional Packing

1. Every two connectors be wrapped in a small plastic bag.

2.10 bags of connectors be packed in a small carton box with size 17*8*9cm

3. 24 boxes be packed in the bigger carton box with size 36*26*26cm

Different Shipping Method to Suit Different Requirements

Express for emergency needs.

EMS for cheap shipping cost needs.

Shipping by air for bulk goods.

Company Introduction

Flydragon Technology are a15 years Chinese professional industrial connectors manufacturer. We own Ce/UL/RoHS/IP67/Patent certificates and work with the world famous enterprises. No matter to the Management team or the Produce department or the Sales team or the Engineer team, we are professional and optimistic, creativity is at the heart of every dream, we have ambition of the international market, we want "made in China" to be worldwide.
