Product Description

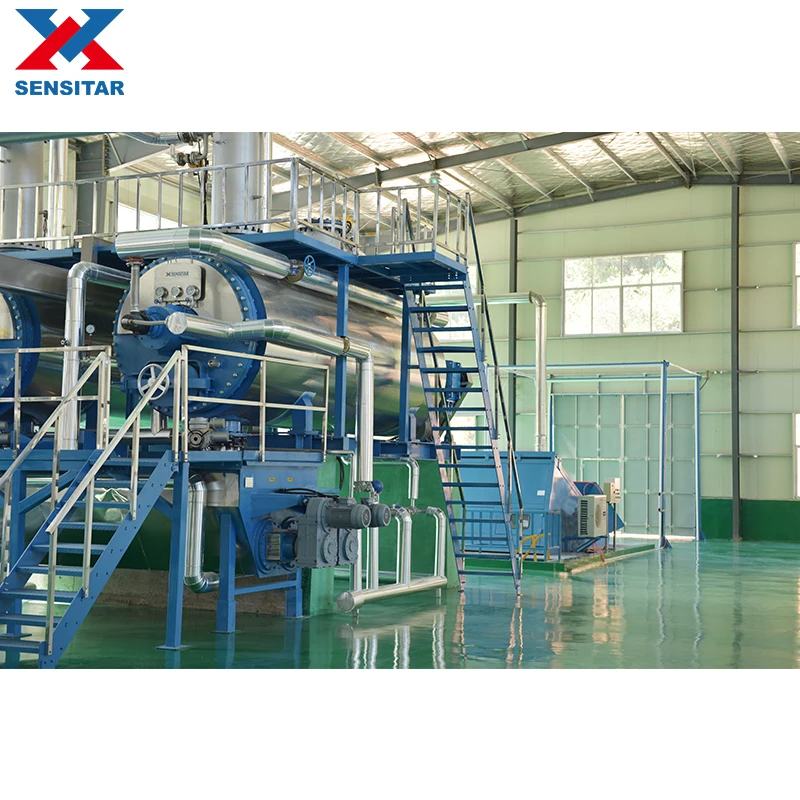

Continuous Cooker Fish Meal Rendering Plant
We are committed to the animal waste rendering plant, and are in the leading position in the field of organic waste resource recycling technology. With the crystallization of advanced environmental and ecological science and technology in the world, advanced animals innocuous treatment equipment has been developed, and a complete set of innocuous treatment has been manufactured.
Introduction
The system adopts the most advanced dry system process. The high temperature and high pressure of can to livestock and poultry
carcasses is preparing sterilization, which will then be completely decomposed into fat and flesh powder after drying, degreasing,
crushing and other procedures.
crushing and other procedures.
Product
The oil is used as the industrial oil, feed oil and bio-diesel.
The flesh powder can produce high protein feed and organic fertilizer, both of which have very high market potential. Its products are widely applied to agriculture, forestry, fisheries, animal husbandry, machinery and chemical industry etc.
The flesh powder can produce high protein feed and organic fertilizer, both of which have very high market potential. Its products are widely applied to agriculture, forestry, fisheries, animal husbandry, machinery and chemical industry etc.

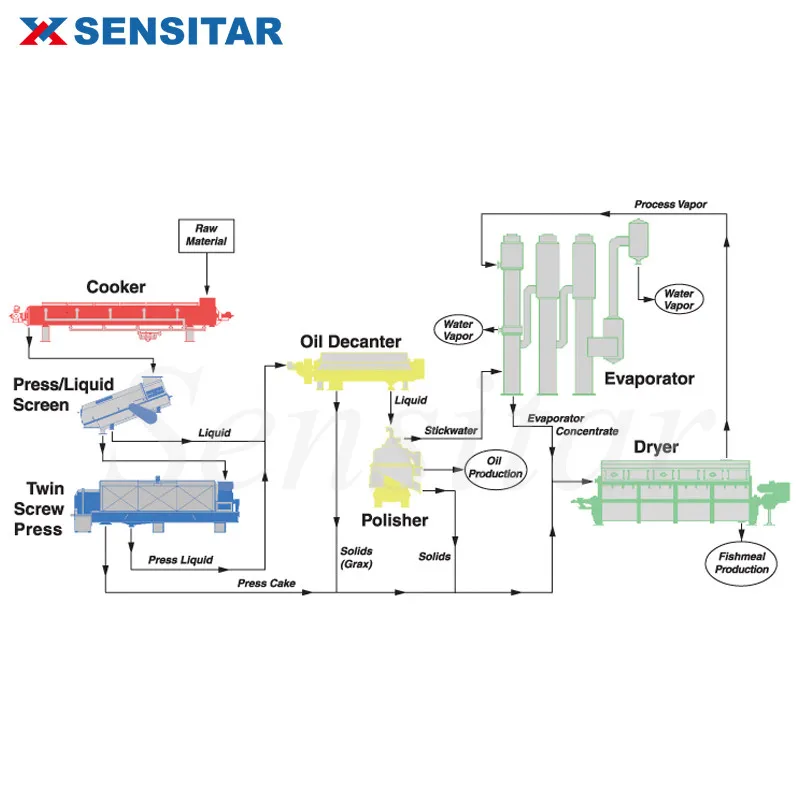

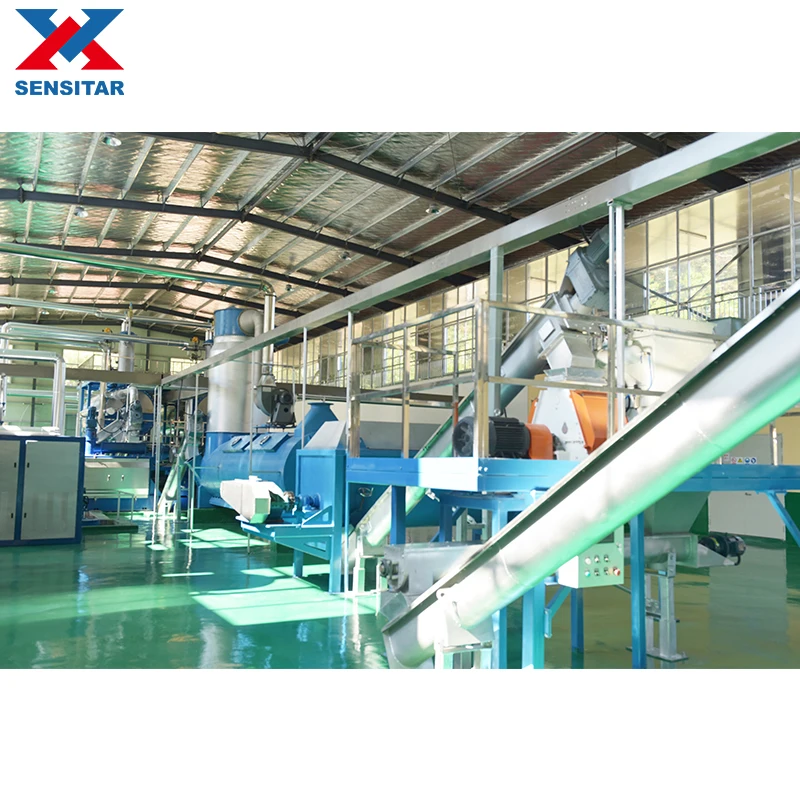

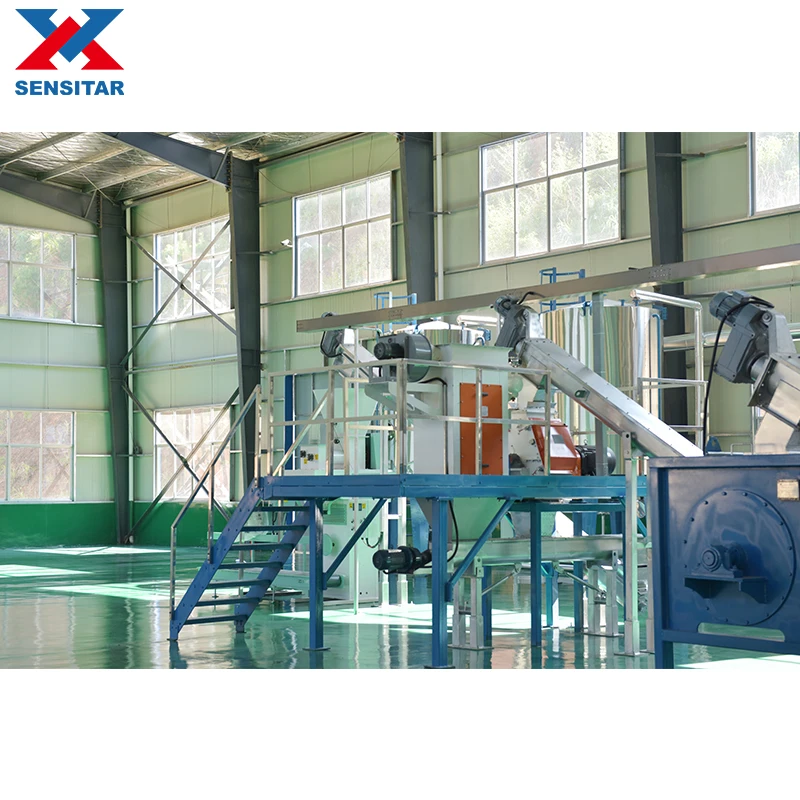

The production process
The fish meal plant line including the machines below:
1.Crusher and metal detector
2.Fish cooker1.Crusher and metal detector
3.Press
4.Dryer
5.Cooling and milling
6.Waste gas treatment
5.Cooling and milling
6.Waste gas treatment
Advantage
Compare with other supplier's machine,our machine have the feathers below:
1.High quality steel,firm and safety,strict quality testing,have at least 20 years lifetime.2.Fully-automatic,save manpower and cost.
3.Imported brand valve and meter,to ensure the quality steady.
4.Advanced design,manture productive technology.
5.One machine have high output,need small area.
The suit has the advantages of full-automatic control, simple operation, no need to add auxiliary materials in the processing process, green environmental protection, ect.
Crusher /metal detector
Raw material processing including crush and collect.
When the raw material is frozen fish, need to be curshed into small piece, so convenient for transporting and improve the working efficiency. Collect means remove the metal inside the material by the metal detector,to reduce the damage for the follow-up machine caused by the metal.

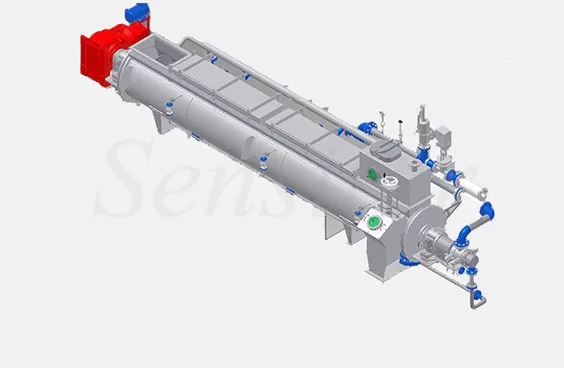

Fish cooker
The material in the tank transported to the cooker by the screw conveyor.
The material heated to 90-110 degree,to reach the best press effect.
Cooker Type | Dimensions (mm) | Weight (metric ton) | |||||
Length | Height | Width | |||||
XFC0605 | 2.6-3.5 | 3350 | 1050 | 1200 | 4 | ||
XFC0806 | 6.4-8.0 | 8250 | 1850 | 1850 | 12 | ||
XFC0808 | 8.8-11.0 | 10200 | 1850 | 1850 | 14 | ||
XFC1108 | 12.8-16.0 | 10900 | 2350 | 2200 | 20 | ||
XFC1110 | 16.0-20.0 | 12800 | 2350 | 2200 | 23 | ||
XFC1112 | 20.0-25.0 | 14850 | 2350 | 2200 | 27 | ||
XFC1310 | 20.0-25.0 | 13050 | 2450 | 2200 | 32 | ||
XFC1312 | 24.0-30.0 | 15050 | 2450 | 2200 | 36 | ||
XFC1314 | 28.0-35.0 | 17050 | 2450 | 2200 | 40 | ||
XFC1612 | 30.4-38.0 | 15150 | 3450 | 2400 | 40 | ||
XFC1614 | 35.2-44.0 | 17150 | 3450 | 2400 | 47 | ||
XFC1616 | 40.0-50.0 | 19150 | 3450 | 2400 | 55 | ||

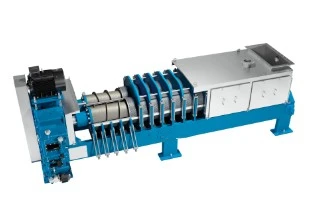

Screw press
The vibrating screen will separate the liquid from the rawterial.
The liquid will be transported to the press tank by the thread rod pump.The solid will be pressed, extrude the liquid from the soild.

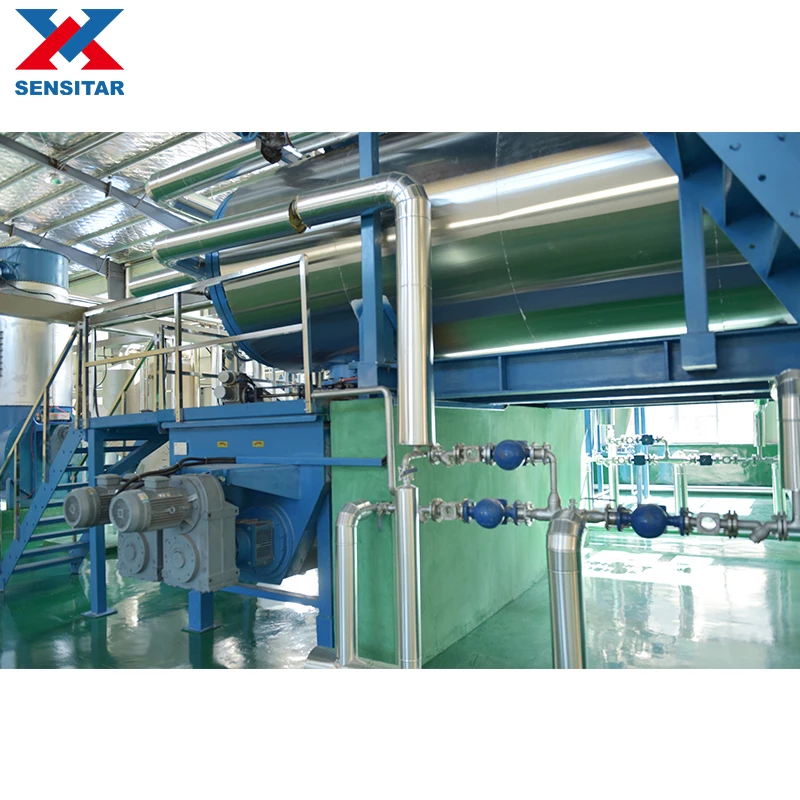

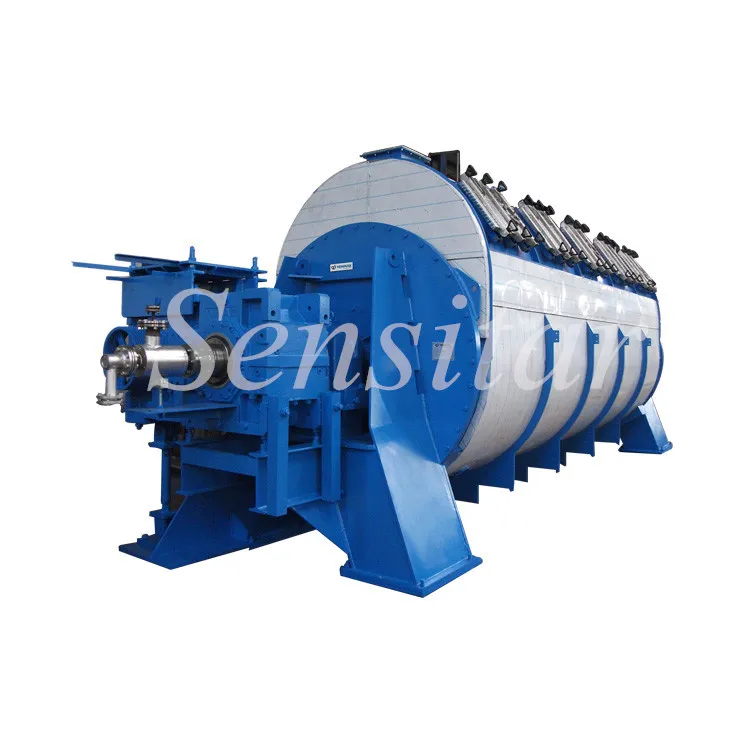

Disc dryer
Indirectly steam-heated and designed for continuous cooking or drying of animals by-products or fish. The rotor consists of a central pipe on which vertically arranged and parallel discs with double walls have been welded. This design results in a concentrated heating surface offering maximum evaporation capacity in a compact design.

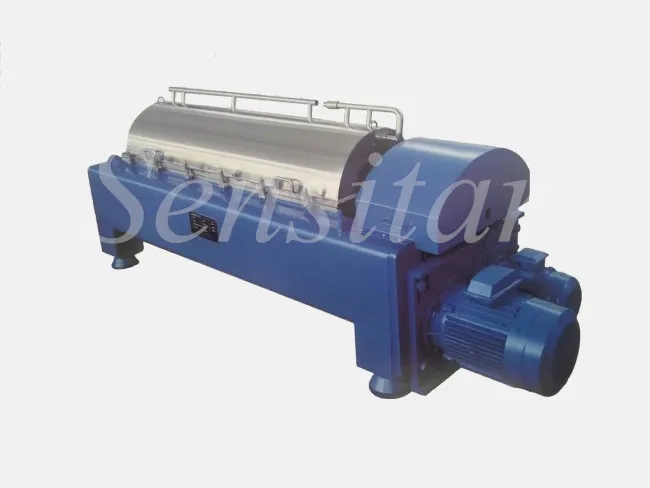

Horizontal centrifuge
1.Three phase separation;
2.Recover sludge efficiently, effect good oil separation;
3.The parts contacting with material are made of stainless steel;
4.8-10t/h capacity, stepless adjustable motor;
3.The parts contacting with material are made of stainless steel;
4.8-10t/h capacity, stepless adjustable motor;
Cooler
The quick water-flow type cooler will cool down the power and granular material. When the material gets cool, this machine will select out different size products.
Air condition
The Air Condition is designed for condensing the processing vapours emitted from cooking or drying of meat or fish by products. The condensed water can be recycled to other plant.
Mill
The mill is used to reduce the particle size of greaves after fat extractions. The reduction in size required at this stage dependson whether the meal is used directly in compound feeds or it will bepassed through a further stage of size reduction.
Company Introduction
Shandong Sensitar Machinery Manufacturing Co. Ltd. is a well-known supplier of complete sets of harmless treatment at home and abroad. The company has the manufacturing qualification of pressure (Certificate No.TS2237474-2020). It has more than 20 new patents, 2 invention patents and strong technical force.
Our Services & Strength
The company has high quality technical personnel, equipped with professional engineers to answer customers' questions, at the same time to "service first, quality win" as the service purpose, to provide customers with quality after-sales service.
Certifications
Packing&Shipping
Our company suOur company supports sea and land transportation.
We will provide you with high quality service.
Related Products
FAQ
1.What are the payment terms?
TT,L/C and trade assurance are acceptable,TT will be more appreciated,30% deposit before production,70% balance before shipment.
2.What is the delivery time?
At least 2 month after the deposit recipit,depend on how many machines included in the line.
3.How to pack the machine?
Standard packaging
4.How to install after the machines arriving destination?
Our engineer will go to customers site if you need,but need to pay installation fee accord with the contract.
5.What's the capacity you can do?
We always produce depend on customers' requirement.
TT,L/C and trade assurance are acceptable,TT will be more appreciated,30% deposit before production,70% balance before shipment.
2.What is the delivery time?
At least 2 month after the deposit recipit,depend on how many machines included in the line.
3.How to pack the machine?
Standard packaging
4.How to install after the machines arriving destination?
Our engineer will go to customers site if you need,but need to pay installation fee accord with the contract.
5.What's the capacity you can do?
We always produce depend on customers' requirement.
