Product Description

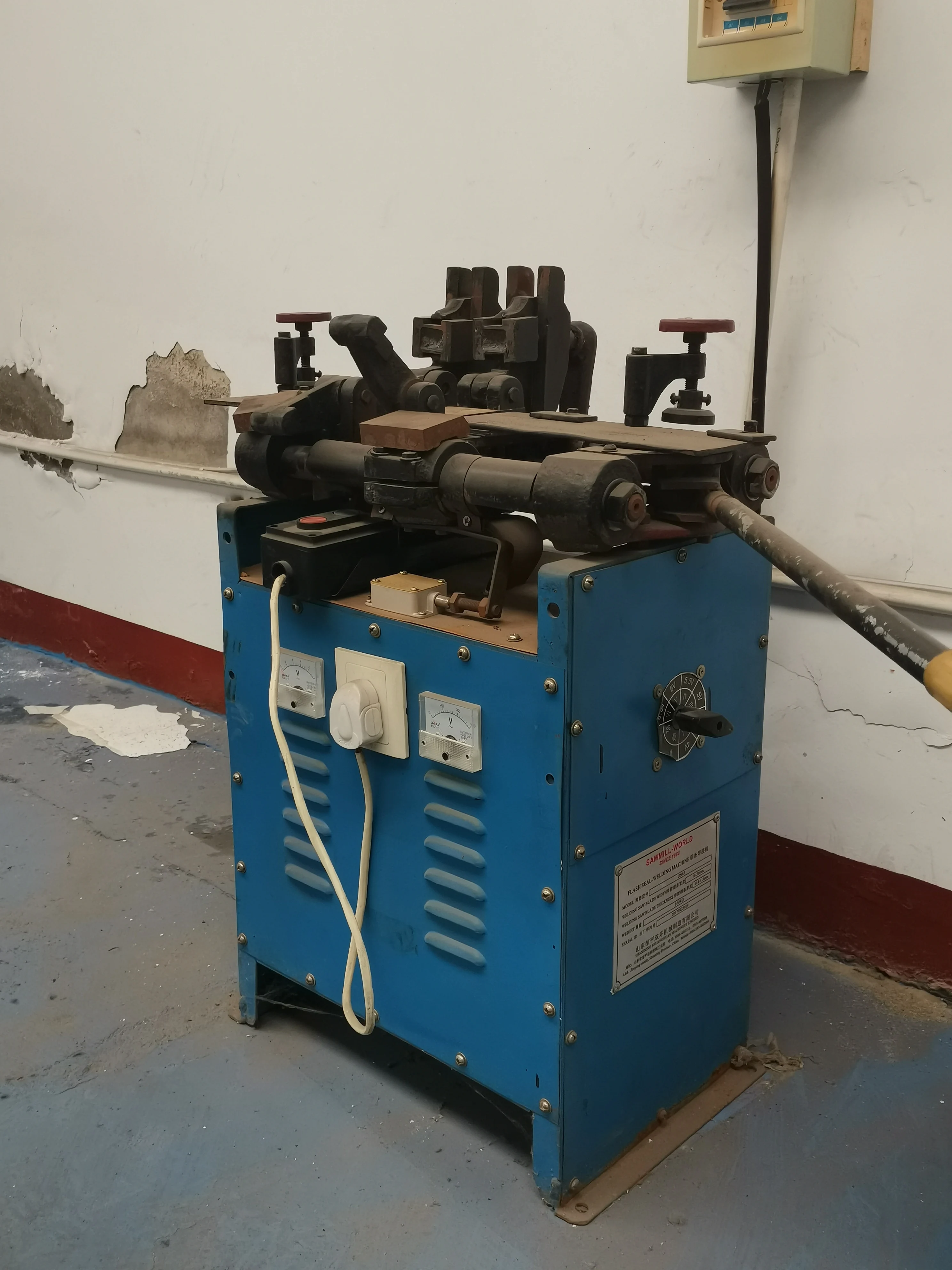

Flash Seal-Welding Machine


Technical Parameter
UN65
UN125
UN150
Welding Saw Blade Width (MM)
15-65
15-125
15-150
Welding Saw Blade Thickness (MM)
0.5-1.15
0.7-1.25
0.7-1.25
Voltage
380V 50 HZ
380V 50 HZ
380V 50HZ
Size(mm)/Weight(kg)
650*350*800
110
850*500*1050
302
850*450*1180
308
LCL Size(mm)/Weight(kg)
700*400*820
118
900*520*1100
313
900*500*1200
318

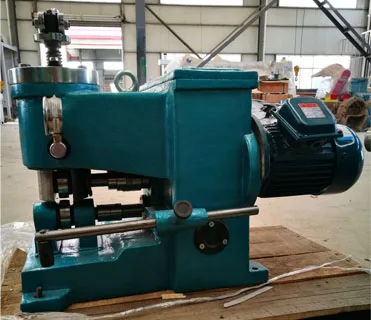

Roll Machinery
Main Technique Data
MR417
Max Processing Blade Width (MM)
150
Roll Diameter
70mm
Processing Speed(R/Minute)
52
Motor Power
0.75KW
Weight
150

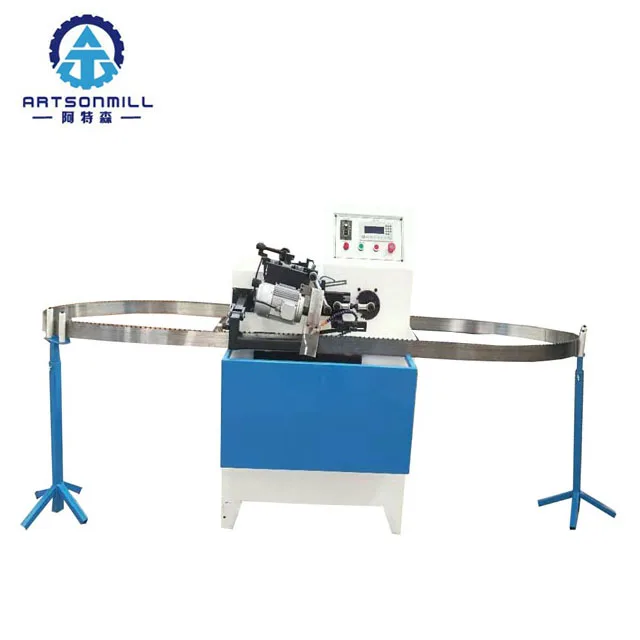

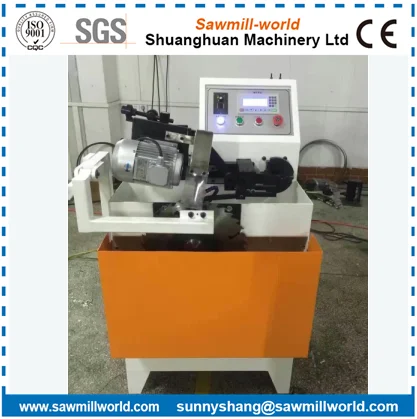

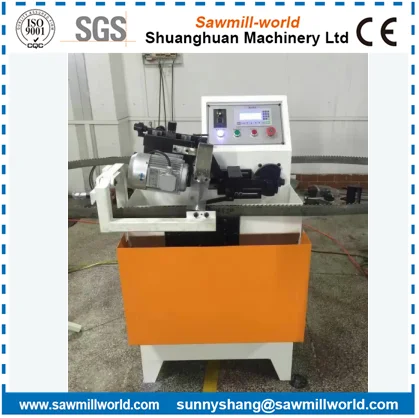

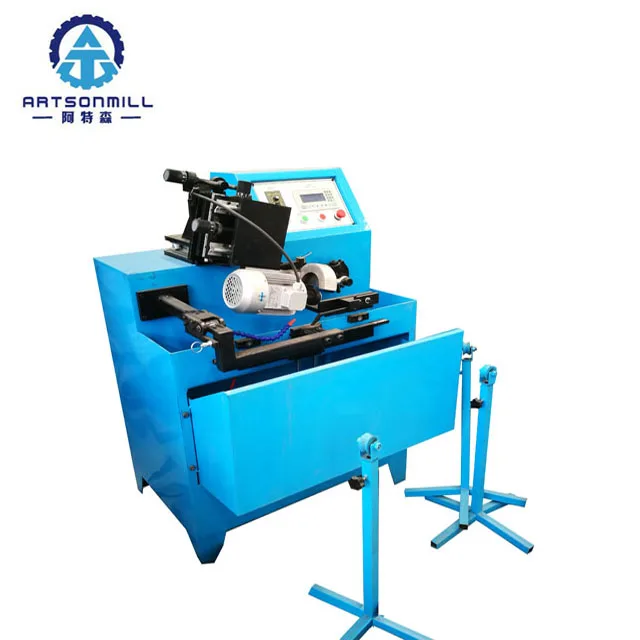

Band Saw Blade Sharpener
Main Technical Data
MR1111
MR1115
MR1118
Grind Width MM
30-80
30-125
60-150
Sand Wheel Diameter MM
150
250
250
Band Saw Blade Pitch MM
8-20
10-30
10-40
Working Frequency Tooth/Min
50
50
50
Weight (kg)
52
100
200


           MR1115 Model

             MR1111 Model


                MR1118 Model




Front Side Grinding For Carbide Band Saw Blade

Teeth Feeding Motor Power\t0.75KW

Teeth Feeding Speed\t0-120 Tooth /Min

Grinding Head Motor Power\t0.75KW

Grinding Blade Length\t500-11000MM

Back Side Grinding For Carbide Band Saw Blade

Teeth Feeding Motor Power\t0.75KW
Teeth Feeding Speed\t0-120 Tooth /Min
Grinding Head Motor Power\t0.75KW
Grinding Blade Length\t500-11000MM

 Double Side Grinding For  Carbide Band Saw Blade

Teeth Feeding Motor Power\t0.75KW
Teeth Feeding Speed\t0-120 Tooth /Min
Grinding Head Motor Power\t0.75KW
Grinding Blade Length\t500-11000MM



Alloy Saw Blade  / Circular Saw Blade / Frame Saw Blade Band Saw Blade Sharpener

Max Grinding Circular Saw Blade Diameter:600MM

Grinding Saw Blade Width:30-150MM

Grinding Saw Blade Thickness:0.5-1.3MM

Motor Power:0.55KW





Carbide Band Saw Blade Automatic Water Grinding Machine
Overall Size
11500×8500×7500mm
Weight
230kg
Voltage
380V
Grinding Head Motor
0.37kw
Feeding Motor
0.37kw
Feeding Speed
0—120Teeth/min (Adjustable)
Grinding Teeth Pitch Range
6—40mm
Blade Width
15—150mm
Blade Length
2800—11000mm

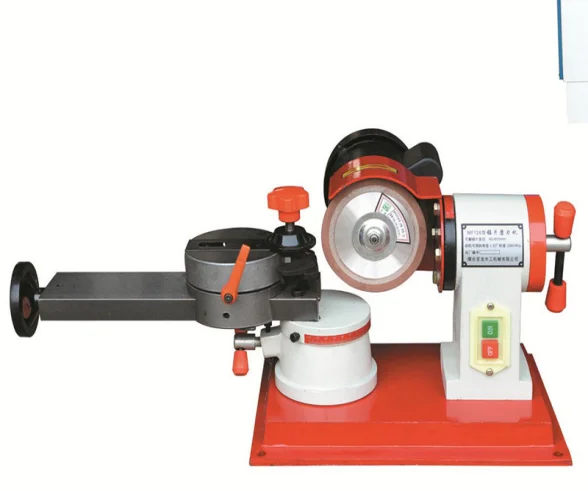

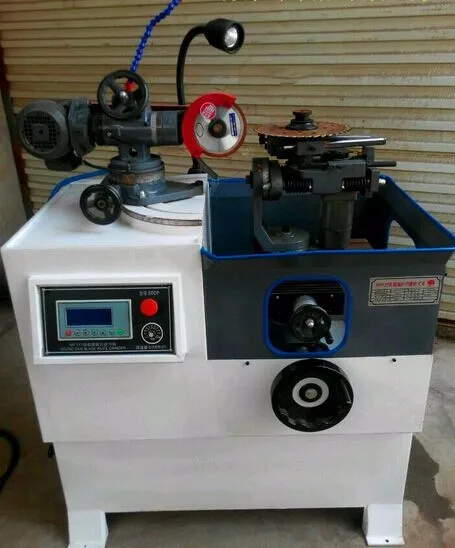

Carbide Circular Saw Blade Sharpener
Specification
MR126
Grinding Saw Blade Diameter
80-600mm
Grinding Head Adjustable Angle
±30°
Motor Power
250w 220v
Overall Size
710*391*337
Grinding Saw Blade Rake Angle
0-30°

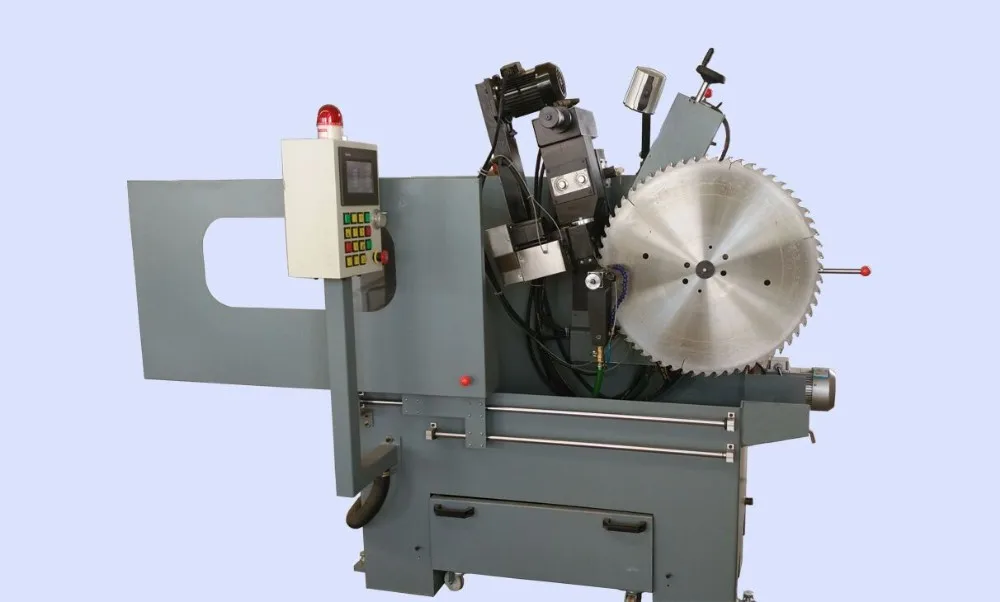

            Full Automatic Carbide Circular

                 Saw Blade Sharpener

         Automatic Circular Saw Blade Sharpener




Related Products

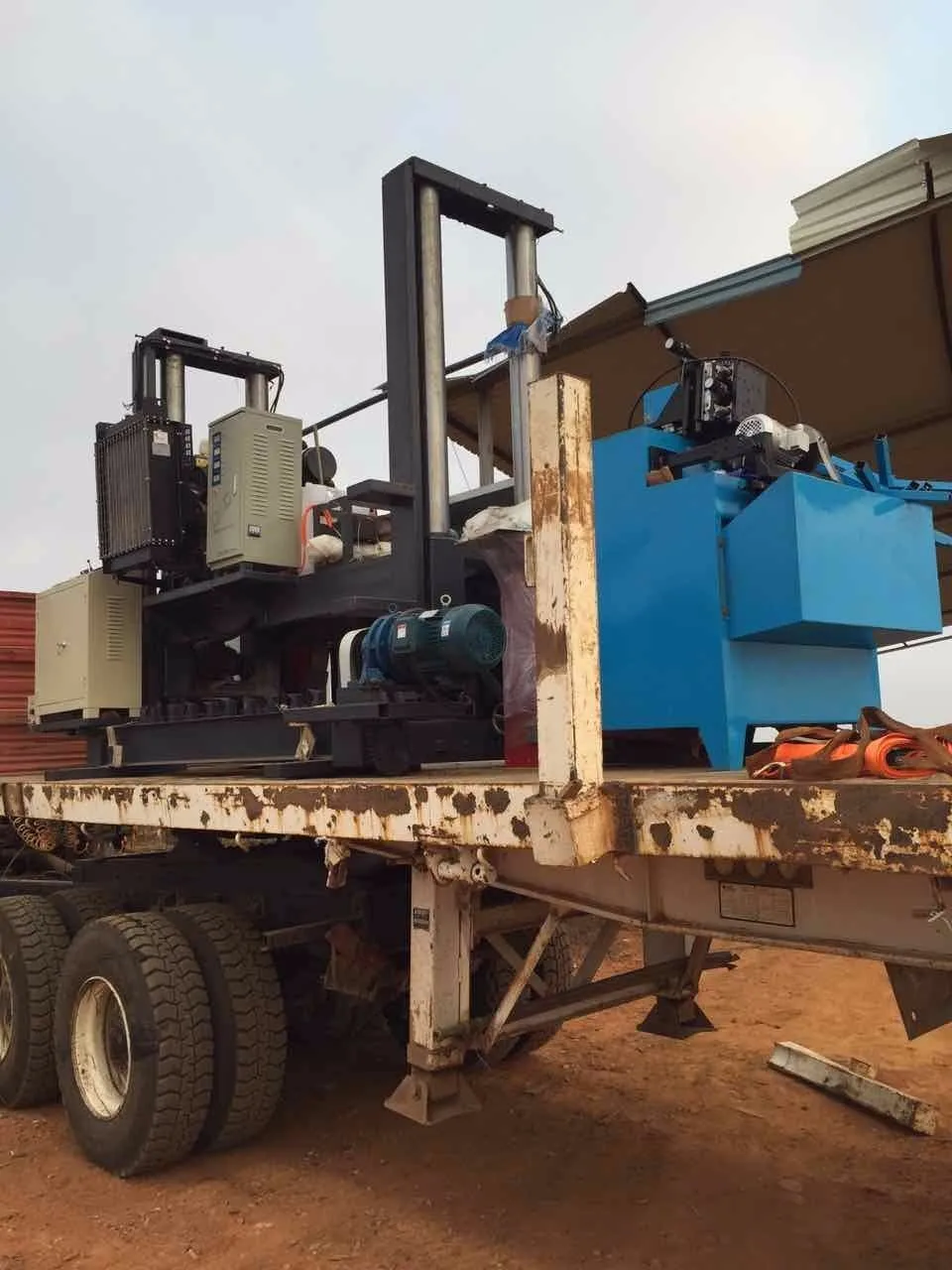

Packing & Delivery




Our Company




Certifications




Our Service


Pre -sale service:
1-Reply customer’s email or call customer back in 3 hours if missed any calls.
2-Design the best processes and programs according to customer’s usage and requirement.
3-Answer customer’s questions patiently.
On purchase service :

1-Commissioning the machines before shipment carefully.
2-Train the customer’s technician,And provide operation video and matters needing attention.
3-Arrange customs declaration, sea shipping, insurance, etc.
After-sales service :

1-Our machines’ warranty period is 12 month, We will provided spare parts for free within 12 month,

But will need customer bear the delivery cost.We charge cost price and delivery cost after the warranty
period.
2-Provide the solution of the installation or use problem within 3 working hours.
3-Engineers able to instll and train the operators overseas.
