Product Description
5000w motor electric bike kit e bike controller with colorful display for sale
Voltage: 48V-96V
Wattsage: 5000W
Wattsage: 5000W
Design: Brushless Gearless
Speed: 700RPM@72V Magnet height: 50mm Drop out:149mm
Speed: 700RPM@72V Magnet height: 50mm Drop out:149mm
Package Content
The packing list of 48v -72v 5000w electrric bike kit :
1. NC5000W Powerful Brushless Gearless motor with Motorized 20" 24" 26" 700C 28" 29" Wheel
Or Motorcycle Wheel 17" 18" 19" 21".
2. 48V-72V 80Amp smart controller
3. Controller bag
4. 1 pair of High Quality Aluminum Alloy Brake Levers
5. Full Twist Throttle
6. PAS 8 Magnets High Quality Pedal Assistant Sensor
7. Book manual and ties
8. UKCI colorful display with usb port
9. Single speed 10. Torque Arm Safe for Customer.
11. GOOD PACKAGE FOR EXPRESS
11. GOOD PACKAGE FOR EXPRESS
Products details
The parameter of the 5000W motor
Model NC5000w |
Voltage 48-96V Motor power 5000w Axle 10mm*17mm motor diameter 230mm Magnet Height 50mm stator aluminum alloy windings 700rpm @72v, 3Tx21； 70-75KPH@26inch&72v. waterproof grade IP54 Max Efficiency 89.80% drop out 149mm Numbers of Motor phase 3 pcs Hall sensor 2 sets, one is for spare hall sensor phasing 120 degrees cross section of phase wire 6mm2 color dark black N.W 11kgs |

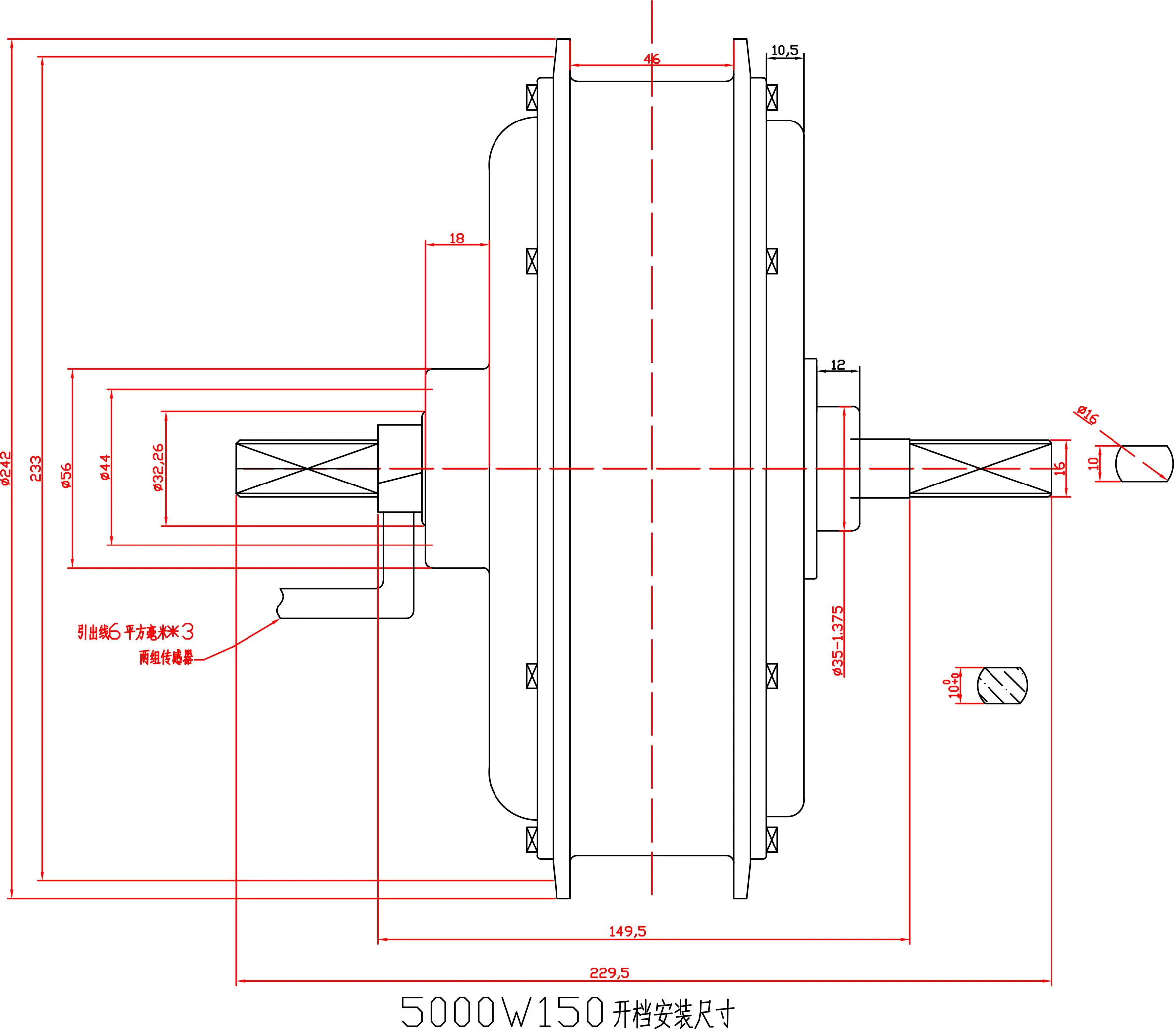

5000W Drawing Photo
(1）Motor Hub Diameter: 230mm (2）Axle Length: 10mmX17mm(3）Rear Dropout: 150mm (4）Motor Magnets: 50H (5）Motor Torque (Peak): 190N.m( 6）Motor RPM (No Load): 700rpm@72v
Motorcycle Rim Details
1) 17inch 18inch 19inch 21inch aluminum alloy rim for choose.
2) It is aluminum alloy material, good quality.
3) It is good for various tires 2.5 2.75 or 3.0
MTX RIM Details:
1) MTX 24inch, MTX 26inch, MTX 29inch wheels for choose.
2) It is for disc brake system ONLY.
3) It is double wall aluminum alloy material, good quality.
4) It is good for various tires (1.95, 2.125, 2.1, 2.2, 2.3, 2.5, 3.0).
2) It is for disc brake system ONLY.
3) It is double wall aluminum alloy material, good quality.
4) It is good for various tires (1.95, 2.125, 2.1, 2.2, 2.3, 2.5, 3.0).

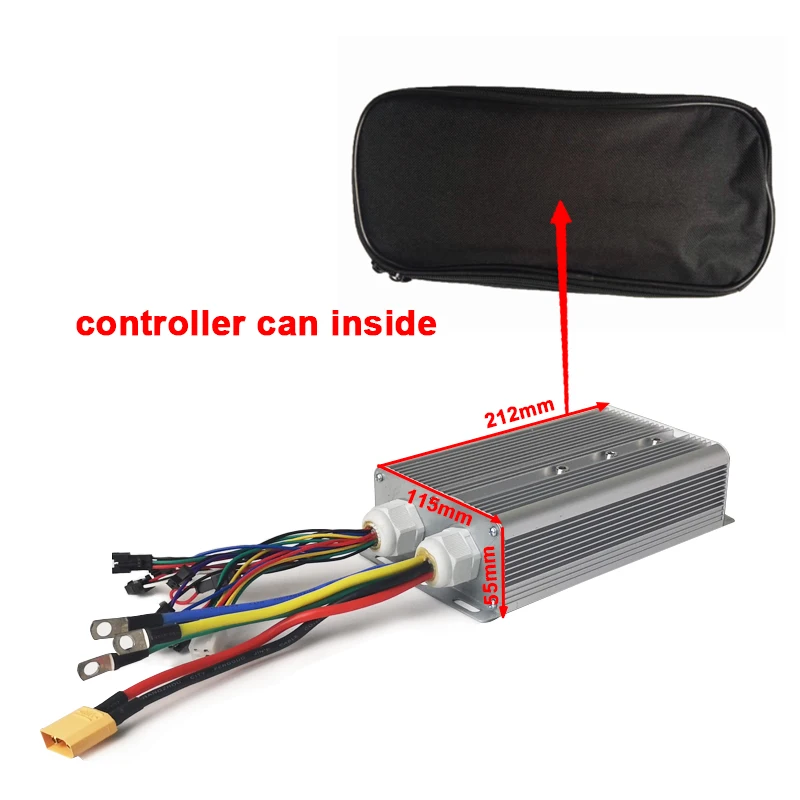

Smart Controller with Controller Bag
1) Spec. : 48v-72 80Amp. Max working Voltage 96V.
2) Size: L212mm*W115mm*H55mm
3) Functions: Low Brake, Display, Throttle, Curise, Temperature sensor, lock, 25KPH limited, Pedal Assist Sesor.
With multiple protection features such as stalled, over-current, over-temperature,
over-voltage, under-voltage, speed, lack of phase and so on.
4) Optional Function: Front Light With Horn, Regen.Braking
2) Size: L212mm*W115mm*H55mm
3) Functions: Low Brake, Display, Throttle, Curise, Temperature sensor, lock, 25KPH limited, Pedal Assist Sesor.
With multiple protection features such as stalled, over-current, over-temperature,
over-voltage, under-voltage, speed, lack of phase and so on.
4) Optional Function: Front Light With Horn, Regen.Braking

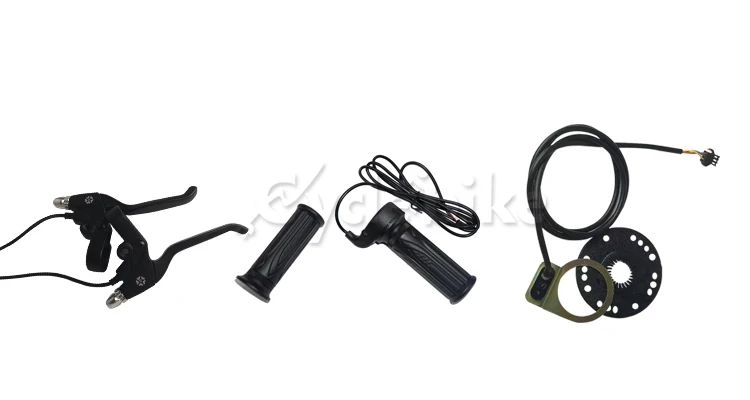

1) Aluminum Alloy Material, electric brake & Mechanical braking.
2) Thumb Throttle with Grops.
3) 12 magnets 1:1 PAS
2) Thumb Throttle with Grops.
3) 12 magnets 1:1 PAS

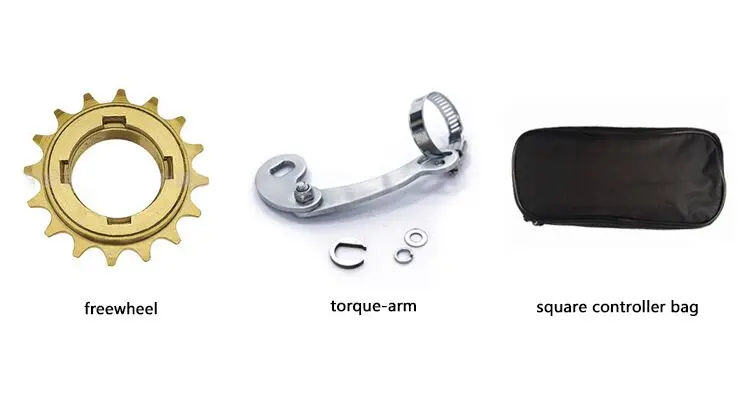

1S freewheel, Controller Bag, Torque Arm.

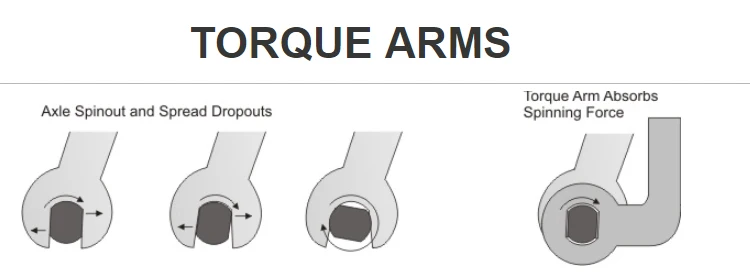

1speed freewheel & Torque Arm. (This is the most Important for safety. Torque arms are used to prevent axle rotation in hub motors. When a hub motor is powered up running, for all the torque that the motor generates spinning a wheel forwards, there is an equal and opposite torque on the axle causing it to rotate backwards.)
LCD sw900
it allows users to edit controller parameters, control all functions on your ebike from speed to wheel size and even an external headlight.
Corlorful Display UKCI
FUNCTION : 5 levers speed control ; wheel size choose; password setting; distance; time , can with USB port.
Wire Diagram
Packing & Delivery
Shipping
Take the cost-effective way based on your quantity or do as you request. To think what customer needs.
For the sample packge via international express we can. if a bulk order via Sea transporation.
For the sample packge via international express we can. if a bulk order via Sea transporation.
why you choose Ncyclebike,we have 5 advantage.
1.Supply to USA,Europe,and Austrilia
2.Professional Perfomance electric bike parts supplier
3.Supply some parts for free. Delivery fast and on time
4. Customized rigid package for long transport. Great package can be delivered to your customer directly
5. Excellent after-sales service. To think what customers want,all customers centered.
USE for Enduro ebike or Vector bike .
Our company
Our service
In-sale Services:
1.Try our best to satisfy every customer's reasonable demand;
2.Stay in touch with our clients during installation;
3.Cooperate friendly with client and satisfy our clients with best quality electric bike .

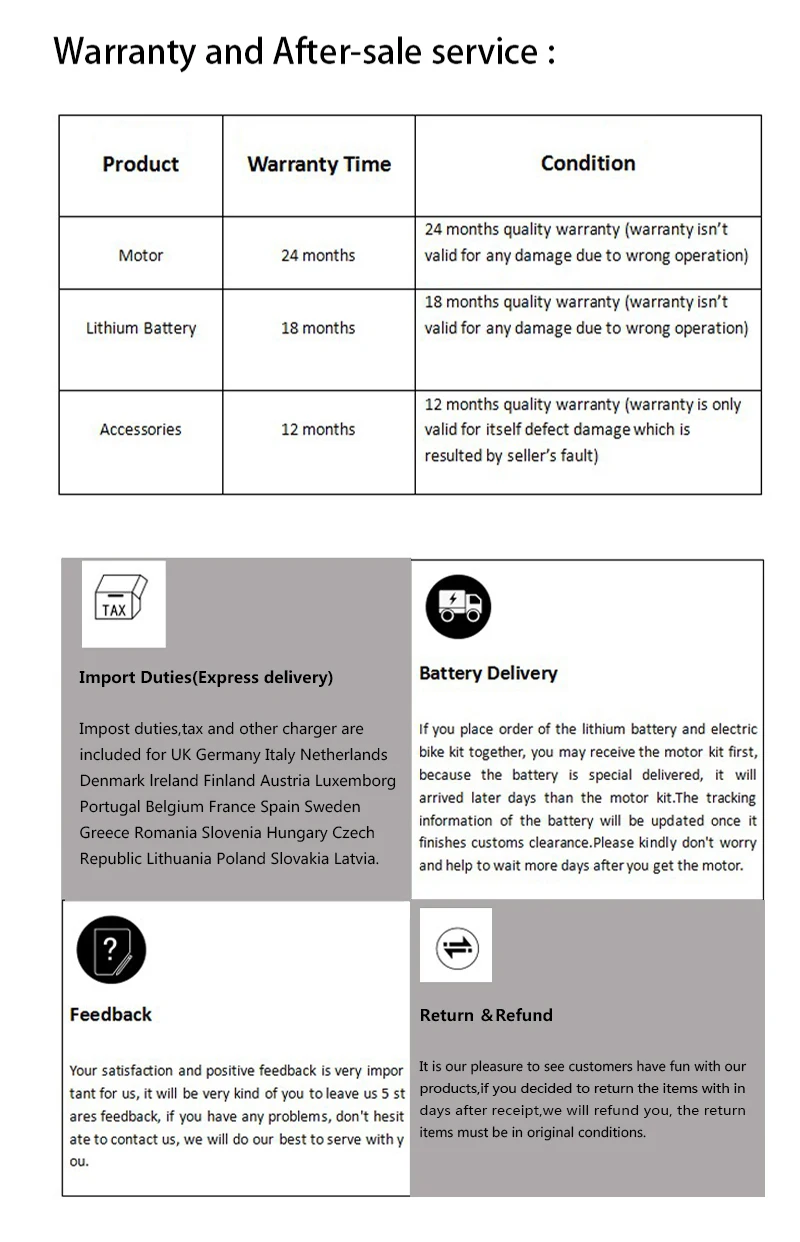

After-sale Services:
1.Provide 2-year guarantee for normal products free;
2.If problems are appeared during use, we will send replacement parts as soon as you send fault parts to check.
Recommendation Products
Certification
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: for big order T/T 30% as deposit, and 70% before delivery. fro small order pay by T/T. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
