CT915 ручной верстачный токарный станок и Фрезер для обработки
- Категории: Сверлильные станки >>>
- Поставщик: Anhui,Citie,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Quick Details
| Condition: | New | Type: | Turning Drilling & Milling Machine | Power Source: | Electric |
| Place of Origin: | AnHui, China (Mainland) | Brand Name: | CTMACH | Model Number: | CTMACH-1013 |
| Dimension(L*W*H): | 1620*650*900mm | Weight: | 475kg | Voltage: | 220v |
| MOQ | 1 set | Certification: | ISO | Warranty: | One year |
| marketing mode: | directly selling | Manufacturer | OEM is welcome |
Packaging & Delivery
| Packaging Details: | Wooden Box package |
| Delivery Detail: | 1-10 Days |
Descriptions:
- Good quality machine tool.
- 12 position gear speed shifting, can choose high rotate speed or high torque

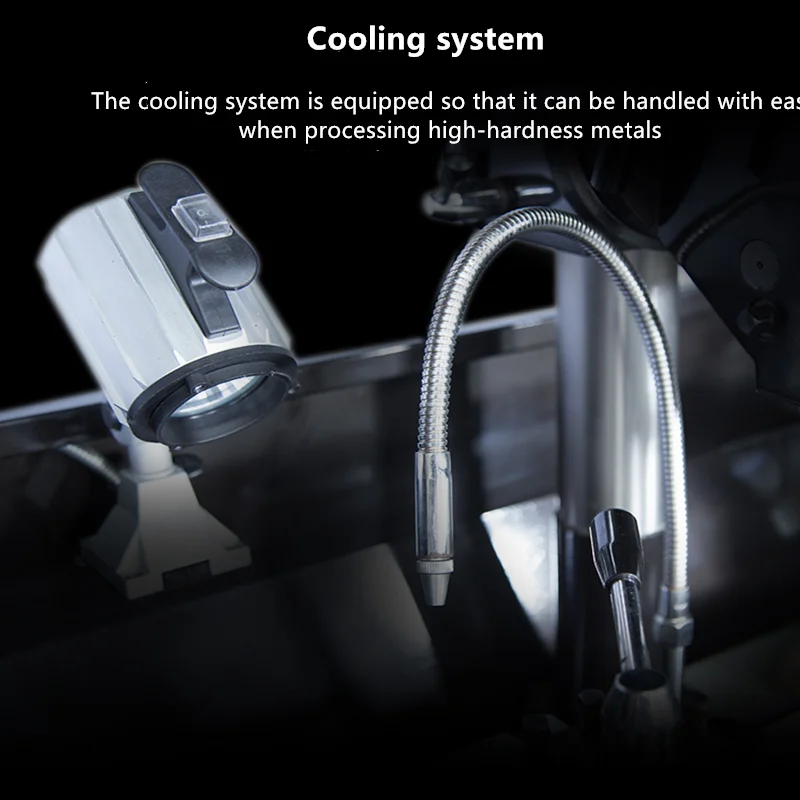

- The cooling system is equipped so that it can be handled with ease when processing high-hardness metals.
Applications:
- Suitable for home workshop DIY handicrafts, maintenance of cars and motorcycles in the workshop, teaching demonstrations used by schools, science and technology centers and research institutes, small and medium-sized factory small batch parts cut machining and repair.
- Small size, strong rigidity and high precision. Durable and easy to maintain

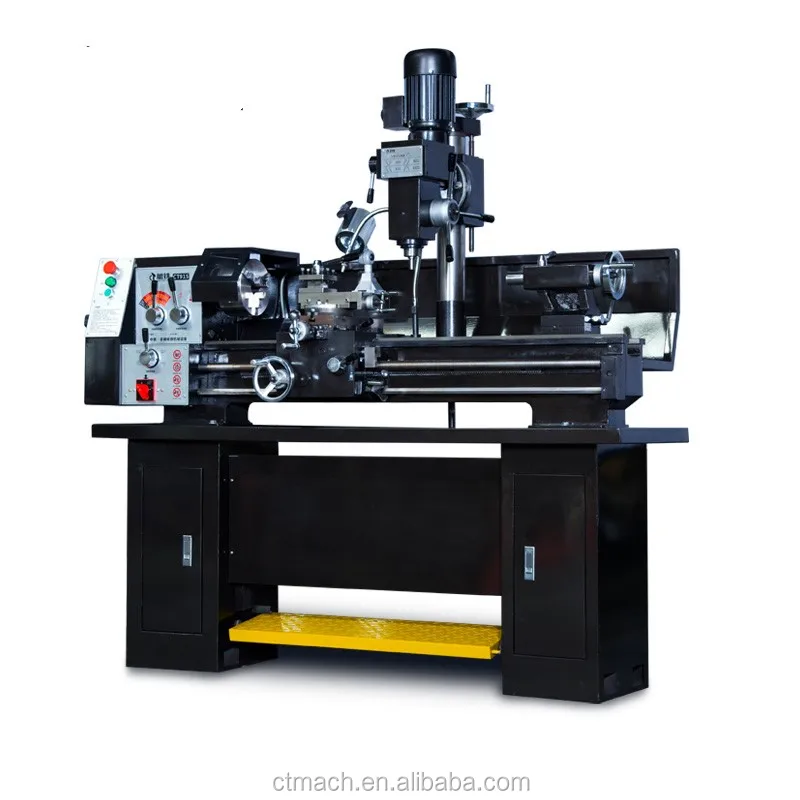

CT915 Turning Drilling and Milling Machine Tool(CTMACH-1013)

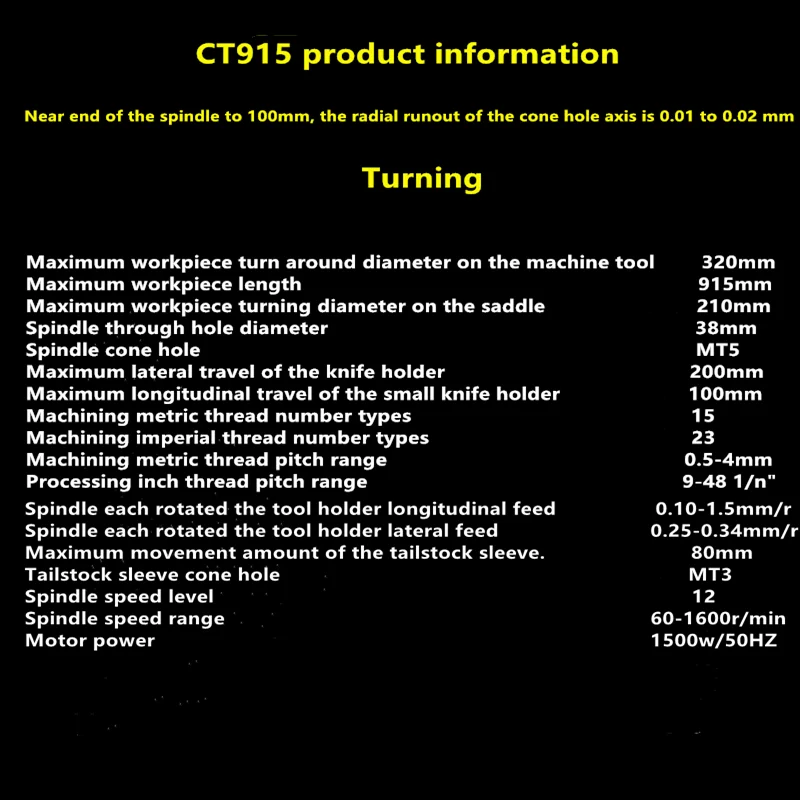

Technical Specifications
Turning | |
Maximum workpiece turning diameter on the bed | 320mm |
Maximum workpiece length | 915mm |
Maximum workpiece turning diameter on the saddle | 210mm |

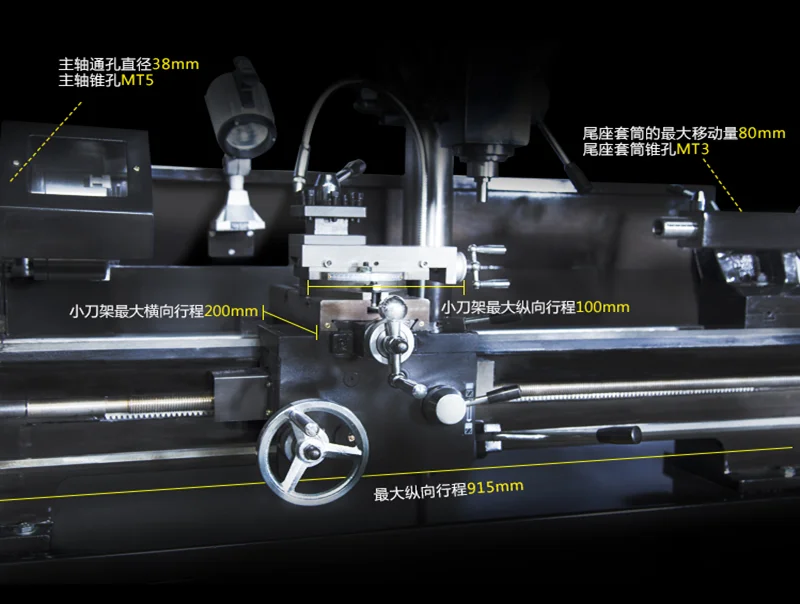

Spindle through hole diameter | 38mm |
Spindle taper | MT 5 |
| Maximum lateral travel of the tool holder | 200mm |
| Maximum longitudinal travel of the knife holder | 100mm |
Number of processed metric threads | 15 |
Processing metric thread pitch range | 0.5-4mm |
Number of processed inch threads | 23 |
Processing inch thread pitch range | 9-48 1/n" |
Longitudinal feed per spindle of the spindle | 0.10-1.5mm/r |
| Transverse feed per spindle of the spindle | 0.025-0.34mm/r |

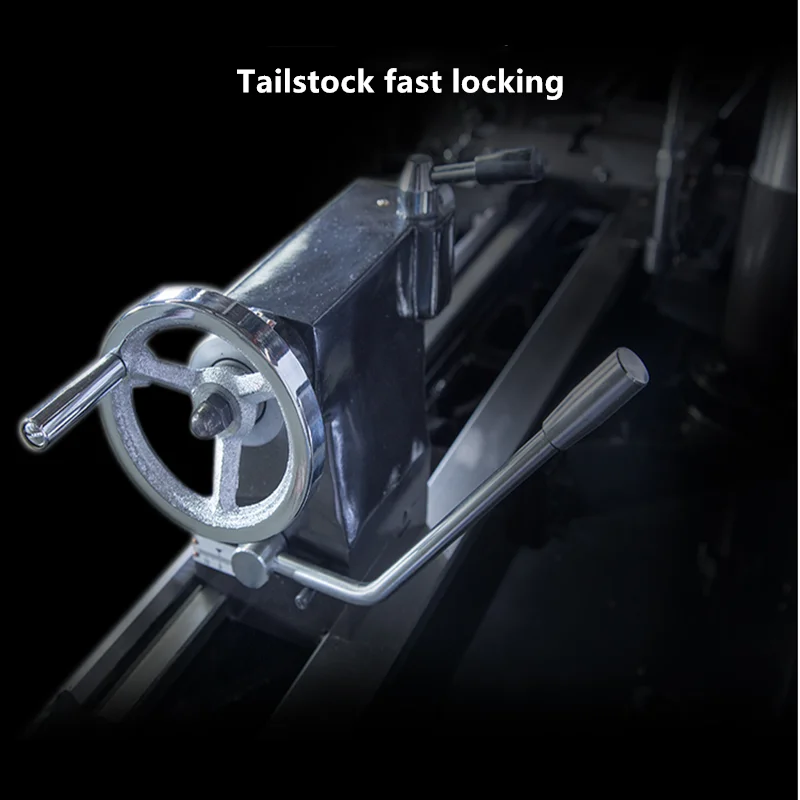

| Maximum movement of the tailstock sleeve | 80mm |
Tailstock sleeve taper | MT3 |
| Spindle speed series | 12 |
| Spindle speed range | 60-1600r/min |

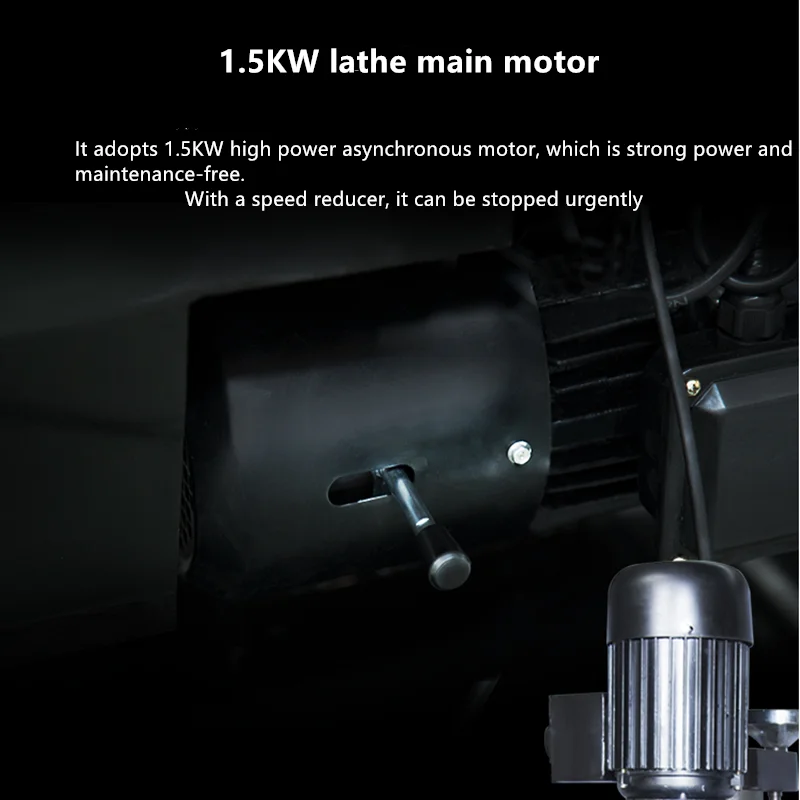

| Motor Power | 220V 1500W 50HZ |

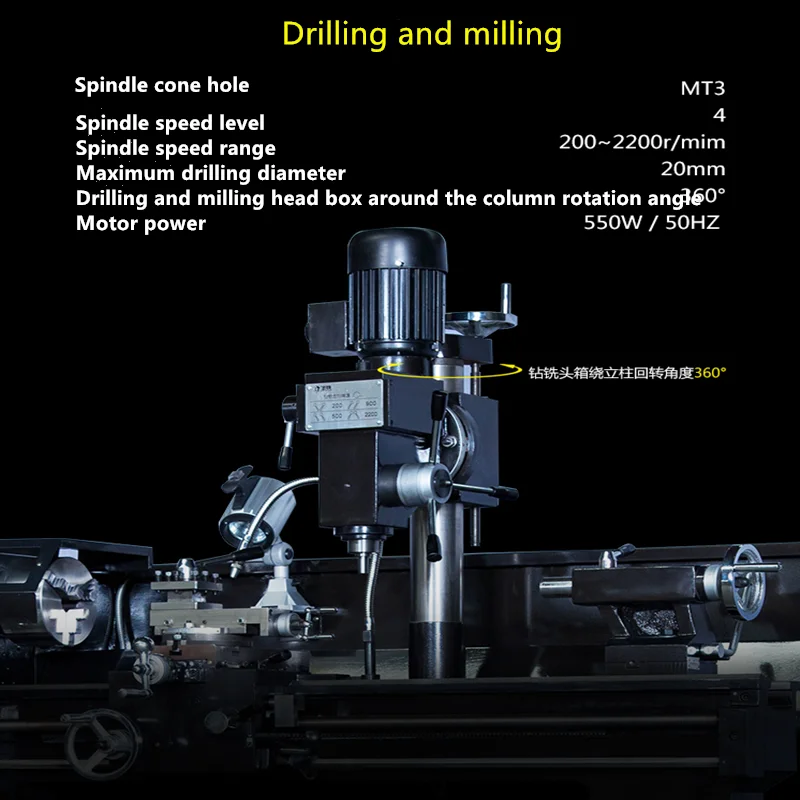

| Drilling and milling | |
| Maximum drilling diameter | 20mm |
| Spindle taper | MT3 |
| Spindle speed series | 4 |

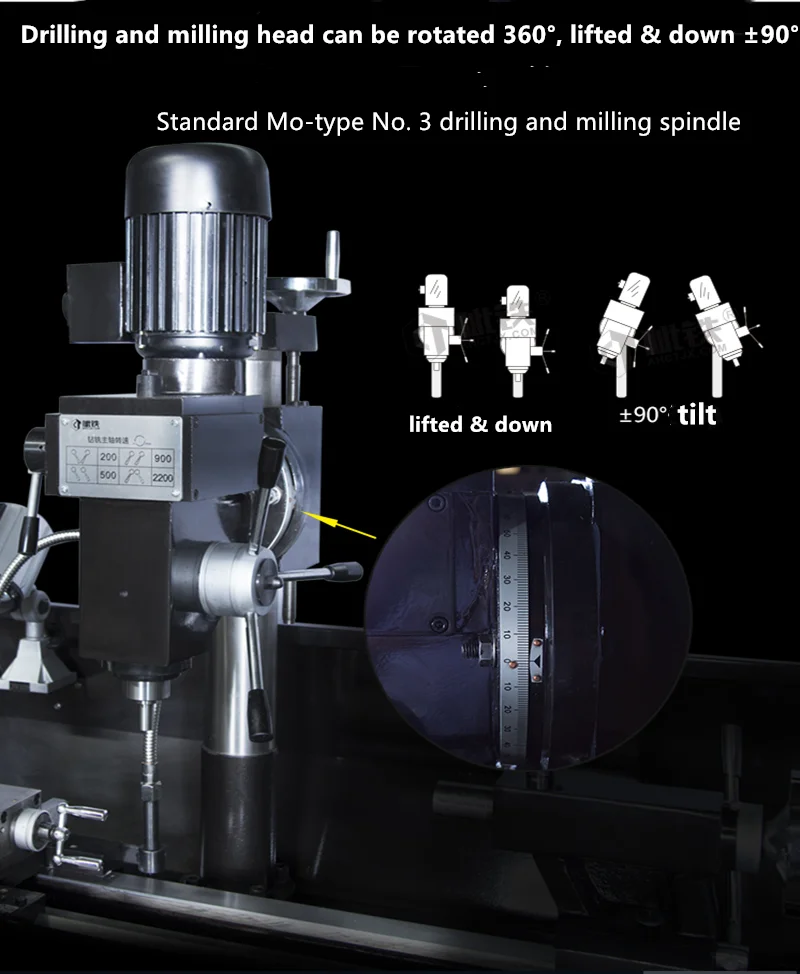

| Drilling and milling head box around the column rotation angle | 3600 |
| Spindle speed range and number of stages | 200-2000r/min |

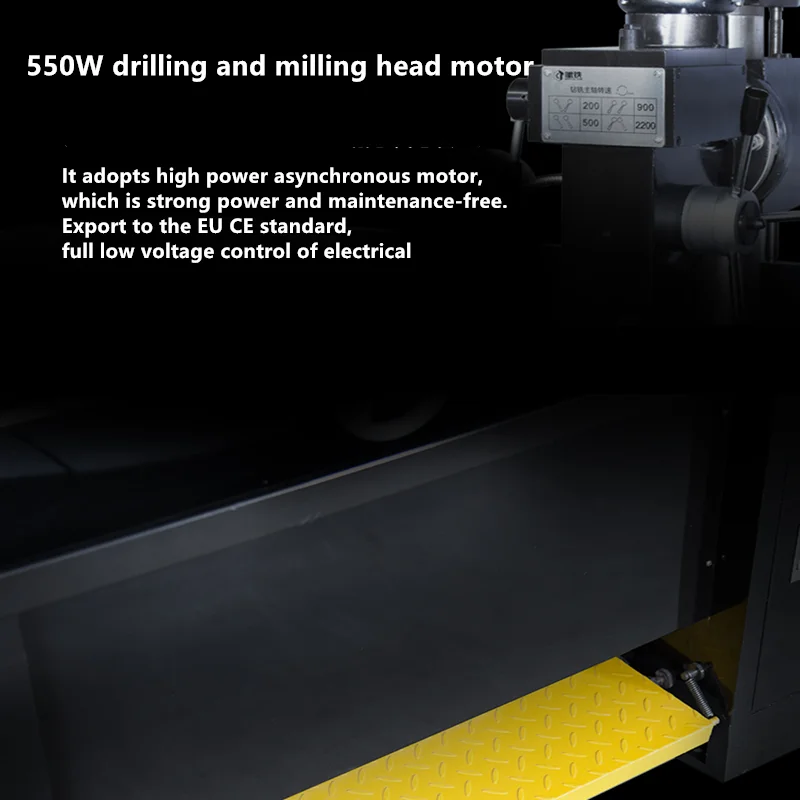

| Motor | 220V 50HZ 550W |
| Net weight of machine tool (excluding machine base) | 475kg/500kg |

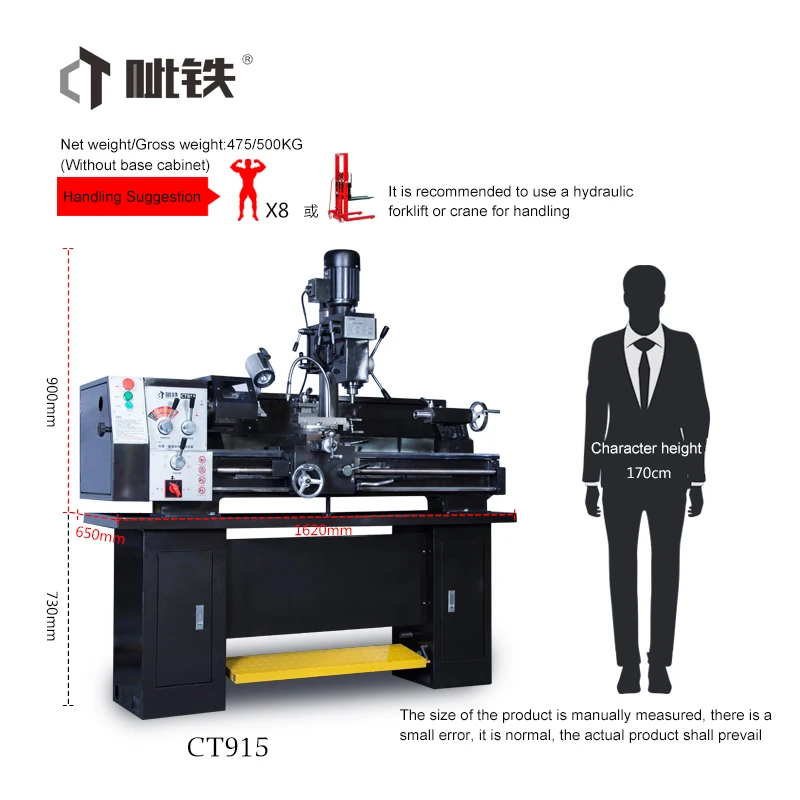

Dimensions (length * width * height) | 1620*650*900mm |
Function Display
Primary Competitive Advantages:
- Country of Origin
- Distributorships Offered
- Experienced Staff
- Guarantee/Warranty
- Product Features
- Product Performance
- Prompt Delivery
- Small Orders Accepted
- If you can't find your details,Please contact with me,then We can provide professional sevice.
- It would be better send us your drawing or CAD pictures for specialized design,then we can do better!
Our Services:
1. We are a direct manufacturer and our priority is your complete satisfaction.
2. OEM or ODM is abailable.
3. We take care of each order from start to finish. All emails will be answered in 1 day
4. No matter what's your order quantity, we will offer the same attention to our quality and service
5. Delivery & lead time: All delivery methods are ok, and our lead time is quite short. Usually, our lead time around 1-3 days, depending on the quantity.
Appliance
Dont be hesitate ,send us inquiry Now!!!
