Product Description

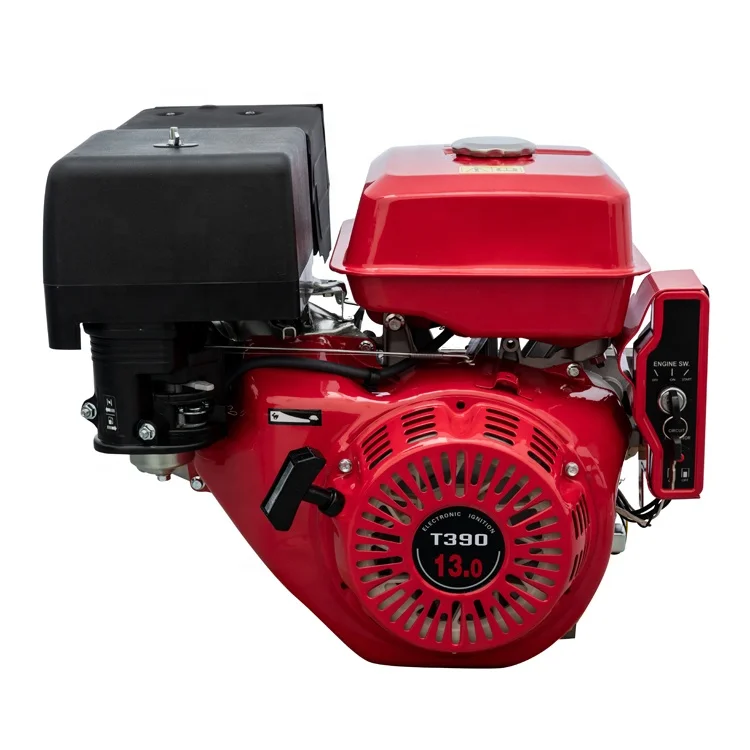

13HP Horizontal Shaft Electric Start Gasoline Engine For Log Splitter
The 389cc OHV Horizontal Engine is common used for log splitter. Rated 7.35kW@3600RPM and 26.4N.m@ 2500RPM. OHV design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides long usage life.
It is reliable, easy starting and quiet running. Meets EPA emission levels standards. CARB emission certificate is available option. Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure.
Specification
Model | T390 | Engine Type | OHV, Single cylinder | ||
Bore x Stroke | 88 x 64mm | Displacement | 389cc | ||
Compression Ratio | 8 : 1 | Start Type | Recoil Start | ||
Speed | 1800RPM | Rated Output | 7.35kW@3600RPM | ||
Maximum Output | 8.0kW@3600RPM | Torque | 26.4N.m@2500RPM | ||
Fuel Consumption | 374g/kW.h | Shaft Output | Horizontal | ||
Crankshaft | R-type | Cooling System | Air cooled | ||
Fuel Type | Gasoline | Fuel Tank Capacity | 6.5L | ||
Oil capacity | 1.1L | Lubrication System | Forced splash | ||
Low Oil Alert | Yes | Low Oil Shutdown | Yes | ||
Governor System | Centrifugal mechanical | Throttle Control | Remote (cable) | ||
Carburetor | Float | Choke Control | Manual | ||
Net Weight | 38kg | Gross Weight | 43kg | ||
Dimension(L x W x H) | 530 x 430 x 485mm | EPA Approval | Yes | ||
Available Option | Electric start, CARB | Warranty | 1 Year | ||
Shaft Rotation | (From PTO Shaft Side)\tCounterclockwise | ||||
Application | Cement mixers, gear pump and etc. | ||||
Features + Benefits
EPA certificate engine
OHV design for increased efficiency and optimal power transfer
High compression ratio for better fuel efficiency
High compression ratio for better fuel efficiency
Low vibration from precision-engineered components
Cast iron cylinder sleeve
Recoil start with compression release helps you start on the first pull
Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure
Cast iron cylinder sleeve
Recoil start with compression release helps you start on the first pull
Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure
Detailed Images
Packing & Delivery
Packing & Delivery
Durable carton box or according to demand.
Package dimension(L x W x H): 530 x 430 x 485mm
Gross weight with package: 43kg.
Lead time: regular 30 days after got deposit.
