Фрезерный станок с переменной скоростью weiss CTZX45 для металлообработки
- Категории: Сверлильные станки >>>
- Поставщик: Anhui,Citie,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Quick Details
| Condition: | New | Type: | Drilling & Milling & Tapping Machine | Power Source: | Electric |
| Place of Origin: | AnHui, China (Mainland) | Brand Name: | CTMACH | Model Number: | CTMACH-1016 |
| Dimension(L*W*H): | 845*910*1020mm | Weight: | 325kg | Voltage: | 220V |
| MOQ | 1 set | Certification: | ISO | Warranty: | One year |
| marketing mode: | directly selling | Manufacturer |
Packaging & Delivery
| Packaging Details: | Wooden Box package |
| Delivery Detail: | 1-10 Days |
Descriptions:
- Industrial grade drilling and milling and tapping three use
- Industrial grade machine tool can do 45 steel, cast iron, aluminum, stainless steel, and other non-ferrous metal processing.
- The machine is of high quality, excellent performance and easy operation, and can be operated by unskilled workers.
Applications:
- Suitable for home workshop DIY handicrafts, maintenance of cars and motorcycles in the workshop, teaching demonstrations used by schools, science and technology centers and research institutes, small and medium-sized factory small batch parts cut machining and repair.
- Small size, strong rigidity and high precision. Durable and easy to maintain

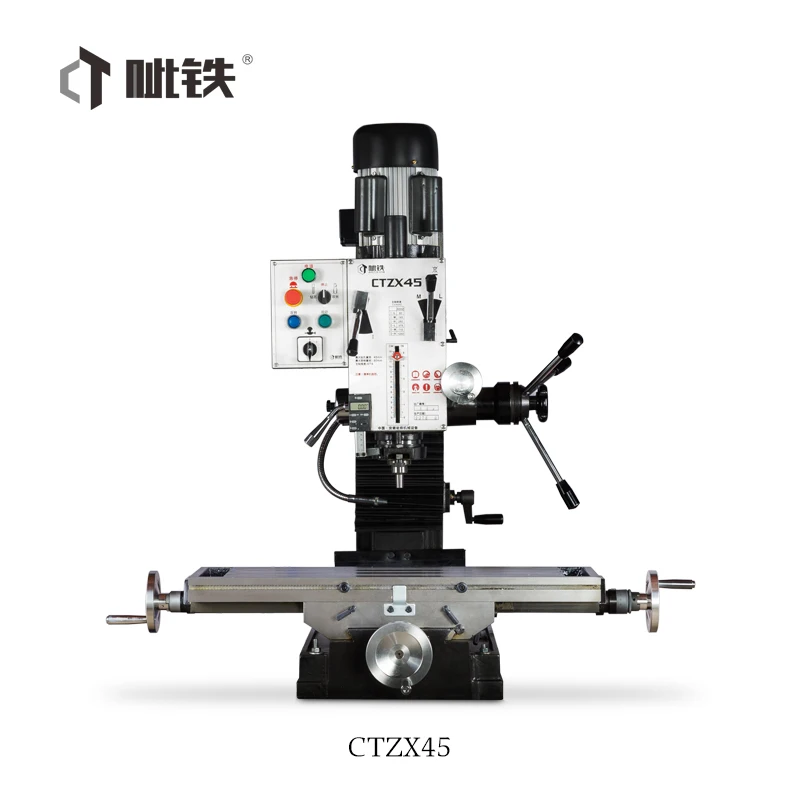

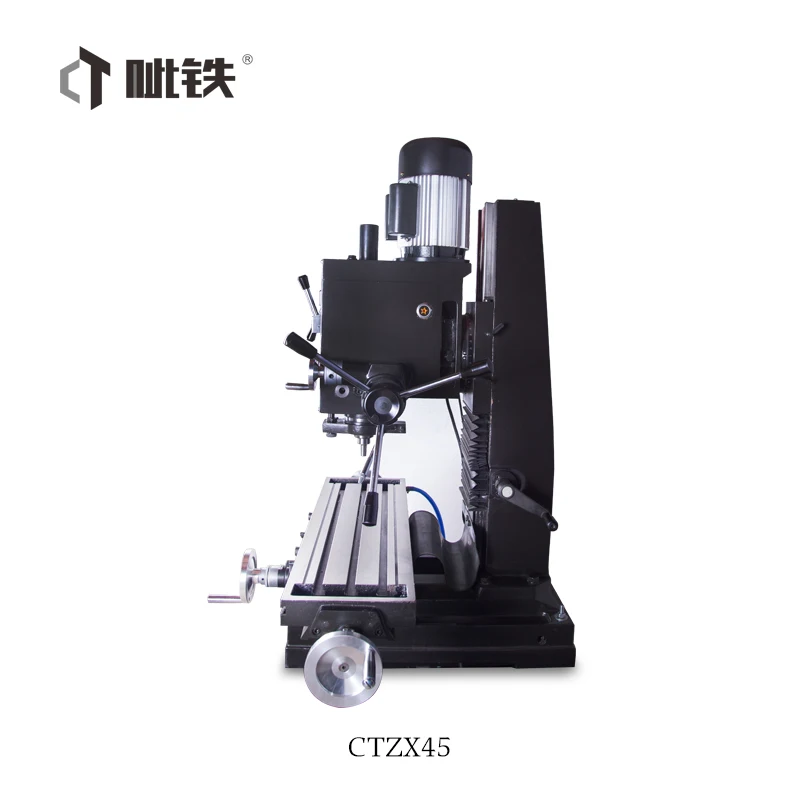

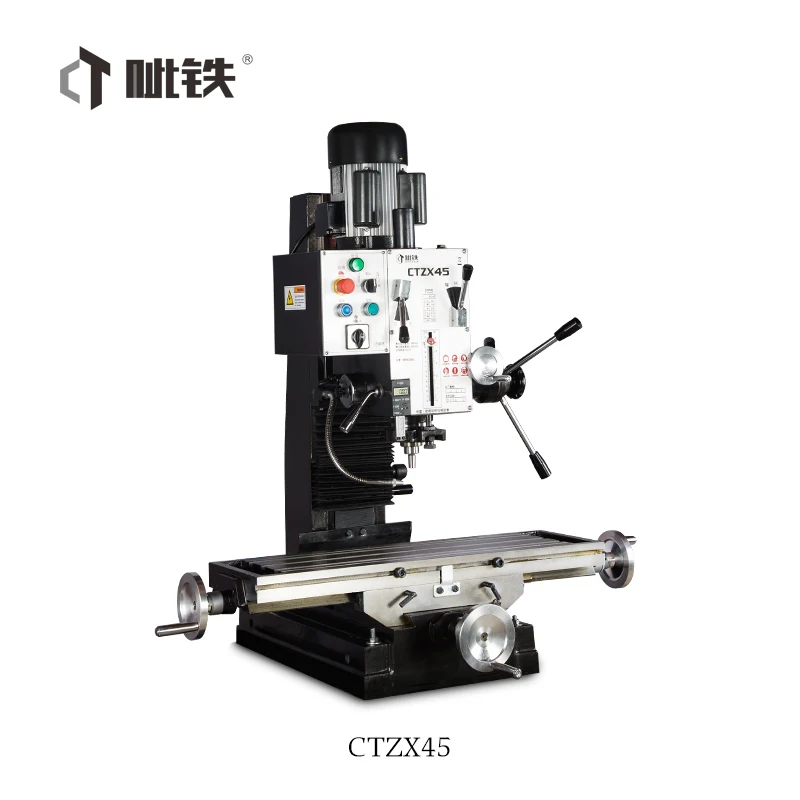

CTZX 45 Mini Drilling and Milling & Tapping Machine(CTMACH-1016)
Technical Specifications
Maximum drilling diameter | 45mm |
Maximum face milling cutter diameter | 80mm |
Maximum vertical milling diameter | 32mm |
| Maximum tapping capacity | M16 |
Spindle travel | 130mm |
Maximum distance from the spindle end to the work surface(Z stroke) | 450mm |

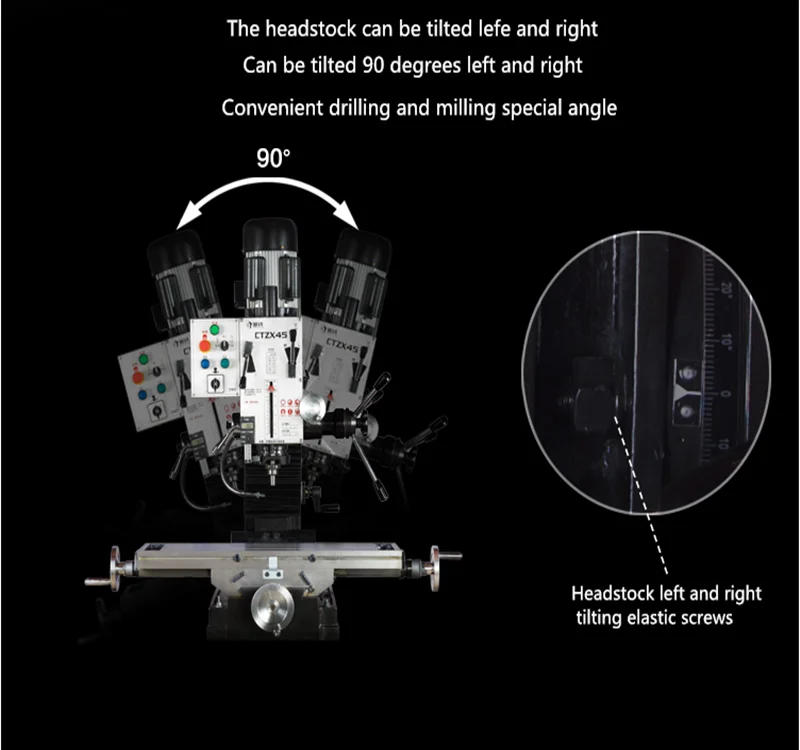

Swing angle of the spindle | +-900 |
| Spindle taper | MT4 |
Spindle axis to square column surface distance | 260mm |
Workbench area | 800*240mm |
| Workbench Y trip | 200mm |
| Workbench X trip | 580mm |
| Spindle speed | 80-1250rpm 50HZ |
| Main motor power | 1500W (2HP) |

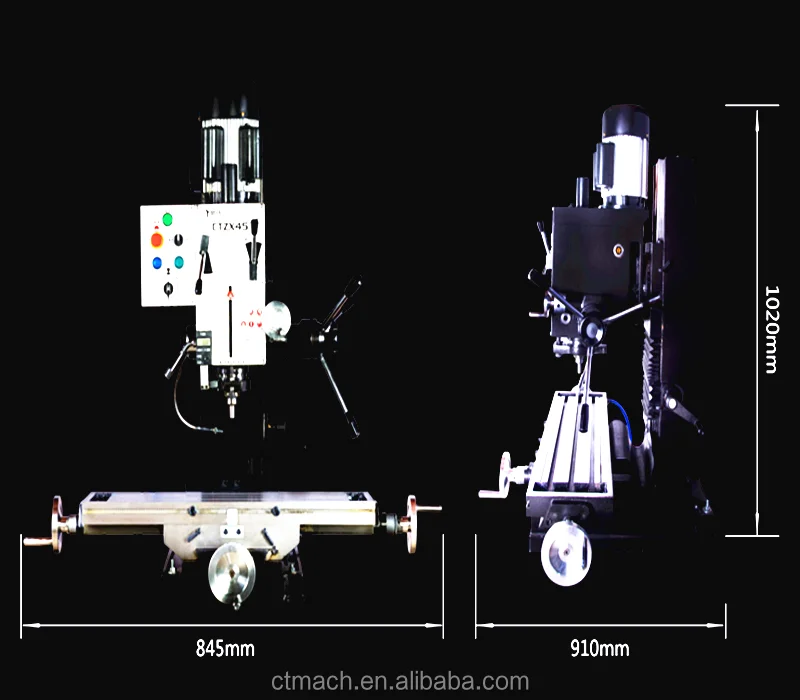

| Dimensions(L*W*H) | 845*910*1020mm |
Net weight | 325kg |
| Packing box(L*W*H) | 910*850*1020mm |

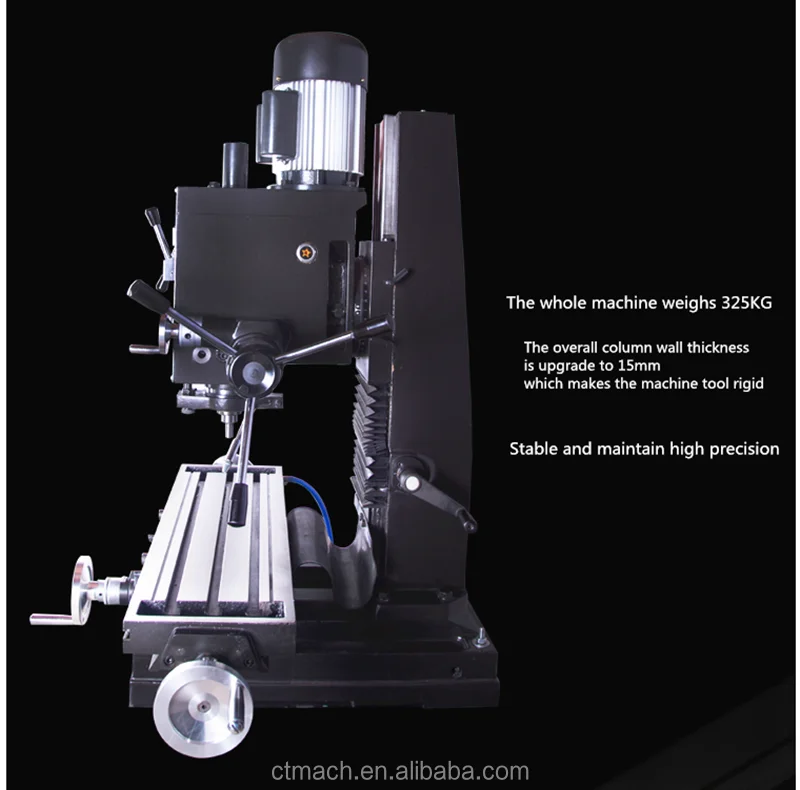

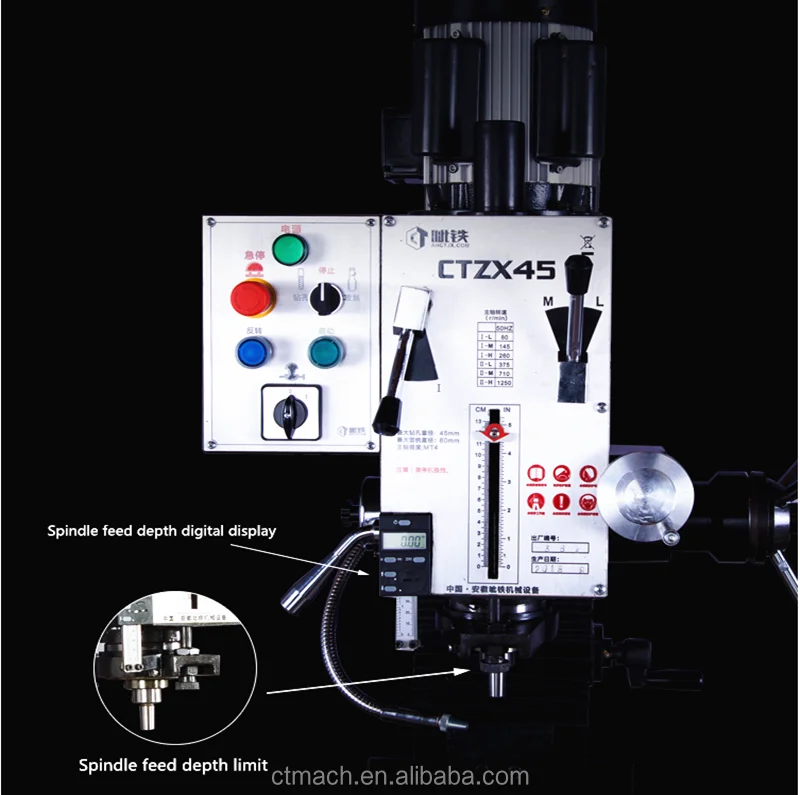

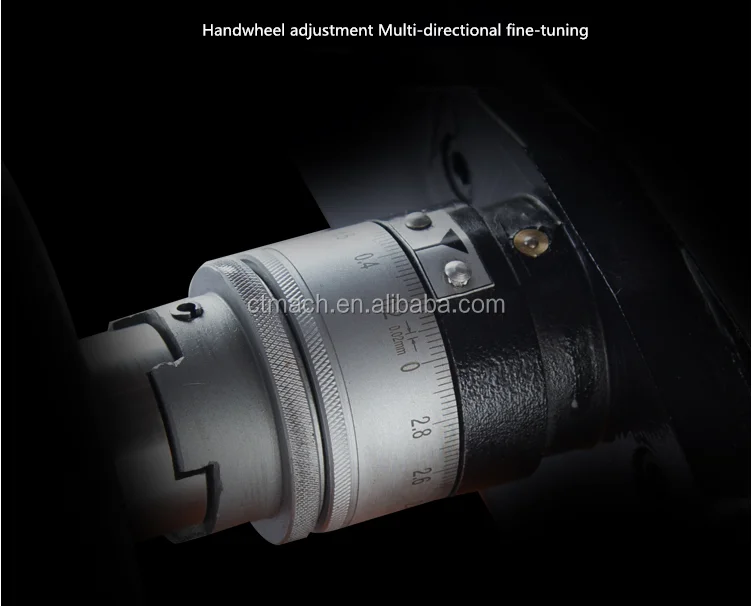

Product Display
Primary Competitive Advantages:
- Country of Origin
- Distributorships Offered
- Experienced Staff
- Guarantee/Warranty
- Product Features
- Product Performance
- Prompt Delivery
- Small Orders Accepted
- If you can't find your details,Please contact with me,then We can provide professional sevice.
- It would be better send us your drawing or CAD pictures for specialized design,then we can do better!
Our Services:
1. We are a direct manufacturer and our priority is your complete satisfaction.
2. OEM or ODM is abailable.
3. We take care of each order from start to finish. All emails will be answered in 1 day
4. No matter what's your order quantity, we will offer the same attention to our quality and service
5. Delivery & lead time: All delivery methods are ok, and our lead time is quite short. Usually, our lead time around 1-3 days, depending on the quantity.
