Европейский стандарт тормоз гидровлического давления лист металла NC Гибочная Машина гибочная
- Категории: Оборудование для обработки металлических листов >>>
- Поставщик: Anhui,HuaXia,Machine,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Type: CNC 125T/3200 CNC steel plate hydraulic press brake
Bending Material: Metal/ Stainless Steel /Carbon Steel /Aluminum
Backgauge range: 500-800
Bending precision: +-0.01
Safety Standard: Europe CE/South America
Controller Delem: Cybelec CT8P
After-sales Service: Engineers available to service machinery overseas
Detailed Images
Product Introductions
Provides a combination of performance, cost effectiveness and easy to use features.

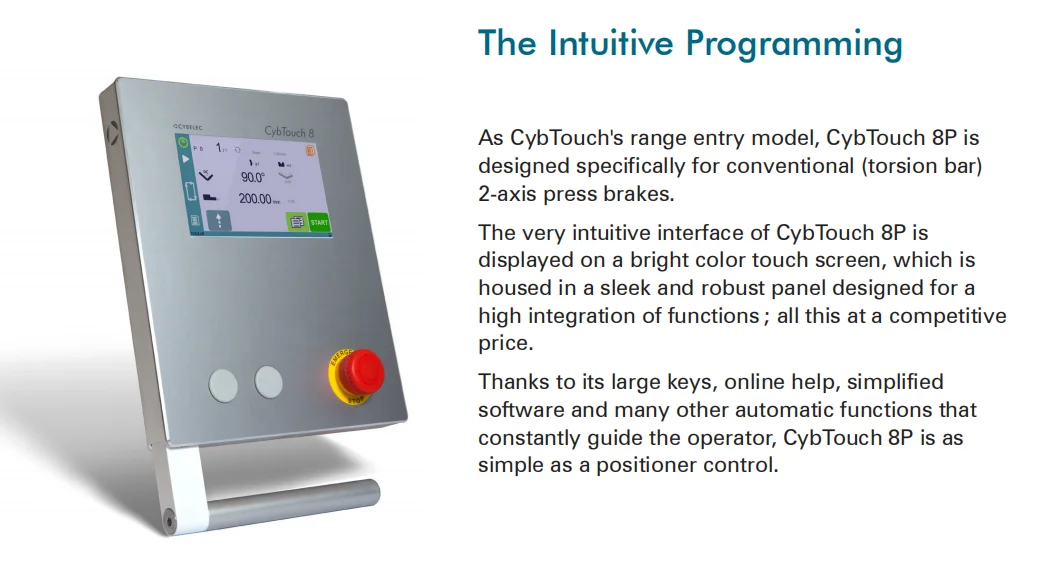

User SWISS CYBELEC CT8P control unit 3-axis NC Control: Y precision inverter drive ram positioning
X-axis precision inverter drive back gauge, V for compensation.

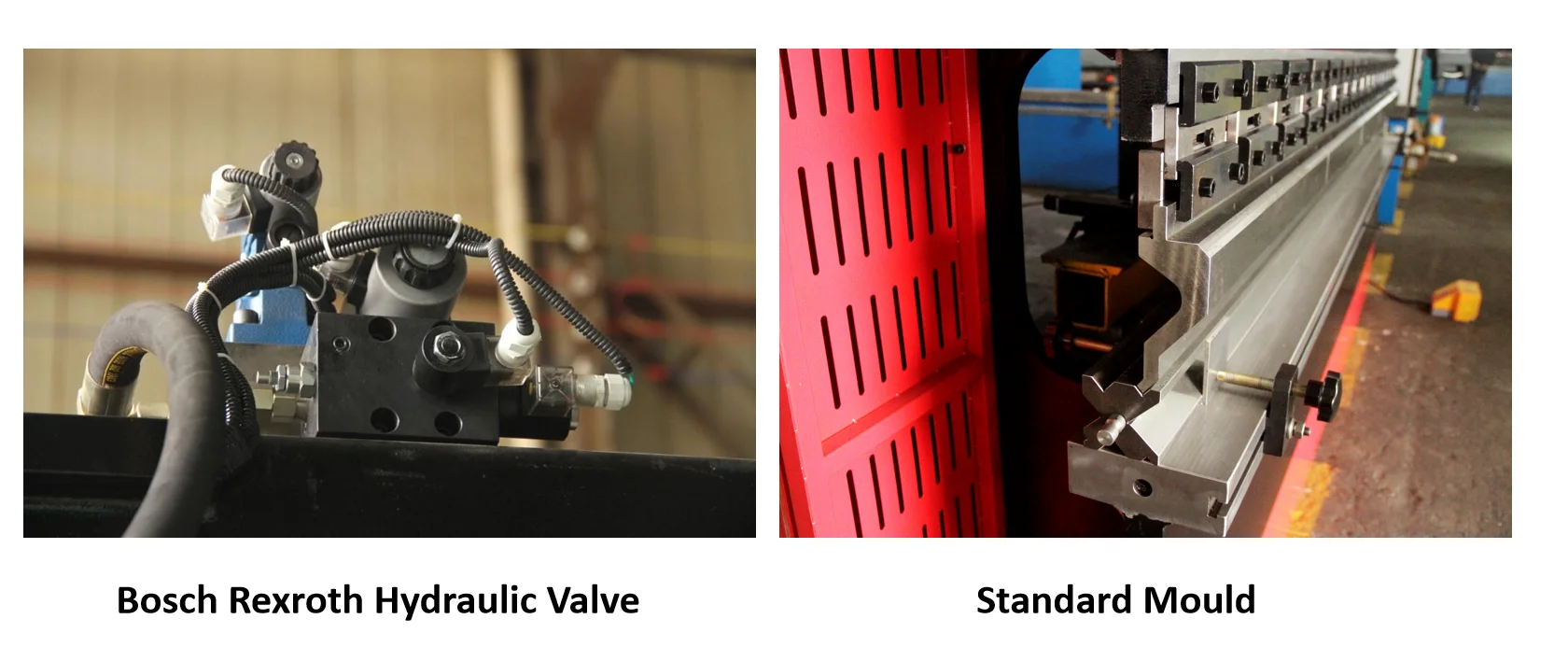

Efficient, low noise and accurate hydraulic system BOSCH REXROTH.

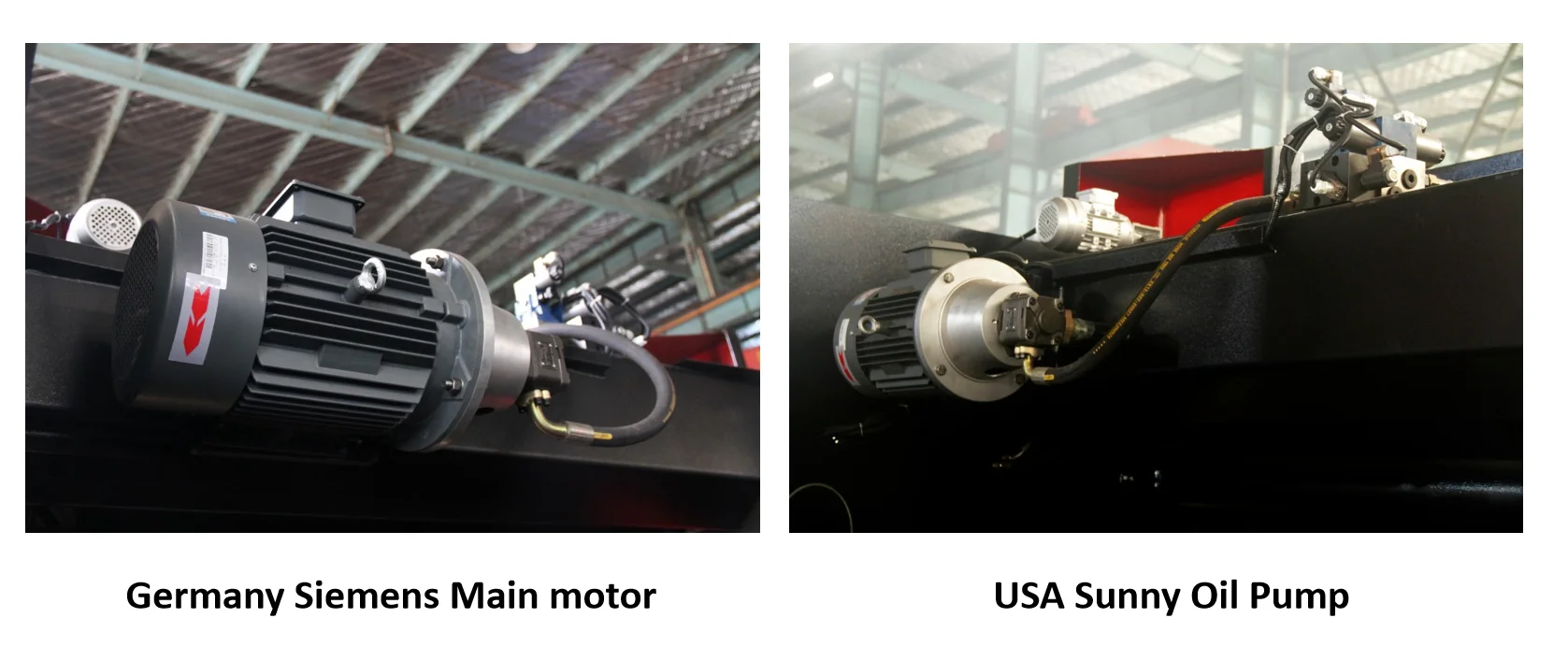

Silent and reliable internal gear pump from USA SUNNY
Hardened, grinded tools and clamps for quick tools adjustment
Manual movable back gauge fingers along of bending length
Protection covers (side and rear safety fence)

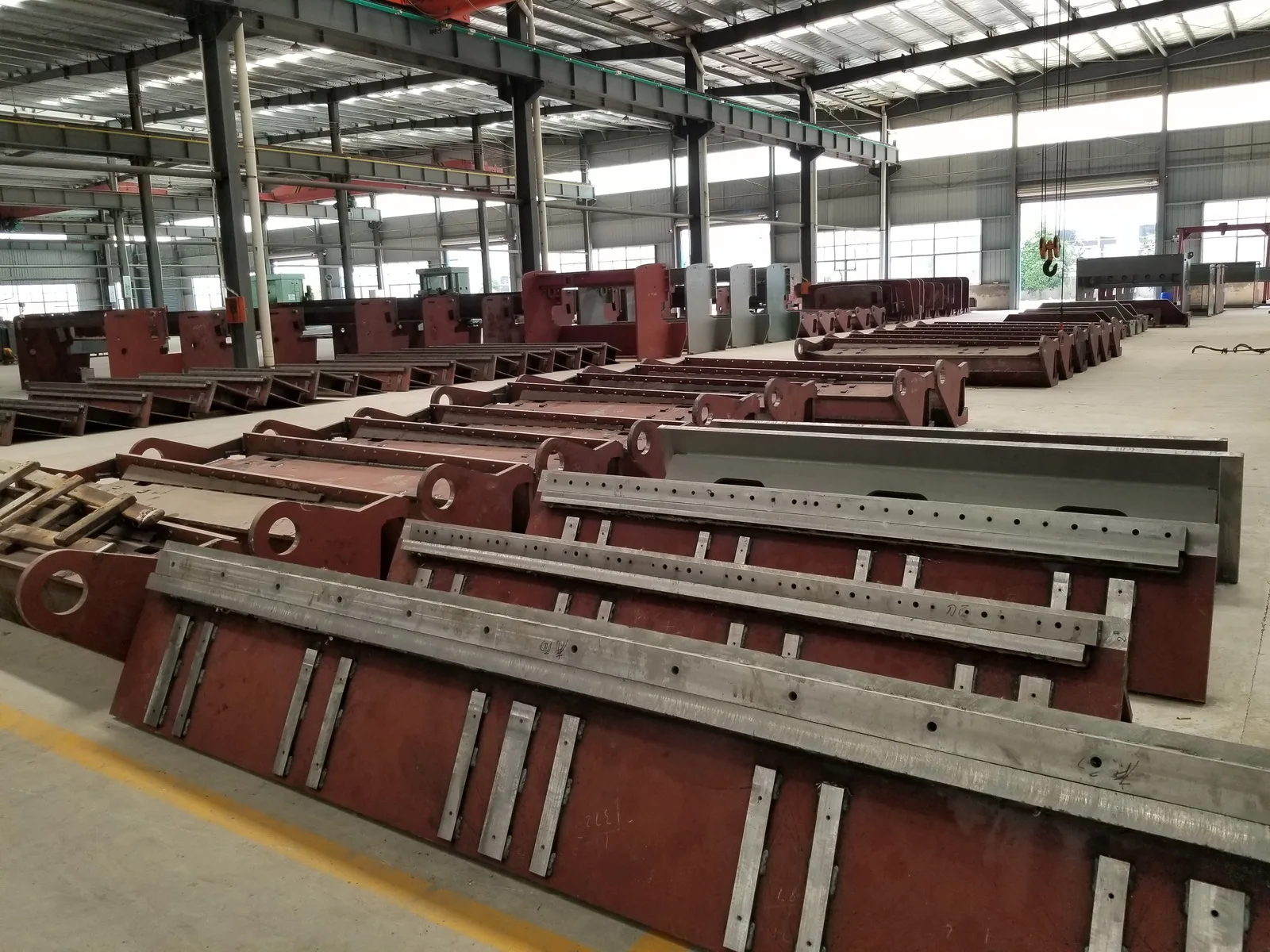

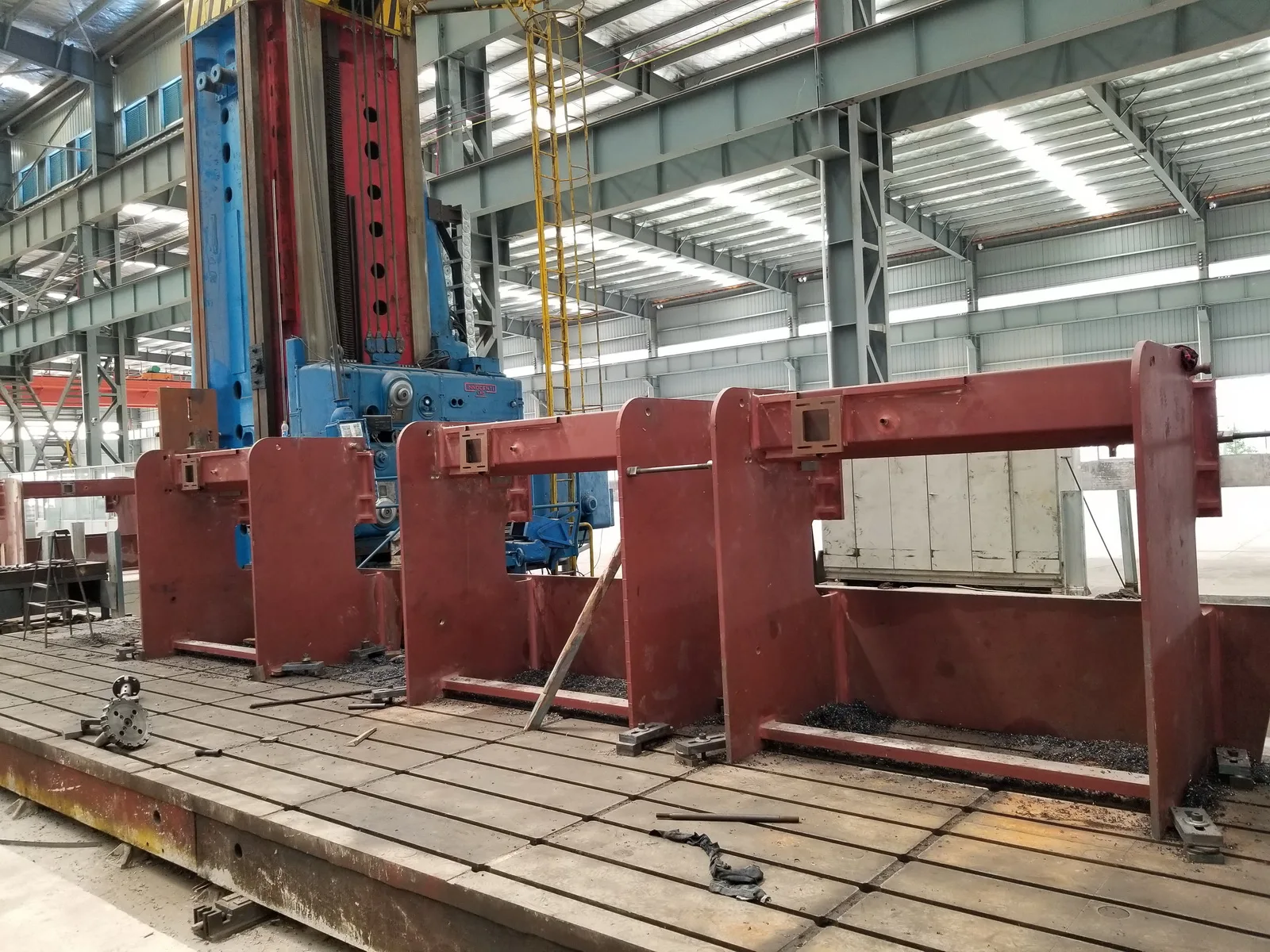

Usage of high-tech boring machines for extreme precision parts:
HUAXIA chooses the best products to guarantee long-lasting and high-tech machines.
HUAXIA selects the best components.
Protection covers (side and rear safety fence)
Usage of high-tech boring machines for extreme precision parts:
HUAXIA chooses the best products to guarantee long-lasting and high-tech machines.
HUAXIA selects the best components.
Technical analysis
Technical Parameters
Model | Bending length | Worktable width | Poles Distance | Throat depth | Slider stroke | Opening Height | Main motor | Dimension |
63T/2500 | 2500mm | 160mm | 1900mm | 250mm | 120mm | 345mm | 5.5kw | 2600*1500*2200 |
63T/3200 | 3200 | 160mm | 2600mm | 250mm | 120mm | 345mm | 5.5kw | 3300*1500*2200 |
80T/2500 | 2500 | 180mm | 1900mm | 250mm | 120mm | 350mm | 5.5kw | 2600*1700*2320 |
100T/2500 | 2500 | 180mm | 1900mm | 320mm | 120mm | 380mm | 7.5kw | 2600*1750*2420 |
100T/3200 | 3200 | 180mm | 2600mm | 320mm | 120mm | 380mm | 7.5kw | 3300*1750*2420 |
125T/3200 | 3200 | 180mm | 2600mm | 320mm | 120mm | 380mm | 7.5kw | 3200*1750*2520 |
Certifications
Our Company
Packing & Delivery
Packaging | ||
Size | ( L* W* H ) 2600*2150*2950mm | |
Weight | 3.8T | |
Packaging Details | Plastic film normal, and wooden cases optional. For big size machines (machine heigth more than 2600mm), because they are too high, can not use normal container to load. | |
