Products Description
Qotom Mini PC Q300G4 with 5th generation Intel Core Processor
* Small and compact: 187*111*50 mm
* Fan-less design, quite working
* Running 24/7
* Aluminum alloy case
* Memory, mSATA SSD and Wi-Fi are replaceable
* Running 24/7
* Aluminum alloy case
* Memory, mSATA SSD and Wi-Fi are replaceable
* Extension: SATA connector inside
* Support SIM card and 3G/ 4G Module
* Support multiple Operating System
* Support multiple Operating System
* Customized service
* One year warranty
Model: Q335G4
Intel Core i3-5005U Processor, 3M Cache, dual core 2.0 GHz
Processor Graphics: Intel HD Graphics 4400
Support AES-NI
Model: Q355G4
Intel Core i5-5200U Processor, 3M Cache, dual core 2.2 GHz, up to 2.7 GHz
Processor Graphics: Intel HD Graphics 5500
Support AES-NI
Support AES-NI
Model: Q375G4
Intel Core i7-5550U Processor, 4M Cache, dual core 2.0 GHz, up to 3.0 GHz
Processor Graphics: Intel HD Graphics 600
Support AES-NI
Processor Graphics: Intel HD Graphics 600
Support AES-NI
• Your New Computer
Work as a common desktop computer. With powerful 5th generation Intel Core I3/ I5/ I7 Proceossr (Dual core) onboard and HDMI port, connecting monitor, keyboard & mouse, it's a new computer.
• To Build a Router Firewall
With 4x Intel Gigabit LAN ports, Qotom Mini PC can be configured as a firewall, LAN or WAN router, VPN appliance, gateway device, DHCP Server, DNS Server, etc.
(The order excludes monitor, keyboard & mouse and HDMI cable.)
Work as a common desktop computer. With powerful 5th generation Intel Core I3/ I5/ I7 Proceossr (Dual core) onboard and HDMI port, connecting monitor, keyboard & mouse, it's a new computer.
• To Build a Router Firewall
With 4x Intel Gigabit LAN ports, Qotom Mini PC can be configured as a firewall, LAN or WAN router, VPN appliance, gateway device, DHCP Server, DNS Server, etc.
(The order excludes monitor, keyboard & mouse and HDMI cable.)
Operating System
* We preinstall pfsense, please re-install OS if necessary.
* It supports Windows, Linux, pfSense, Sophos, VyOS, Linux iptables, CentOS, Untangle, etc.
* F11 key boot from USB Drive. Delete key enter BIOS.
* It supports Windows, Linux, pfSense, Sophos, VyOS, Linux iptables, CentOS, Untangle, etc.
* F11 key boot from USB Drive. Delete key enter BIOS.

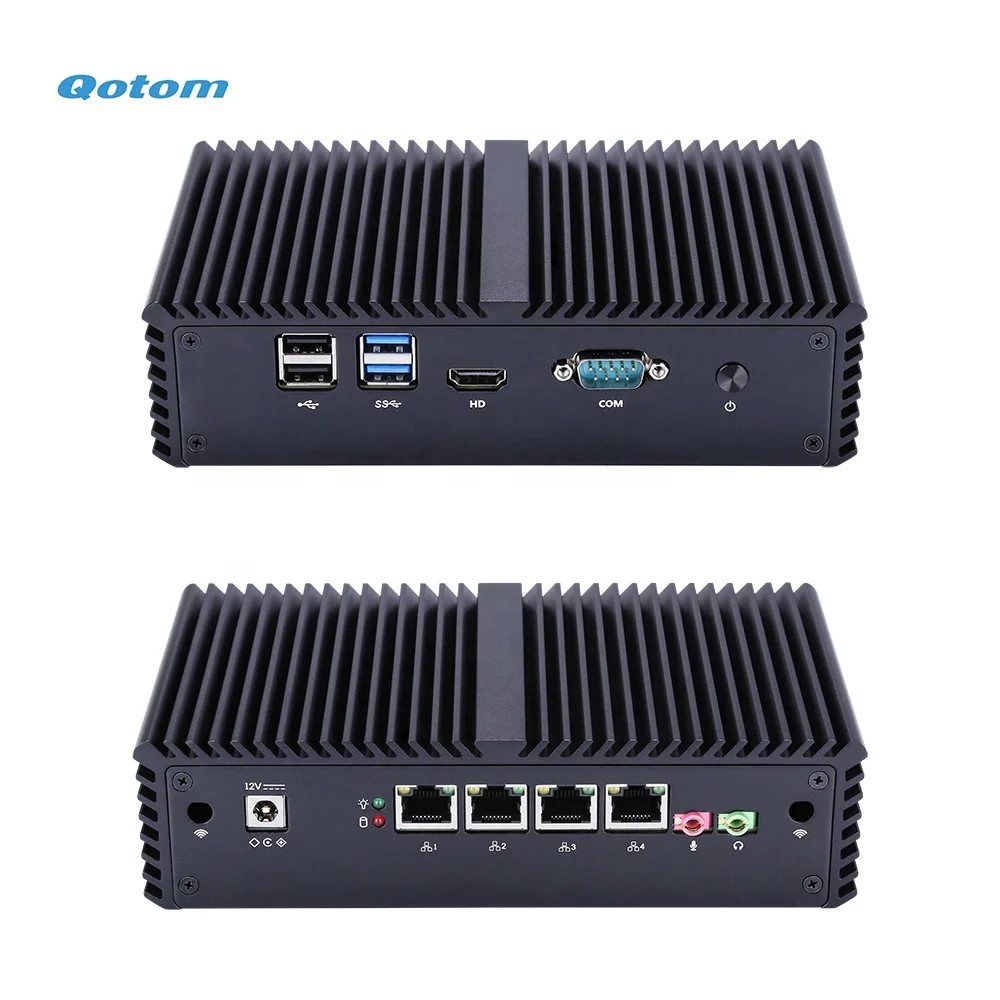

Front-Panel Connectors
• Power on/off button
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x HDMI Connector
• 1 x Serial port
• 2 x USB 2.0 Ports
• 1 x HDMI Connector
• 1 x Serial port
Back-Panel Connectors
)• 1 x DV 12V DC input
• HDD LED, Power LEDs
• 4 x Intel I211-AT- 10/100/1000 Controller
• 4 x Intel I211-AT- 10/100/1000 Controller
• 1 x Speak Out & Mic In Connector
Wi-Fi (Optional
Wi-Fi (Optional
Wi-Fi (optional)
* If you place an order online, it will come without Wi-Fi by default. If you need it, please contact us in advance.
Fan-less Design

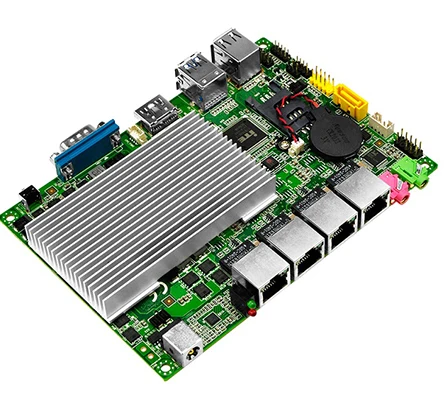

3.5 inch Mini Motherboard Fan-less design. No noise.
There is a SIM card slot on motherboard, but the half mini pcie slot support Wi-Fi by default, if you wanna install 3G/ 4G module,
please contact us, we will move a screw to make a full mini pcie slot to support 3G/ 4G module.
There is a SIM card slot on motherboard, but the half mini pcie slot support Wi-Fi by default, if you wanna install 3G/ 4G module,
please contact us, we will move a screw to make a full mini pcie slot to support 3G/ 4G module.

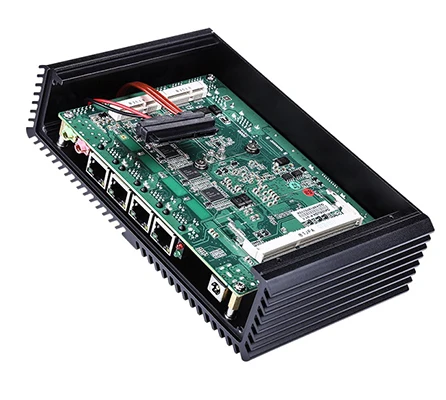

Internal Connectors
• 1 x Full Mini pcie slot (for mSATA SSD)
• 1 x SATA connector
• 1 x Half Mini pcie slot (for WIFI/BT card)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x SATA connector
• 1 x Half Mini pcie slot (for WIFI/BT card)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x SIM card slot
• 1 x Automatically boot jumper
• 1 x Automatically boot jumper
If you only wanna buy motherboard, please contact us.
Our Advantages
Qotom Team
* We are a professional designer and manufacturer of Mini PC and mini motherboard.
* We can provide customized service to try to full meet client's requirements.
* Quick delivery, competitive price, high quality and best long term service.
* Quick delivery, competitive price, high quality and best long term service.
Product packaging
Packing
1 x Mini PC
1 x Power supply (adapter and cord)
1 x VESA bracket & screws
1 x color box
* Power cord options: EU/ SA/ AU/ US/ CH Type
* Dual antennas if you buy Wi-Fi
* If you need neutral packaging box, tell us in advance.
* Contact us if you need Motherboard User Manual and Windows drivers.
Shipment
DHL / FedEx Express: FOB Shenzhen
Buyer can receive parcel within one week. Carrier will contact Buyer to collect the import fees (Duty, VAT and other fees). Seller is not responsible for it. Please pay attention to shipment.
Seller's Shipping Method (Yun Express) to European Union: DDP EU
Buyer won't be charged anty extra duties but have to wait about 10~20 days. Only for European Union but can not deliver to all islands and overseas territories.
Ship to Russia
* ePacket: only ship one unit per shipment but freight is very cheap. About 20 days to Russia.
* J-NET: About one month to Russia but Seller prepay the duties (DDP). Cheaper freight.
* EMS: About 15 days to Russia. High freight.
If Buyer has forwarder in China
Seller can deliver goods in China.
* Important: There is a lithium metal battery on motherboard that some forwarders can not arrange shipment.
