KEWO SG320-4K0GB-2S DC to AC 220V 4kw Инвертор контроллера солнечного

 KEWO SG320-4K0GB-2S DC to AC 220V 4kw solar pump controller inverter

Fully automaticsystem using variable speed drive compatible with AC, 3-phase, submersible and surface mount pumps, and high efficiency PMSM Pumps. The system is composed of a PV generator, a pump and a solar pump drive. Based on the design philosophy that it is more efficient to store water rather than electricity, there is no energy storing device such as storage battery in the system. The system is prepared to be combined with a elevated water storage, e.g. water tower or an uphill tank installation.

Presentation

KEWO Solar Water Pumping Solution is a fully automatic system designed to provide water at affordable cost for people with limited or no access to electricity. It uses the most advanced SG320 variable speed drive to regulate the speed of a 3-phase AC motor depending upon the solar energy available from the solar panel.

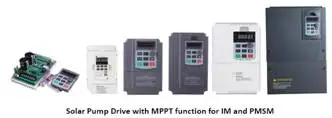

         KEWO solar pump inverter

How does it work ?

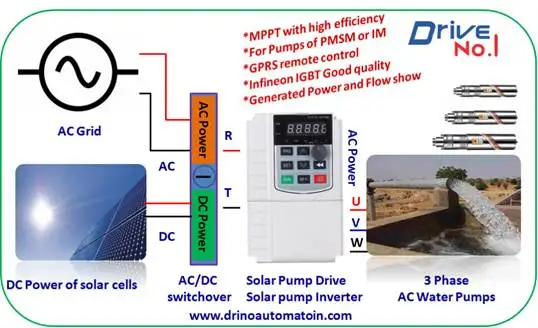

An arrays of solar panels generates the power and voltage required for the SG300/320 Solar to drive the motor. The solar drive converts the DC voltage input to a 3-phase AC output with variable voltage and frequency. The MPPT algorithm of solar drive extracts maximum power available from the solar panels during the day and operates the motor at variable speed based on the power input to the drive. The frequency range in which the drive operates depends upon the motor speed, hydraulic system and the power available from the solar panel. As the sunshine varies during the day, power input to the drive varies and the Solar drive generates variable V/F ratio thus controlling the speed of the motor, which in turn regulates the pump impeller speed. Water Level Sensor is used only when the water is pumped to overhead tank.

Benefits

• Pumping of water in for irrigation for drinking water supply in off grid areas, easy installation.
• Farmer can cultivate multiple crops through out the year in off grid areas
• Farmer can save their time spent in collecting and transporting water.
• Lower operation expense compared to diesel pumps
• Zero emission of green house gases.
• Reduced load on national grid.
