Фармацевтический анализатор размера нано-частиц динамическое рассеивание
- Категории: Other Test Instruments >>>
- Поставщик: Jinan,K-Ring,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Характеристики
Product Description

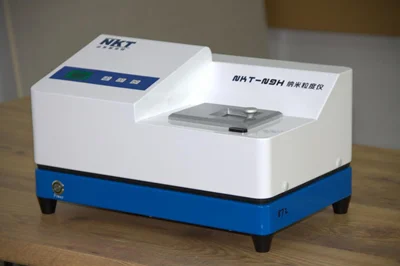

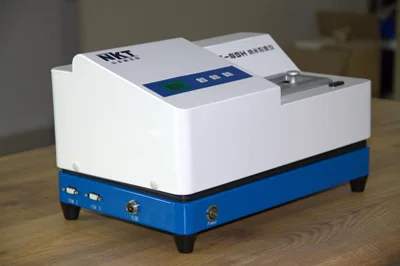

Pharmacy Nano Materials Dynamic Light Scattering Nano Particle Size Analyzer
Description:
New NKT-N9 is the latest nanometre particle size analyzer based on dynamic light scattering principle introduced by our company. It uses high-speed photon correlate and professional high-performance photo-multiplier tube as the core device. It has the characteristics of fast, high resolution, repeat ability and accuracy. It is the preferred product for nano particle size determination. New N9 has been completely new designed.
Specification model | NKT-N9 |
Implementation standard | GB/T 29022-2012/ISO 22412：2008 |
Test range | 1-10000nm(related to sample) |
concentration range | 0.1mg/L-100mg/L(related to sample) |
Accuracy error | <1% (average particle size of national standard sample) |
repeatability error | <1% (average particle size of national standard sample) |
Laser | Main laser: λ=532nm, semiconductor laser /LD pump laser,p > 30 MW |
Detector | Photomultiplier tube (PMT) |
Scattering angle | 90° |
Sample cell | 10mm*10mm , 4ml |
temperature range | 5-90℃ (accuracy 0.1℃) |
Rated voltage | AC110V/ AC220V |
Test speed | < 1Min/ time (excluding sample dispersion time) |
Photon correlator | Physical Channel: 512, Equivalent Channel: 10000, Baseline Channel: 8 Sampling and delay time: 1us~200us dynamically adjustable Minimum resolution: 6ns |
