CTV36 диаметр 36 мм Ручная мельница машина для сверления и фрезерования металла CE ISO работа с Заводской ценой 1 5 лет 220
- Категории: Drilling Machines >>>
- Поставщик: Anhui,Citie,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Quick Details
| Condition: | New | Type: | Drilling & Milling & Tapping Machine | Power Source: | Electric |
| Place of Origin: | AnHui, China (Mainland) | Brand Name: | CTMACH | Model Number: | CTMACH-1020 |
| Dimension(L*W*H): | 1000*700*1000mm | Weight: | 220kg | Voltage: | 220V |
| MOQ | 1 set | Certification: | ISO | Warranty: | One year |
| marketing mode: | directly selling | Manufacturer |
Packaging & Delivery
| Packaging Details: | Wooden Box package |
| Delivery Detail: | 1-10 Days |
Descriptions:

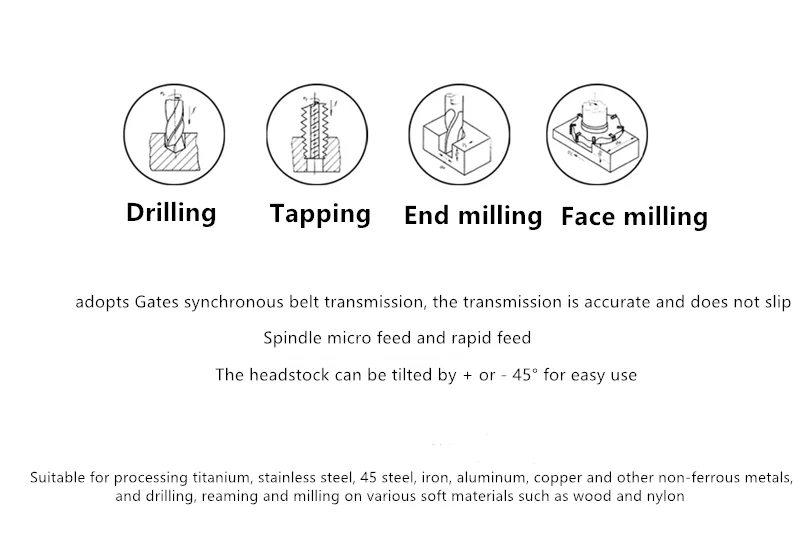

- Industrial grade drilling and milling and tapping three use

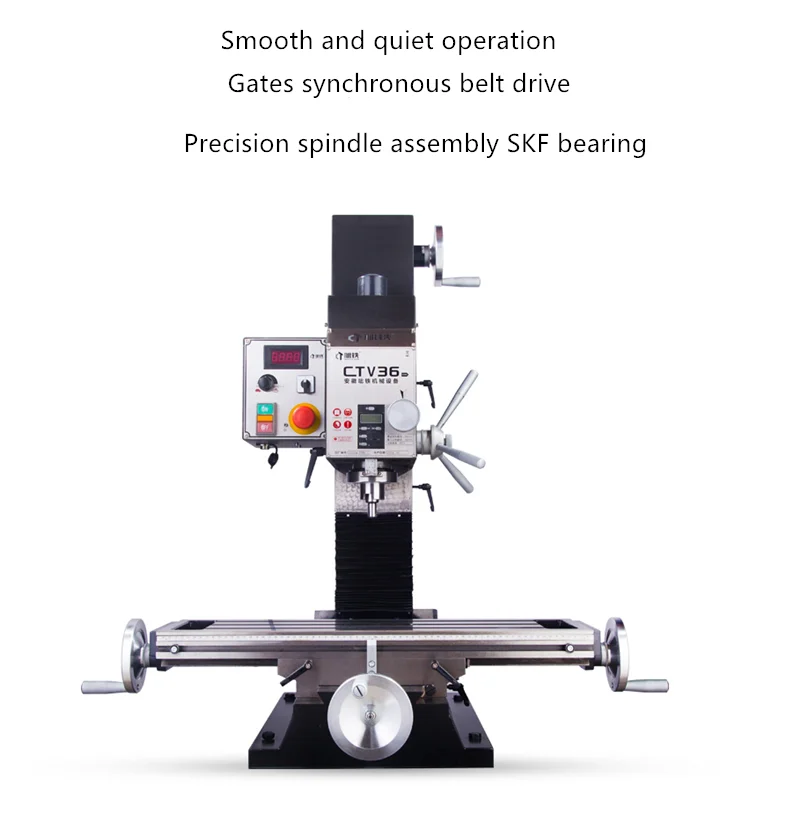

- Smooth and quiet operation

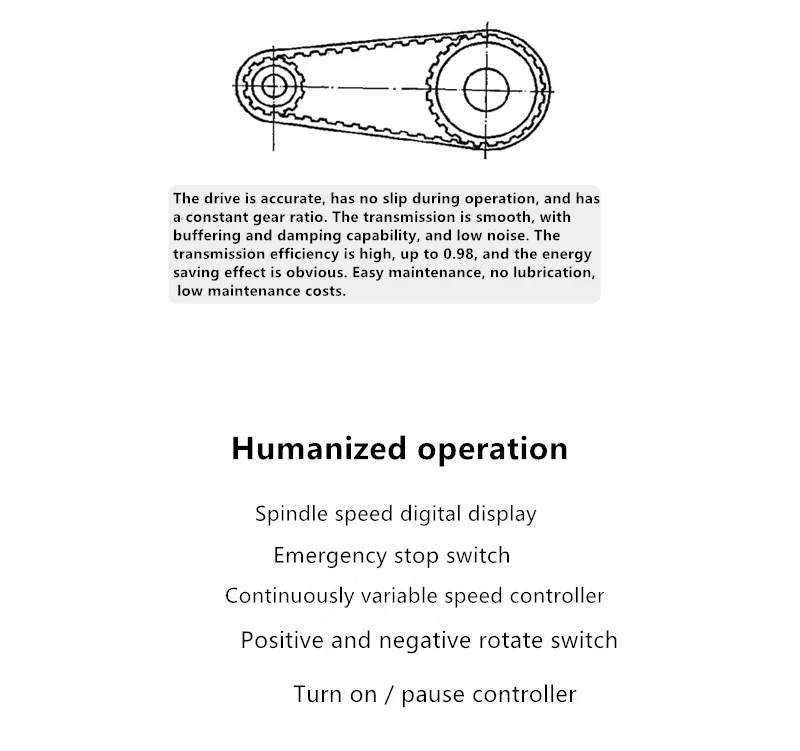

- Gates synchronous belt drive

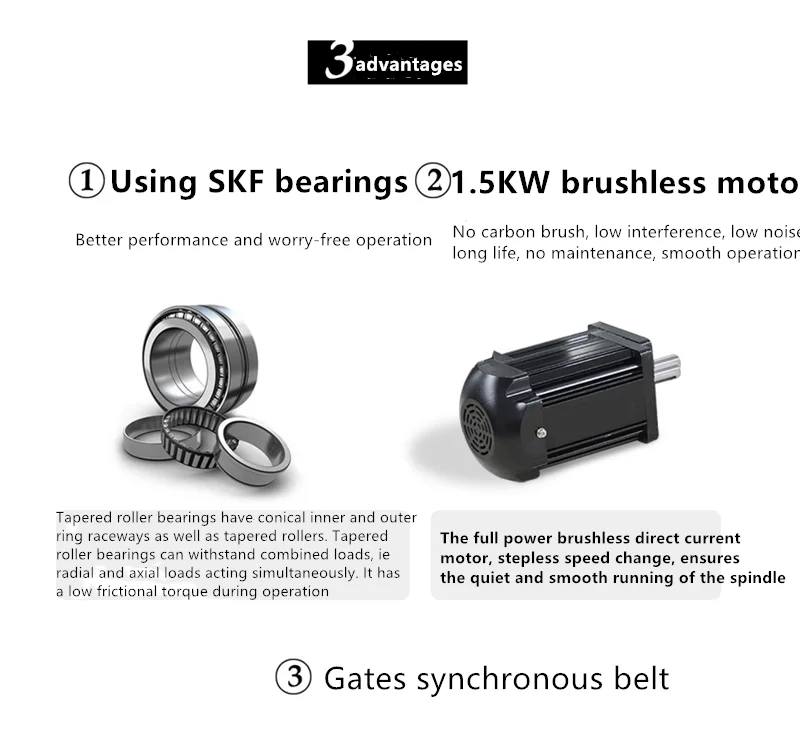

- Precision spindle assembly SKF bearing
Applications:
- Suitable for home workshop DIY handicrafts, maintenance of cars and motorcycles in the workshop, teaching demonstrations used by schools, science and technology centers and research institutes, small and medium-sized factory small batch parts cut machining and repair.
- Small size, strong rigidity and high precision. Durable and easy to maintain

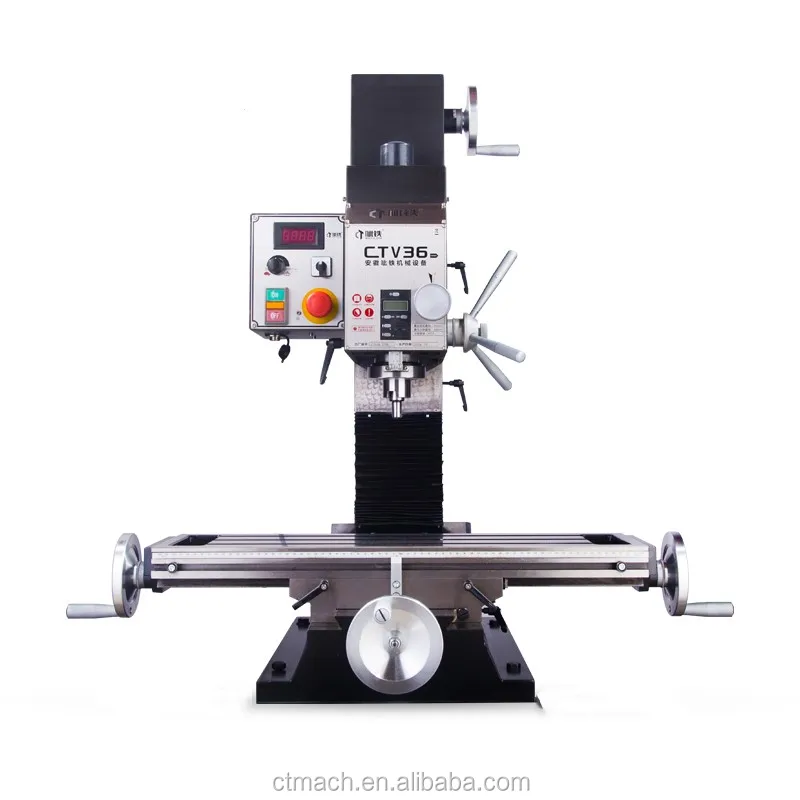

CTV 36 Mini Drilling and Milling & Tapping Machine (CTMACH-1020)
Technical Specifications
Maximum drilling diameter | 36mm |
Maximum face milling capability | 76mm |
Maximum end milling capability | 30mm |

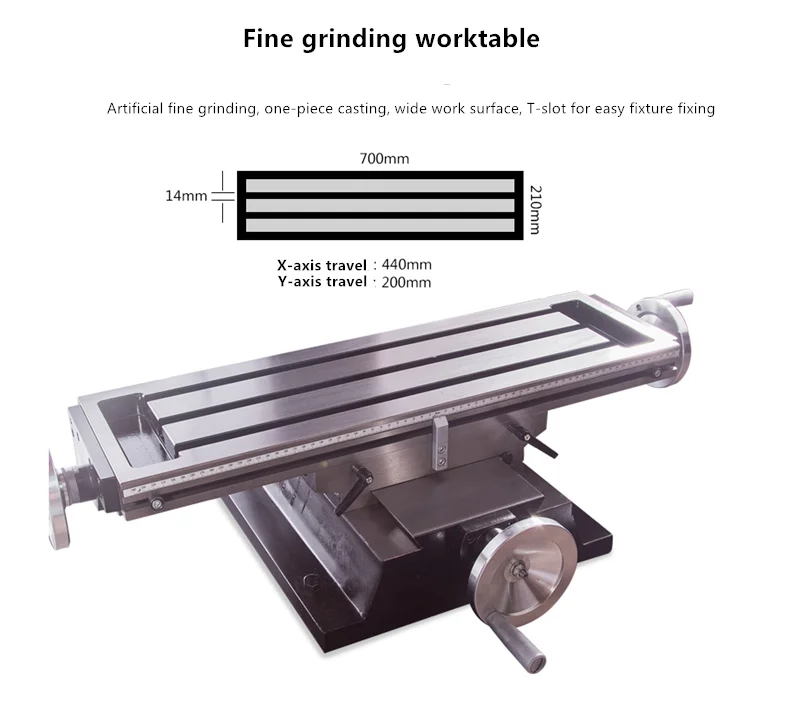

Workbench area | 700*210mm |
| T-slot size | 14mm |
X-axis travel | 440mm |
Y-axis travel | 200mm |
| Z-axis travel | 350mm |
| Spindle taper | MT3 |
| Spindle travel | 70mm |
| Spindle axis to column guide distance | 190mm |
| Spindle end to work surface distance | 470mm |

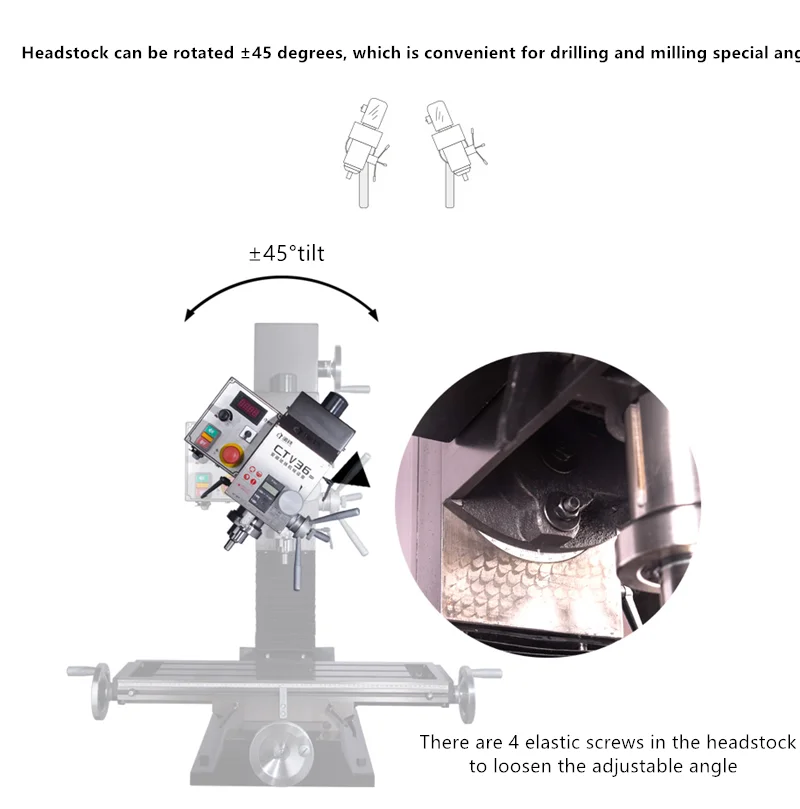

| Headstock left and right angle | +-45 |
| Spindle speed | 100-2250rpm |
Spindle speed series | Continuously variable speed |
Motor Power | 1500w |

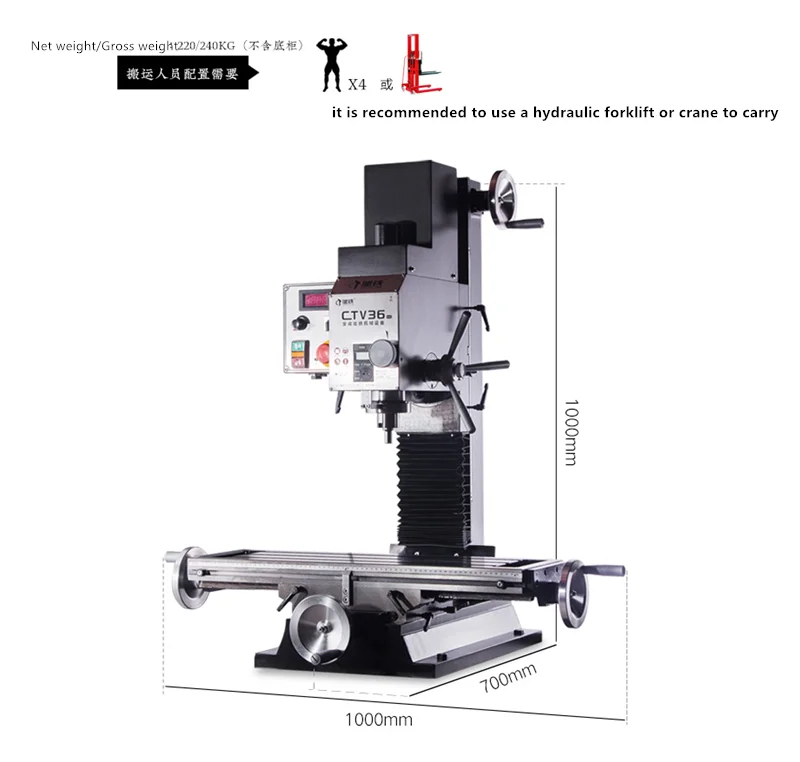

| Net weight / gross weight | 220/240kg |
| Dimensions(L*W*H) | 1000*700*1000mm |
| Packing box(L*W*H) | 900*740*1150mm |

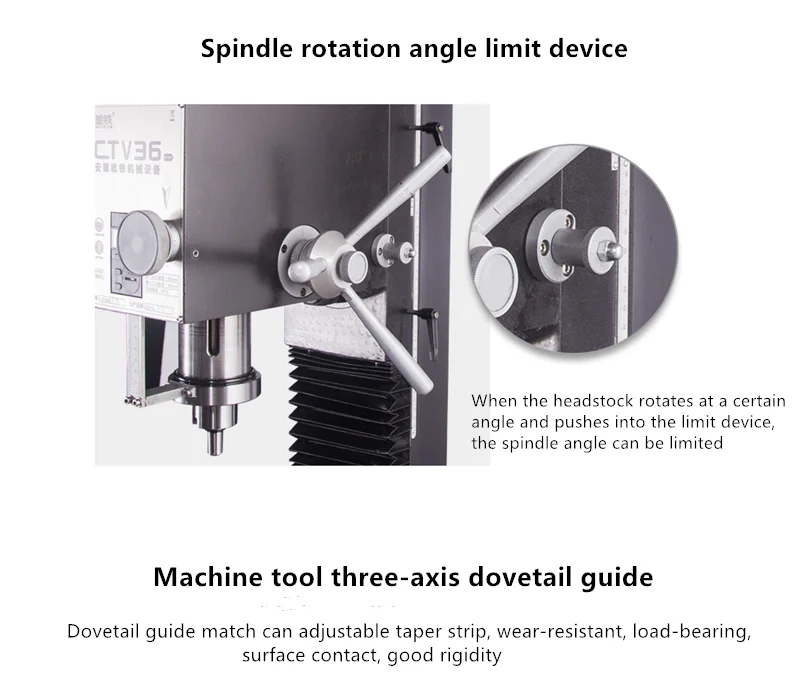

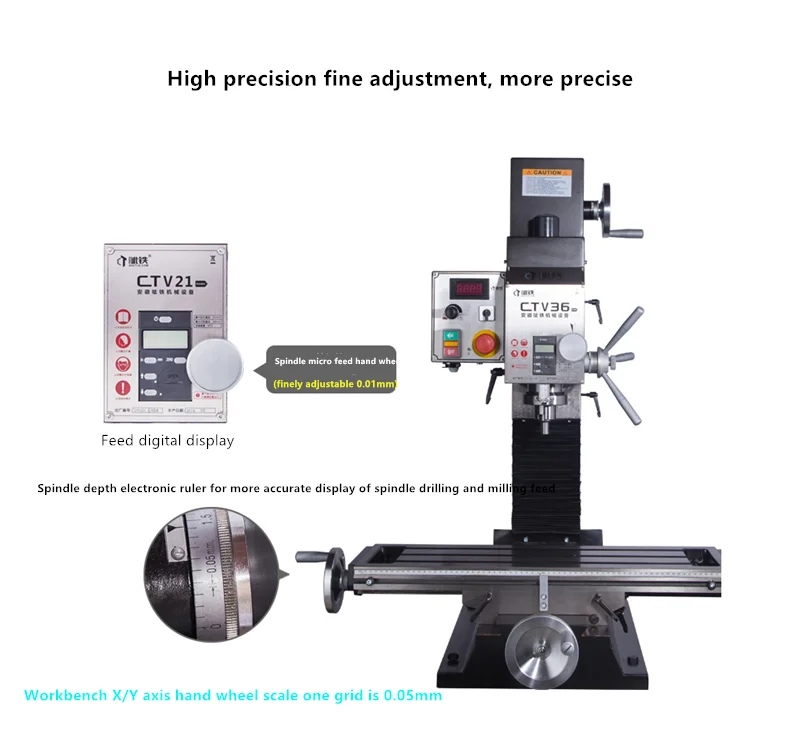

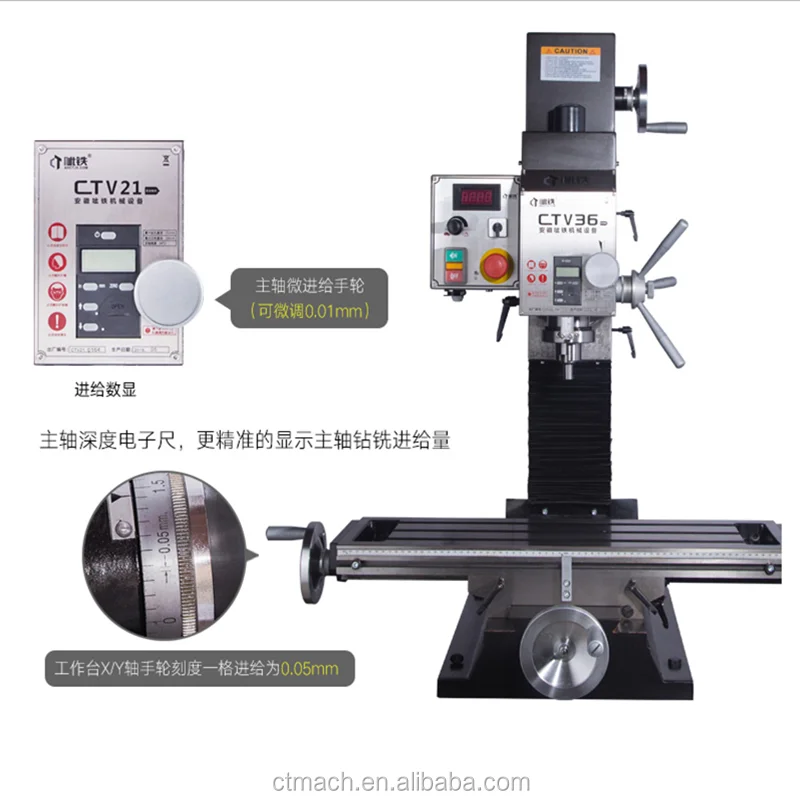

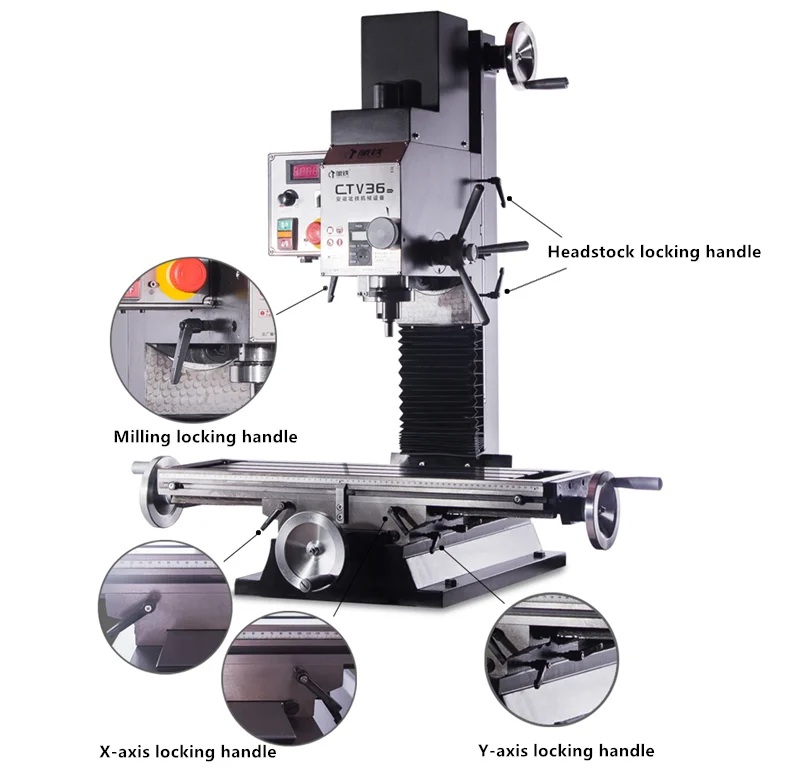

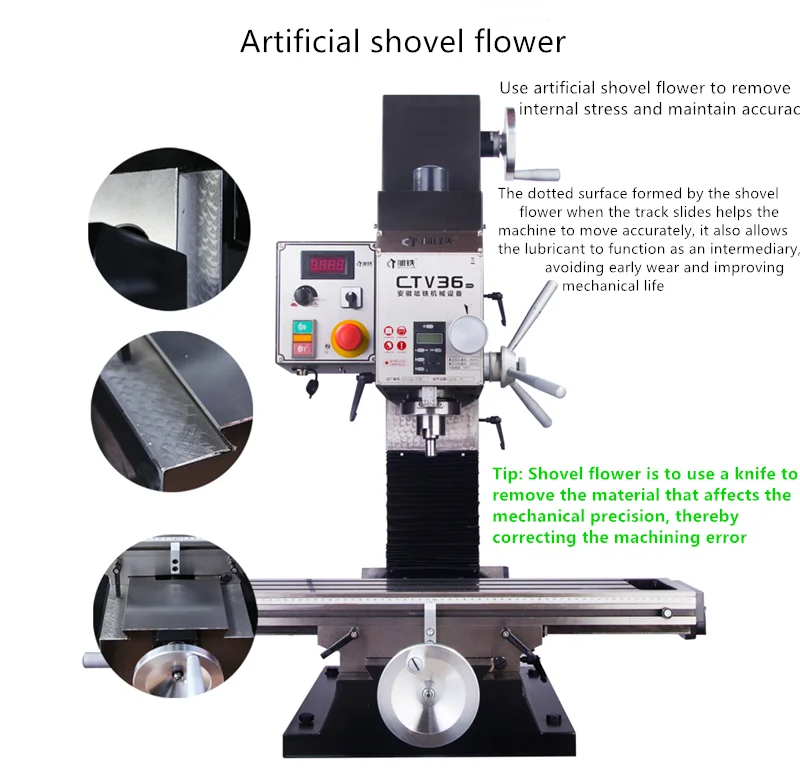

Function Display
Primary Competitive Advantages:
- Country of Origin
- Distributorships Offered
- Experienced Staff
- Guarantee/Warranty
- Product Features
- Product Performance
- Prompt Delivery
- Small Orders Accepted
- If you can't find your details,Please contact with me,then We can provide professional sevice.
- It would be better send us your drawing or CAD pictures for specialized design,then we can do better!
Our Services:
1. We are a direct manufacturer and our priority is your complete satisfaction.
2. OEM or ODM is abailable.
3. We take care of each order from start to finish. All emails will be answered in 1 day
4. No matter what's your order quantity, we will offer the same attention to our quality and service
5. Delivery & lead time: All delivery methods are ok, and our lead time is quite short. Usually, our lead time around 1-3 days, depending on the quantity.
Appliance
Dont be hesitate ,send us inquiry Now!!!
