thermocol plate making machine, plastic plate making machine
Machine Video Link:
https://www.youtube.com/watch?v=k33AmuyF3_k
Hot Product
Product Description
Sample information:
Usage:

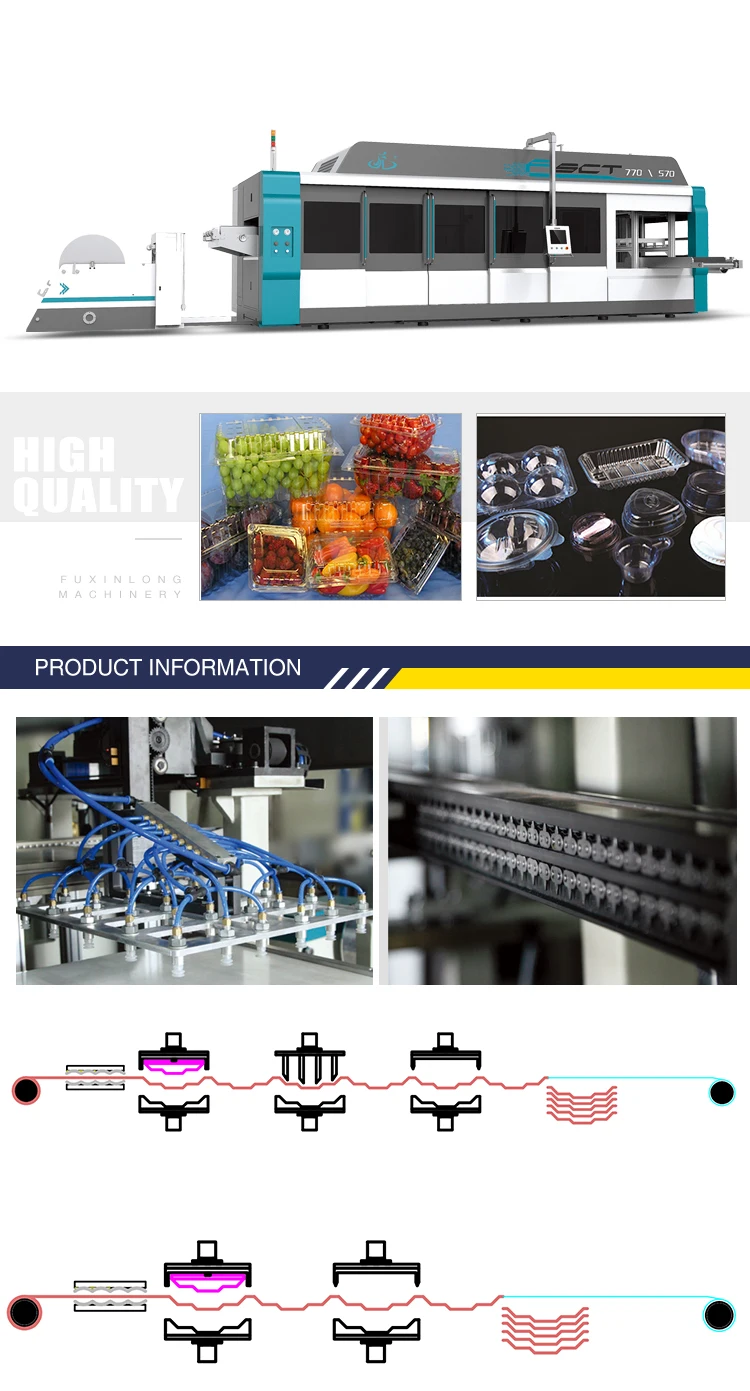

The FSCT Series adopts the most advanced thermoforming technology.This series combine high output,high quality,high efficiency,low consumption,suitable for mass production.Its outstanding stability and superior performance will provide an excellent return.
Main parameters:
| Model | FSCT-680/420-A | FSCT-680/420-B | FSCT-770/570-A | FSCT-770/570-B |
| Qty of Stations | 3 | 4 | 3 | 4 |
| Sheet Material | PP,PS,PET,PVC,HIPS,EPS,OPS,ABS | |||
| Max.Forming Area | 680x420mm | 770x570mm | ||
| Max.Forming Depth | 100/100mm | |||
| Max.Sheet Width | 700mm | 790mm | ||
| Max.Sheet Roll Dia. | 1200mm | |||
| Sheet Thickness | 0.1-2mm | |||
| Air Consumption | 3m³/min,0.6-0.8Mpa | |||
| Overall Power | 120kw | 130kw | 180kw | 190kw |
| Machine Size | 9500x2300x2500mm | 10500x2300x2500mm | 11500x2400x2400mm | 12600x2400x2400mm |
| Weight | 8T | 12T | 15T | 20T |
| Power Supply | 380V/50HZ/3P | |||
