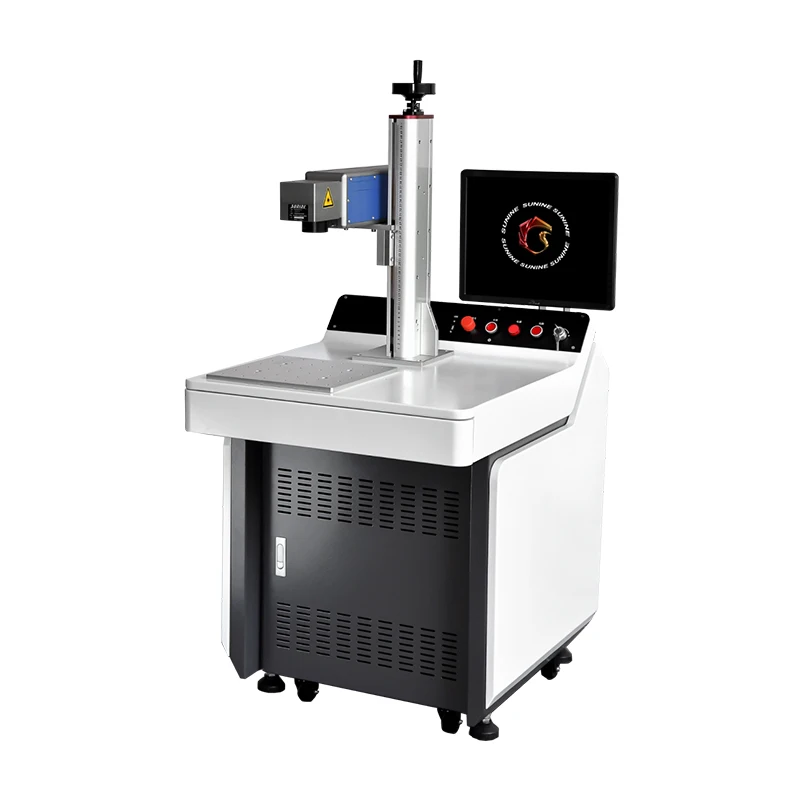

High Quality Mini Desktop Flying Metal 50w Raycus 20 Watt Gold Fiber Laser Marking Machine
Features:
- Safety and environmental protection work does not produce pollution
- No daily consumption costs
- Marking effect is unique and clear, cannot be smeared and changed, water proof
- Super high precision, high speed and easy operate, super long lifetime.
- 2D powerful working table.
- It can mark any logo, photo and jewelry which need rotary marking.
Specifications
Prodcut Name | F2000 F3000 F5000 Laser Engraving Machine | |
Machine general machine | Main control | Industrial PC, color LCD screen display |
Generator laser | IPG/ Raycus Fiber laser generator | |
Output power | ≥20/30/50W | |
Laser wave length | 1064nm | |
Lens | High precision 2 dimensional scanning system | |
Marking speed | ≤12000mm/s | |
Switching power supply | AC220 15V | |
Operating system | WINDOWS XP/7 | |
Cooling system | Air cooling | |
Laser marking parameter | Focus zoom lens | |
Marking line type | Raster font, vector font for choosing | |
Min.line width | 0.012mm | |
Repeatability accuracy | 0.003mm | |
Working area | 110mm×110mm or customized working area | |
Positioning | Red light positioning and focusing | |
Lines of marking | No limited in working area | |
Working environment | The external temperature 0 ℃ - 40 ℃; Humidity of 95% or less; The condensation; No vibration |
What are the advantages of laser marking?
Laser marking systems offer reduced downtime, elimination of consumables (both for cost and environmental reasons), permanent marks and reduced preventive maintenance and cost usually associated with ink-based printers.
What materials can be laser marked?
A variety of materials are suited to laser marking, here are just a few examples:
Glass, paperboard, ceramics, metals such as aluminum, cast iron, copper, steel, titanium, etc. Plastics and polymers (PET, PVC, PE, HDPE, LDPE, PPR)
If you are not sure your product’s material, please send some samples to us, our expert will test them for evaluation.
The three most commonly types of laser used are CO2 laser, fiber laser and UV laser. Different kinds lasers can work on different material. If you are looking for a good recommendation, contact us immediately.
What variables should be considered when selecting the appropriate laser marking system?
Factors to be included in evaluating the correct system include line speed, pitch (spacing) between products, substrate (material) to be marked, code content (amount and field size), environmental conditions and integration needs.
Why should i choose your company?
A powerful R&D team with high education level, a well-trained after-sales team, a wealth of working experience in laser marking industry (more than 10 years), we are the TOP manfacuturer of fly laser marking machines in China. Also, we are not just machine seller, but also solution expert. We are able to provide custom service based on your requirements. Many cases will be shared with you. If you are looking for a supplier who offer high quality laser printers at compeitive price, then do not hesitate to contact us.
If I buy machines from your company, do you provide technical support?
Yes. We have a whole after-sales team at your service. We will provide video of installation as well as online technical training.
What’s your warranty?
Our warranty is 12 months. During the warranty period, we provide customers with free parts for repair; if you need to return to the factory for repair, all repair costs and freight will be borne by us. After the warranty period, we will continue to provide maintenance services. Besides, we offer permenant softeware upgrading service for free.
