Ultra Thin Moko M1 Beacon with Coin Size nRF52832 Bluetooth Ble 5.0 for Asset Tracking
The STICKBeacon is a portable iBeacon tag with ultra low power ARM chipset nRF52832 and leverage BLE 4.0 technology; it has a
portable case shape, accurate hardware and robust firmware . It is designed for the commercial advertising and indoor
location-based service.
STICKBeacon broadcasts 2.4GHz radio signals at regular and adjustable intervals. STICKBeacon can be heard and interpreted by iOS
and Android BLE-enabled devices that are equipped with many mobile apps..
Product Description
Technology Parameter | ||||||||
Item | Value | Remarks | ||||||
Case Color | White | Other colors can be customized | ||||||
Battery Model | CR2032 Coin battery | 1pc, 230mAh | ||||||
Operation Voltage | 1.8-3.6V | DC | ||||||
Waterproof level | IP67 | |||||||
Transmission Current | 53.3uA | Tested at -4dBm transmission power and 1000ms Advertising Interval | ||||||
Average Current | 23.35uA | Tested at -4dBm transmission power and 1000ms Advertising Interval | ||||||
Transmission Range | 30m(+4dBm) | The range depends on the physical environment | ||||||

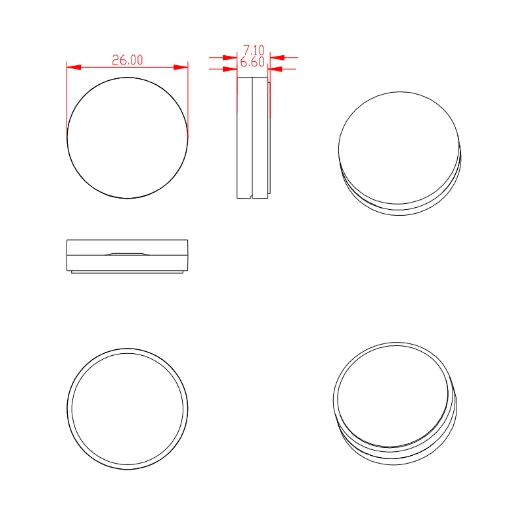

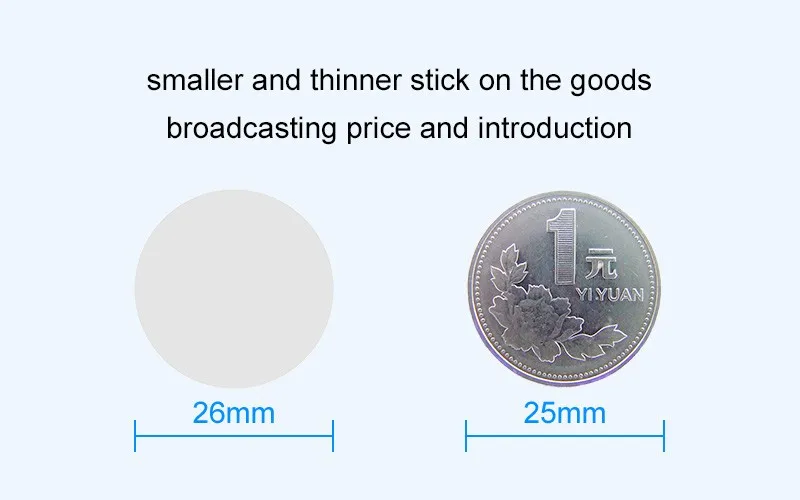

Size | 25.93x25.93x6.6mm | |||||||
Antenna | 50ohm | On board/PCB Antenna | ||||||
Net Weight | 5.4g With battery | |||||||
Details Images
SPECIFICATION
Compatibility
-Supported iOS 7.0+ and Android 4.3+ system;
-Compatible with Apple iBeaconTM standard;
-Compatible with all Bluetooth 4.0 (BLE) devices;
Long Battery Lifetime and Battery Level
-18 months, with the default settings;
-LED will be flashing when battery low;
-Easy to get the real-time battery level notification;
Additional optional sensors available
We can also provide users with the same type of products with 3-axis accelerometer according to customer’s needs.
-Supported iOS 7.0+ and Android 4.3+ system;
-Compatible with Apple iBeaconTM standard;
-Compatible with all Bluetooth 4.0 (BLE) devices;
Long Battery Lifetime and Battery Level
-18 months, with the default settings;
-LED will be flashing when battery low;
-Easy to get the real-time battery level notification;
Additional optional sensors available
We can also provide users with the same type of products with 3-axis accelerometer according to customer’s needs.
Product Usage
How to use it?
Load the URL onto beacon
If you'd like to set up your own Physical Web beacon, you can follow these steps below
1. Download the beacon configuration app MokobeaconX from Google Play or Apple store;
2. Open MokobeaconX, and connect the beacon.
3. Click the device icon, select the SLOT 3 (URL), and enter the URL slot, then Click'Save' to save the changes as below image.
If you'd like to set up your own Physical Web beacon, you can follow these steps below
1. Download the beacon configuration app MokobeaconX from Google Play or Apple store;
2. Open MokobeaconX, and connect the beacon.
3. Click the device icon, select the SLOT 3 (URL), and enter the URL slot, then Click'Save' to save the changes as below image.
Turn on/off
Company Introduction
Packing&Shipping
Samples:
we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.
we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.
orders:
bulk orders usually take about 2 to 3 weeks after payment received
bulk orders usually take about 2 to 3 weeks after payment received
Related Products
FAQ
Q1: Do the Beacons work with IOS and Android phones?
A1: Yes, We will send the user manual to you to set up the beacon ,you can test the Beacon with IOS and Android phones.
Q2: Do you provide the technical support to the developers?
A2: SURE. The following technical data and documents will be provided.
1. SDK 2. API 3. Configuration APP 4. Instructions
Q3: Is the Beacons Certified ?
A3: Yes, all of our Beacons are with FCC/CE/RoHS Certificates, we can provide to customers anytime if needed.
Q4: If the beacon can be managed remotely ?
A4: Yes, you can use our app to connect the beacon within the beacon range area to change the paramters.
Q5: If there have monthly charge after we purchased the beacon from you ?
A5: NO, we won't have monthly charge for our clients.
Q6: Could brand the product with our company LOGO?
A6: Yes, pls send an AI file with your logo to us, then our engineer will access for you.
Q7: What's the warranty of the product?
Q7: we supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.
Q8: Could we have an customized beacon ?
A8: Yes, We offer the OEM/ODM service.
A1: Yes, We will send the user manual to you to set up the beacon ,you can test the Beacon with IOS and Android phones.
Q2: Do you provide the technical support to the developers?
A2: SURE. The following technical data and documents will be provided.
1. SDK 2. API 3. Configuration APP 4. Instructions
Q3: Is the Beacons Certified ?
A3: Yes, all of our Beacons are with FCC/CE/RoHS Certificates, we can provide to customers anytime if needed.
Q4: If the beacon can be managed remotely ?
A4: Yes, you can use our app to connect the beacon within the beacon range area to change the paramters.
Q5: If there have monthly charge after we purchased the beacon from you ?
A5: NO, we won't have monthly charge for our clients.
Q6: Could brand the product with our company LOGO?
A6: Yes, pls send an AI file with your logo to us, then our engineer will access for you.
Q7: What's the warranty of the product?
Q7: we supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.
Q8: Could we have an customized beacon ?
A8: Yes, We offer the OEM/ODM service.
For more questions, Welcome to contact us.
